Chester Chest™ Vascular Access Simulator With Port Access Arm, Light
This model is supplied with an updated arm, Advanced Arm (VT2386)
Download:
Made in USA by Vata Inc. and sold by GTSimulators.
GTSimulators by Global Technologies
VATA Inc. Authorized Dealer
0.0 lb
🎄 HOLIDAY SAVINGS - Ends Dec 31 🎄
Discount is automatically applied at checkout.
Chester Chest™ Vascular Access Simulator With Port Access Arm, Light
Item # VT2410
$1,035.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
1-Year Warranty
Provided by manufacturer -
Made in USA
Manufactured in the U.S -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Chester Chest™ Vascular Access Simulator With Port Access Arm, Light
Chester Chest™ has been an industry standard since 1986 for the teaching of central line care. The right chest area
features a 9.6Fr tunneled central catheter that is visible up to the clavicle. The Dacron cuff on this catheter is
also discernable. The external jugular vein is slightly raised with an opening to attach your own triple lumen
catheter and there is also an opening in the upper chest area for placement of a subclavian catheter. These optional
catheters are available from VATA, or if you prefer, you can send us the catheters your institution uses and we will
install them at no charge.

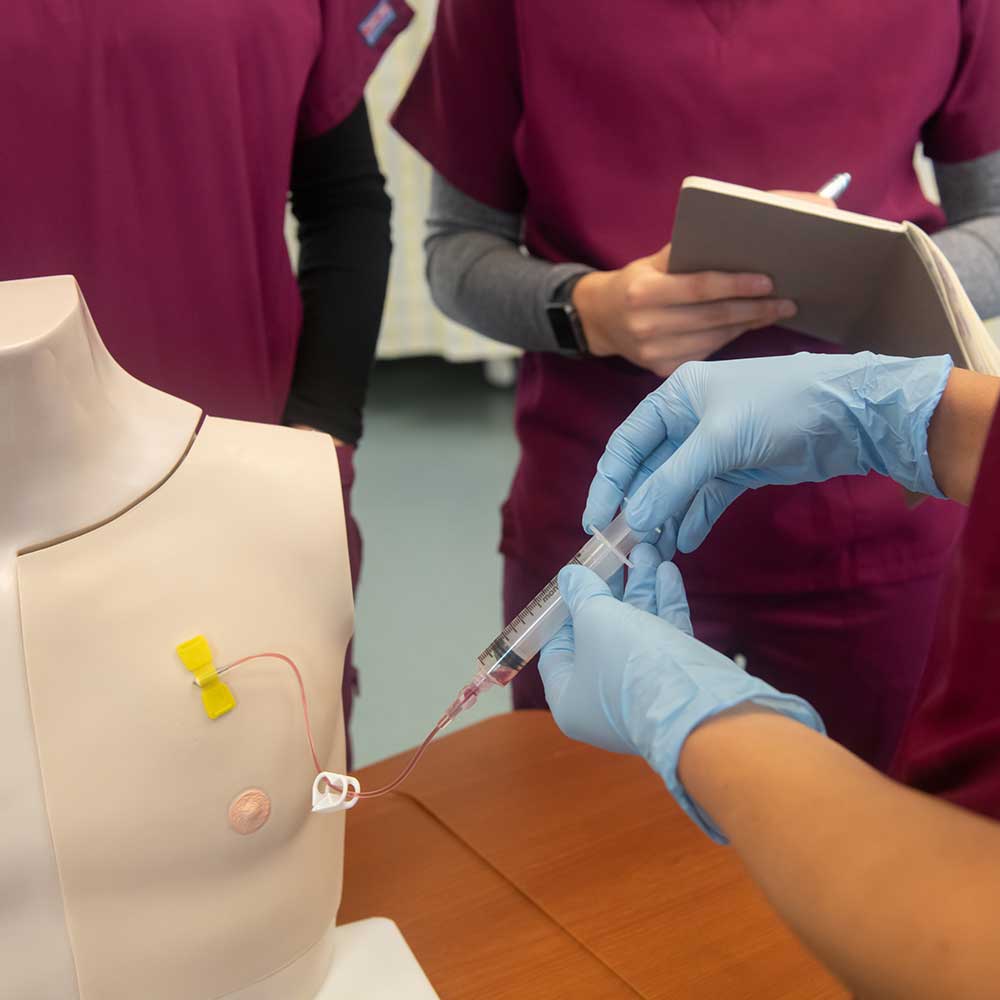

Included with this model is a real port that makes it possible to simulate accessing the following IVAD placements:
normal, “tipping”, “wandering”, or deeply placed in the left chest area. Successful access is confirmed by a blood
return. Fluid can be infused and blood withdrawn from all the lines.

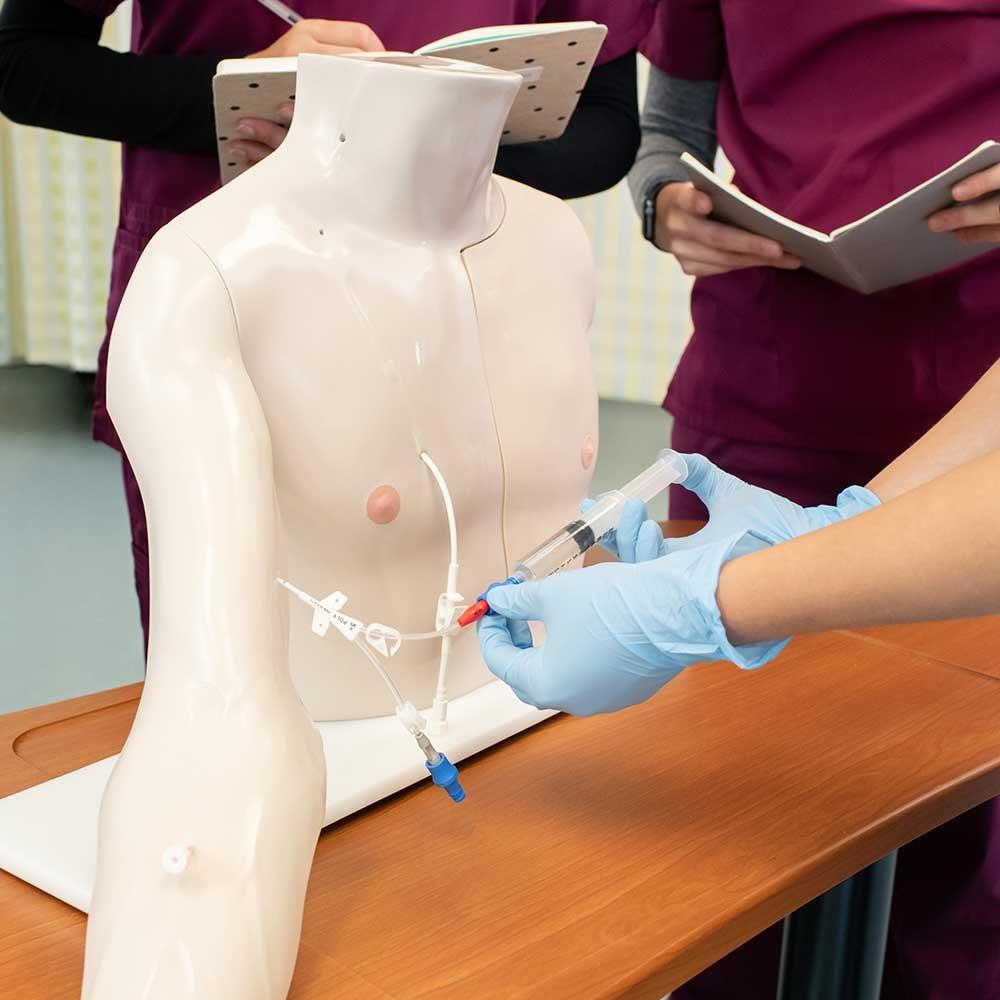

Chester Chest’s™ Port Access Arm has a dual 5Fr PICC exiting the basilic vein from the inner bicep area and a
pre-positioned 20g IV catheter in the forearm. And proximal to the PICC insertion site is recessed area for the
placement of an optional peripheral IVAD. The base of this recessed area for the optional peripheral IVAD is made of
a soft material that permits the IVAD to “float” when palpated and accessed.
Chester Chest™ is a great tool for teaching, competency testing, skills assessment, fluid infusion, blood withdrawal
and dressing securement techniques associated with central access devices!
This model is supplied with an updated arm, Advanced Arm (VT2386)

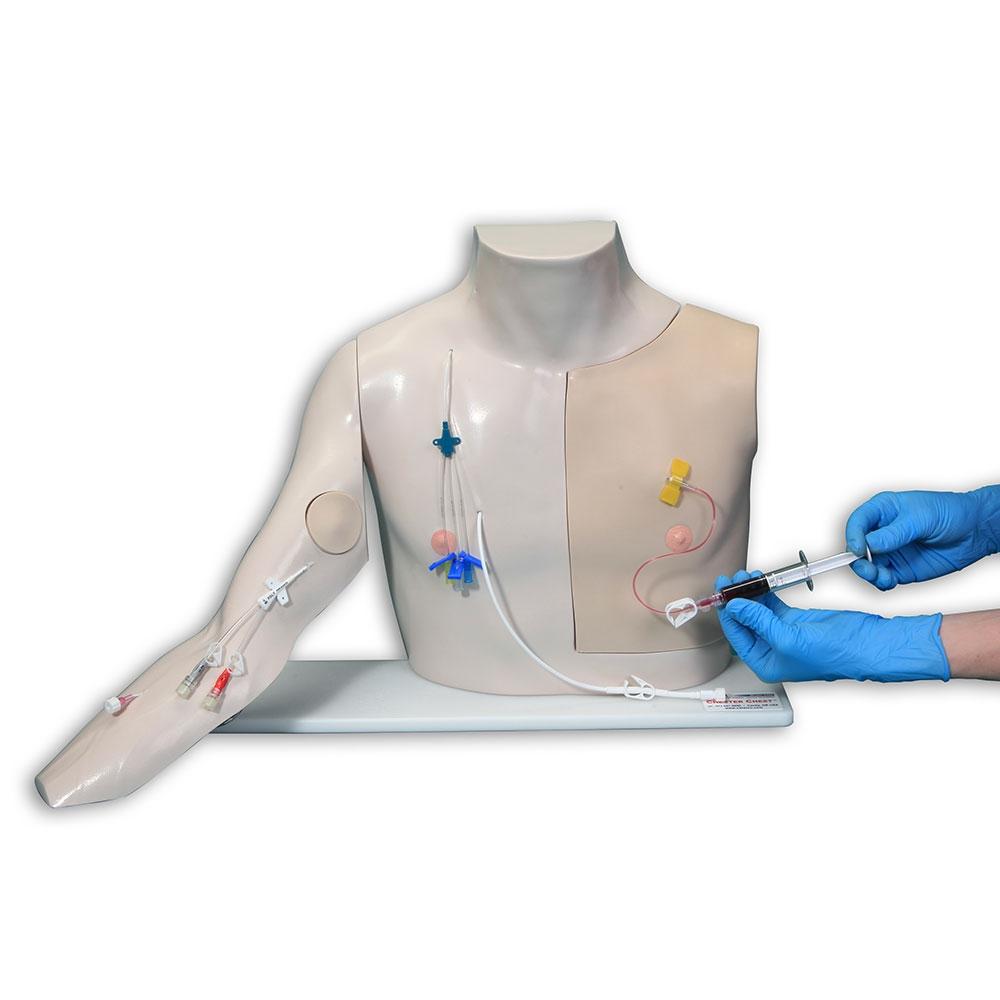

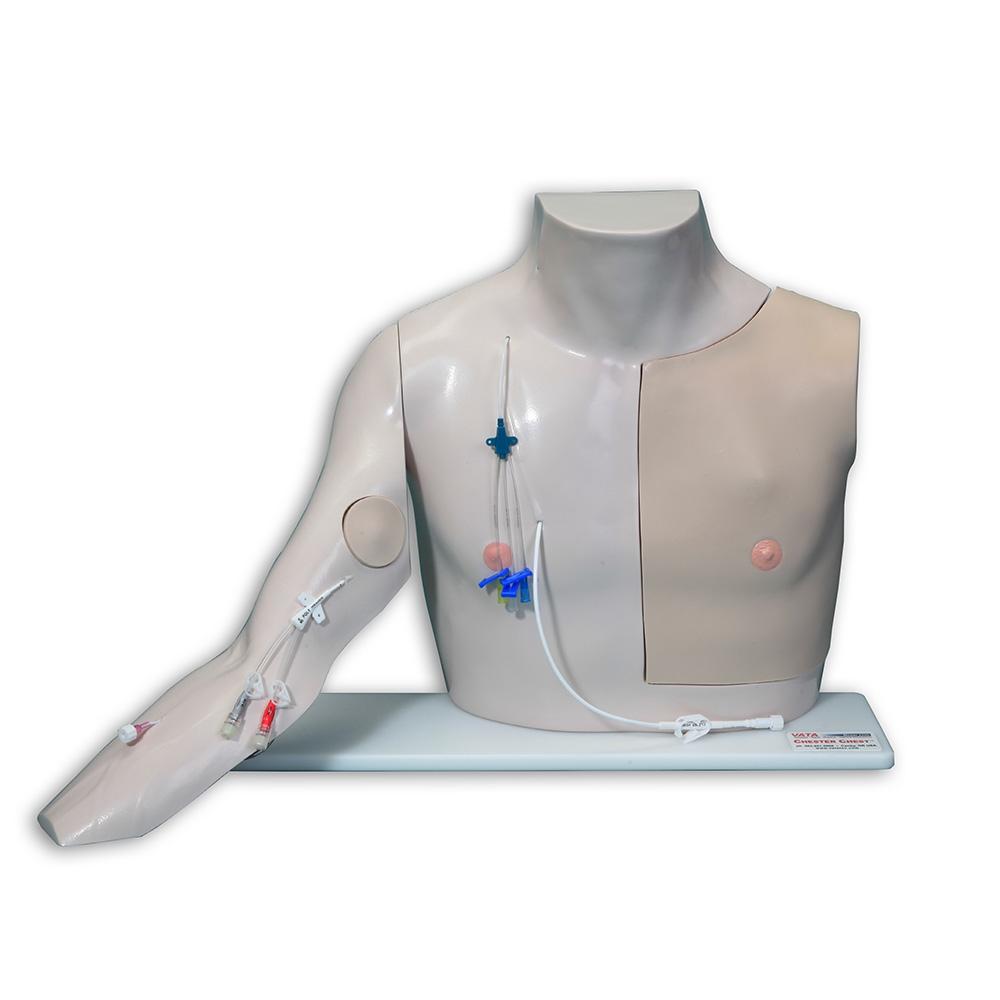

Chester Chest With Advanced Arm
1 Real Port (IVAD)
2 Tunneled Cental Catheter 9.6FR
3 Base

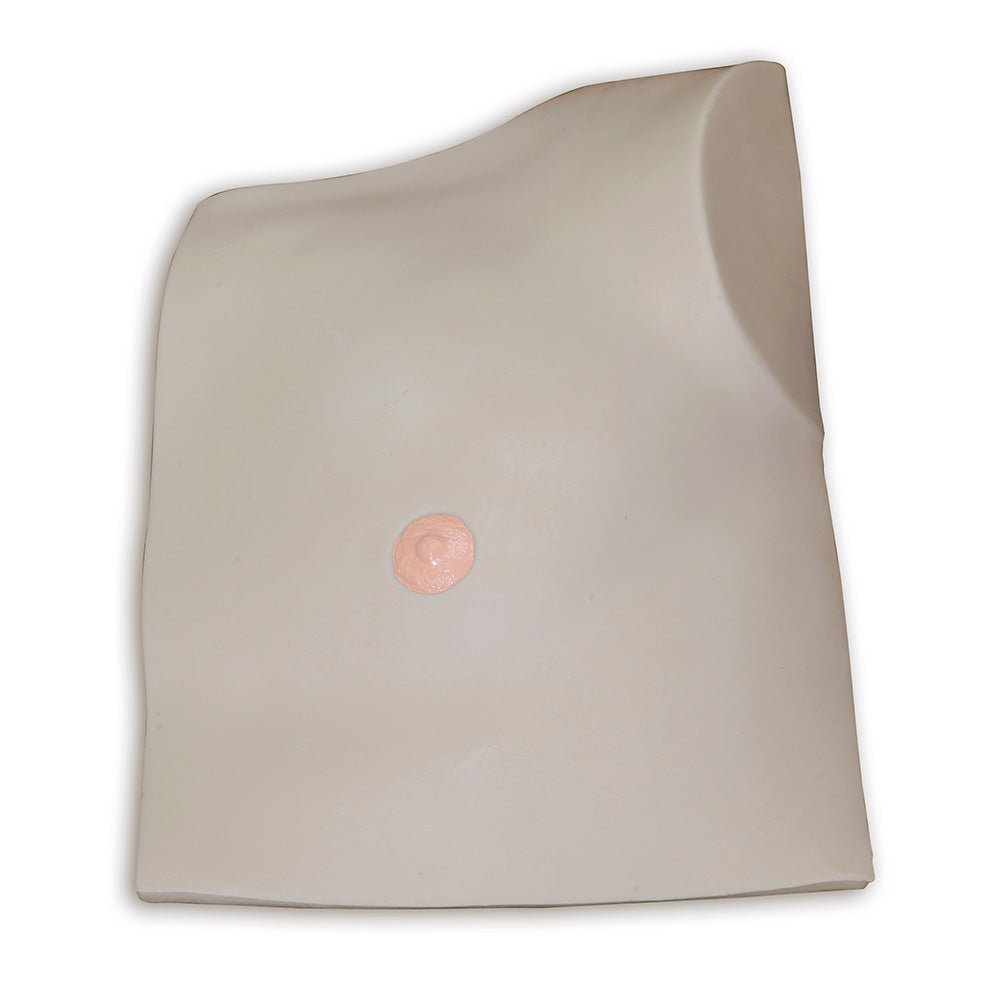

4 Outer Tissue Flap
5 Simulated Blood Reservior Bagfor Torso
6 Difficult Accessing Insertsimulates “tipping” port
7 Difficult Access Insert simulates a “wandering” port
8 Difficult Access Insert simulates a deeply placed port
9 Talc-Cornstarch
2 Tunneled Cental Catheter 9.6FR
3 Base
4 Outer Tissue Flap
5 Simulated Blood Reservior Bagfor Torso
6 Difficult Accessing Insertsimulates “tipping” port
7 Difficult Access Insert simulates a “wandering” port
8 Difficult Access Insert simulates a deeply placed port
9 Talc-Cornstarch
10 IV Catheter 20G
11 User’s Manual
12 Dual Lumen PICC 5FR
13 Advanced Arm

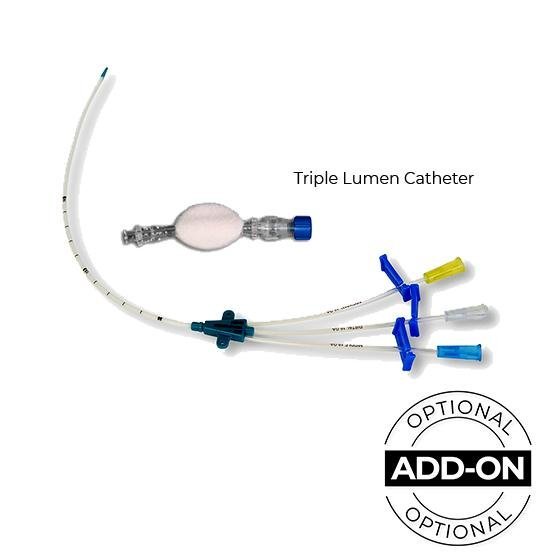

14 Optional Triple LumenCatheter Shown(See Models & Parts on p.15)
15 Opening for Optional Subcalvian Catheter
16 Opening for Optional Jugular Catheter
17 Torso
11 User’s Manual
12 Dual Lumen PICC 5FR
13 Advanced Arm
14 Optional Triple LumenCatheter Shown(See Models & Parts on p.15)
15 Opening for Optional Subcalvian Catheter
16 Opening for Optional Jugular Catheter
17 Torso

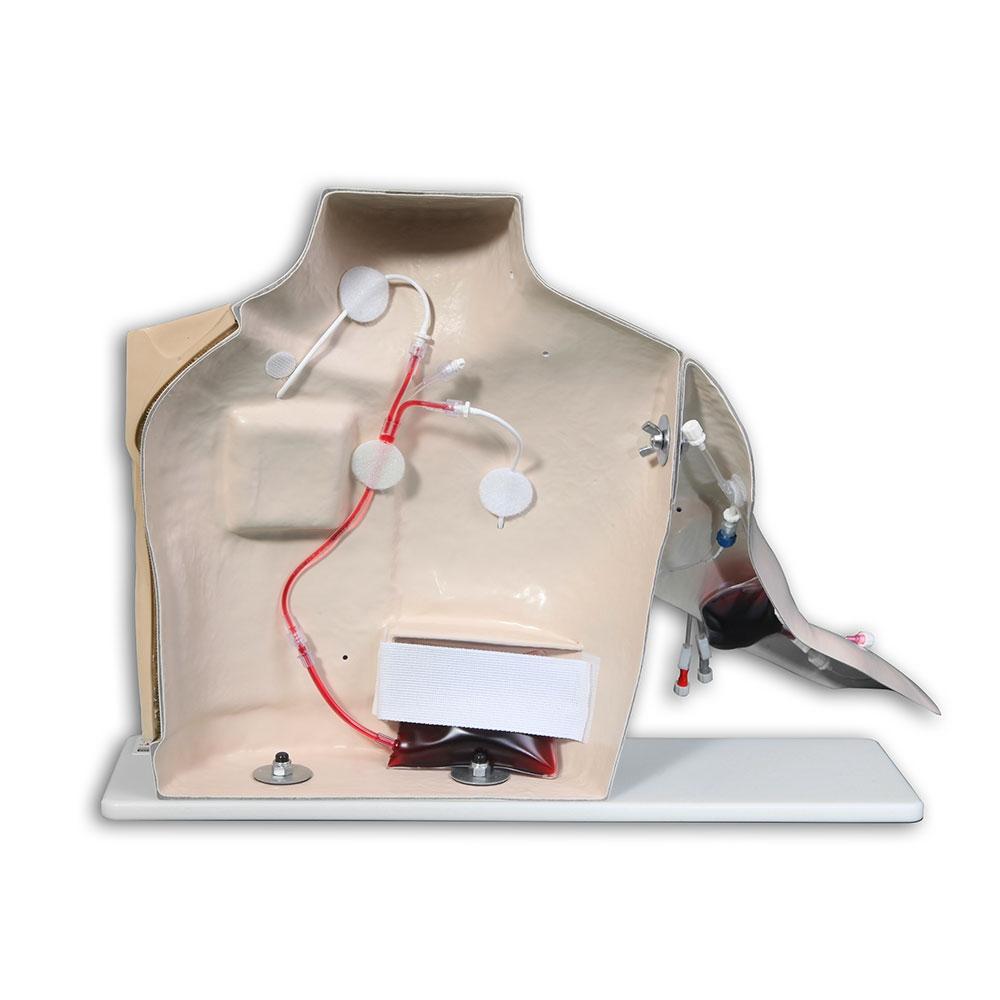

Backside Chester Chest With Advanced Arm
1 Simulated Blood Reservoir Bag for Torso
2 Retention Strap for Simulated Blood Reservoir Bag
3 Three Way Parallel Tubing Set for Torso
4 Extra connection for use with with Optional Triple Lumen, Subclavian and Jugular Catheters
5 Bolt and Wing Nut to Attach Arm to Torso
2 Retention Strap for Simulated Blood Reservoir Bag
3 Three Way Parallel Tubing Set for Torso
4 Extra connection for use with with Optional Triple Lumen, Subclavian and Jugular Catheters
5 Bolt and Wing Nut to Attach Arm to Torso

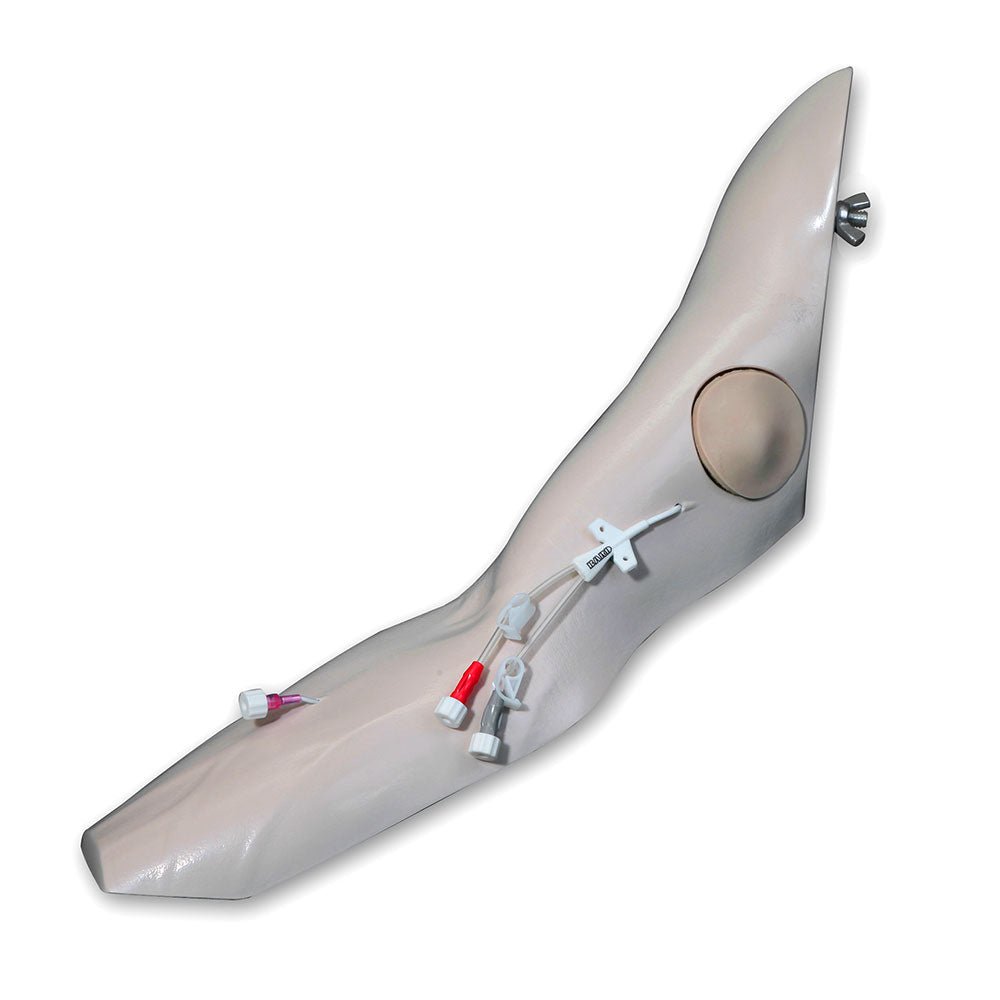

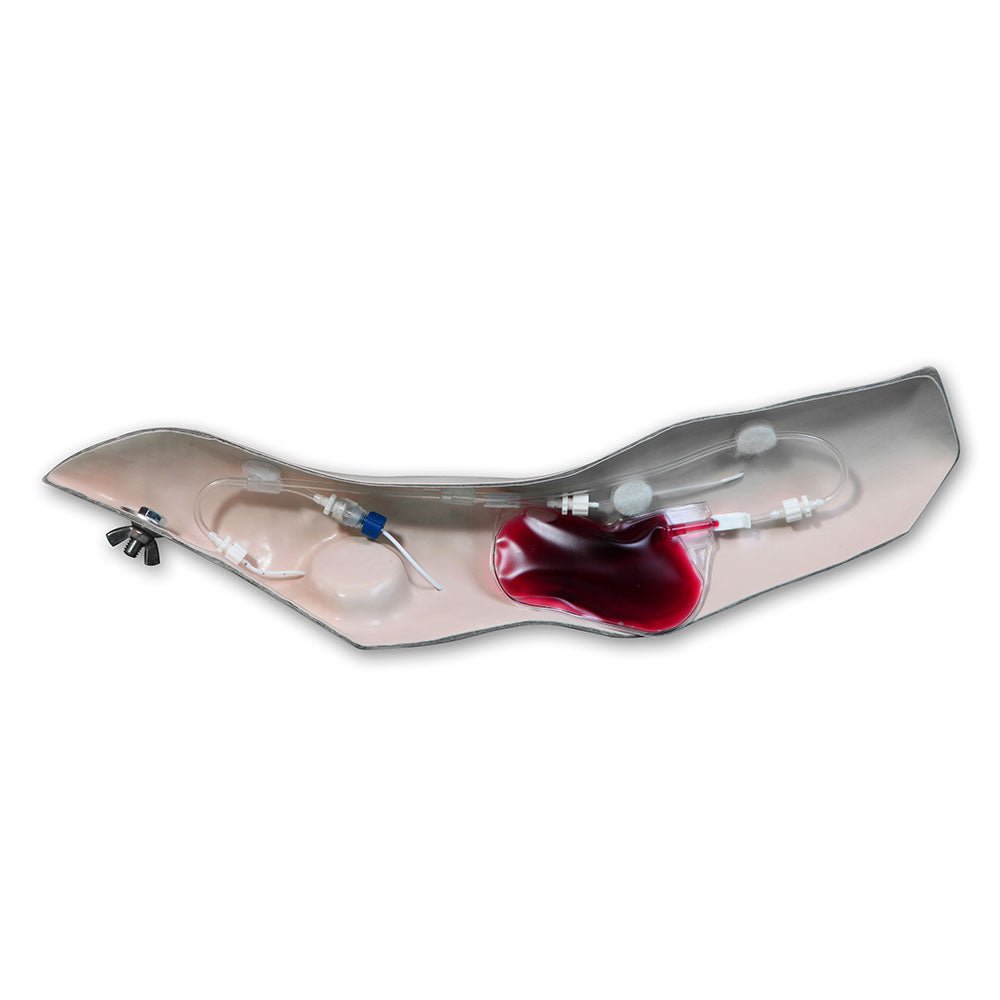

Advanced Arm
1 IV Catheter 20G
2 Dual Lumen PICC 5FR
3 Recessed area for a Peripheral Port to be placed in arm.
*VATA no longer offers optional peripheral arm ports*
4 Skin flap covering recessed area
5 Bolt and Wing Nut to Attach Arm to Torso
6 Dual PICC Attachment to Tubing Set
7 Tubing Set for Arm
8 20G IV Catheter Attachment to Tubing Set
9 Simulated Blood Reservoir Bag for Arm
10 Snap Clamps
11 Back of Recessed Area
2 Dual Lumen PICC 5FR
3 Recessed area for a Peripheral Port to be placed in arm.
*VATA no longer offers optional peripheral arm ports*
4 Skin flap covering recessed area
5 Bolt and Wing Nut to Attach Arm to Torso
6 Dual PICC Attachment to Tubing Set
7 Tubing Set for Arm
8 20G IV Catheter Attachment to Tubing Set
9 Simulated Blood Reservoir Bag for Arm
10 Snap Clamps
11 Back of Recessed Area
Download:
Made in USA by Vata Inc. and sold by GTSimulators.
GTSimulators by Global Technologies
VATA Inc. Authorized Dealer
Chester Chest™ Vascular Access Simulator With Port Access Arm
Product Dimensions and Weight:- Size: 215.6 x 23.5 x 10 inch
- Weight: 7 lbs
- Size: 22 x 18 x 9 inch
- Weight: 10 lbs
