Adult Arm Phantom for X-Ray Training
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Adult Arm Phantom for X-Ray Training
Item # TPS-AR-A01
$3,724.00
$3,800.00
You save $76.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Adult Arm Phantom for for X-Ray CT, MRI
Adult Arm for X-Ray/CT and MRI is a part of Adult Full Human Body Phantom for X-Ray CT & MRI Training [TPS-FB-A01] that can be purchased independently.

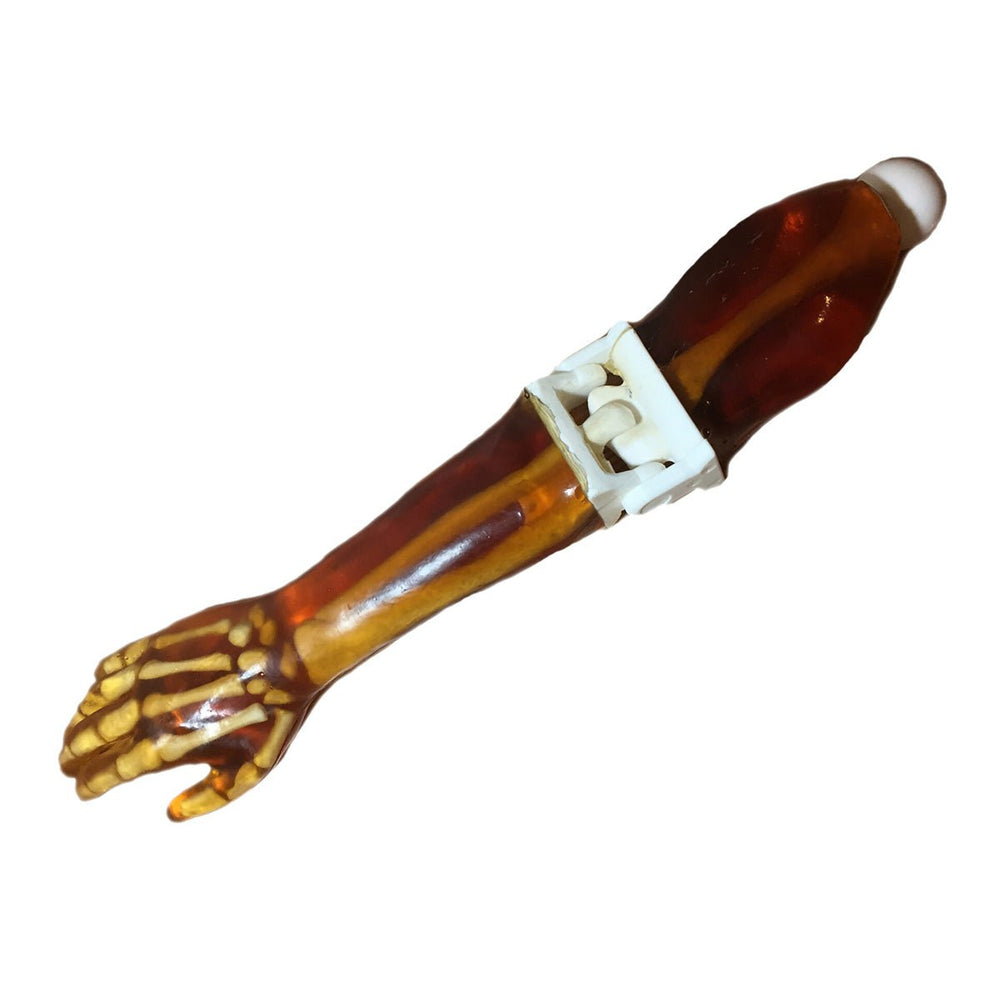

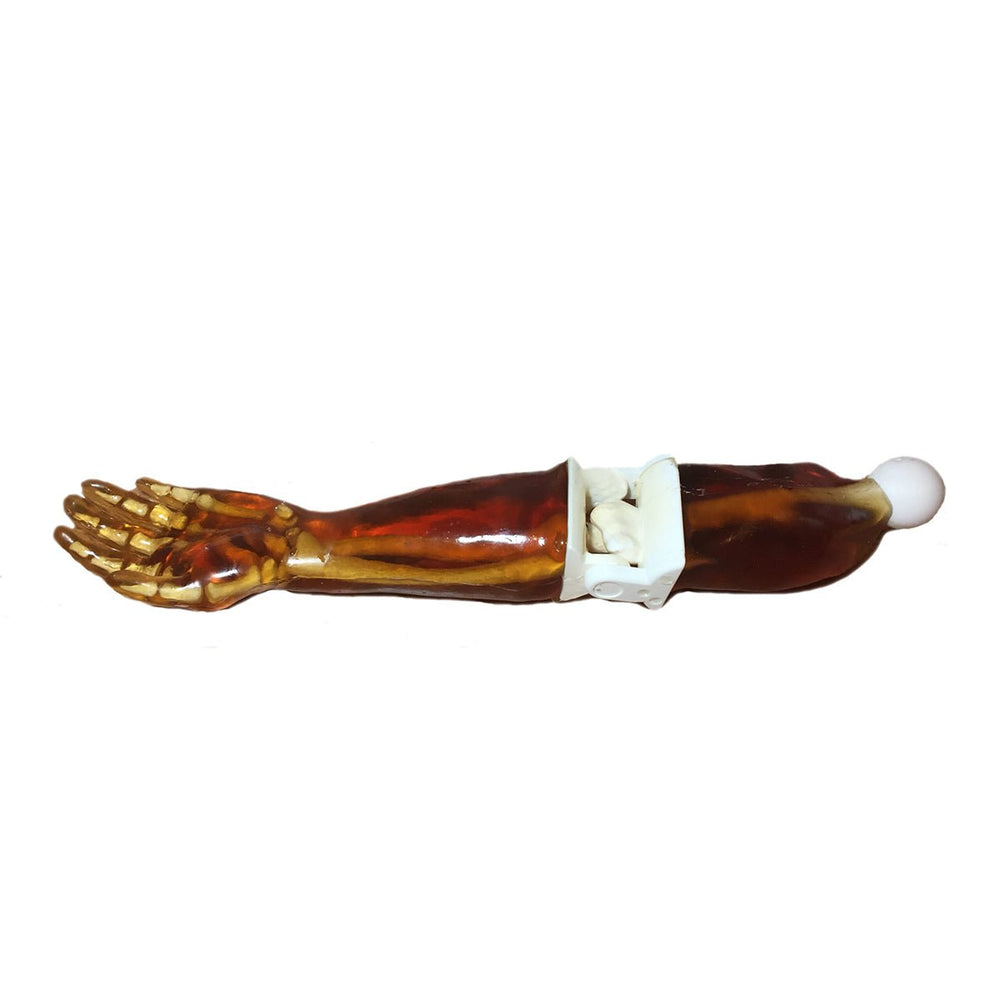

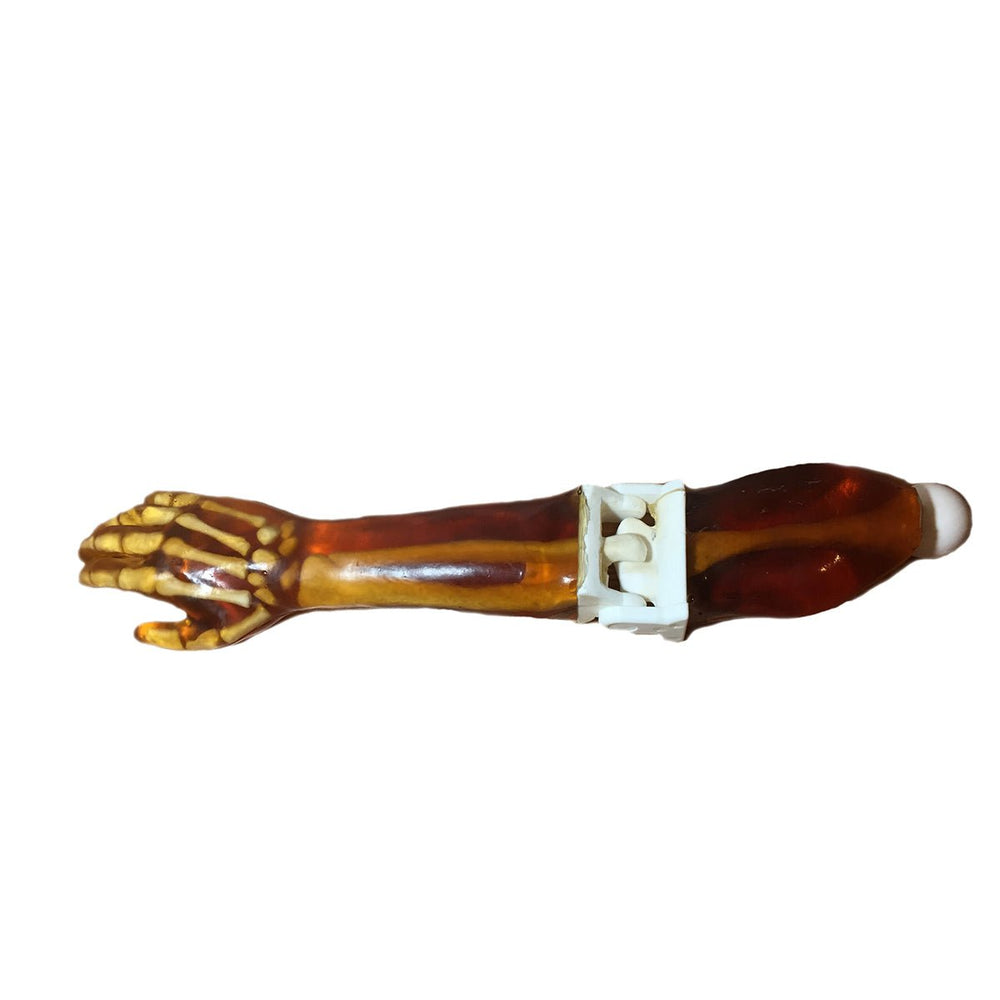

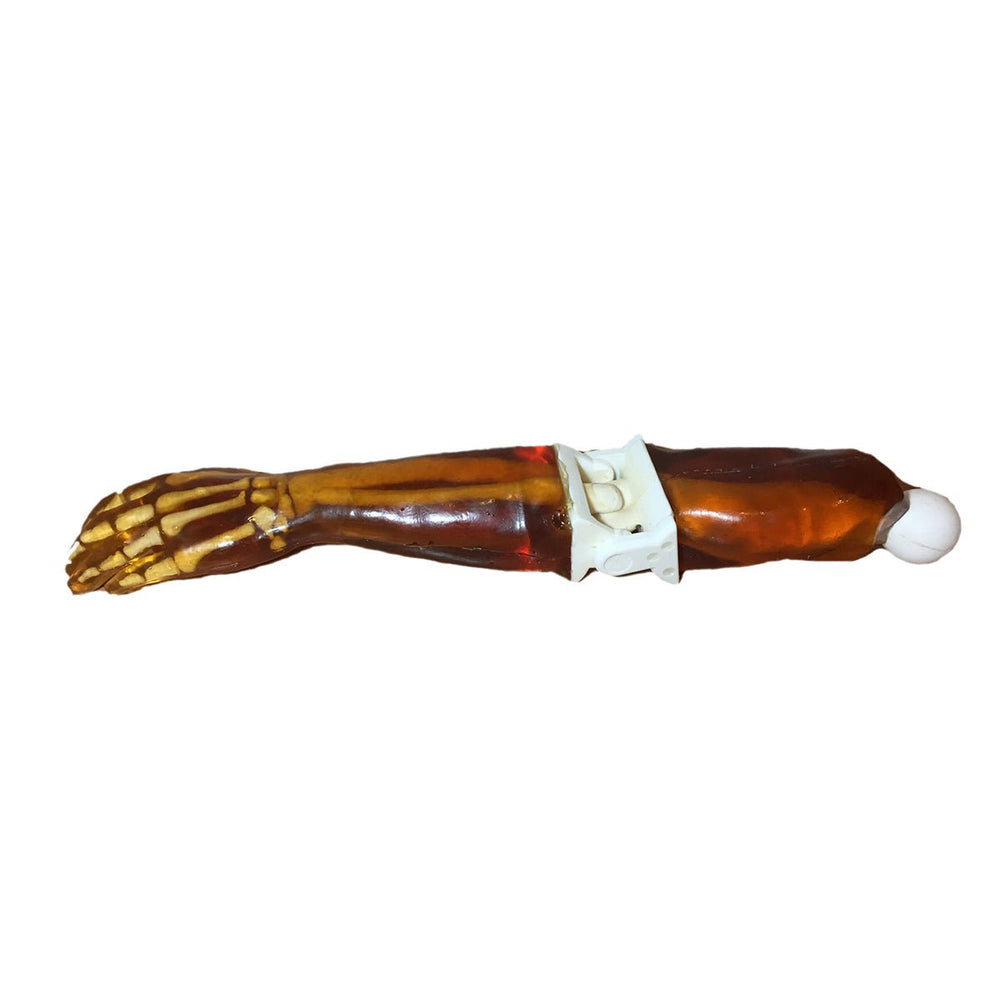

This X-Ray CT and MRI Arm Phantom can be used to take X-Ray images of the entire arm. The model includes synthetic bones cast individually from our realistic patented bone-mimicking material. The X-Ray Arm Model is perfect for radiology schools for training and learning different settings of X-Ray without the danger of exposing an actual patient to harmful radiation.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The bones are embedded in a realistic tissue-mimicking material that can be either transparent or opaque. The X-Ray Models may differ in size and shape. Due to production technology, there may be discoloring inside the phantom. This is related to the production method, and it does not affect the performance of the phantom.
Anatomy:
- Arm (Humerus)
- Elbow Joints
- Forearm (Radius, Ulna)
- Hand (Wrist with Fingers)
- Adult Arm Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Product Dimensions and Weight:
- Height: 7 x 7 x 24 Inches (approx.)
- Weight: 8 lbs (approx.)
- Height: 16 x 12 x 7 in (approx.)
- Weight: 14 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Front View
Perspective View
Lateral View
Top View
X-Ray Scans
NOTE: *These CT scans were obtained from our Adult Spine for X-Ray CT. These serve as an example of the imaging quality of our products, the CT scans from this phantom may slightly differ. If you have any questions related to these, please Contact Us
CT Results
*/ This CT scan was obtained from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. The image is only for quality reference, this phantom only includes a single arm. If you have any questions related to these, please write us at info@truephantom.com /*
| Type of the Tissues | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Hounsfield Value | Attenuation Measured at 2.25 MHz[dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Adult Arm Phantom for for X-Ray CT, MRI
Product Dimensions and Weight:- Height: 7 x 7 x 24 Inches (approx.)
- Weight: 7.7 lbs (approx.)
- Height: 28 x 12 x 12 in (approx.)
- Weight: 14 lbs (approx.)
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
