AirSim Child X Model

	AirSim Child X	AirSim Child Bronchi X	AirSim Child Combo X	AirSim Child Combo Bronchi X
Oral/nasal intubation	Y	Y	Y	Y
Bag valve mask ventilation	Y	Y	Y	Y
Supraglottic device insertion	Y	Y	Y	Y
Direct/video laryngoscopy	Y	Y	Y	Y
NG tube insertion	Y	Y	Y	Y
Bronchoscopy techniques	-	Y	-	Y
Needle/surgical cricothyroidotomy	-	-	Y	Y
Percutaneous tracheostomy	-	-	Y	Y
AirSim X Airway warranty	5 years	5 years	5 years	5 years
	Viewing	View	View	View

What makes the AirSim X airway so unique?

The AirSim X airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. The internal airway is anatomically accurate and will guarantee 20,000+ intubation cycles when used correctly. TruCorp is proud to offer a 5-year warranty on the AirSim X airway.

What age of the patient is the AirSim Child X?

This manikin is designed as a 6-year old child.

What skills can I teach using the AirSim Child X?

Learners will gain proficiency in the below procedures:

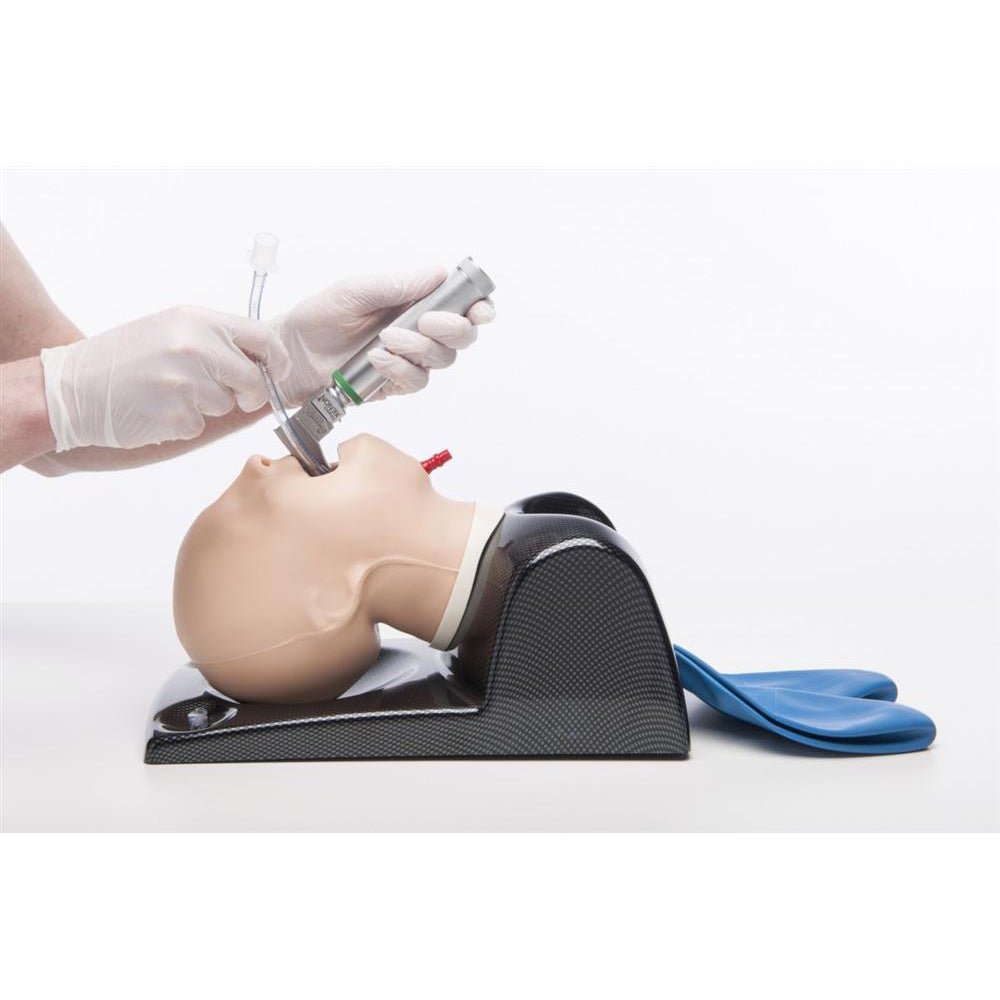

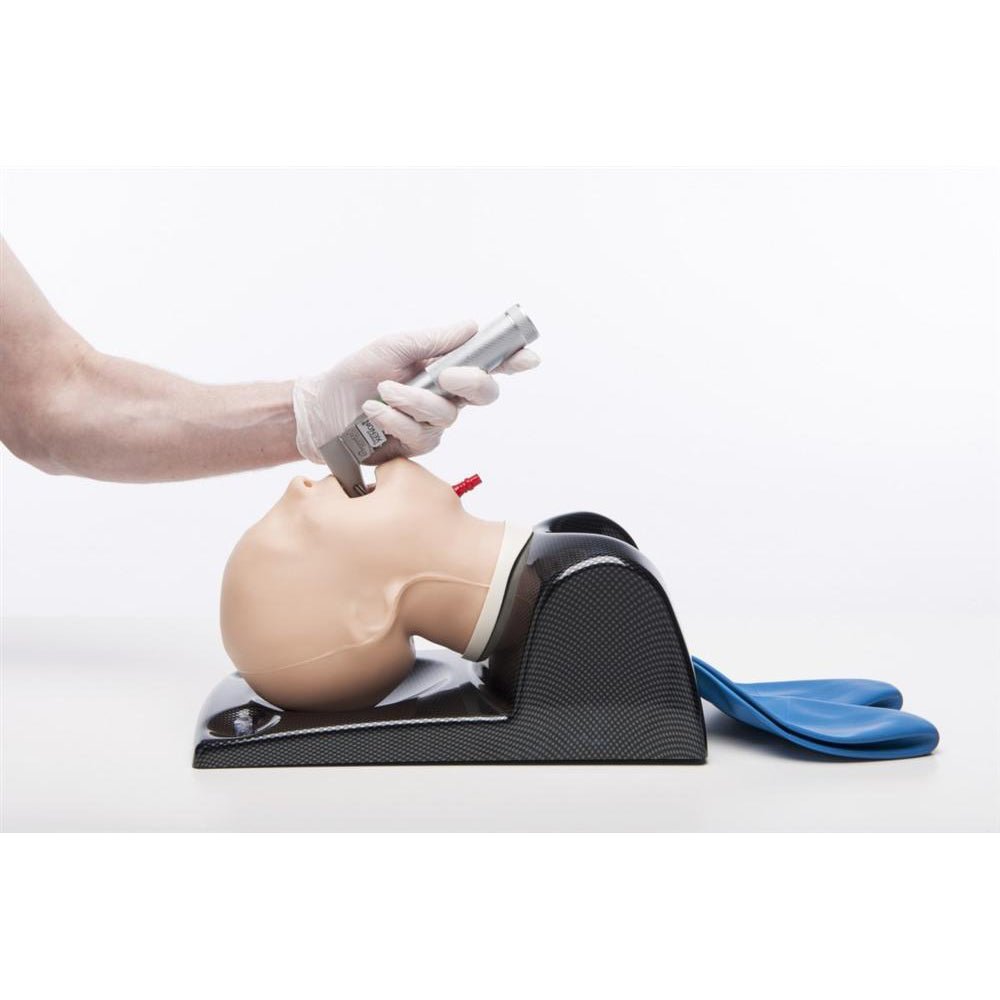

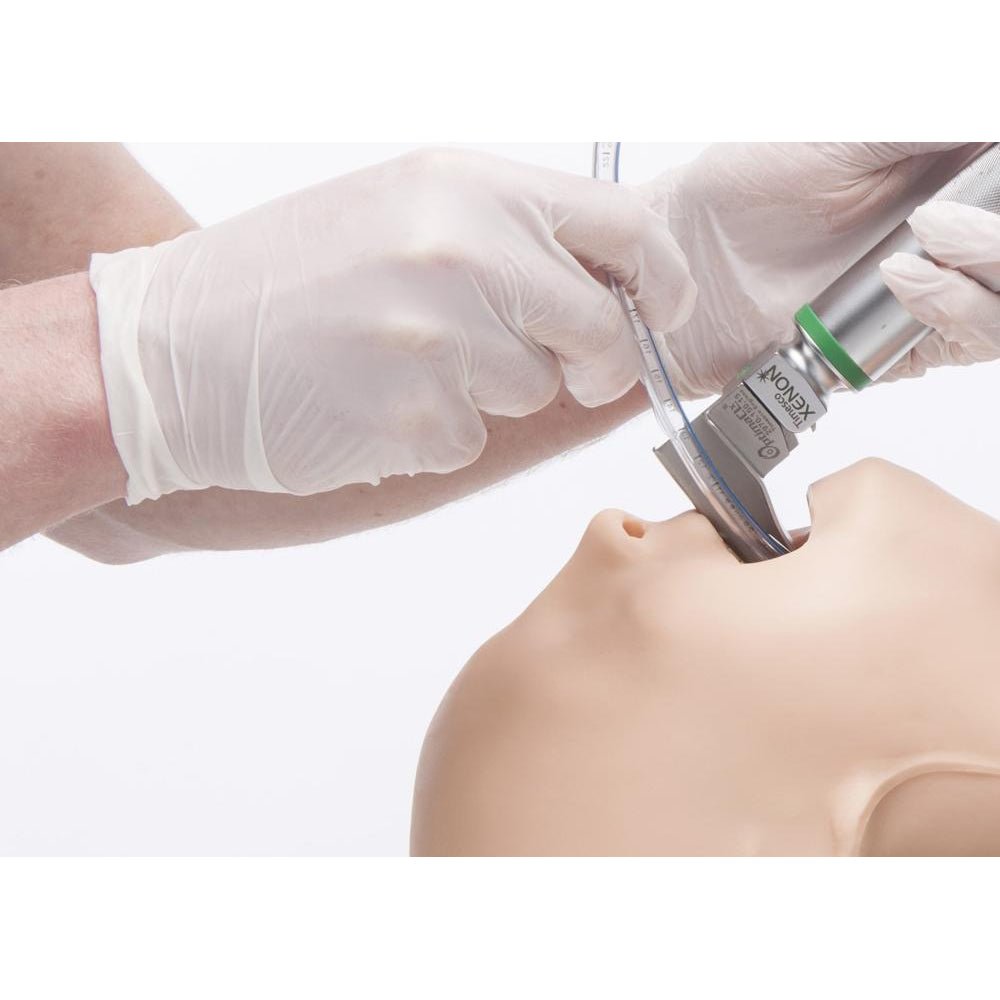

Direct and video laryngoscopy
Endotracheal intubation
Nasotracheal intubation
Supraglottic device insertion

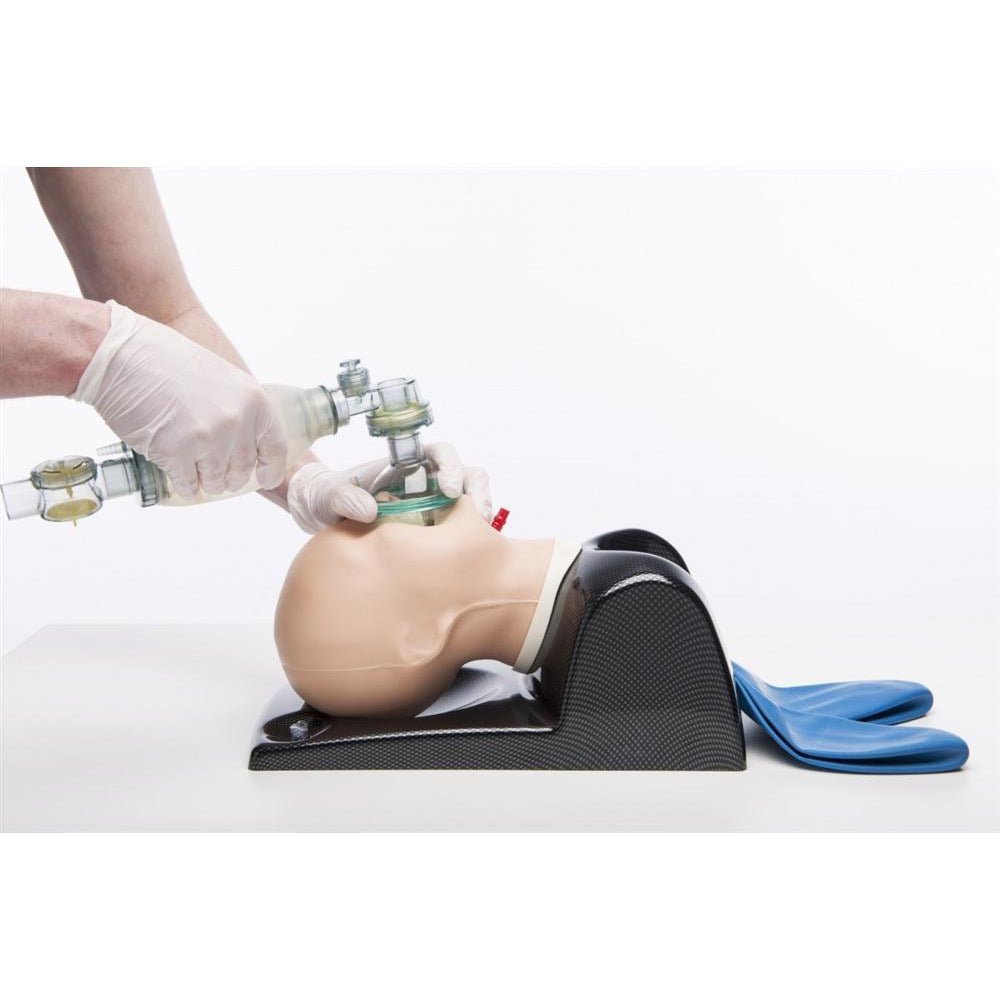

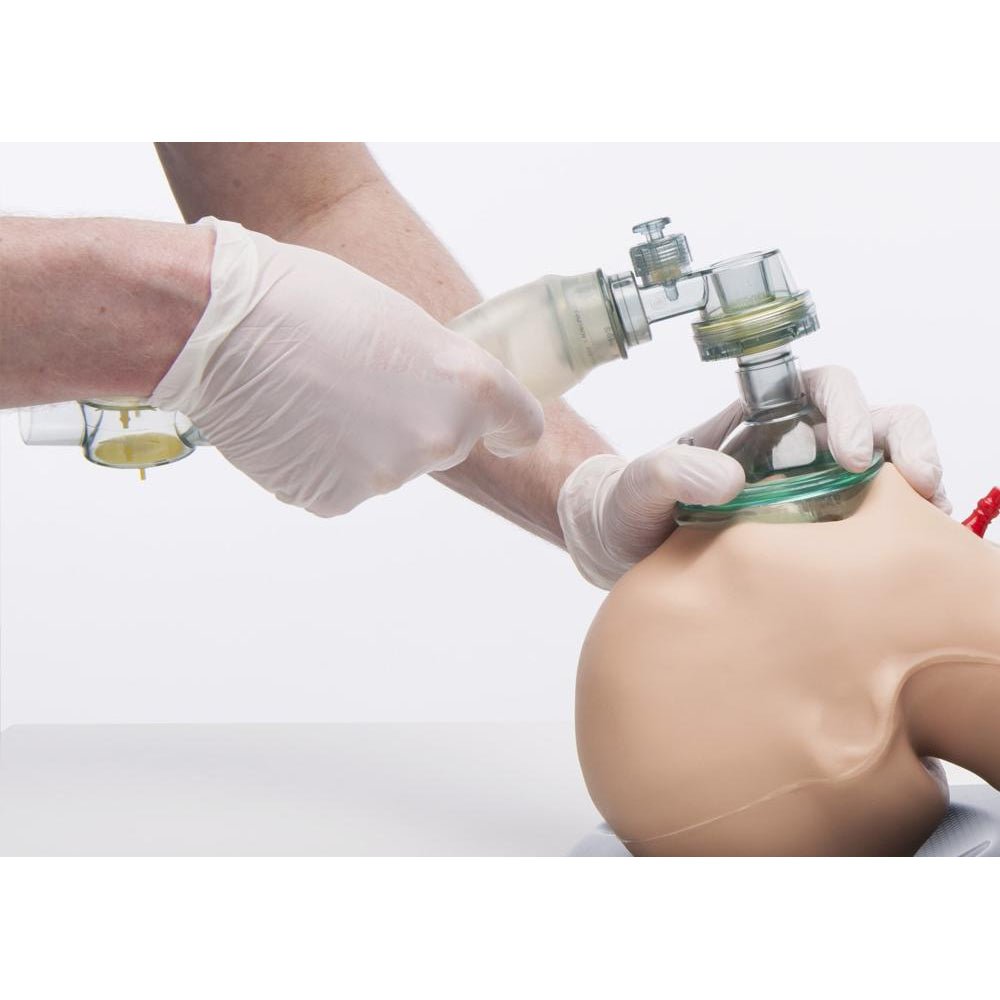

Bag valve mask (BVM) ventilation
Nasogastric (NG) tube insertion techniques

What package contents will arrive with my order?

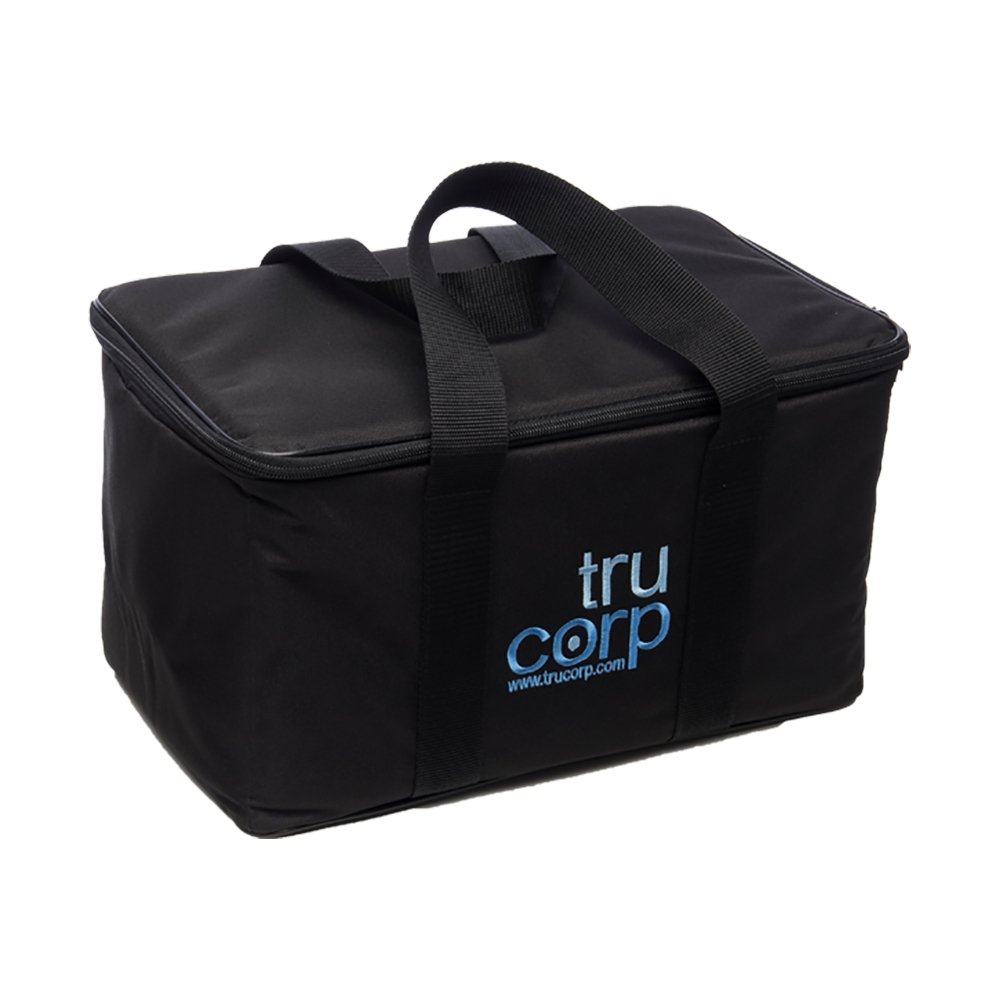

1 Carrier case
1 Bottle of lubrication

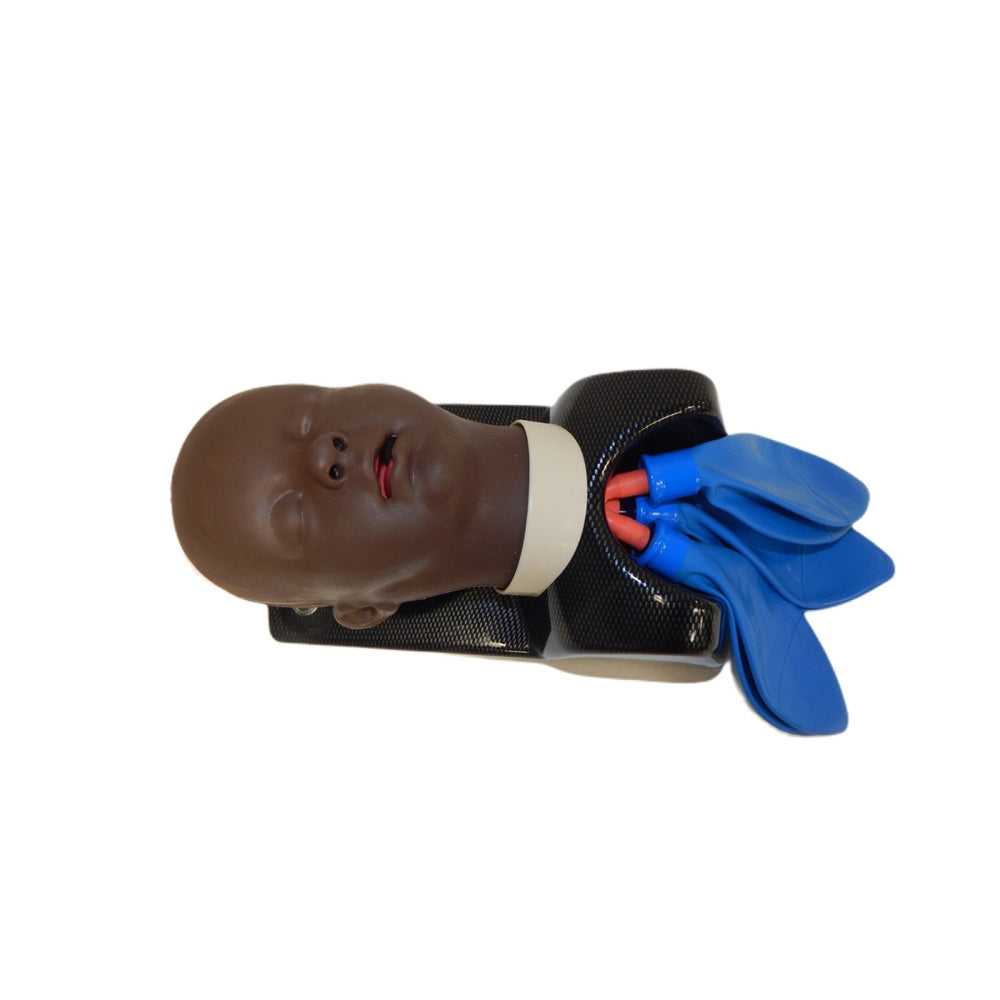

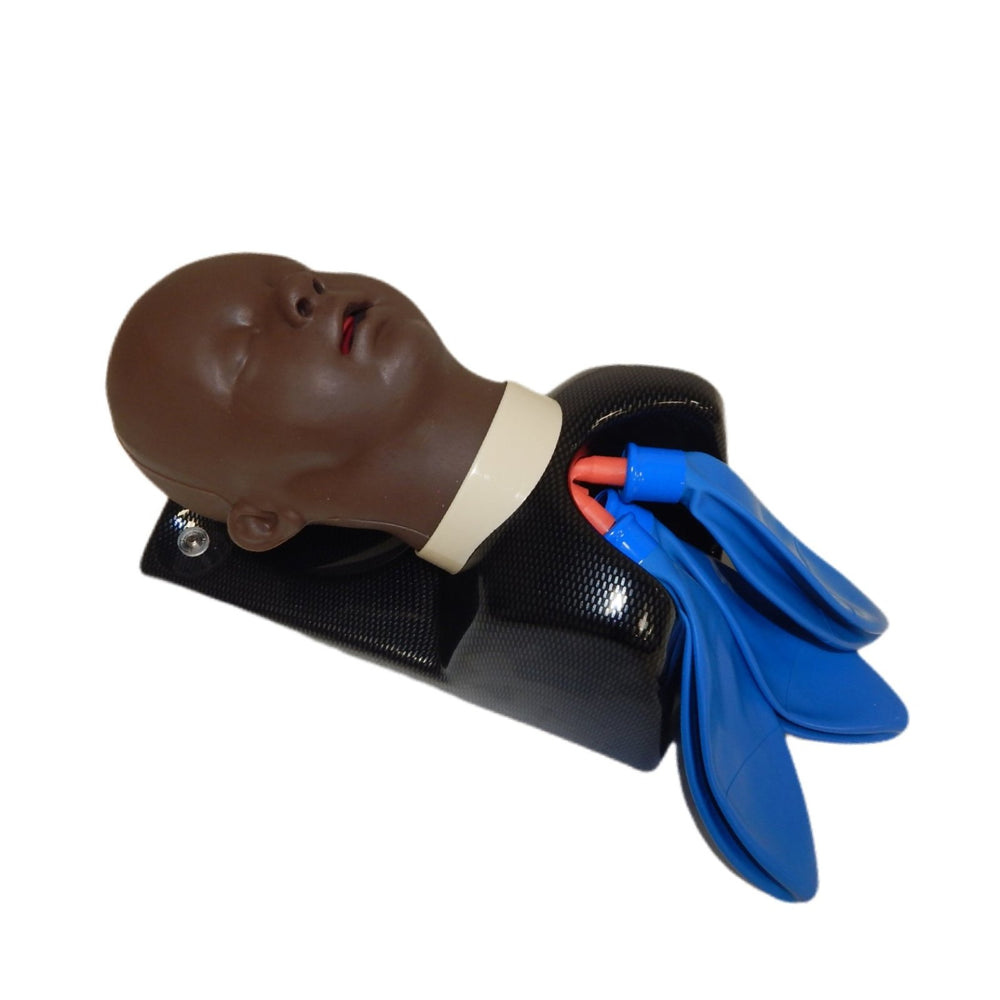

3 Child lung bags replicating 2 lungs & stomach
2 sets of adhesive pads (attachable to suction cups for increased stability if required)

Do I need to order replacement consumables?

Lubrication is the only consumable required for ongoing training using the AirSim Child X. TruCorp’s lubrication is a cost-efficient, water-soluble solution and is supplied in a 100ml bottle. Please contact our sales team to purchase.

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

Does the AirSim Child X require assembly?

No, this training manikin is delivered ready to use so you can begin training straight away! Generously spray the oral/nasal passages and equipment with the lubrication provided.

What equipment sizes are recommended?

4.5-5.0 mm ID for nasal intubation
5.5-6.0 mm ID for oral intubation
Size 2 laryngoscope blade
Size 2 for LMA laryngeal masks
Similar respective sizes for other supraglottic devices

Can I make intubation more difficult on the AirSim Child X manikin?

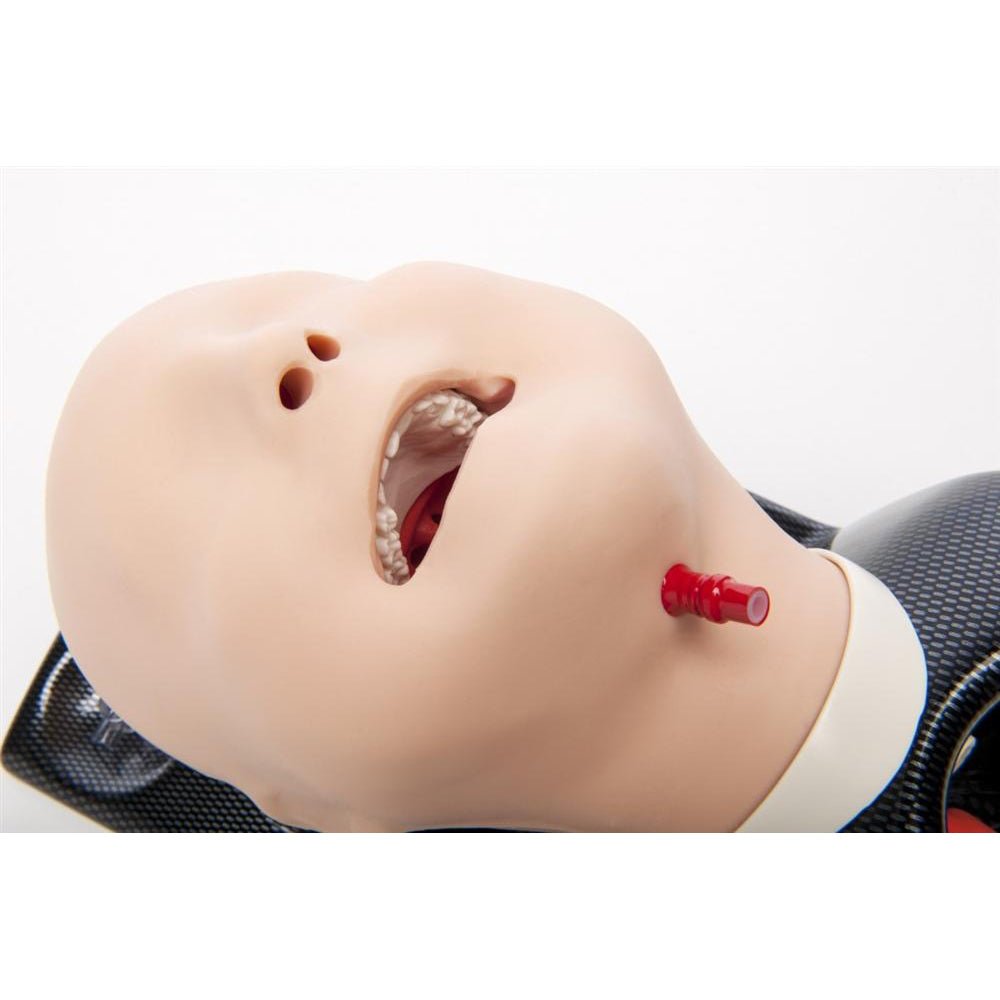

The tongue can be inflated to simulate tongue edema. Attach an empty syringe to the red connector located underneath the skin below the chin and insert approx. 20ml of air.

Does the manikin provide user feedback to indicate successful or failed procedures?

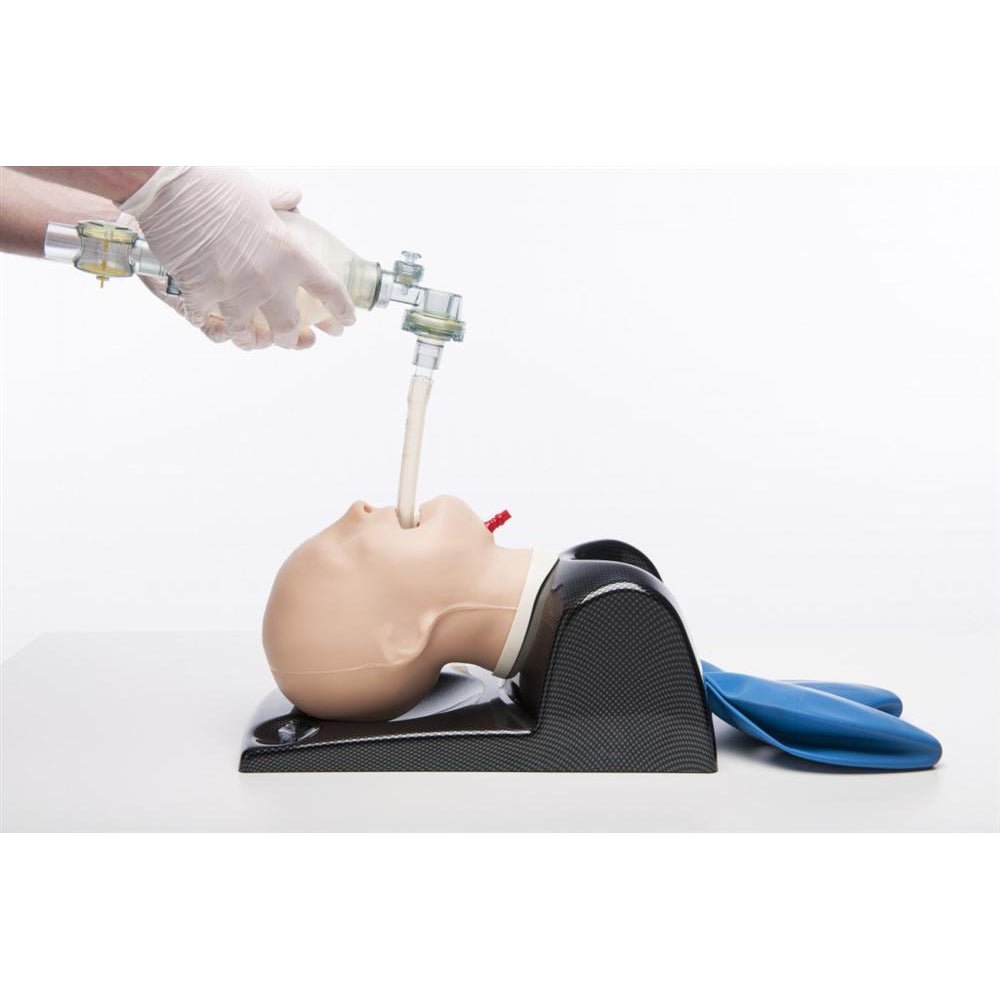

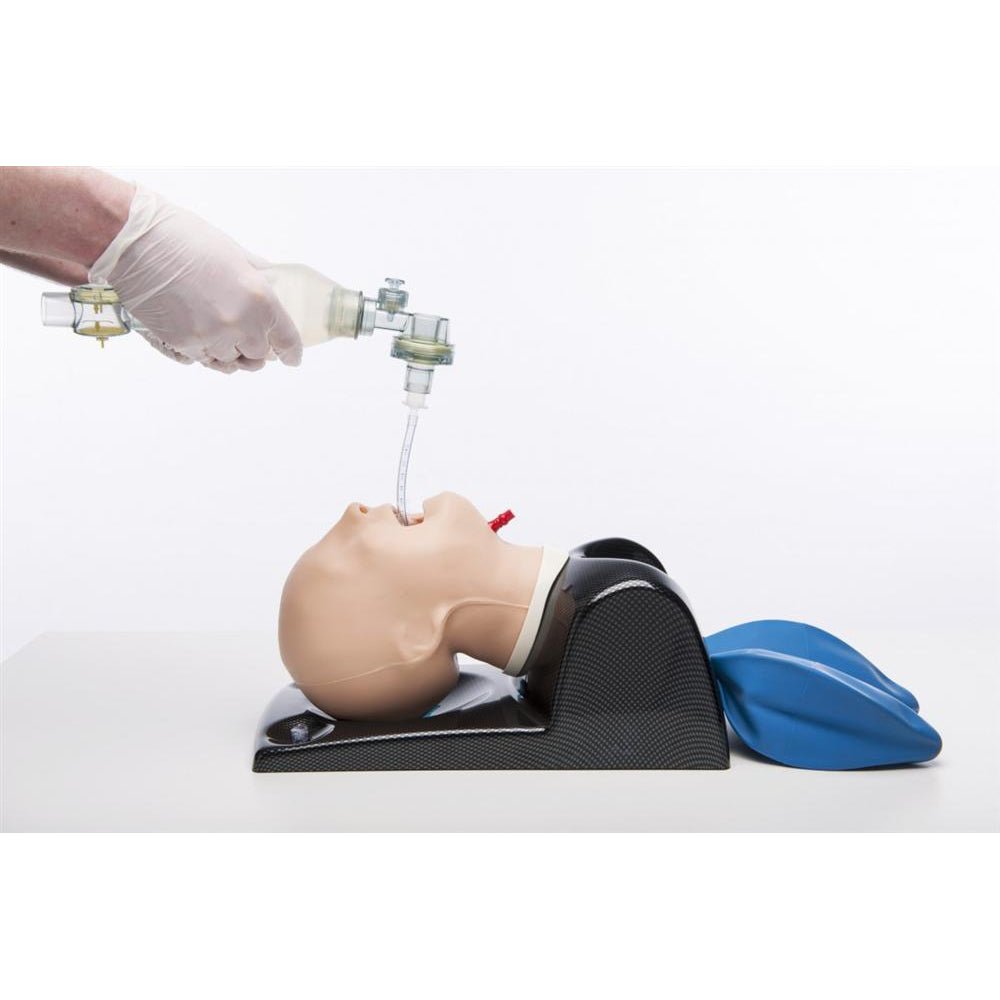

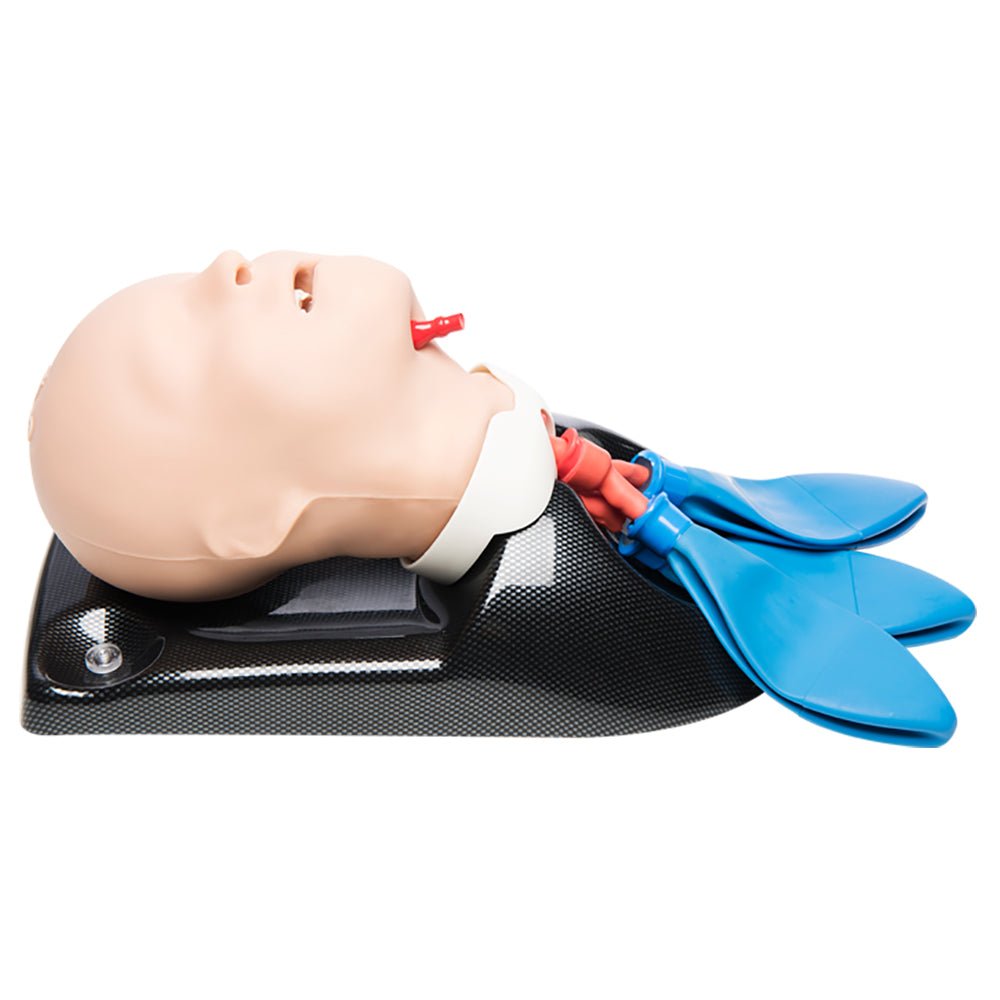

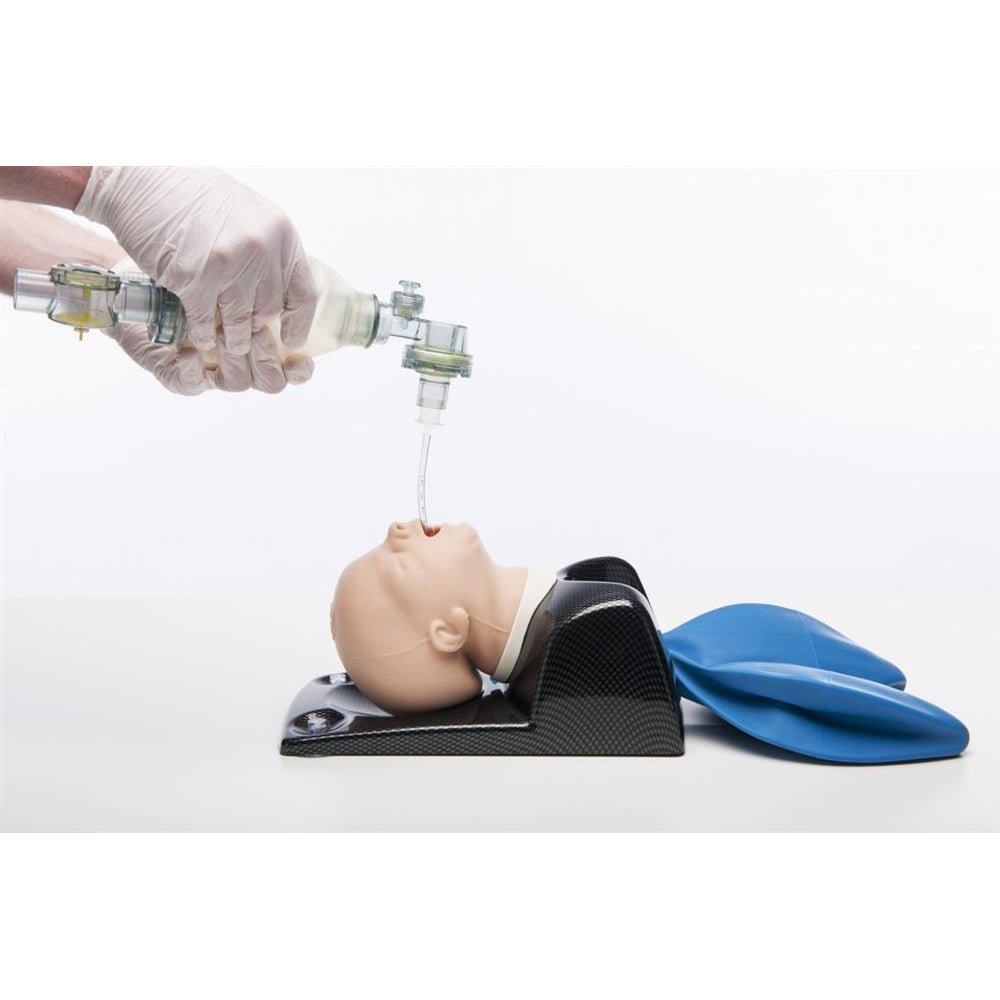

Yes, if successfully intubated the two lung bags will inflate. If the airway device is incorrectly placed in the esophagus, the stomach bag will inflate.

What warranty comes with the AirSim Child X?

The AirSim Child X manikin comes with a 5-year warranty on the AirSim X airway and a 1-year warranty on all other parts. Warranty begins from the date of delivery.

My AirSim Child X manikin needs repairing. How can I arrange this?

Another great benefit of this product is its modular design. This means spare parts can be ordered and interchanged at your location by your team. Please contact us and provide the serial number (found under the manikin base) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote.

How should I store the manikin when it is not in use?

Please store the manikin in clean, dry conditions away from heat and direct sunlight. Avoid contact with metals, solvents, oils or greases, and strong detergents. When the product is not in use please store in the black carrier case provided.

What can I use to clean the manikin?

Thoroughly wash the AirSim X airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue are removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Please do not use any of the following when cleaning the AirSim product range:
• Germicides, disinfectants, or chemical agents such as glutaraldehyde (e.g. Cidex^®)
• Ethylene oxide, phenol-based cleaners, or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.
