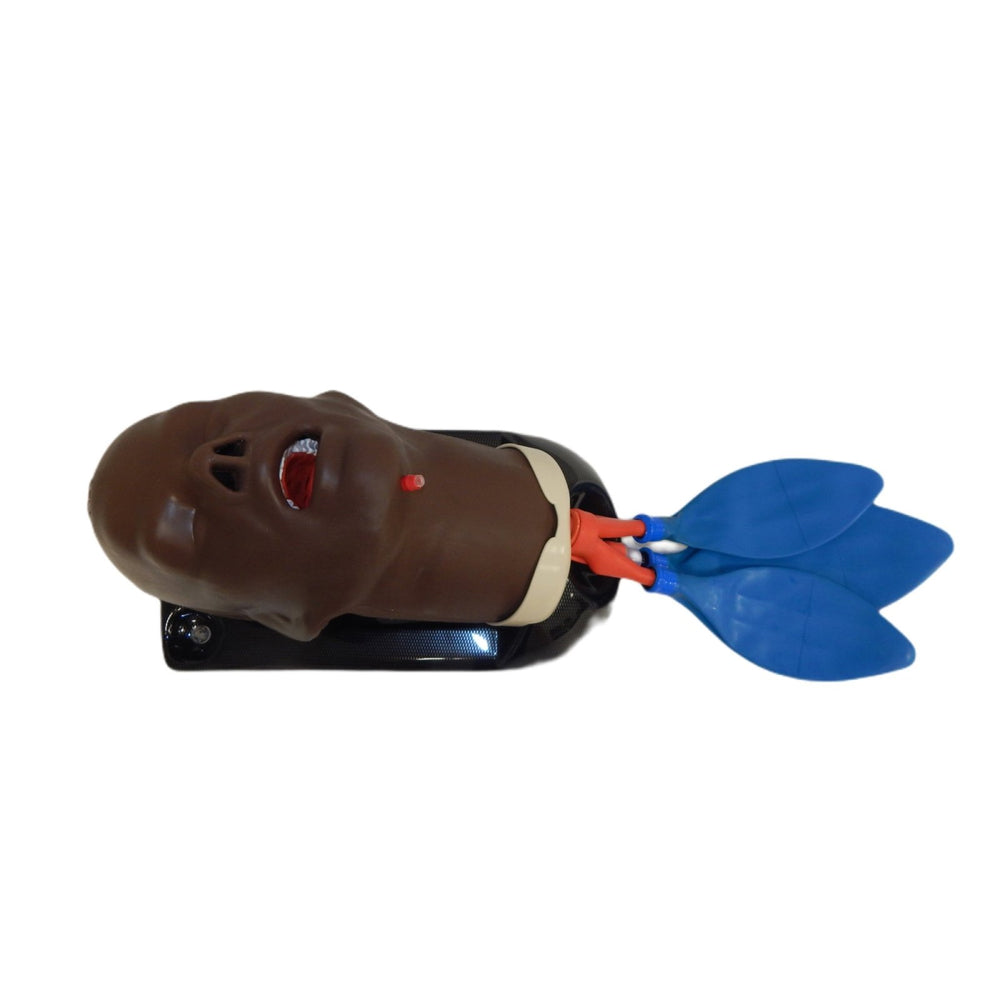

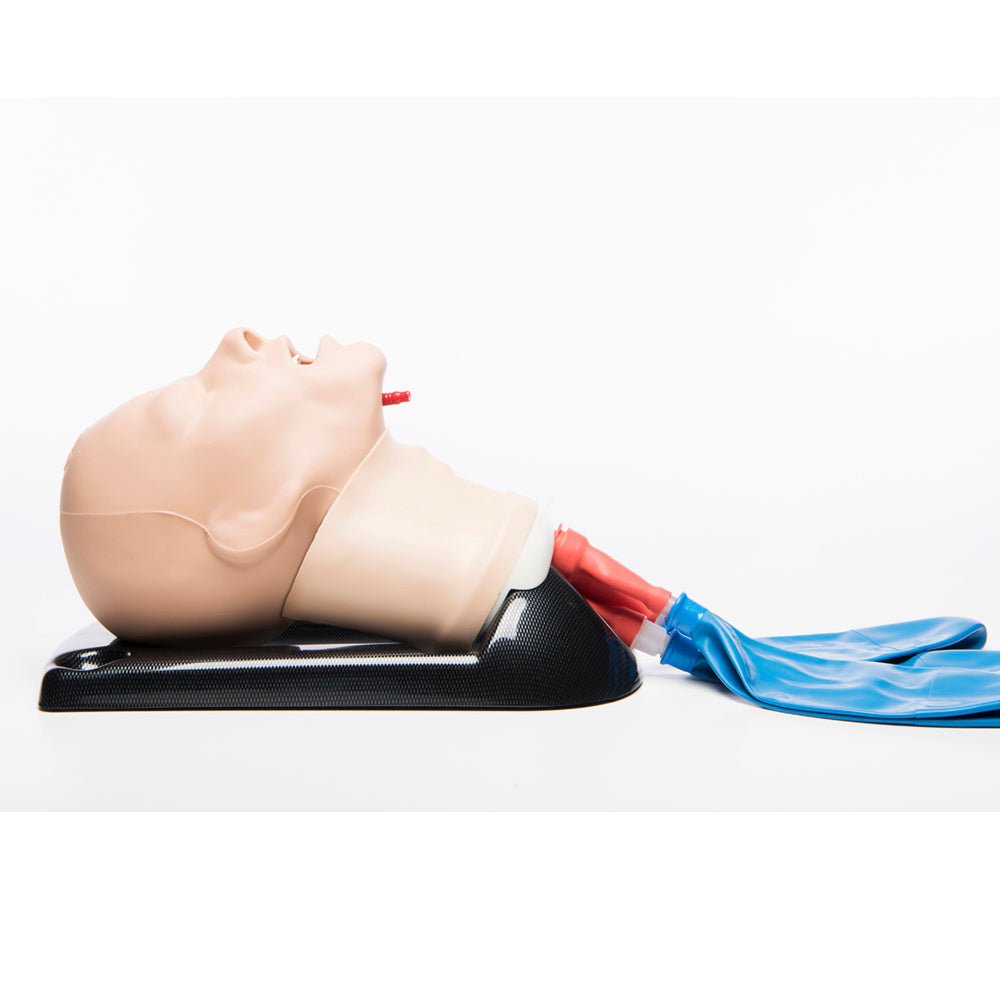

AirSim Combo X Model

	AirSim Advance X	AirSim Advance Bronchi X	AirSim Combo X	AirSim Combo Bronchi X
Oral/nasal intubation	Y	Y	Y	Y
Bag valve mask ventilation	Y	Y	Y	Y
Supraglottic device insertion	Y	Y	Y	Y
Direct/video laryngoscopy	Y	Y	Y	Y
NG tube insertion	Y	Y	Y	Y
Bronchoscopy	-	Y	-	Y
Needle/surgical cricothyroidotomy	-	-	Y	Y
Percutaneous tracheostomy	-	-	Y	Y
AirSim X Airway warranty	5 years	5 years	5 years	5 years
	View	View	Viewing	View

What makes the AirSim X airway so unique?

The AirSim X airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. The internal airway is anatomically accurate and will guarantee 20,000+ intubation cycles when used correctly. TruCorp is proud to offer a 5-year warranty on the AirSim X airway.

What skills can I teach using the AirSim Advance X?

Direct and video laryngoscopy
Endotracheal intubation
Nasotracheal intubation
Supraglottic device insertion
Combitube insertion

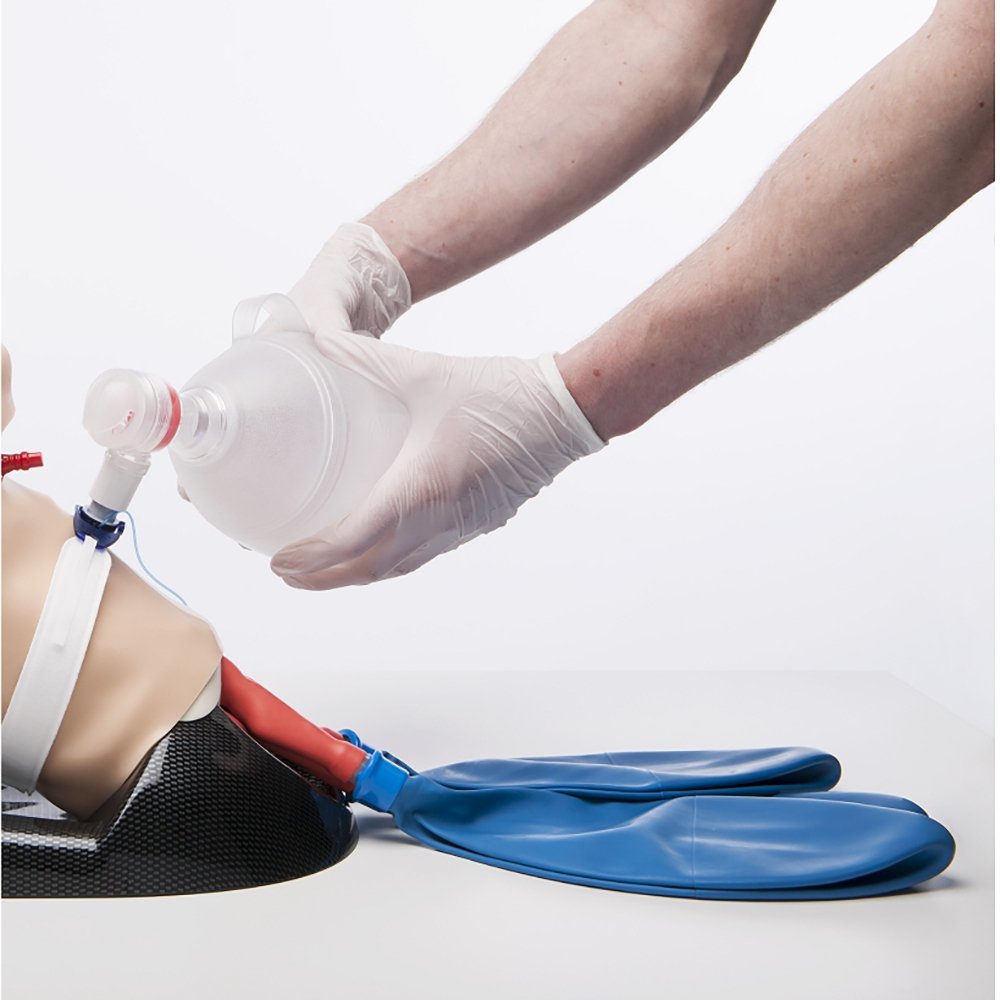

Bag valve mask (BVM) ventilation
Fibre optic intubation & examination
Nasogastric (NG) tube insertion techniques
Single lung isolation techniques

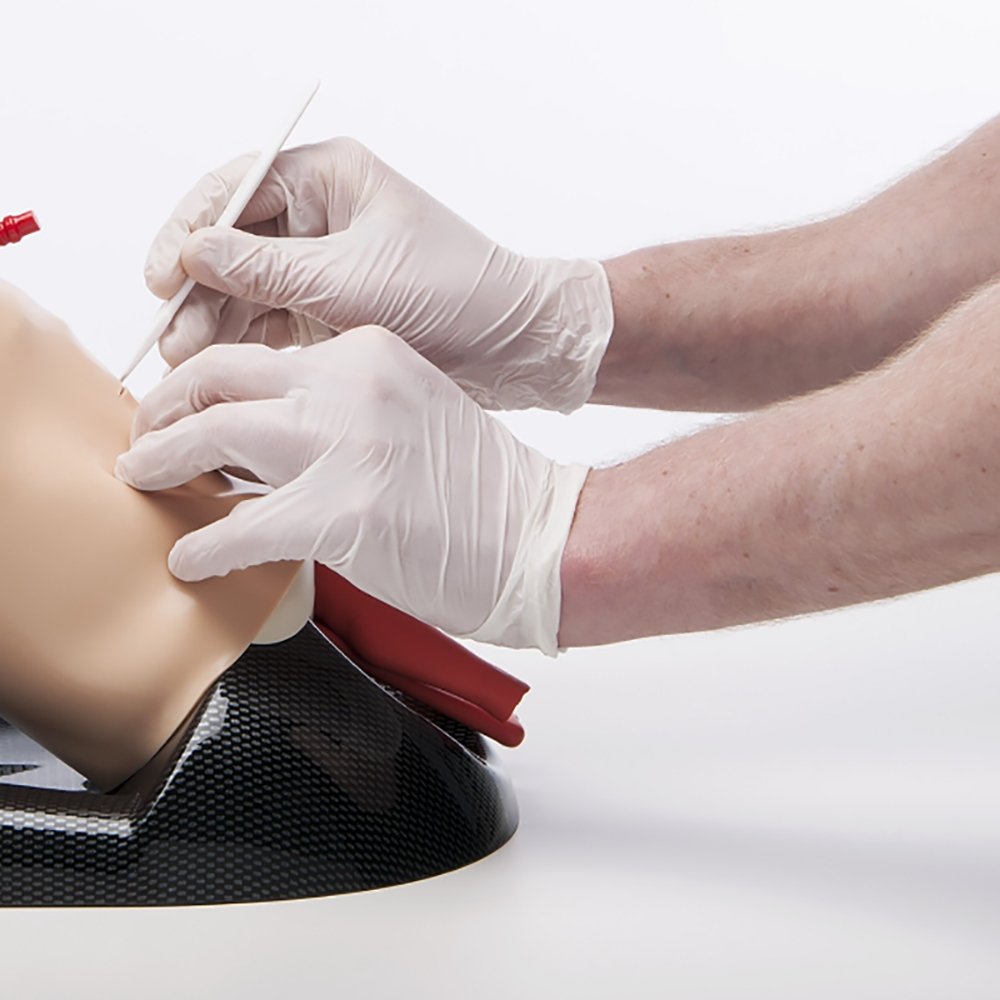

Needle & surgical cricothyroidotomy

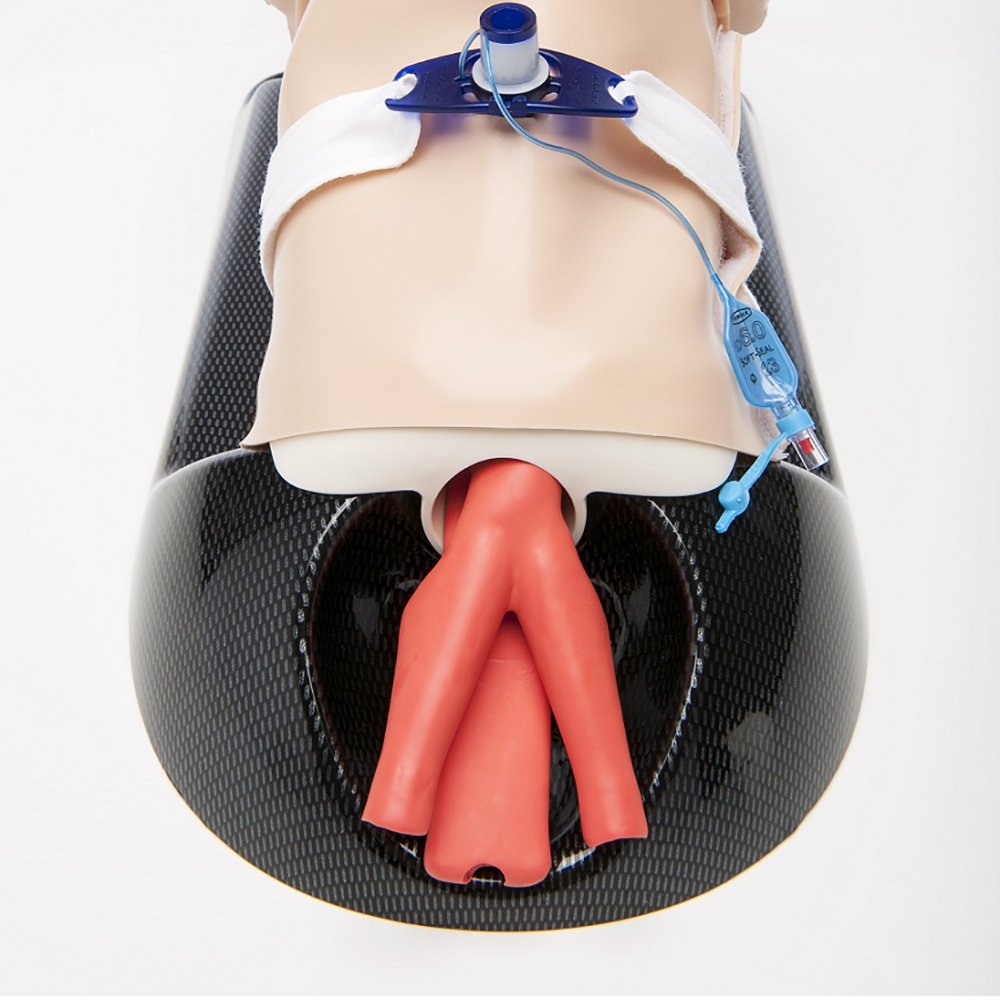

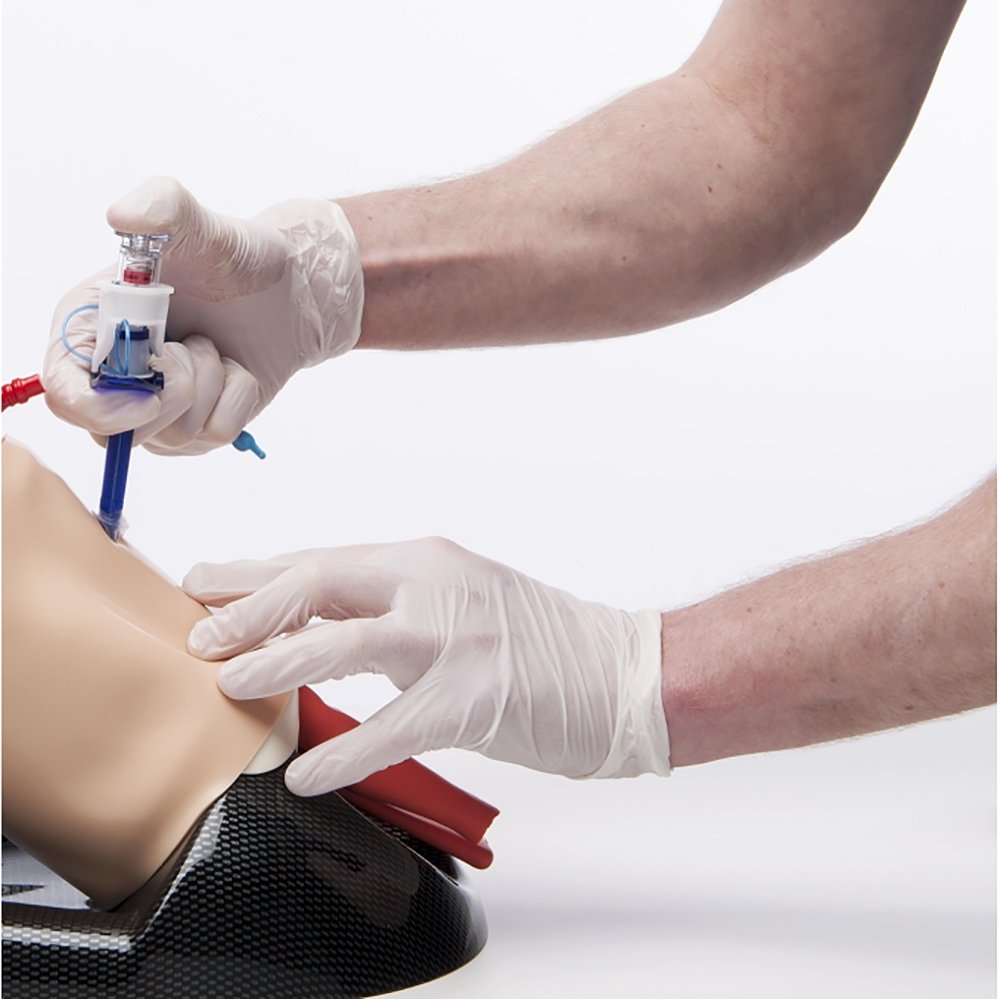

Percutaneous tracheostomy

What package contents will arrive with my order?

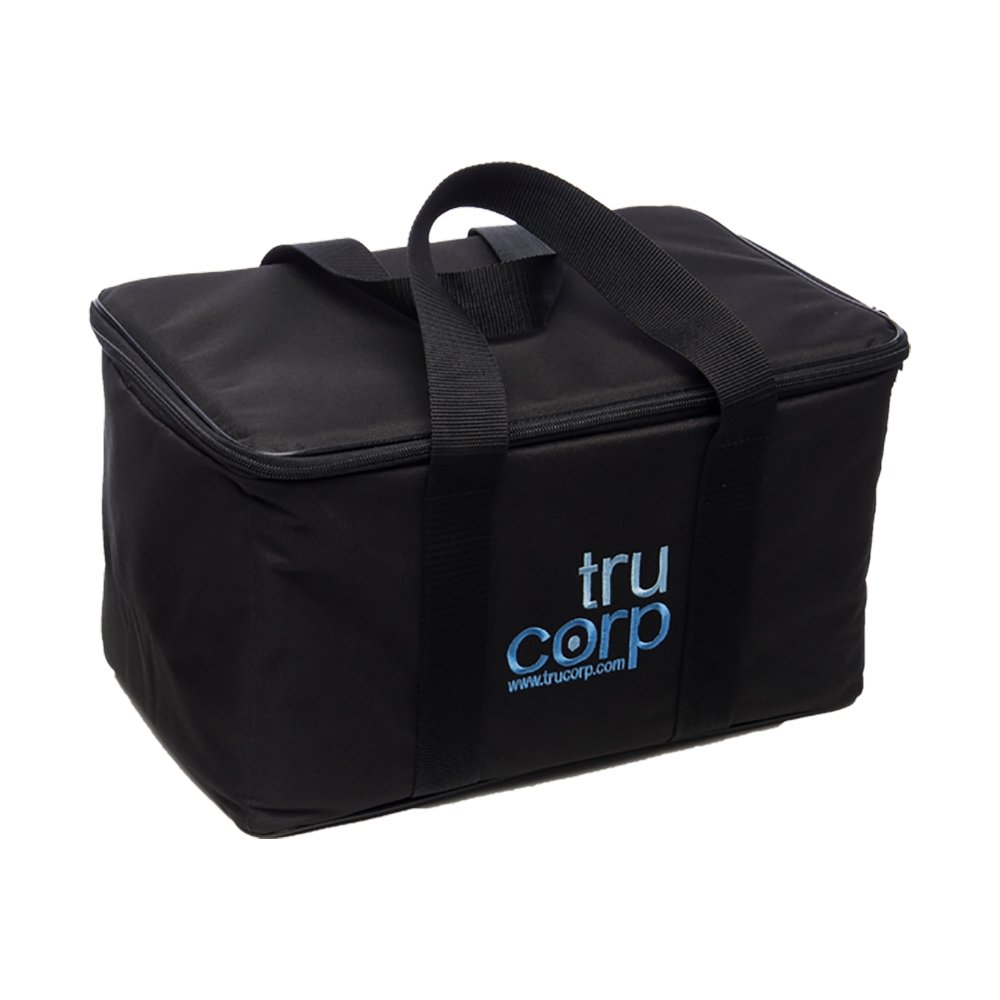

1 Carrier/storage case
1 Bottle of TruCorp lubrication
3 Adult lung bags replicating 2 lungs & stomach

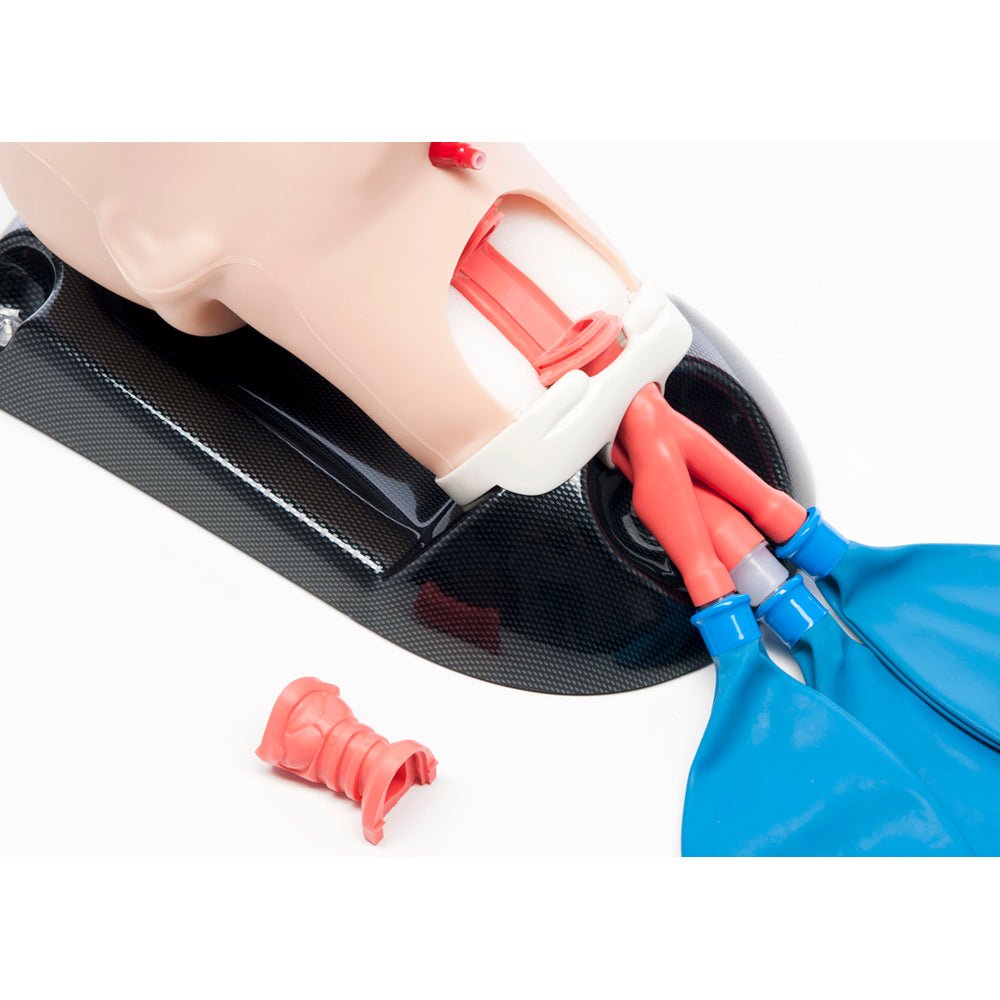

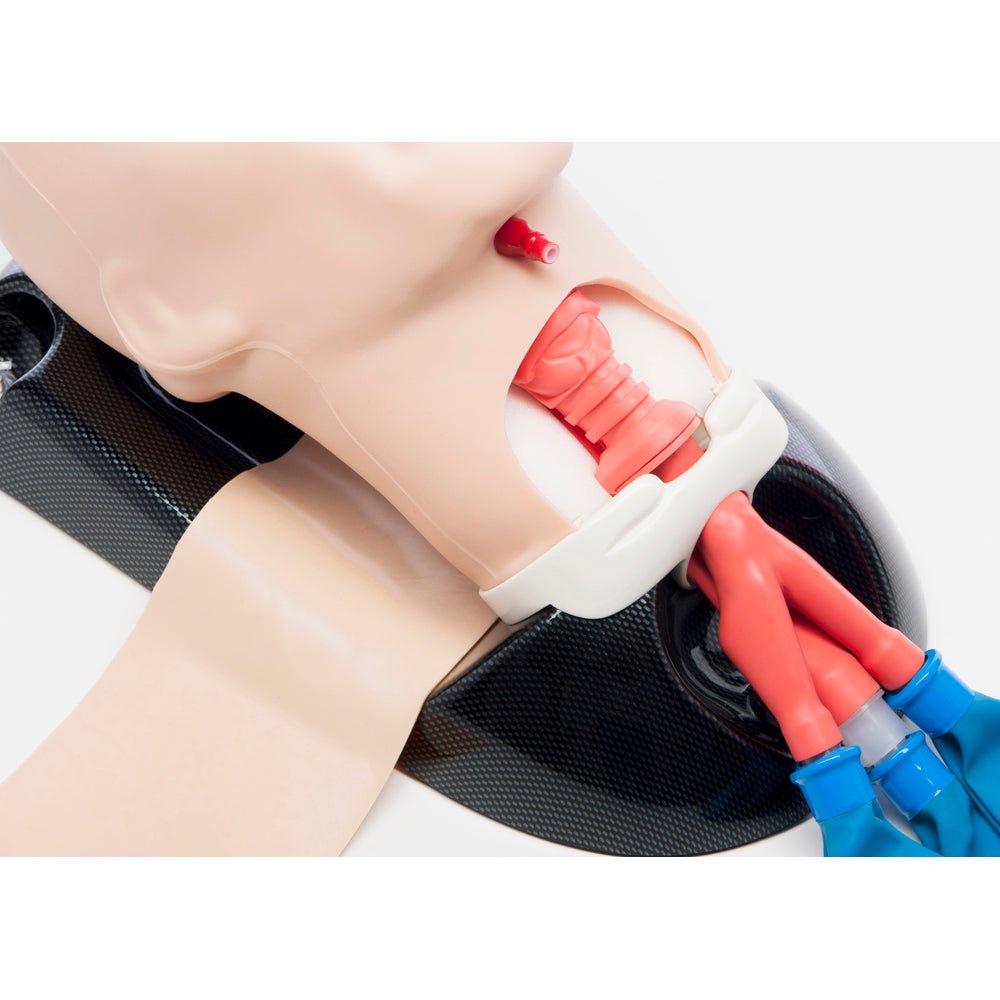

5 Larynx inserts (1 attached, 4 extra)
1 Wrap around neck skin (attached)
2 sets of adhesive pads (attachable to suction cups for increased stability if required)

How many procedures will each consumable facilitate?

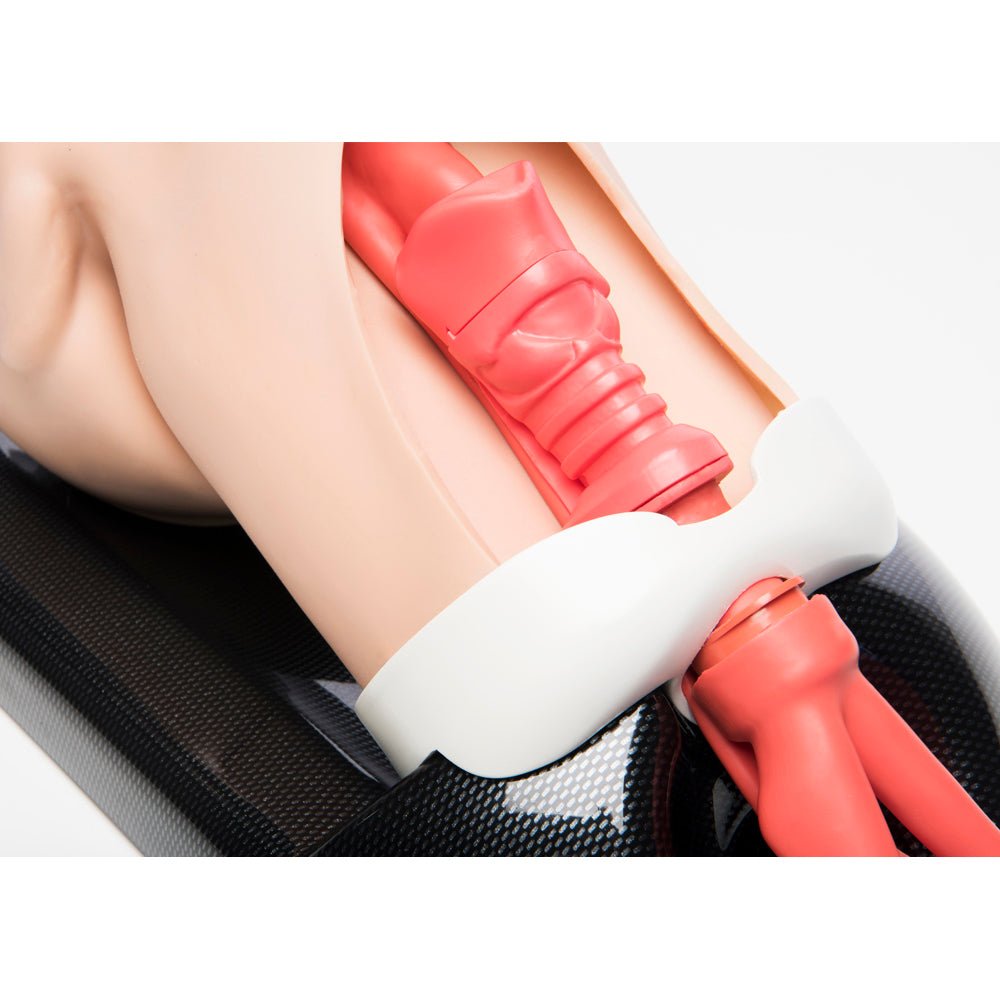

1 larynx insert (NLX050) facilitates 1 surgical cricothyroidotomy and 2-3 percutaneous tracheostomy procedures
1 wraparound neck skin (RSN1005) facilitates approx. 10-15 incisions, the skin is designed to be rotated around the neck to maximize usage
All consumables are quick and easy to interchange so there is no disruption to teaching time

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

Does the AirSim Combo X require assembly?

No, this training manikin is delivered ready to use so you can begin training straight away! Generously spray the oral/nasal passages and equipment with the lubrication provided.

What equipment sizes are recommended?

Size 7.0-7.5mm ID for nasal intubation
Size 8.0-9.0mm ID for oral intubation
Size 3-5 for LMA laryngeal masks
Similar respective sizes for other supraglottic devices

Does the manikin provide user feedback to indicate successful or failed procedures?

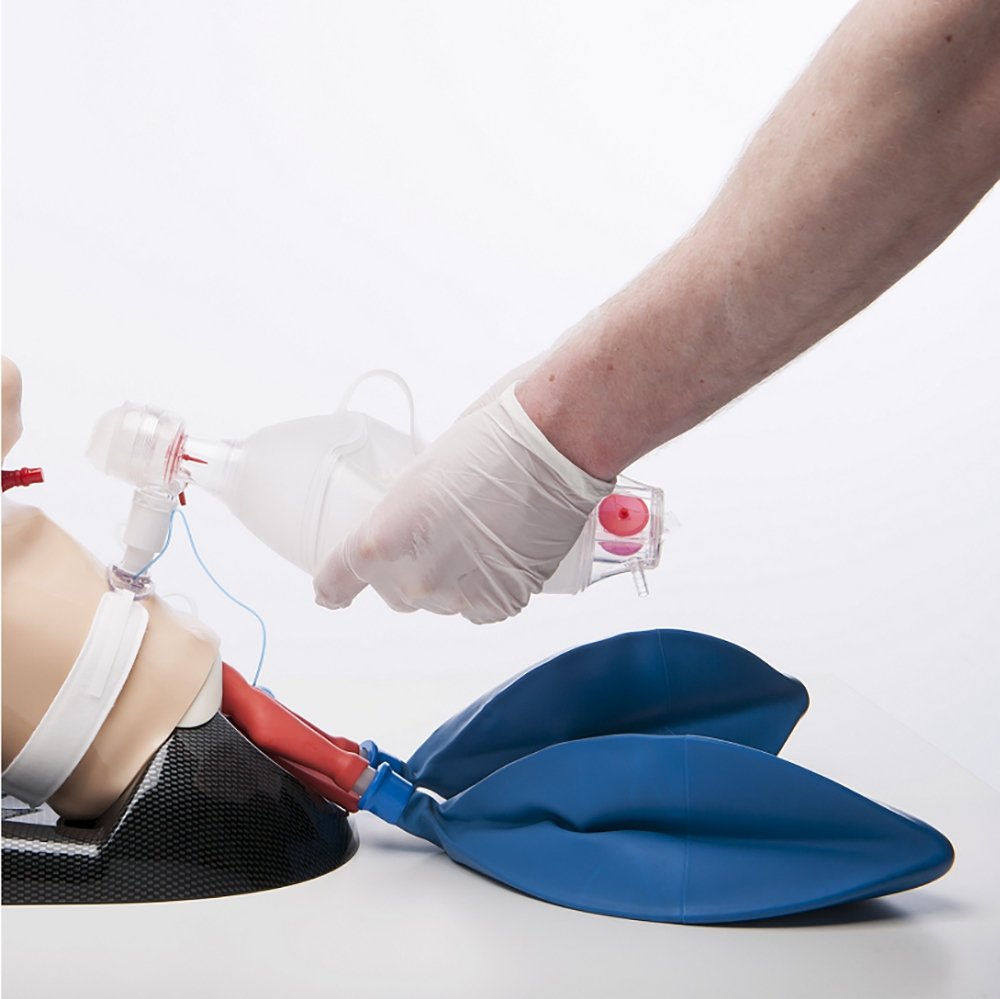

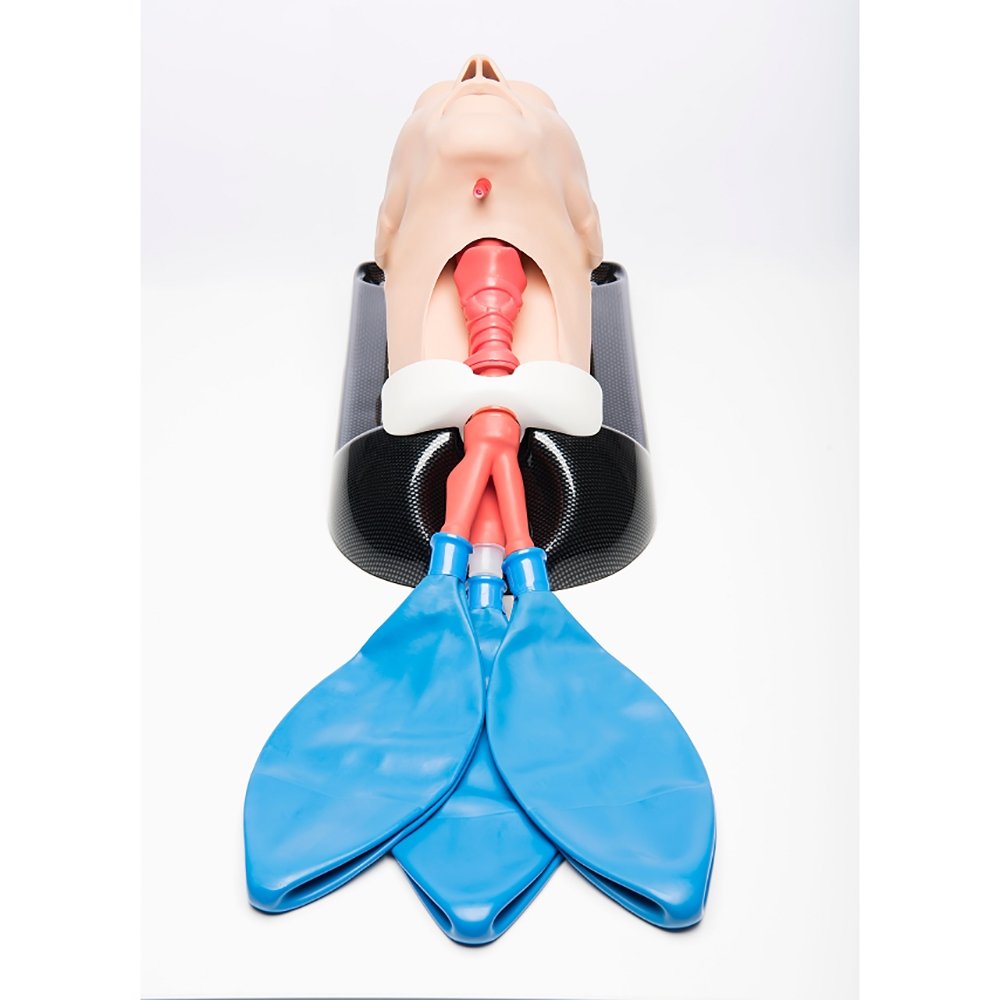

Yes, if successfully intubated the two lung bags will inflate. If the airway device is incorrectly placed in the oesophagus, the stomach bag will inflate.

Can I make intubation more difficult on the AirSim Combo X manikin?

The tongue can be inflated to simulate tongue edema. Attach an empty syringe to the red connector located underneath the skin below the chin and insert approx. 20ml of air.

My AirSim Advance X manikin needs repairing. How can I arrange this?

Another great benefit of this product is its modular design. This means spare parts can be ordered and interchanged at your location by your team. Please contact us and provide the serial number (found under the manikin base) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote.

What warranty comes with the AirSim Combo X??

The AirSim Combo X manikin comes with a 5-year warranty on the AirSim X airway and a 1-year warranty on all other parts. Warranty begins from the date of delivery.

What can I use to clean the manikin?

Thoroughly wash the AirSim X airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue is removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Please do not use any of the following when cleaning the AirSim product range:
• Germicides, disinfectants or chemical agents such as glutaraldehyde (e.g. Cidex®)
• Ethylene oxide, phenol-based cleaners or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.
