Doppler Phantom for X-Ray CT, Ultrasound and MRI

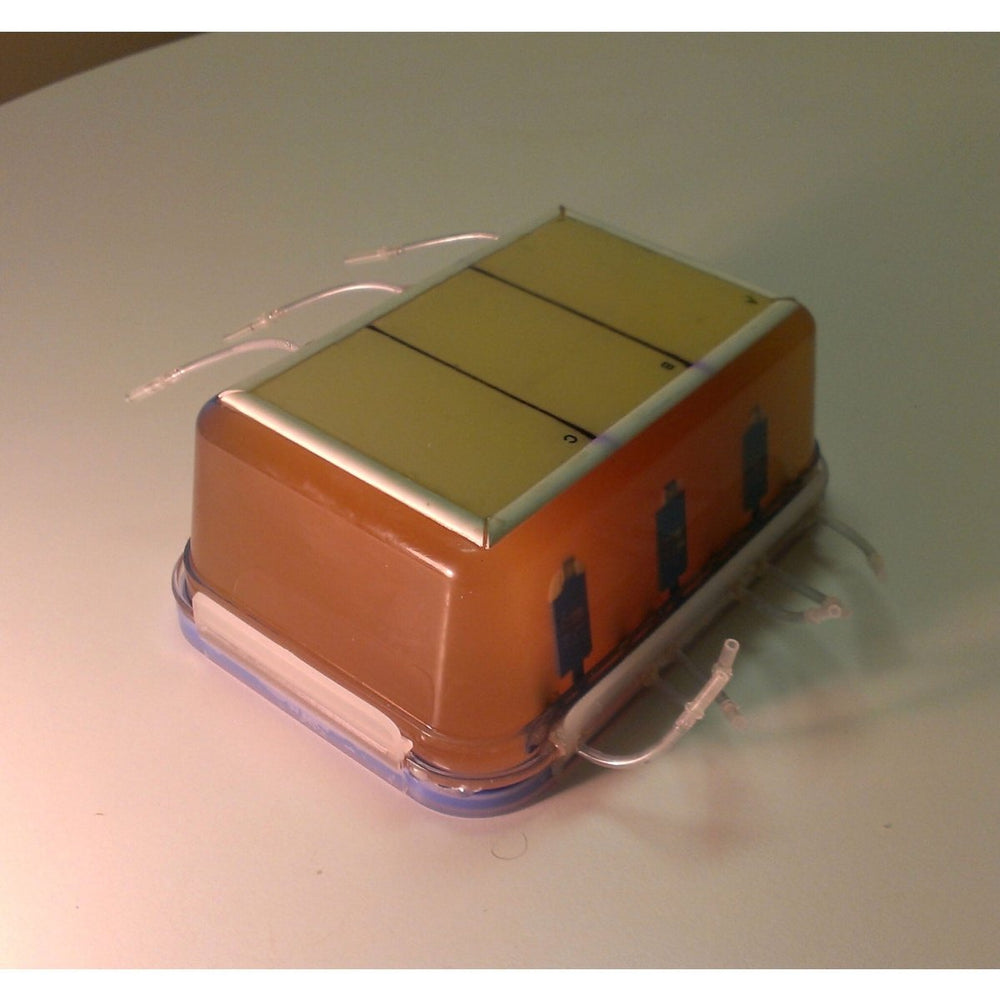

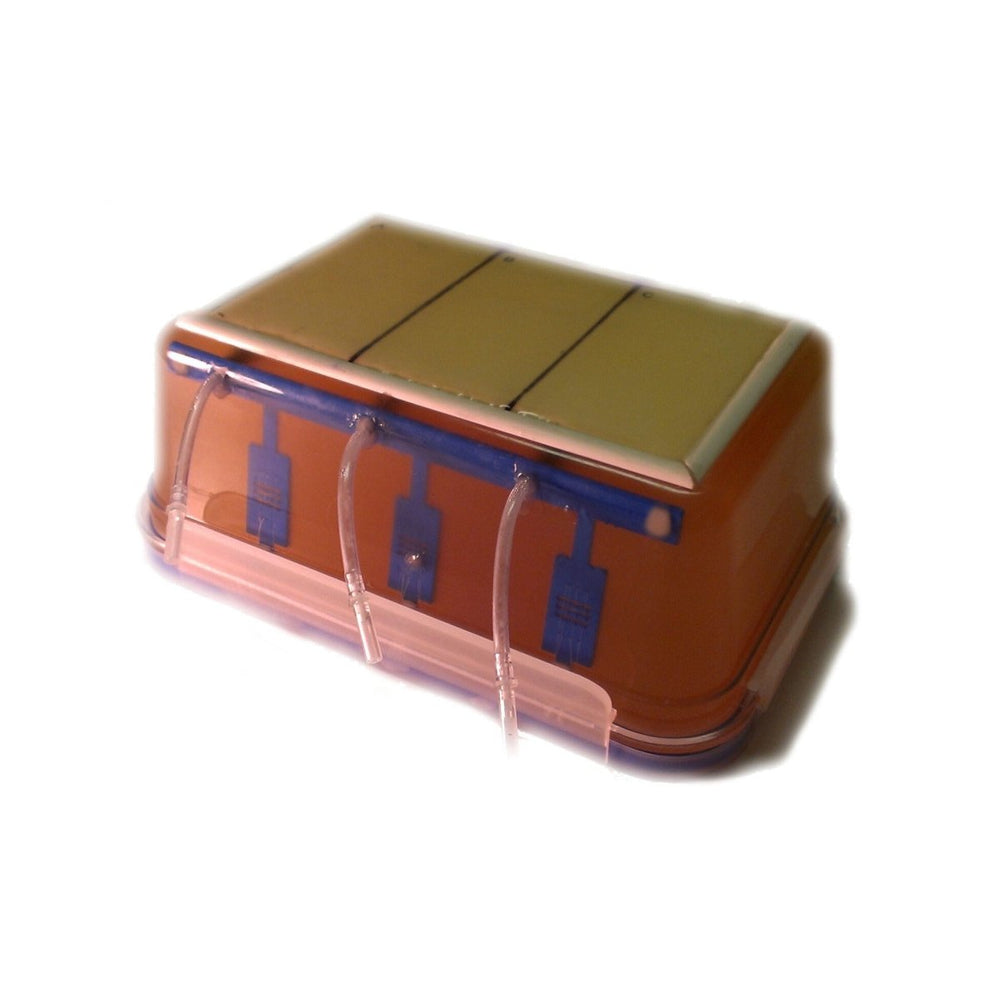

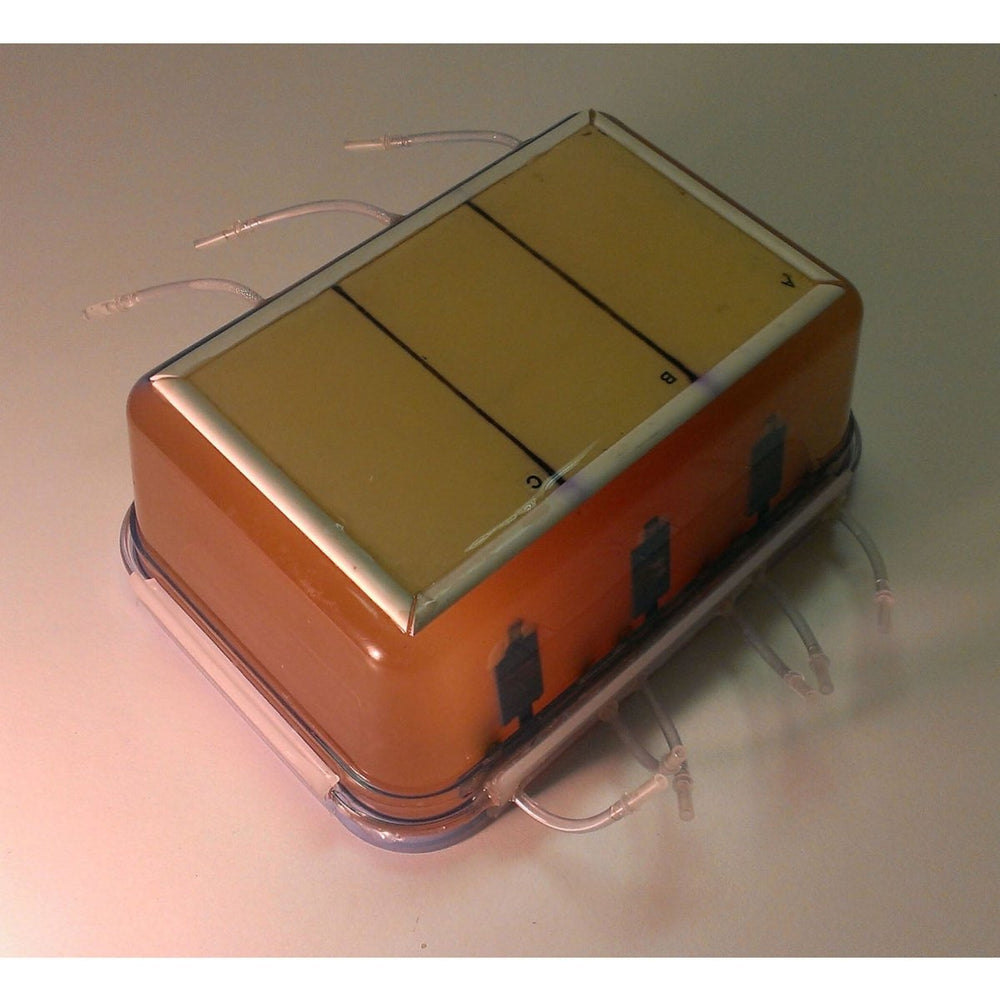

Doppler Phantom serves purposes in medical imaging research, development, training, and testing. The phantom includes a bone plate simulating the 2D projection of the skull with realistic internal porosity. Internal blood vessels can be filled with water or commonly used blood-mimicking fluids.

Doppler Phantoms are used for medical imaging research and development, training, and testing purposes. The bone plate installed on the top of this phantom mimics the skull bone, which in this case simulates only the 2D projection of the skull with a realistic internal porosity structure. The internal blood vessels can be filled either with water or with most of the commonly used blood-mimicking fluids. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.

The phantom can be customized in multiple ways to suit the needs of a wide variety of applications.

Design

Features:
  • Partial Skull Phantom with a Customized Thickness;
  • Filling the Phantom with the Acoustically Correct Brain-Mimicking Material
  • Custom Blood Vessels
  • Standard Tubes and Connectors Connected to the Custom Vessels
  • Incorporating the Phantom within a Standard Compact Box
  • Implementing a Thin Film on Top of the Phantom
  • Custom Target Wires
Your order will include:
  • Doppler Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Phantom:
  • Height: 8 x 6 x 4 in (approx.)
  • Weight: 1.0 lb (approx.)
Shipment:
  • Height: 12 x 10 x 10 in (approx.)
  • Weight: 6 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Download:
manual

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Download a PDF with product details

Doppler Phantom for X-Ray CT, Ultrasound and MRI

Phantom Dimensions:
  • Height: 8 x 6 x 4 in (approx.)
  • Weight: 1.0 lb (approx.)
Shipment Dimensions:
  • Height: 12 x 10 x 10 in (approx.)
  • Weight: 6 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Technical Properties

Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 21 ± 2
Brain Matter 1400 ± 10 0.99 1.0 ± 0.2
Skin Tissue 1400 ± 10 1.02 1.7 ± 0.2

HU Values of the Tissue Mimicking-Materials

S.No. Tissue Type HU Value (average)
1 Brain Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300

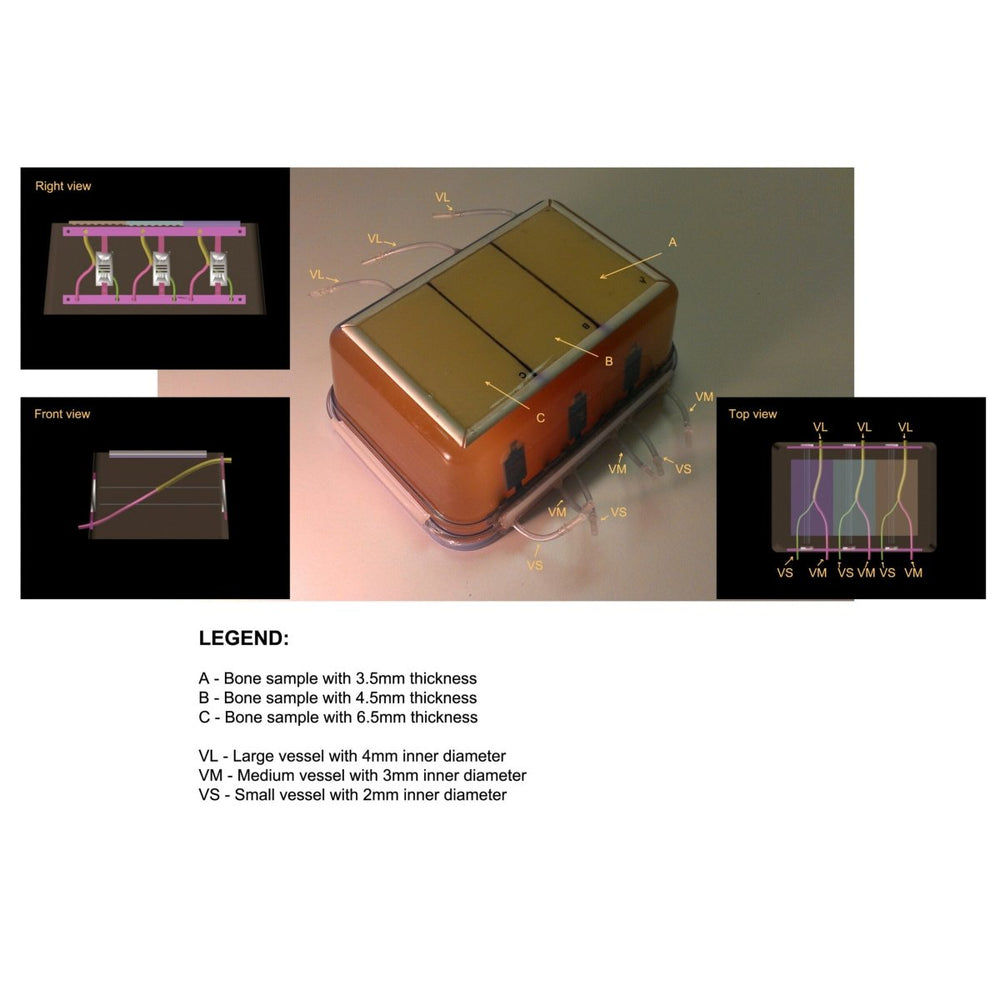

Section Number Cortical Outer Thickness [mm] Trabecular Thickness [mm] Cortical Inner Thickness [mm] Total Thickness [mm]
A 1.5 ± 0.2 1 ± 0.2 1.0 ± 0.2  3.5 ± 0.2
B 1.5 ± 0.2 2 ± 0.2 1.0 ± 0.2 4.5 ± 0.2
C 2.5 ± 0.2 3m± 0.2 1.0 ± 0.2 6.5 ± 0.2
