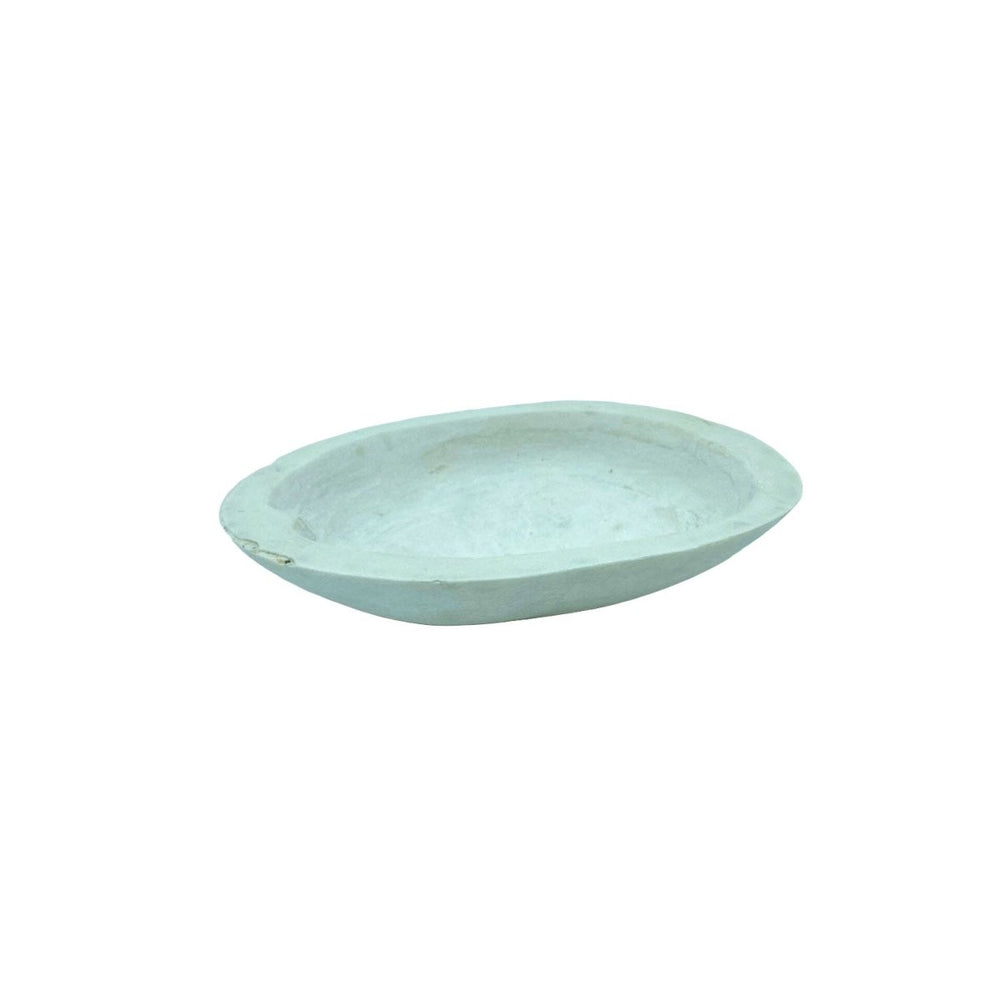

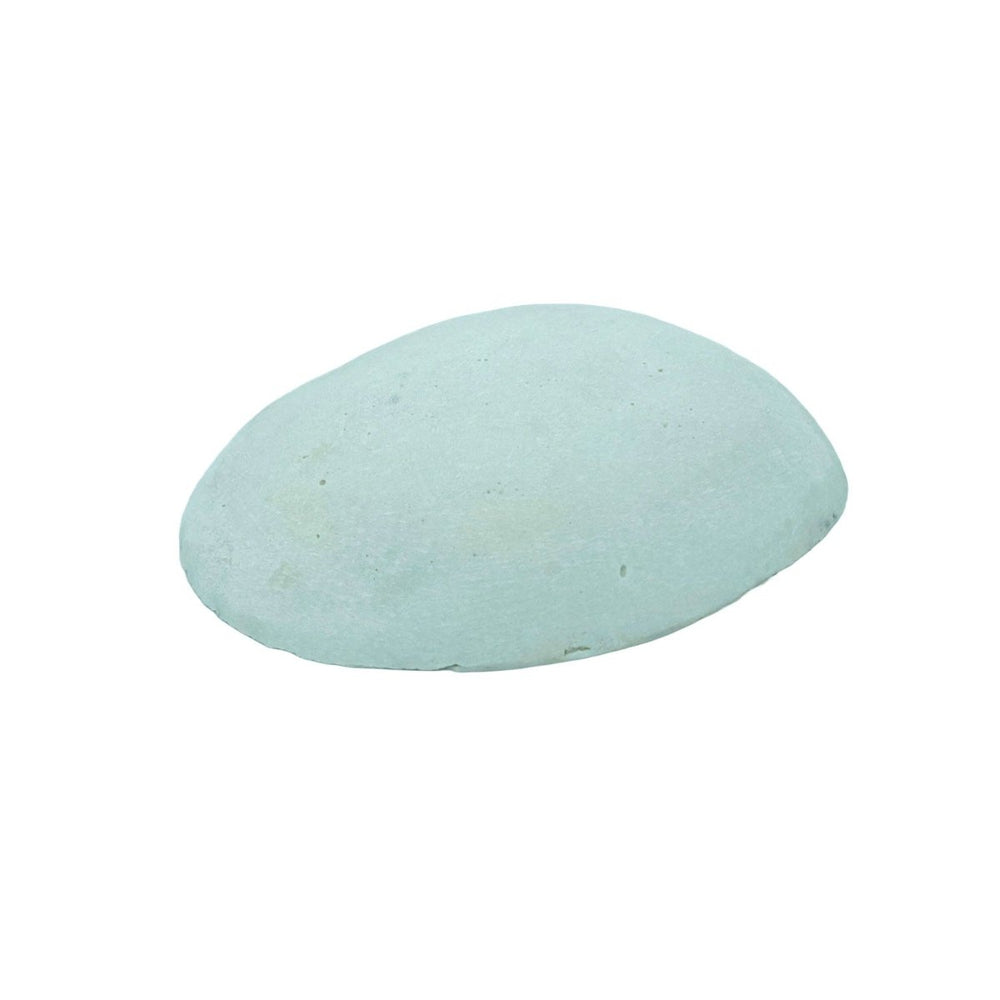

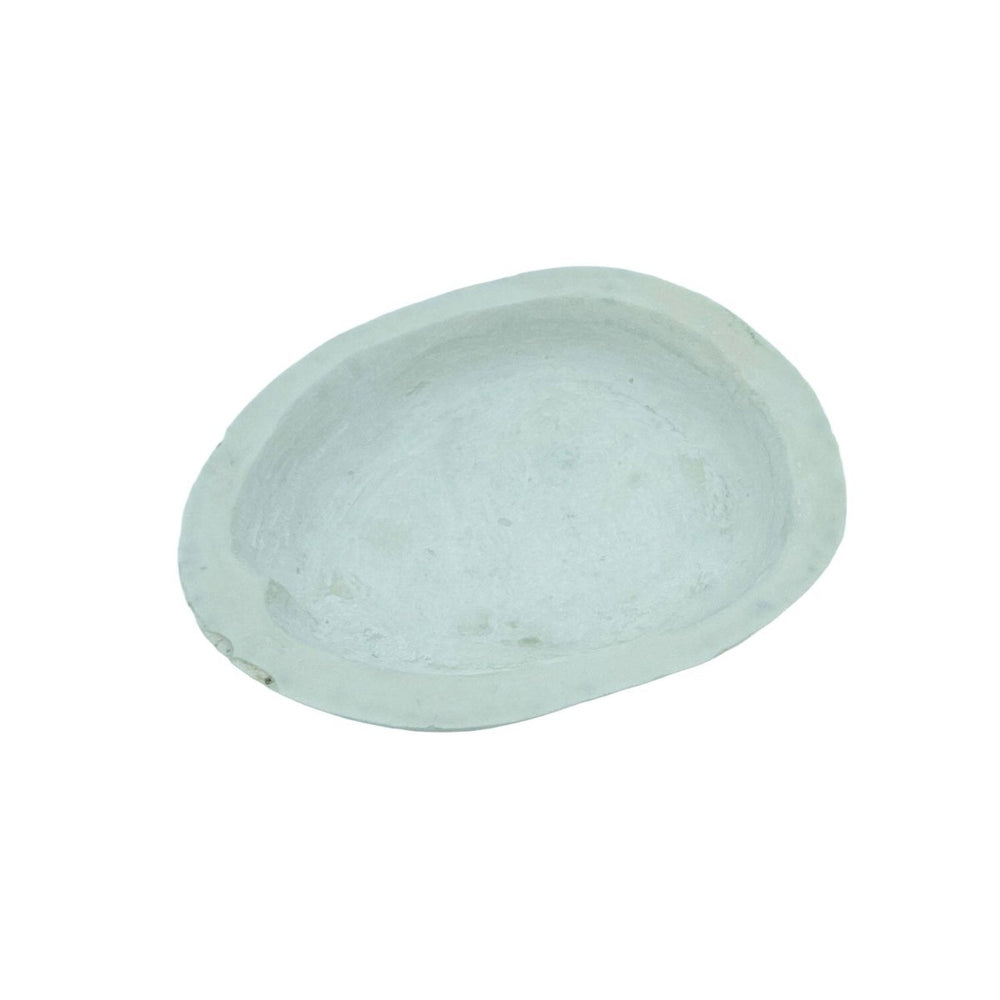

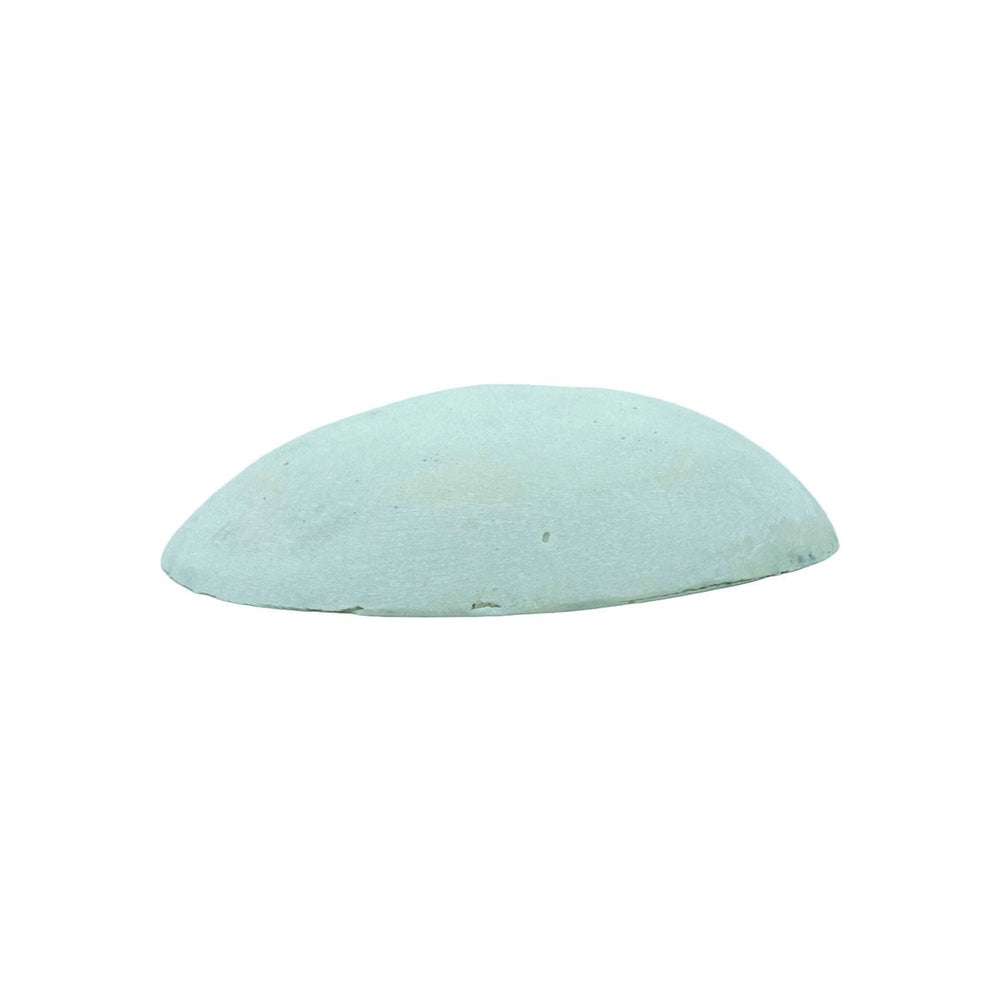

Standard Calvaria for X-Ray CT, Ultrasound and MRI

The Standard Calvaria phantom is an excellent tool for medical imaging research. The skull bones are made from a realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications.

The design of this phantom is based on an average human male skull, and It is developed using our patented ceramic-reinforced epoxy-based composite material suitable for Ultrasound, MRI, and CT applications (any other part of the skull can be fabricated based on the customer order).

The phantom has a realistic three-layered structure, and the inner porosity can be adjusted according to the project’s requirements.

There are several applications of this phantom. It is primarily used for medical imaging & diagnostic research, and treatment planning of non-invasive HIFU brain surgeries.

Design:
Anatomy:
  • Calvaria
    • – Cortical Bone
    • – Trabecular Bone
Your order will include:
  • Standard Calvaria Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Download:
manual
Phantom:
  • Height: 6.7 x 5.5 x 2.4 in (approx.)
  • Weight: 2 lbs (approx.)
Shipment:
  • Height: 12 x 10 x 10 in (approx.)
  • Weight: 6 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Download a PDF with product details

Standard Calvari for X-Ray CT, Ultrasound and MRI

Dimensions and Weight

Phantom:
  • Height: 6.7 x 5.5 x 2.4 in (approx.)
  • Weight: 2 lbs (approx.)
Shipping
  • Height: 12 x 10 x 10 in (approx.)
  • Weight: 6 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Technical Properties

Type of Tissues Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Speckles Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
