Extended Adult Knee for X-Ray, CT Scan and Ultrasound

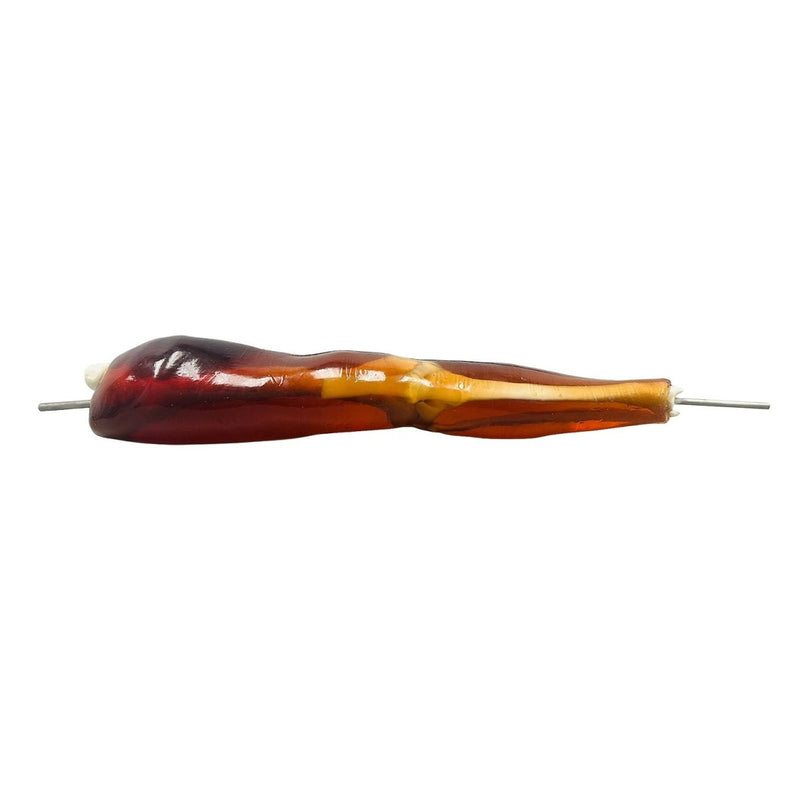

The design of this phantom is based on an average human right knee with thigh and calf regions. It is made out of several realistic tissue mimicking materials that are suitable for X-Ray CT and Ultrasound applications.

The Adult Knee (Extended) phantom is compatible with X-Ray CT and Ultrasound applications. This product features the anatomy of a right human knee with the addition of a thigh and calf. The synthetic bones in this phantom are made from our patented material. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials.

The phantom can be used to conduct medical imaging research, radiology training, testing, and calibration-related work. This product can be further customized to match various project requirements.

Anatomy

    Upper Leg
  • Lower Leg
  • Patella
  • Meniscus:
    • Lateral Meniscus
    • Medial Meniscus
  • Condyle:
    • Lateral Condyle Femoral
    • Medial Condyle Femoral
  • Ligaments and Tendons:
    • Quadriceps Femoris Tendon
    • Patellar Ligament
    • Lateral Patellar Retinaculum
    • Medial Patellar Retinaculum
    • Anterior Cruciate Ligament
    • Posterior Cruciate Ligament
    • Arcuate Popliteal Ligament
    • Oblique popliteal Ligament
  • Bursa:
    • Subtendinous Bursa (3)
    • Semimembranosus Bursa
    • Pes anserine Bursa
    • Infrapatellar Bursa
    • Prepatellar Bursa
    • Iliotibial Band Bursa
Your order will include:
  • Extended Adult Knee Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Phantom:
  • Height: 7 x 8 x 35 in (approx.)
  • Weight: 26 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 50 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Front View
Lateral View
Perspective View
Top View

Coming soon...

Type of Tissue Sound Velocity
[m/s]		 Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300
Download a PDF with product details

Extended Adult Knee for X-Ray, CT Scan and Ultrasound

Phantom:
  • Height: 7 x 8 x 35 in (approx.)
  • Weight: 26 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 50 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
