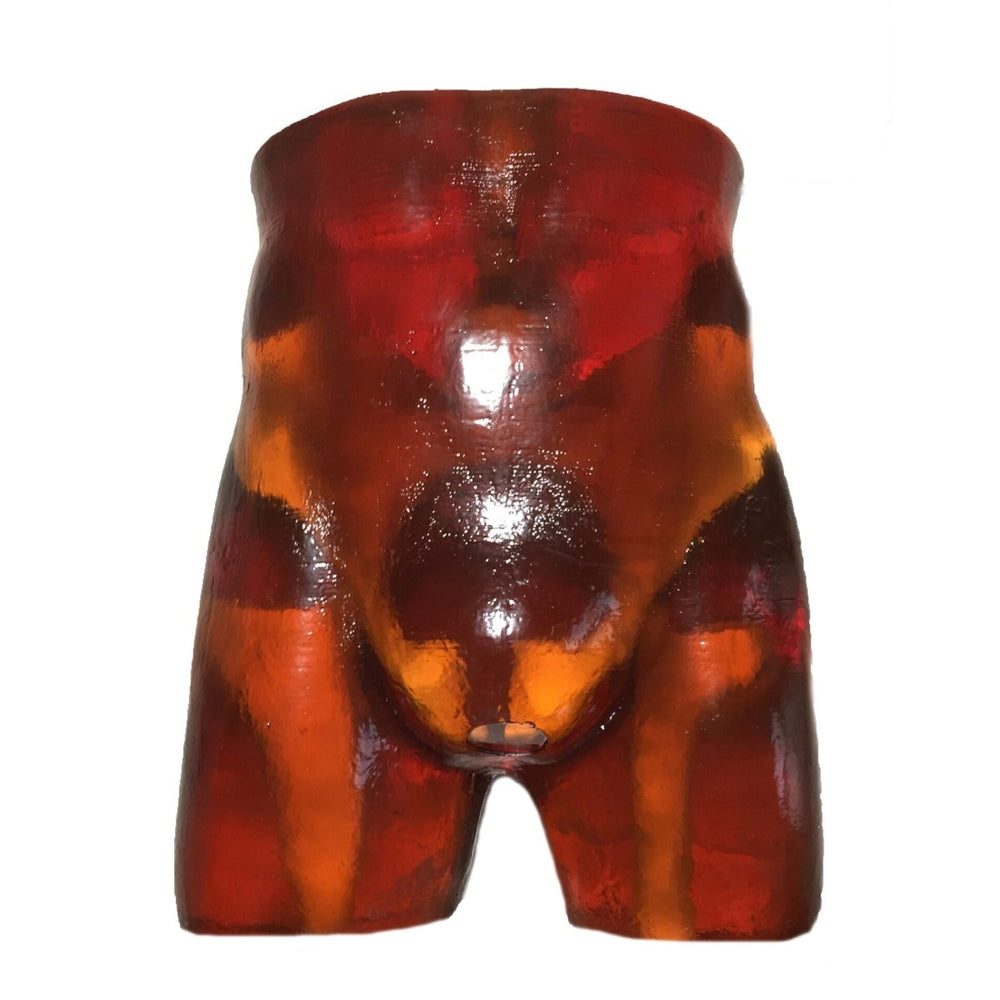

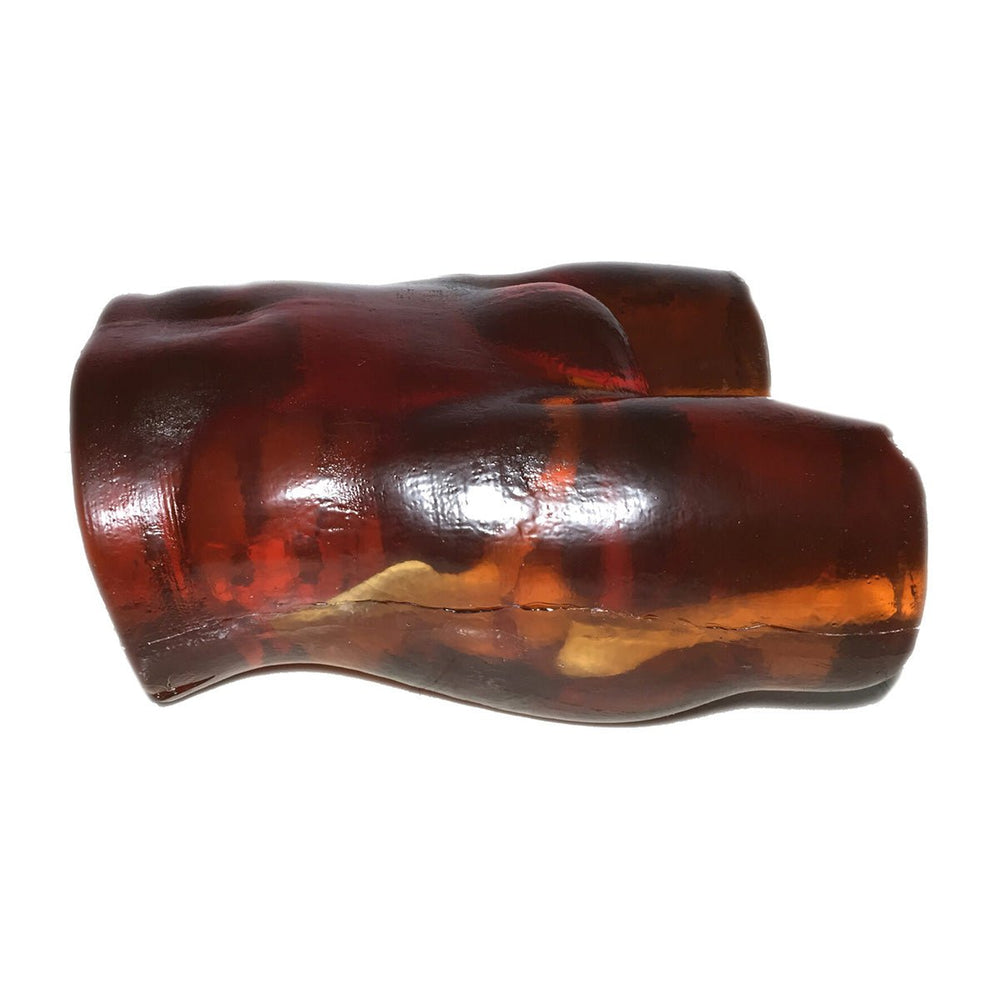

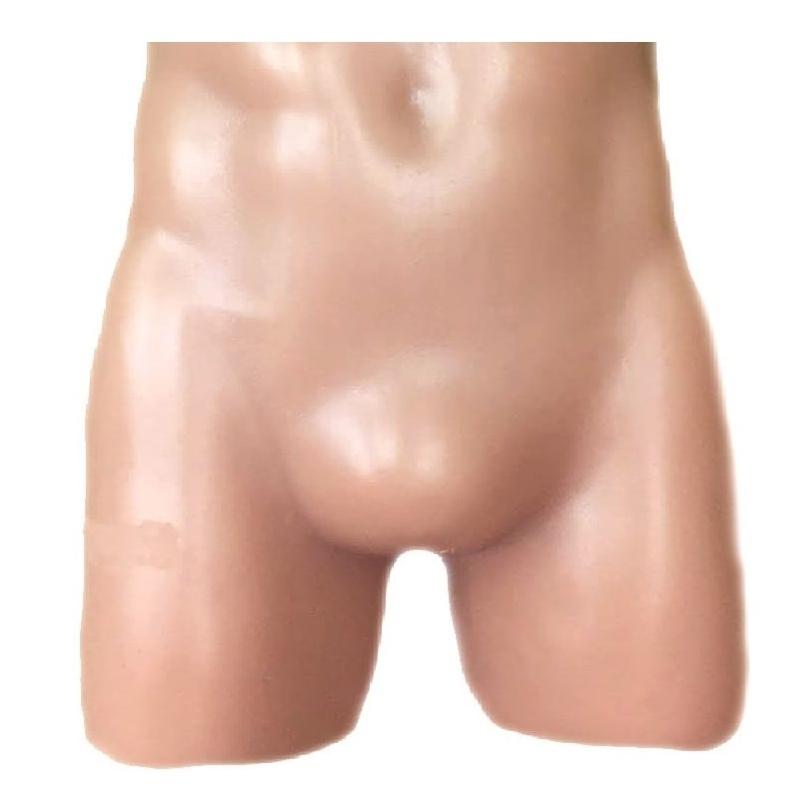

Adult Pelvis Phantom for X-Ray CT and MRI

The Adult Pelvis Phantom is a realistic training tool and research device for medical imaging. Made of patented bone material, it is suitable for X-Ray/CT and MRI imaging. Customizable in size and shape, it offers a three-layered structure with adjustable porosity for specific project needs.

The Adult Pelvis Phantom’s structure and geometry is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-Ray/CT and MRI imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related purposes. This product can be further customized to match our client’s specific requirements.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.

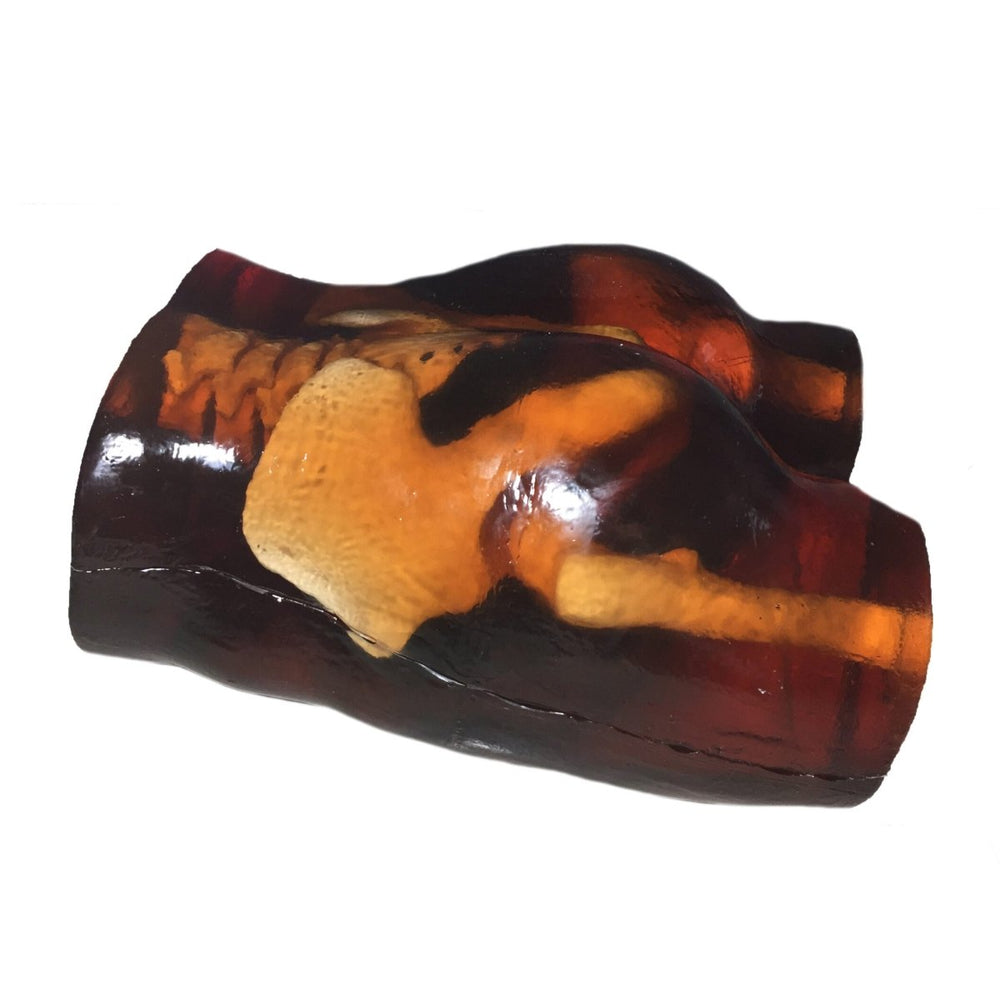

The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of wide variety of projects. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).

Anatomy:
  • Spine (L5 – L2)
  • Pelvis Bone
  • Partial Left and Right Femoral Bones
Your order will include:
  • Adult Pelvis Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Phantom:
  • Height: 14 x 10 x 16 in (approx.)
  • Weight: 49 lbs (approx.)
Shipment:
  • Height: 36 x 24 x 13 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

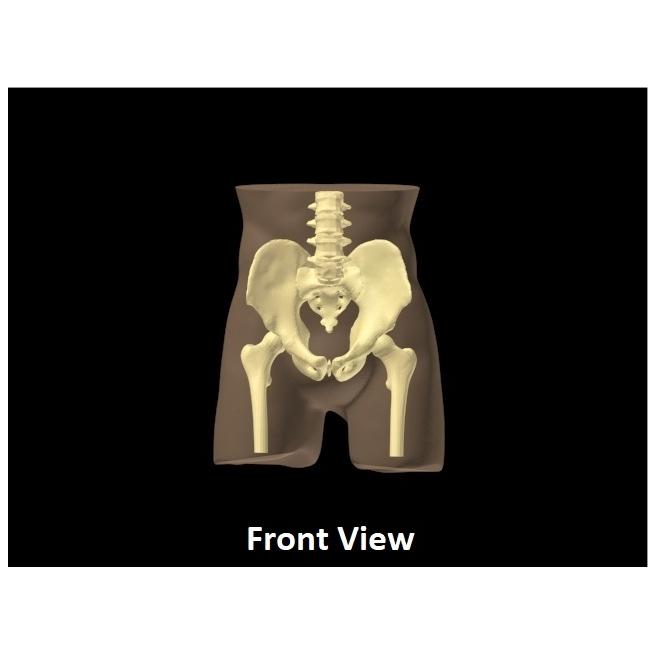

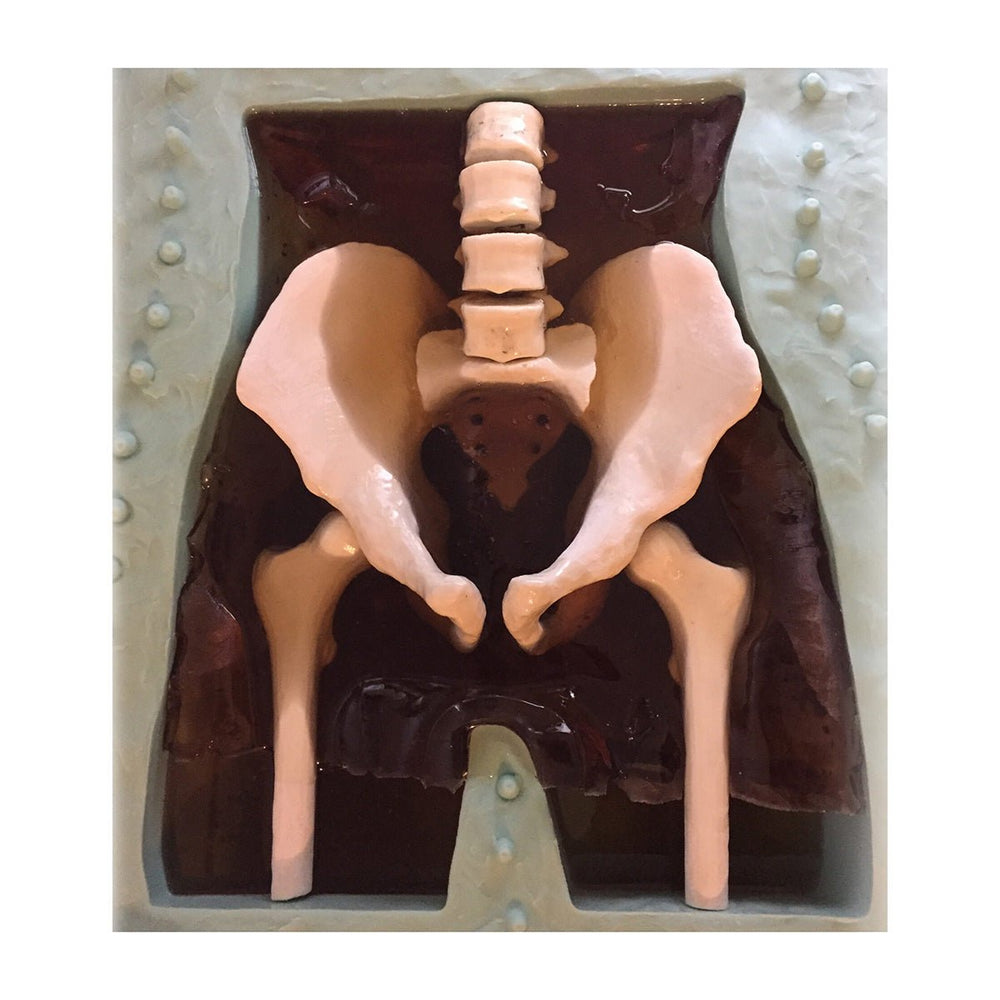

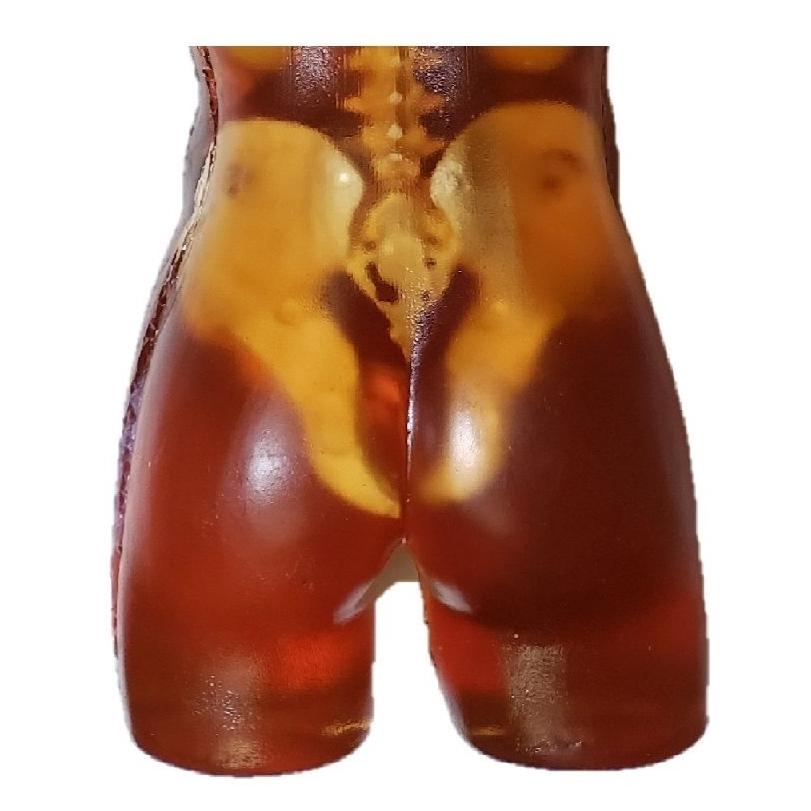

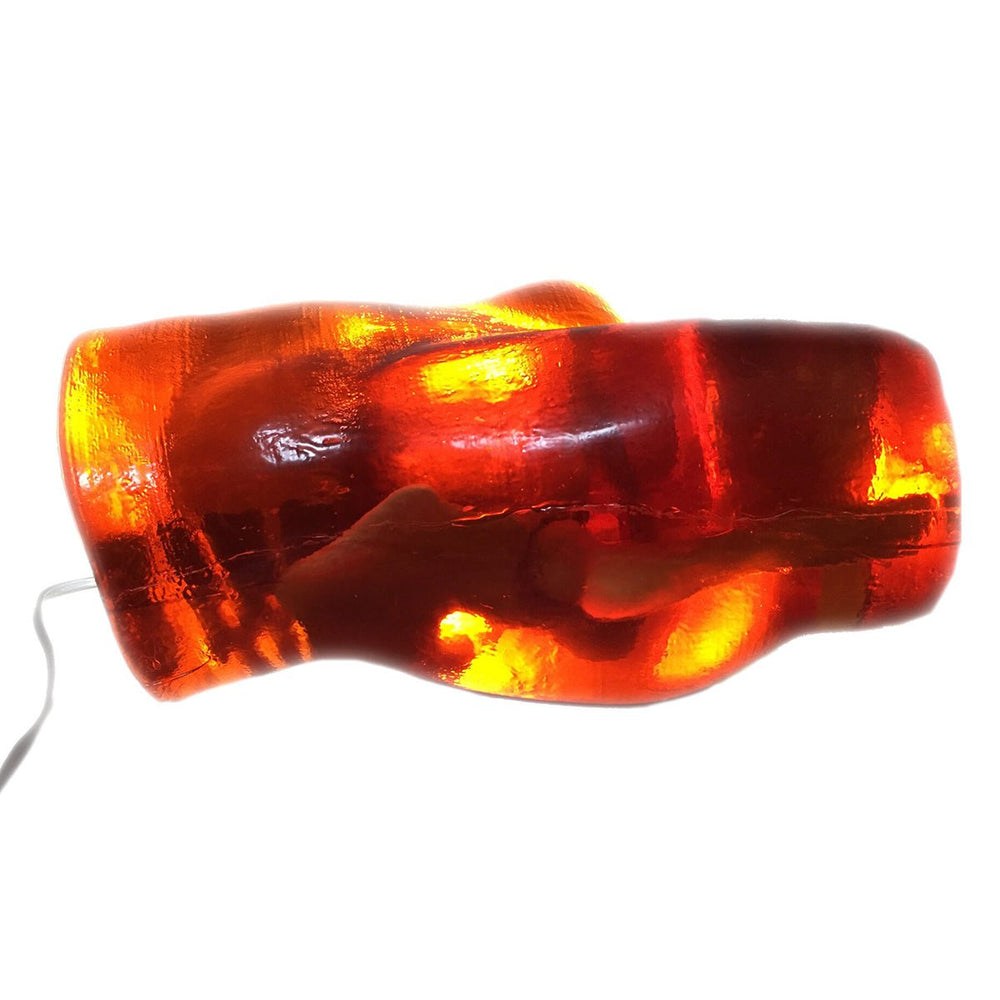

Front View

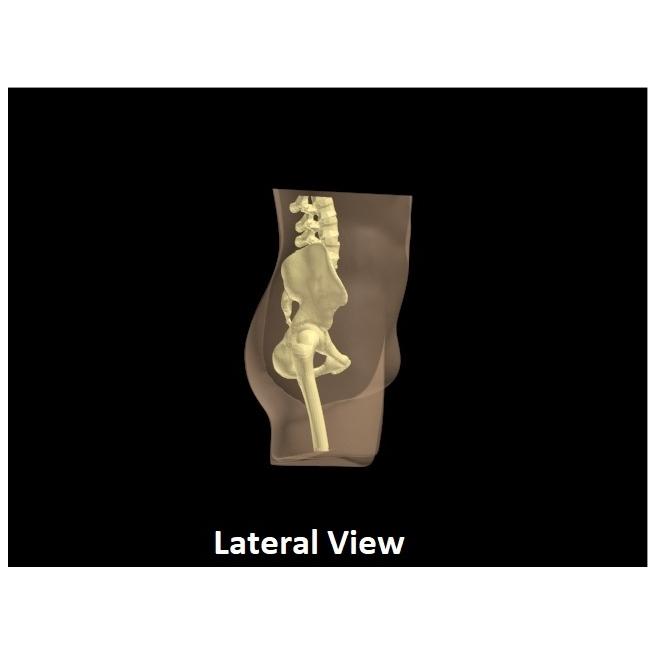

Lateral View

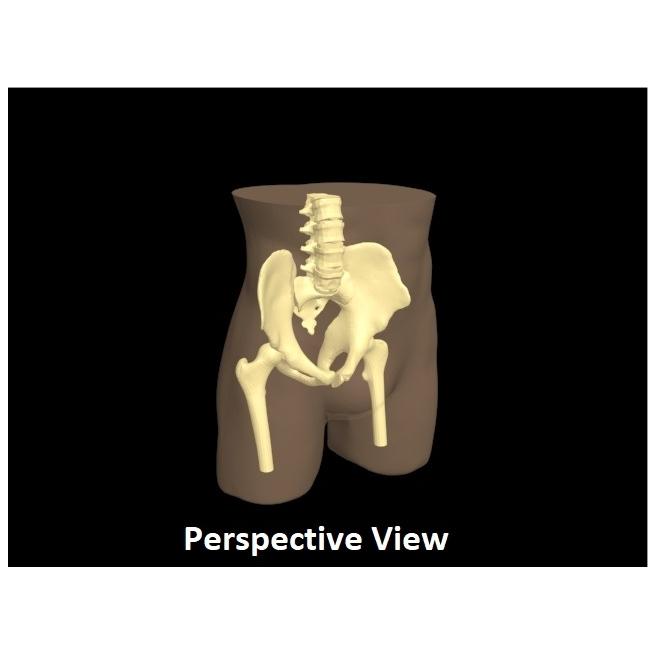

Perspective View

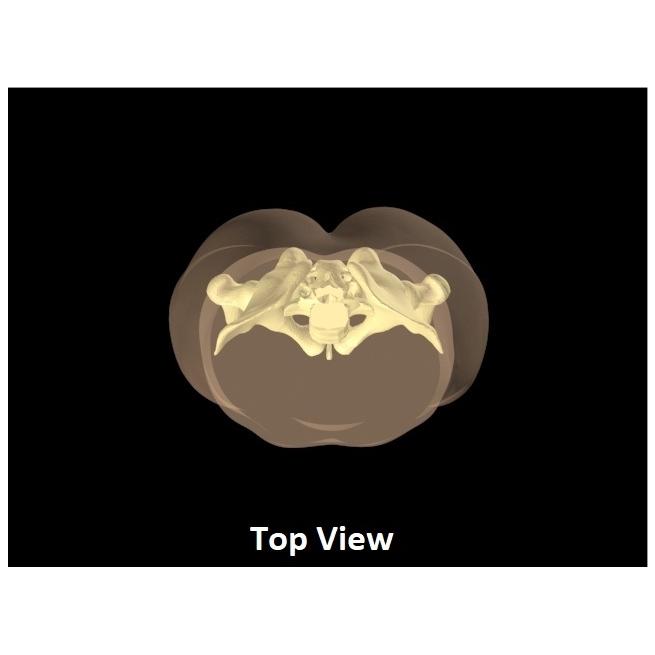

Top View

CT Scans

MRI Scans

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300
Download a PDF with product details

Adult Pelvis Phantom for X-Ray CT and MRI

Phantom:
  • Height: 14 x 10 x 16 in (approx.)
  • Weight: 49 lbs (approx.)
Shipment:
  • Height: 36 x 24 x 13 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
