Adult Pelvis Phantom for X-Ray CT and Ultrasound

The Adult Pelvis Phantom is designed based on an average adult male, featuring realistic soft tissue-mimicking material and synthetic bones for X-Ray/CT and Ultrasound imaging. It serves as a tool for medical imaging research, radiology training, testing, and calibration. The phantom can be customized to meet specific requirements, including adjustable inner porosity in the three-layered spine bones and customization of size and shape based on individual CT scans.

The Adult Pelvis Phantom – Its structure & geometry is based on an average adult human male. It is made out of realistic soft tissue-mimicking material and patented synthetic bones suitable for X-Ray/CT and US imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration purposes. This product can be further customized to match our client’s specific requirements.

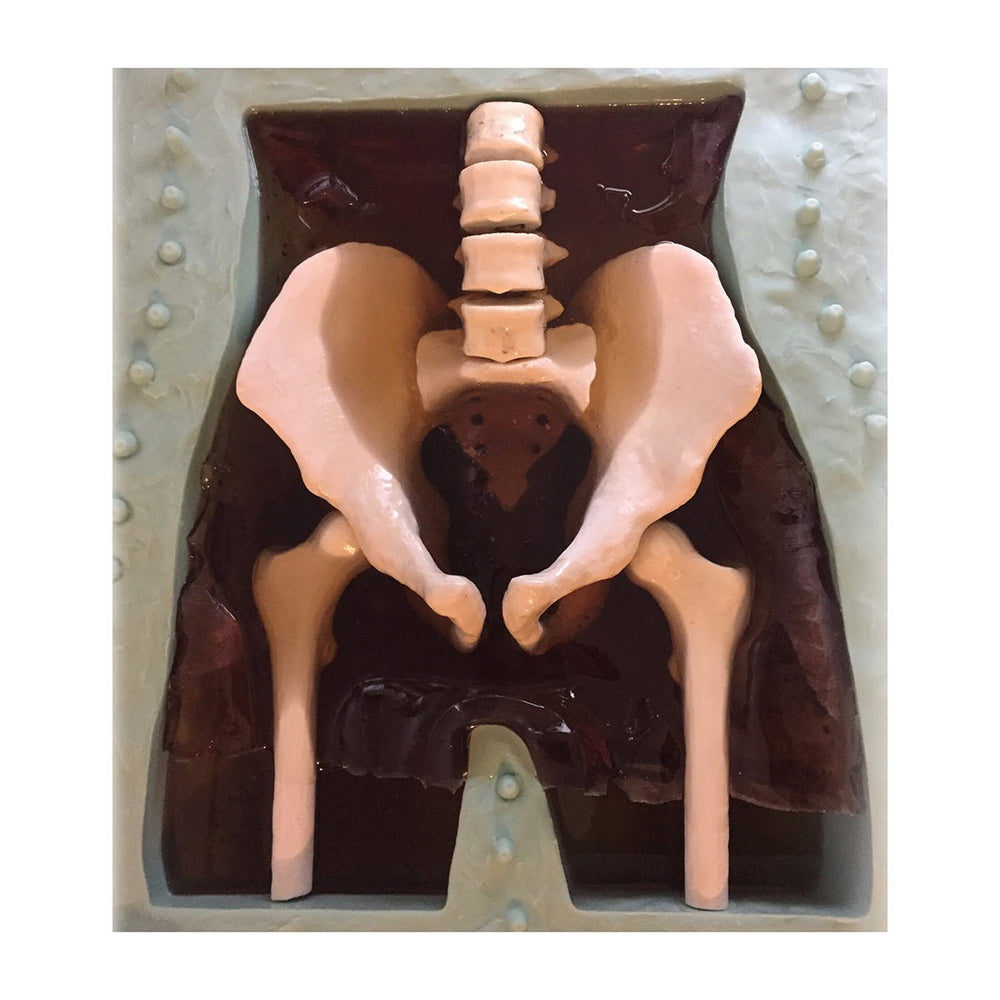

The spine bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom can also be customized in size and shape (i.e., based on any individual’s CT scan).

Anatomy:
  • Spine (L5 – L2)
  • Pelvis Bone
  • Partial Left and Right Femoral Bones
Your order will include:
  • Adult Pelvis Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Phantom:
  • Height: 14 x 10 x 16 in (approx.)
  • Weight: 49 lbs (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Front View
Lateral View
Perspective View
Top View

CT Scans

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Soft Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Bladder 35
5 Rectum Wall 100
6 Sigmoid Colon Wall 100
Download a PDF with product details

Adult Pelvis Phantom for X-Ray CT and MRI

Phantom:
  • Height: 14 x 10 x 16 in (approx.)
  • Weight: 49 lbs (approx.)
Shipment:
  • Height: 36 x 24 x 13 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
