True Phantom

Advanced Newborn Torso for X-Ray CT and MRI

Item # TPS-AN-N02
$7,056.00 $7,200.00
You save $144.00
Ships in 12-16 weeks

Need an estimate?
Click Add To Quote

Quote Helper

Features & Specifications
  • Trusted Vendorby True Phantom
    A trusted GT partner
  • FREE Shipping
    U.S. Contiguous States Only
  • 2-Year Warranty
    Provided by manufacturer
  • GSA PricingGov't pricing
    Available upon request
About This Item
Frequently Bought Together
Store Ratings: 4.7/5 GT Reviews (1900+ Reviews)
Questions?
Get Help From Our Support
1-888-437-3900 Email Live Chat
Product of the month - potm

Advanced Newborn Torso for X-Ray CT and MRI

The Advanced Newborn Torso phantom closely resembles the anatomy of an average-sized newborn torso. It is constructed with realistic tissue-mimicking materials suitable for MRI and X-Ray/CT imaging. The phantom features a water-fillable umbilical cord and bladder, facilitating catheterization training.

The design of this Advanced Newborn Torso phantom is based on an average newborn torso. It is made from realistic tissue-mimicking materials suitable for MRI and X-Ray/CT imaging. The phantom has a water-fillable umbilical cord and bladder, which can be both used for catheterization training under ultrasound guidance.

The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

Anatomy:
  • Heart
  • Aorta
  • Inferior Vena Cava
  • Liver
  • Kidneys
  • Stomach
  • Large and Small Intestines
  • Water Fillable Bladder
  • Water fillable Umbilical Cord
  • Realistic Body Tissue
Your order will include:
  • Newborn Torso (Advanced) Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
Brochure
manual
Product Dimensions and Weight:
  • Height: 6 x 5 x 9 in (approx.)
  • Weight: 4 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 16 x 12 x 10 in (approx.)
  • Weight: 8 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

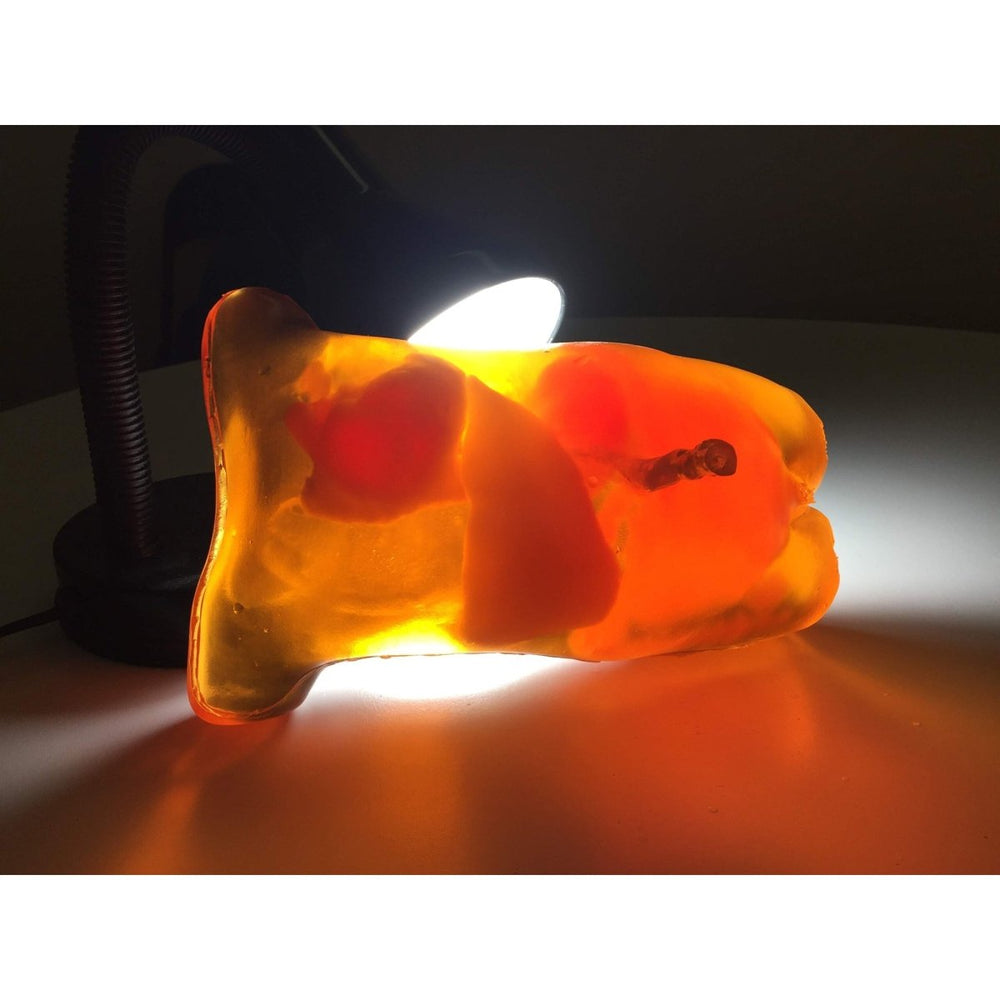

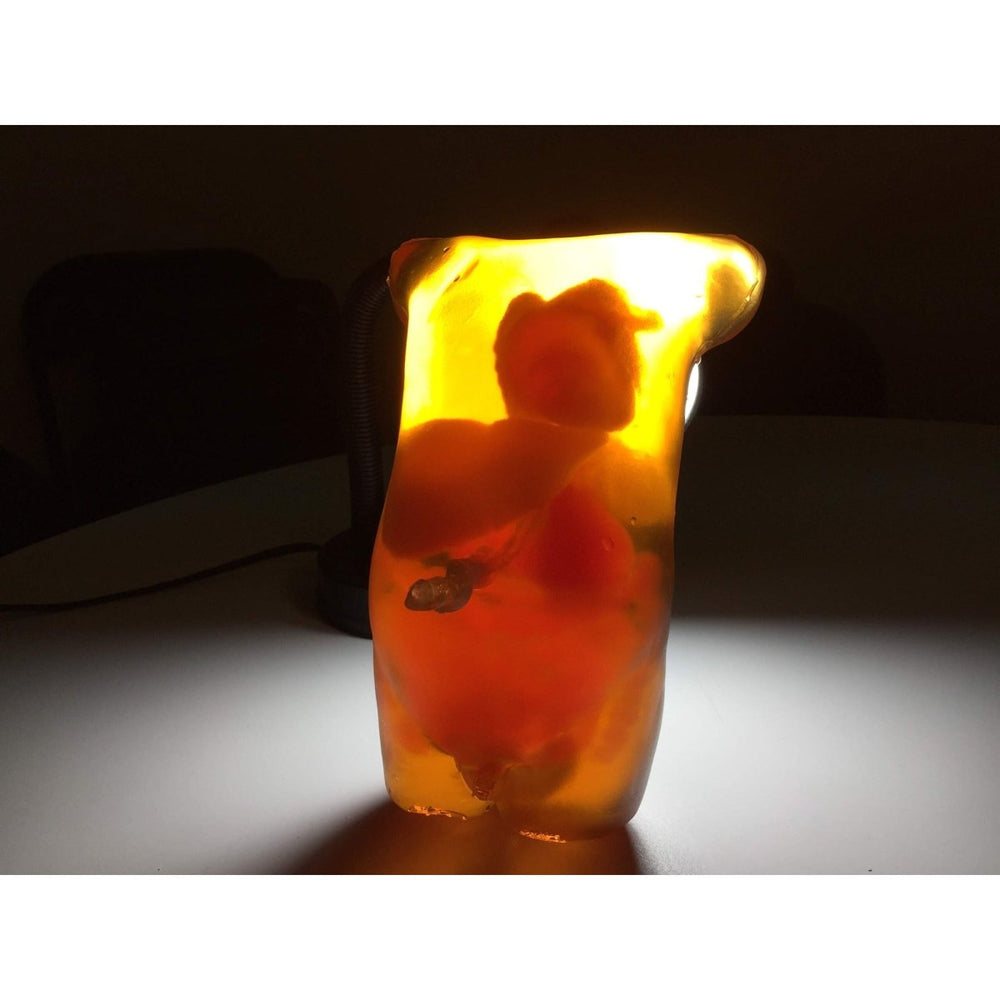

Front View

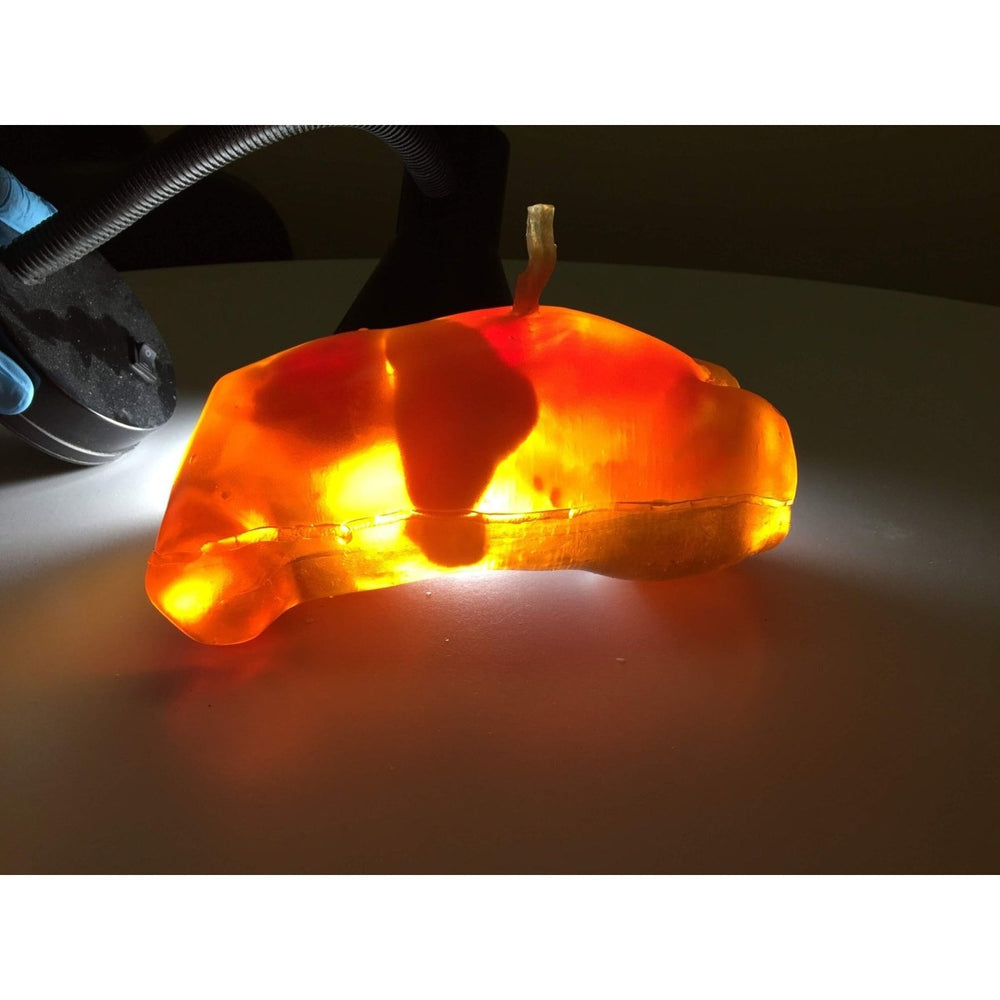

Lateral View

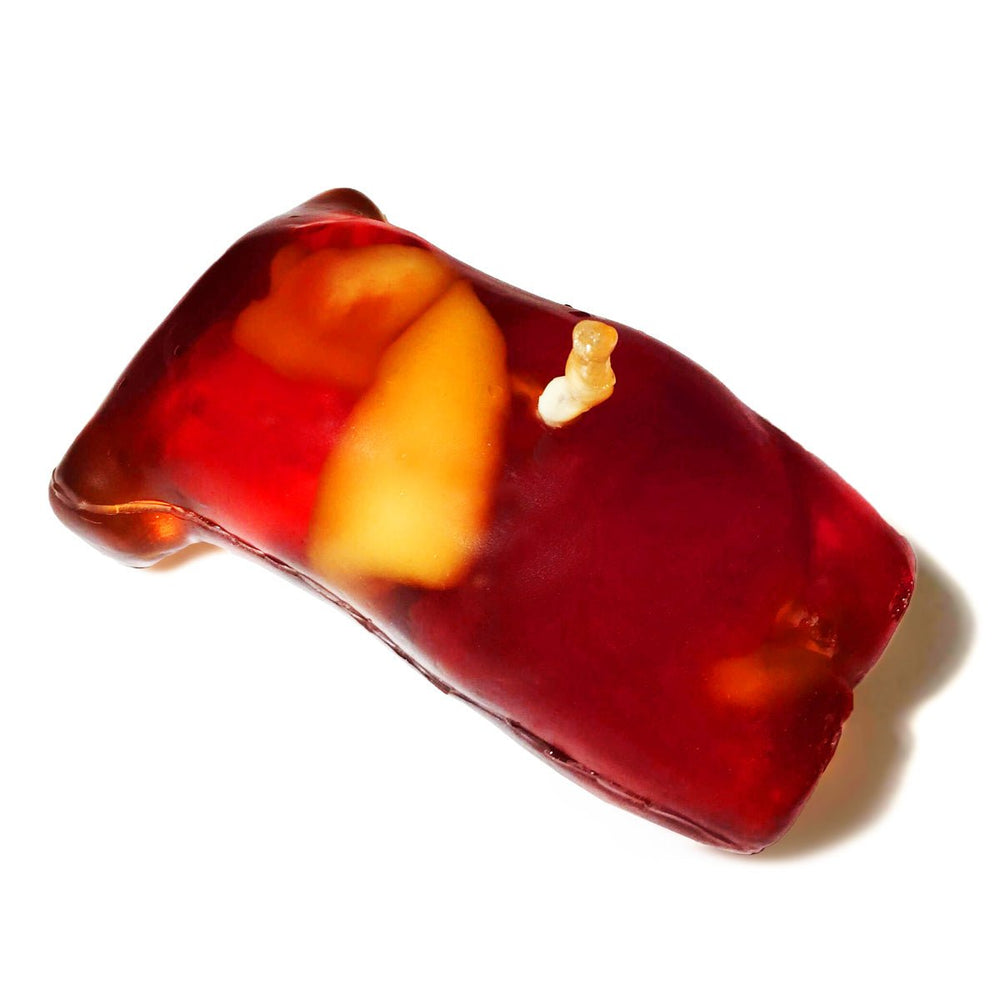

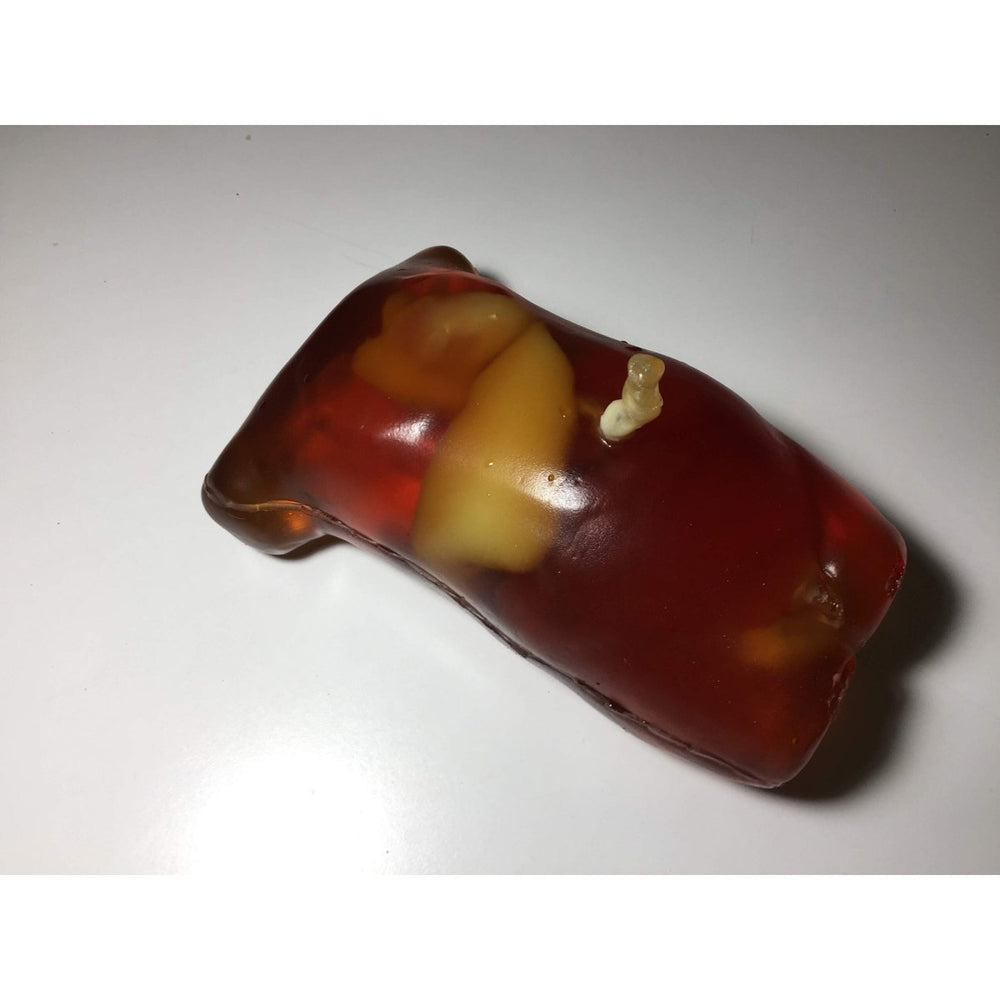

Perspective View
Top View
Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.5 ± 0.2 40 55 NO/LOW
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Body Tissue -25
2 Aorta 40
3 Inferior Vena Cava 40
4 Bladder 35
5 Heart 40
6 Liver 110
Download a PDF with product details

Advanced Newborn Torso for X-Ray CT and MRI

Product Dimensions and Weight:
  • Height: 6 x 5 x 9 in (approx.)
  • Weight: 4 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 16 x 12 x 10 in (approx.)
  • Weight: 8 lbs (approx.)

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
