Standard Adult Head Phantom for X-Ray CT, Ultrasound and MRI

The Standard Adult Head phantom is designed to resemble an average human male head and is suitable for Ultrasound, MRI, and X-Ray/CT applications. It features realistic tissue-mimicking materials, including an ultra-soft polyurethane-based material for the brain parenchyma. The phantom’s skull bone has a three-layered structure. The phantom includes inflatable ventricles that mimic cerebral anatomy and can be filled with liquid.

Standard Adult Head phantom is designed based on an average human male head and is made of realistic tissue mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. This head phantom can also be used for angiography purposes. The brain parenchyma inside of the skull phantom is made of an ultra-soft polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the optical scan of an average human brain model used in the anatomy class for medical students. The materials used to build the phantom are stable over time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The phantom comprises the entire ventricular system (lateral, third, and fourth ventricles), which can be used to generate pressure inside the brain and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid

Anatomy

  • Realistic Skull Phantom
  • Realistic Brain Phantom
    • – Water-Fillable Brain Ventricles
    • – Brain Tumor
    • – Falx Cerebri
  • Blood Vessels with One Bifurcation
  • Acoustically Correct Skin Mimicking Material

Included In Order:

  • Adult Head (Standard) Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Dimensions and Weight:

Phantom:
  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 Lbs (approx.)
Shippment:
  • Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 Lbs (approx.)

Materials Used:

  • Soft tissues: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Download:
manual

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design:

Front view

Lateral view

Perspective view

Top view

X-Ray Scans:

LR View – Right

AP View

LR View – Left

*/ These X-Ray scans were obtained from our Adult Human Head Phantom (Dynamic). However, the skull used in this phantom is our standard adult skull– SKU:TPS-SL-A01. If you have any questions related to these, please Contact Us /*

CT Scans

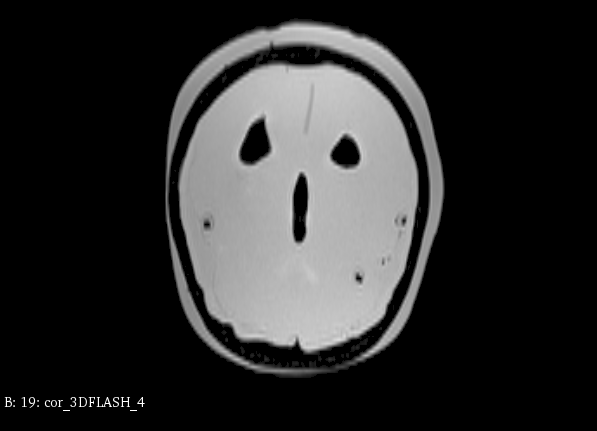

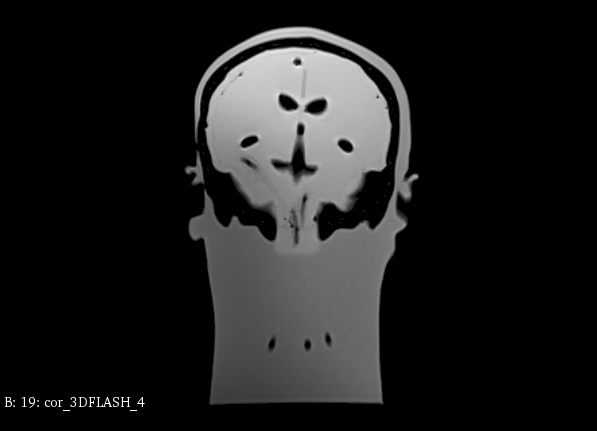

MRI Scans

Download a PDF with product details

Standard Adult Head Phantom for X-Ray CT, Ultrasound and MRI

Dimensions and Weight:
  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 lbs (approx.).
Shipping Dimensions and Weight:
  • Size: Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia

Technical Properties

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Speckles Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Brain Matter  1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Tumor 1400 ± 10 1.01 30 65 YES 1.2 ± 0.2
Skin Tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

S.No. Tissue Type HU Value (average)
1 Brain Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Skin Tissue -25
