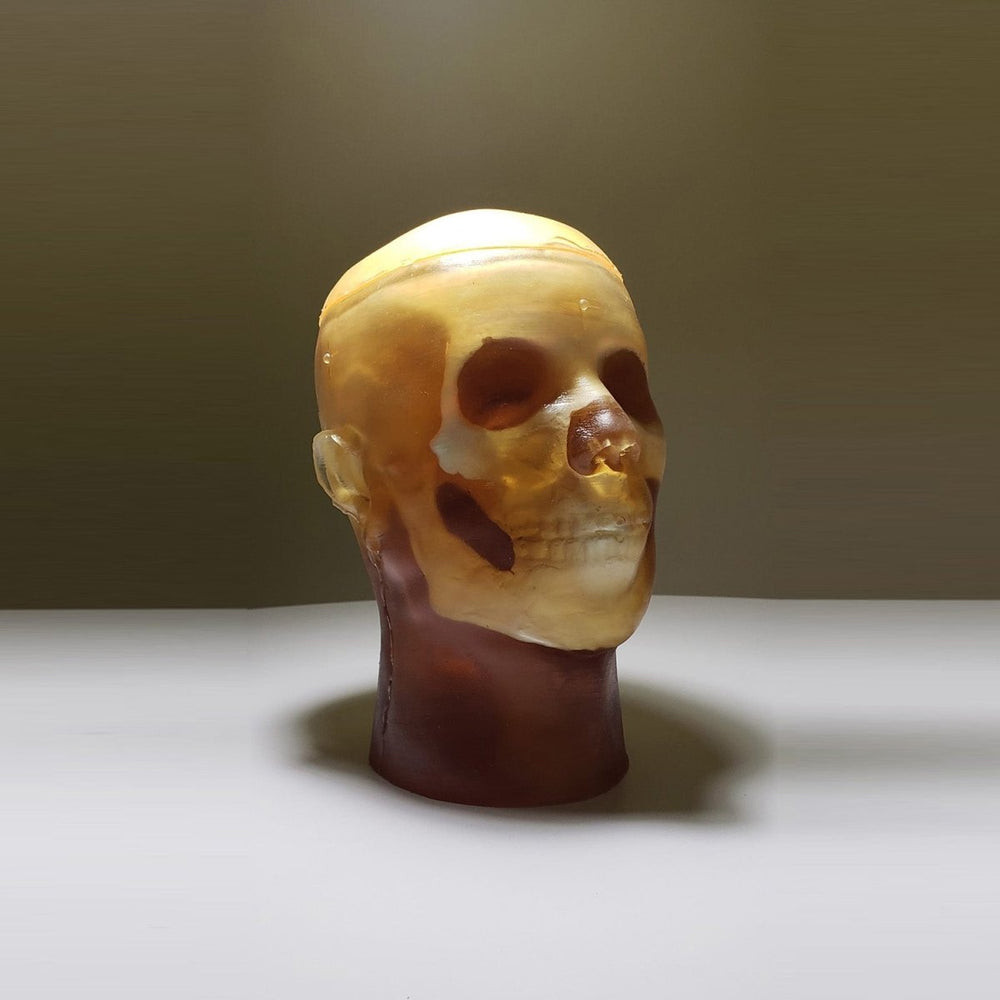

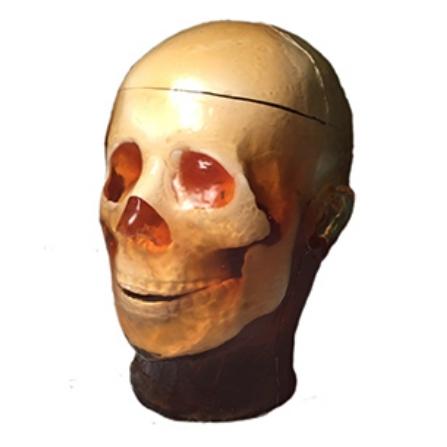

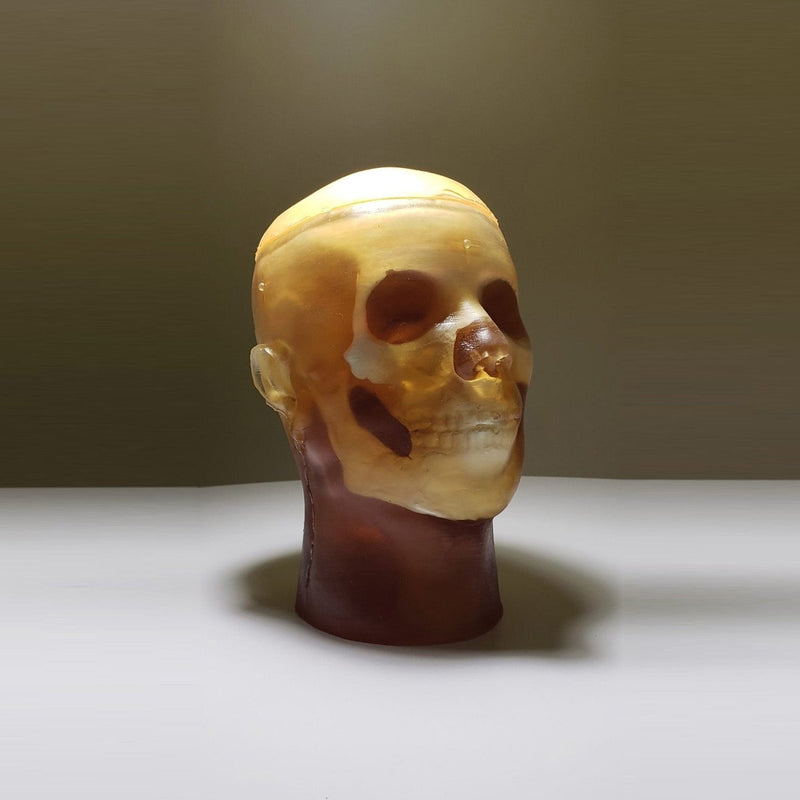

Static Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Static Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Item # TPS-HD-A01
$7,184.00
$7,330.00
You save $146.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Static Adult Head Phantom for X-Ray CT, Ultrasound and MRI
The Static Adult Head Phantom is designed to be suitable for medical imaging of foreign static objects such as small bone pieces, shrapnel, bullets, and any other metal or non-metal targets. The phantom is designed based on an average anatomy of a human male head, and it is made out of realistic soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT applications.
The materials used to build this phantom are stable with time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer.

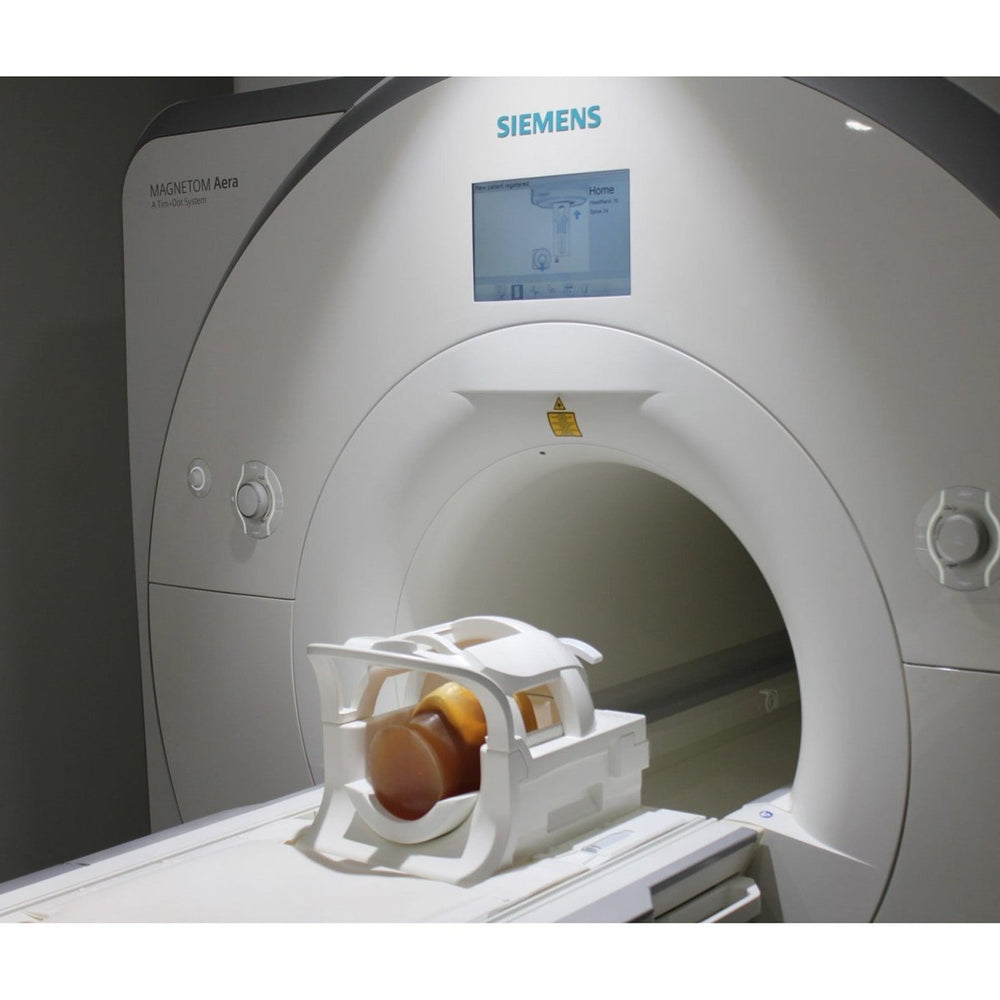

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Anatomy
- Realistic Skull Phantom
- Realistic Brain Phantom
- Gray Matter
- Small Static Objects (0.5mm, 1mm, 3mm Diameters)
- Cervical Spine
- Acoustically Correct Skin Mimicking Material
Included In Order:
- Adult Head (Static) Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Dimensions and Weight:
Phantom:- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 Lbs (approx.)
- Size: 23 x 14 x 10 in (approx.)
- Weight: 22 Lbs (approx.)
Materials Used:
- Soft tissues: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Design:
Front view

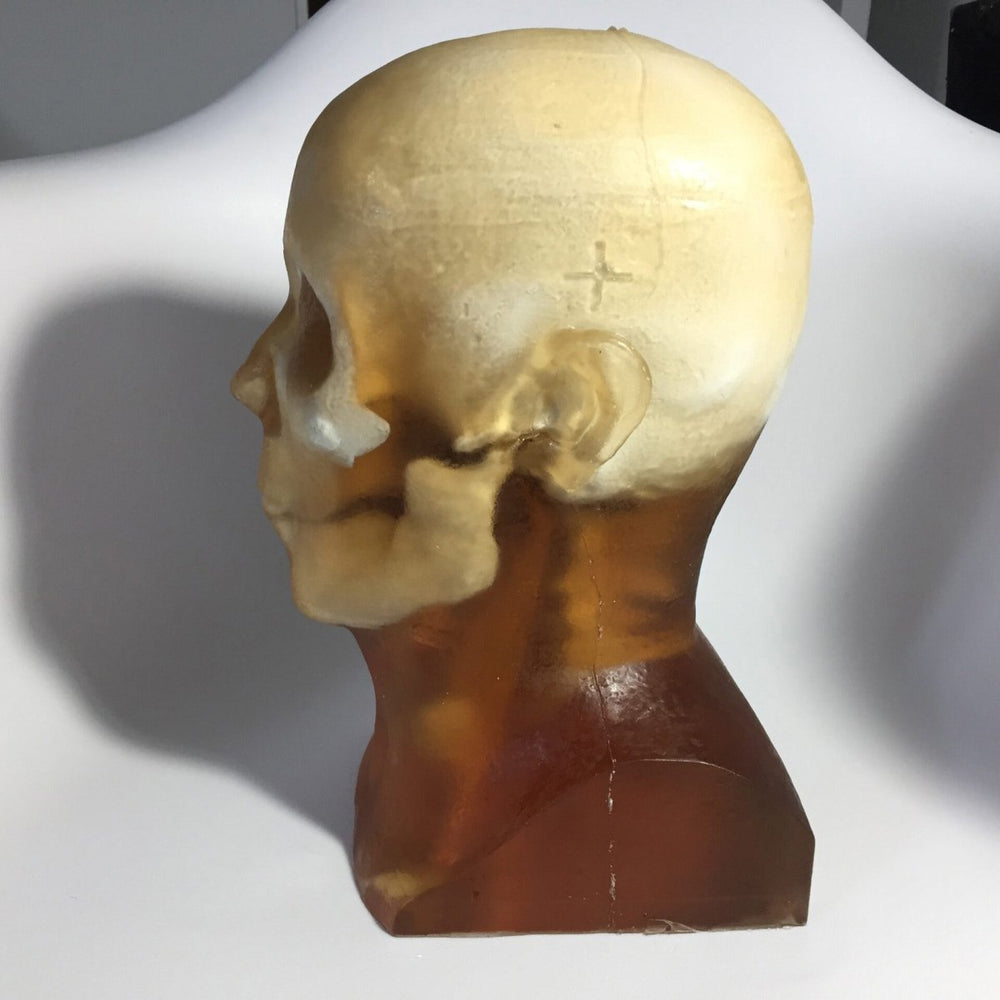

Lateral view

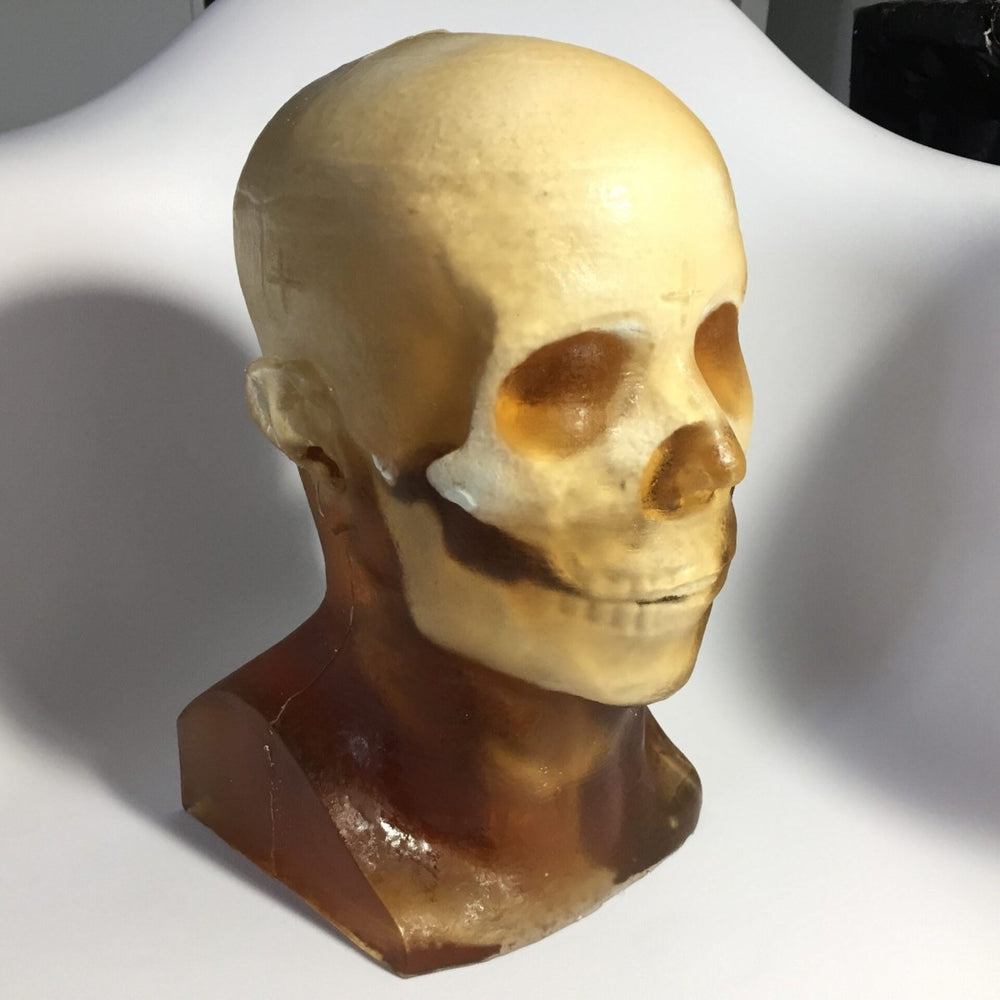

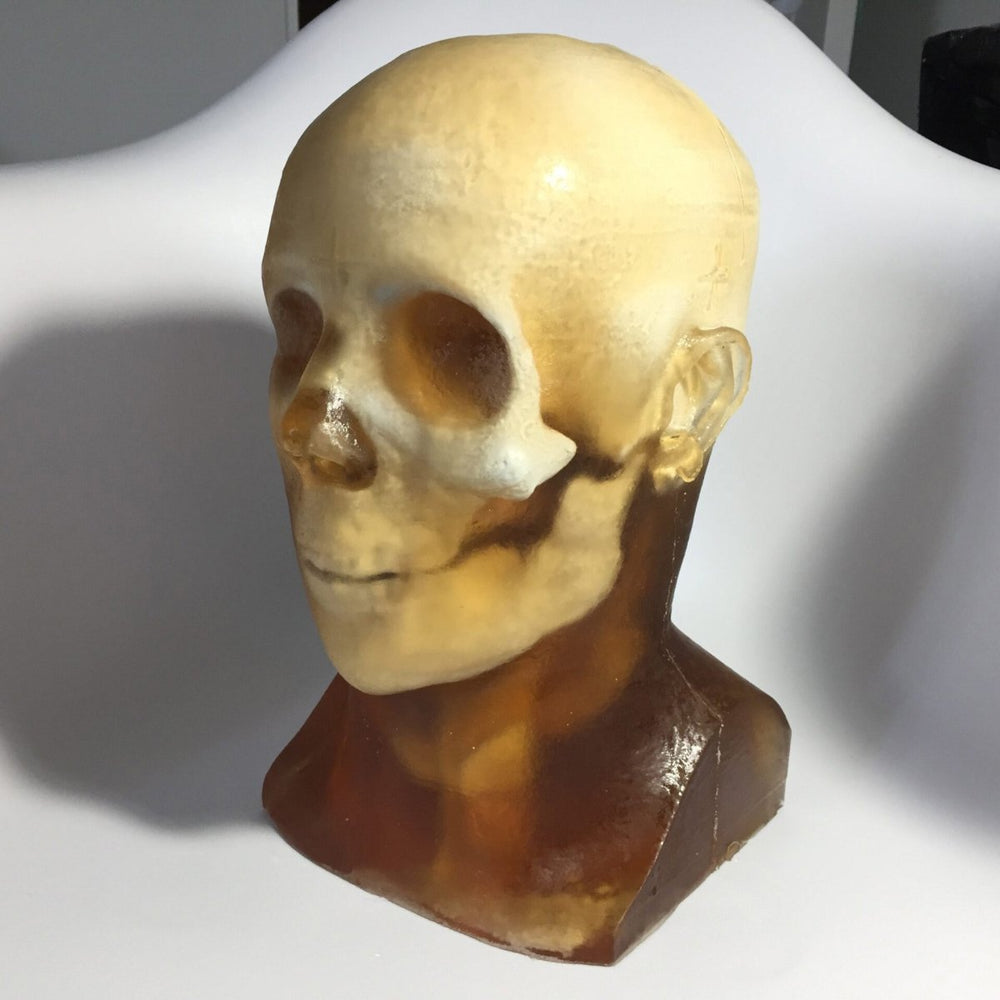

Perspective view
Top view
X-Ray Scans:
LR View – Right
AP View
LR View – Left
*/ These X-RAY scans were obtained from Dynamic Adult Head for X-Ray CT, US, MRI (TPS-HD-A02). They serve as only an example of our imaging quality. Actual product images may vary. If you have any questions related to these, Contact Us. /*
Static Adult Head Phantom for X-Ray CT, Ultrasound and MRI
- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 lbs (approx.).
- Size: Size: 23 x 14 x 10 in (approx.)
- Weight: 22 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore00] | T2 [ms] | Speckles | Attenuation Measured at 2.25MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
Thermal Properties of our Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
