Adult Full Body for X-Ray Positioning and Imaging

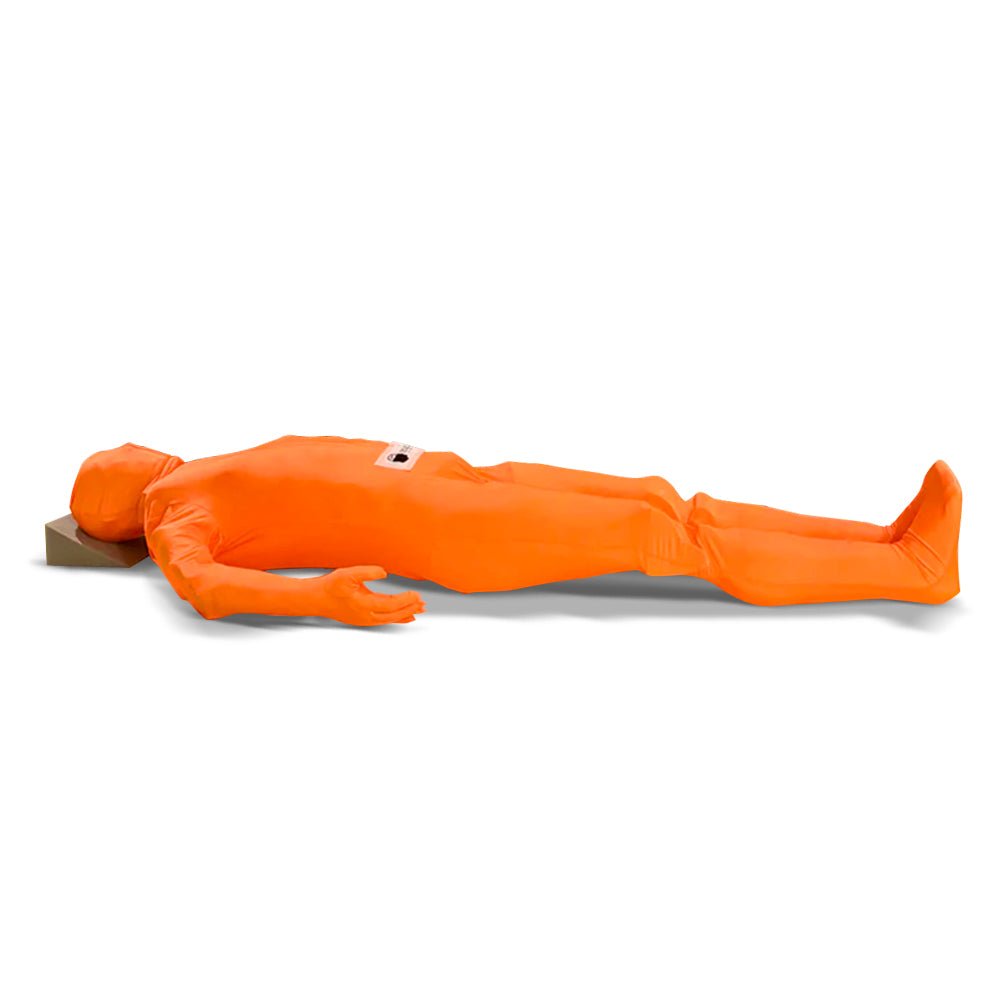

The Adult Full Body Phantom is a lightweight, 20 kg X-ray positioning and imaging training tool, with no assembly required, designed for radiology students and professionals. Made from durable synthetic materials, it allows for repeated practice without radiation risks. Articulating joints provide realistic movement, enhancing positioning skills. The bones feature an adjustable three-layered structure with inner porosity, and the phantom can be customized with various pathologies.

This Adult Full Body Phantom is an advanced X-ray positioning and imaging training tool, with no assembly required, designed to enhance the learning experience for both students and professionals in the field of radiology. Its lightweight construction, weighing only 20 kg, facilitates easy transport and repositioning, allowing users to adjust the phantom into a variety of positions required for different X-ray techniques.

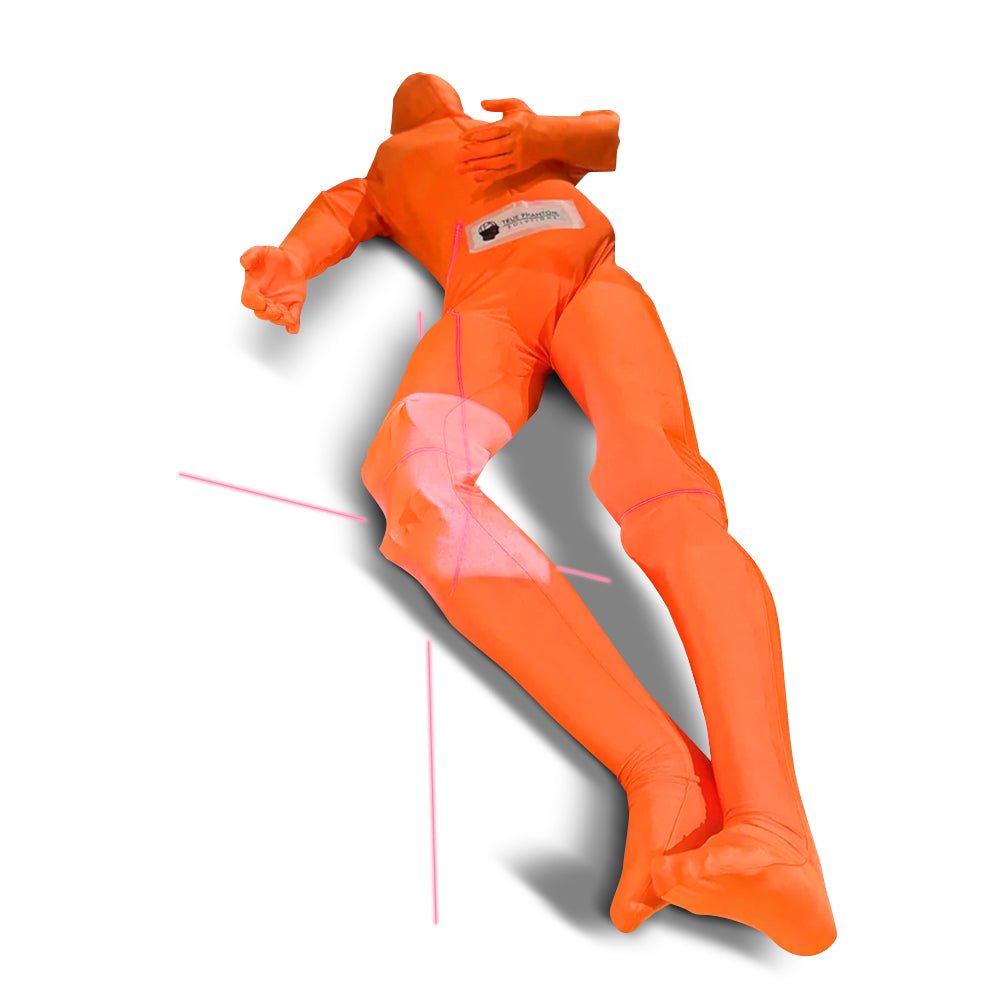

Crafted from durable synthetic materials, this phantom can withstand repeated use, making it an ideal tool for continuous practice without the risk of radiation exposure to patients or the practitioners themselves. The model is equipped with articulating joints, providing a realistic range of motion to mimic human movement, thereby enabling users to practice and perfect their positioning skills under varied conditions.

The bones have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request.

Note: Radiographic results may differ from clinical results due to the primary focus on positioning.

Anatomy

  • Full Human Body (10 Parts)
  • Foam Body Tissue
  • Rotatable Shoulders (360° Around and 180° Sideways)
  • Movable Hip, Knee, and Elbow Joints

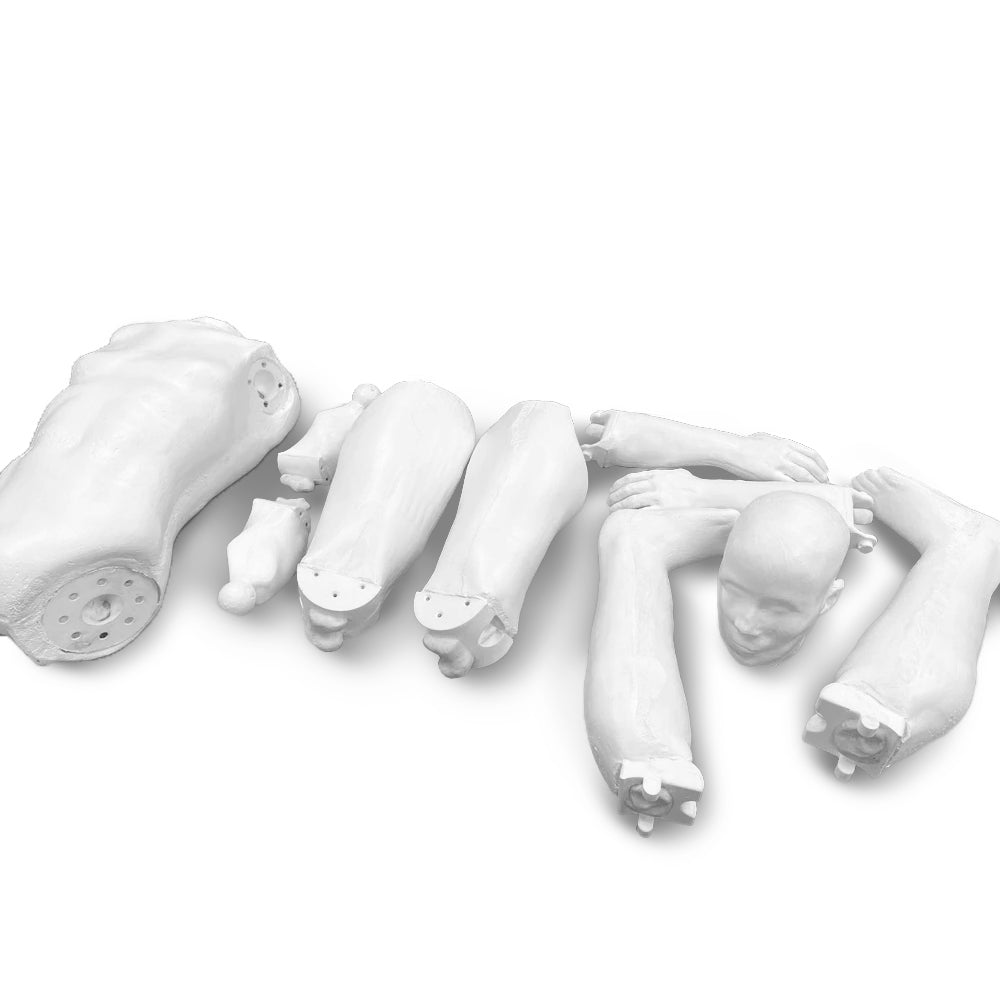

  • Detachable Head, Torso, and Limbs
  • Adult Torso
    • Spine
    • Ribcage
    • Shoulders
    • Clavicles
    • Pelvis
    • Trachea
    • Heart
    • Lungs
    • Diaphragm
    • Liver
    • Gallbladder
    • Stomach
    • Kidneys
    • Spleen
    • Pancreas
    • Large and Small Intestines
    • Bladder
    • Prostate
  • Adult Head
    • Skull
    • Air Cavities
    • Frontal Sinus with Air Gaps
  • Adult Arms
    • Humerus
    • Elbow Joints
    • Radius
    • Ulna
    • Wrist
    • Fingers
  • Adult Legs
    • Femur
    • Knee Joints
    • Tibia
    • Fibula
    • Foot
    • Toes
Your order will include:
  • Adult Full Body Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Download:
manual
Phantom Dimensions and Weight:
  • Size: 69 in (approx.)
  • Weight: 44 lbs (approx.).
Shipping Dimensions and Weight:
  • Size: 63 x 34 x 42 in (approx.)
  • Weight: 90 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Front View
Lateral View
Perspective View
Top View
Front View - Upper
Front View - Mid
Front View - Legs
Animation
Download a PDF with product details

Adult Full Body for X-Ray Positioning and Imaging

Phantom Dimensions and Weight:
  • Size: 69 in (approx.)
  • Weight: 44 lbs (approx.).
Shipping Dimensions and Weight:
  • Size: 63 x 34 x 42 in (approx.)
  • Weight: 90 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

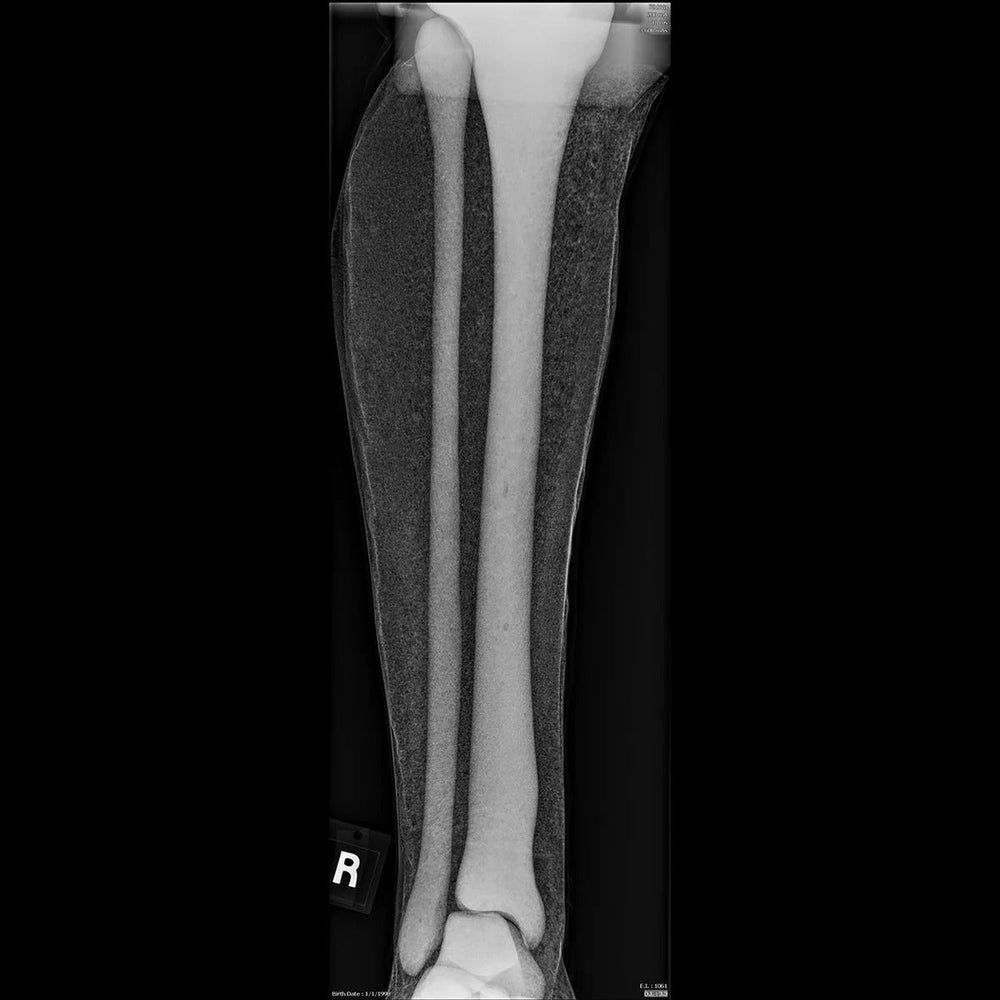

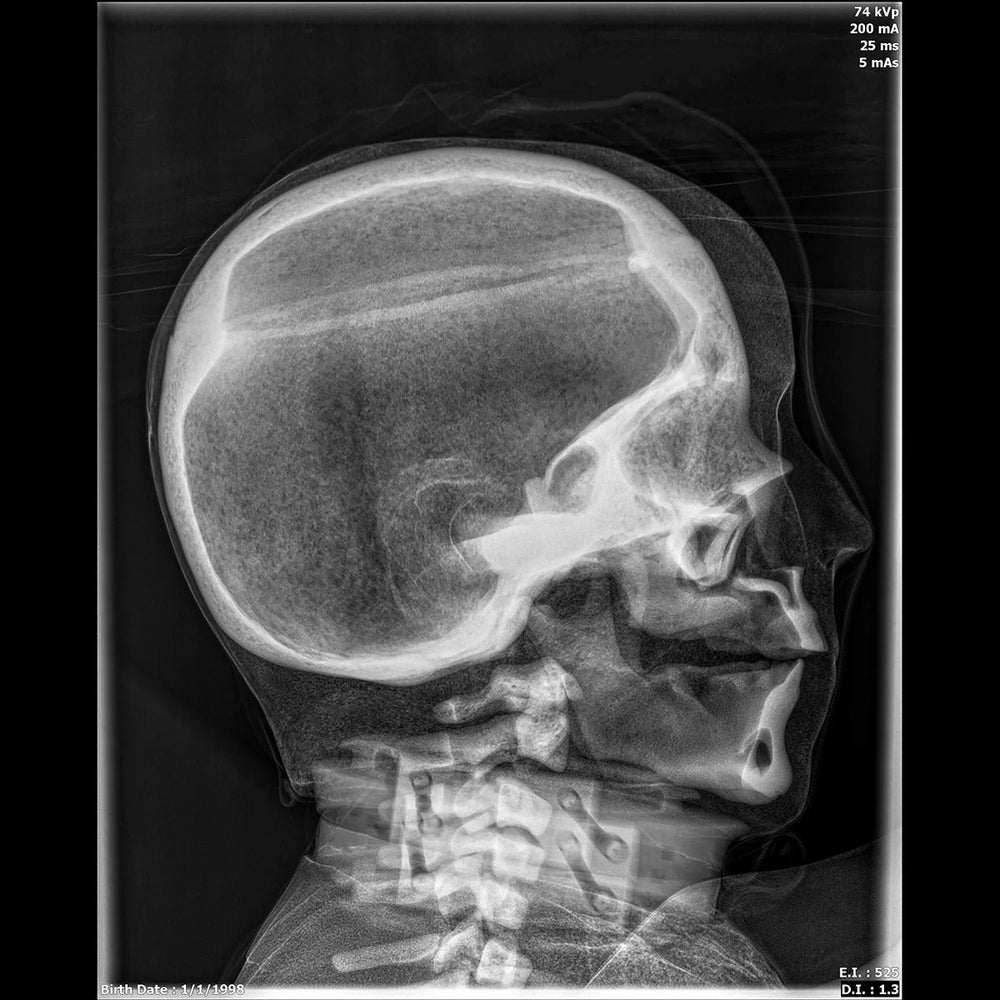

X-ray Parameter Values

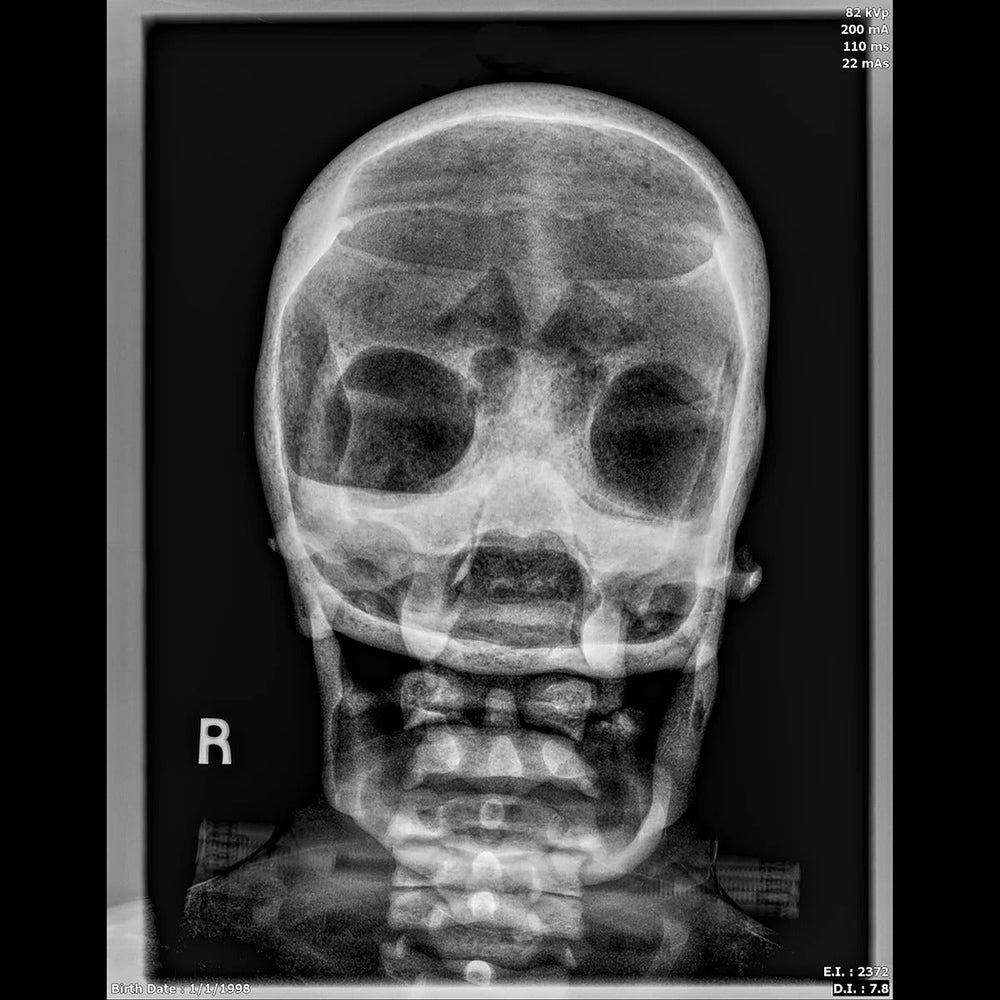

Anatomy Shoulder Foot L-spine T-spine Hand Skull
Projection LAT AP LAT LAT AP AP Lateral AP Lateral
kVp 84 60 85 74 75/80 52 58 82 74/73
mA 250 160 250 320 320/280 110 200 200 200
ms 22 10 100 78 56/64 10 10 110 25
mAs 5.600 1.600 25 25 18 1.200 2 22 5

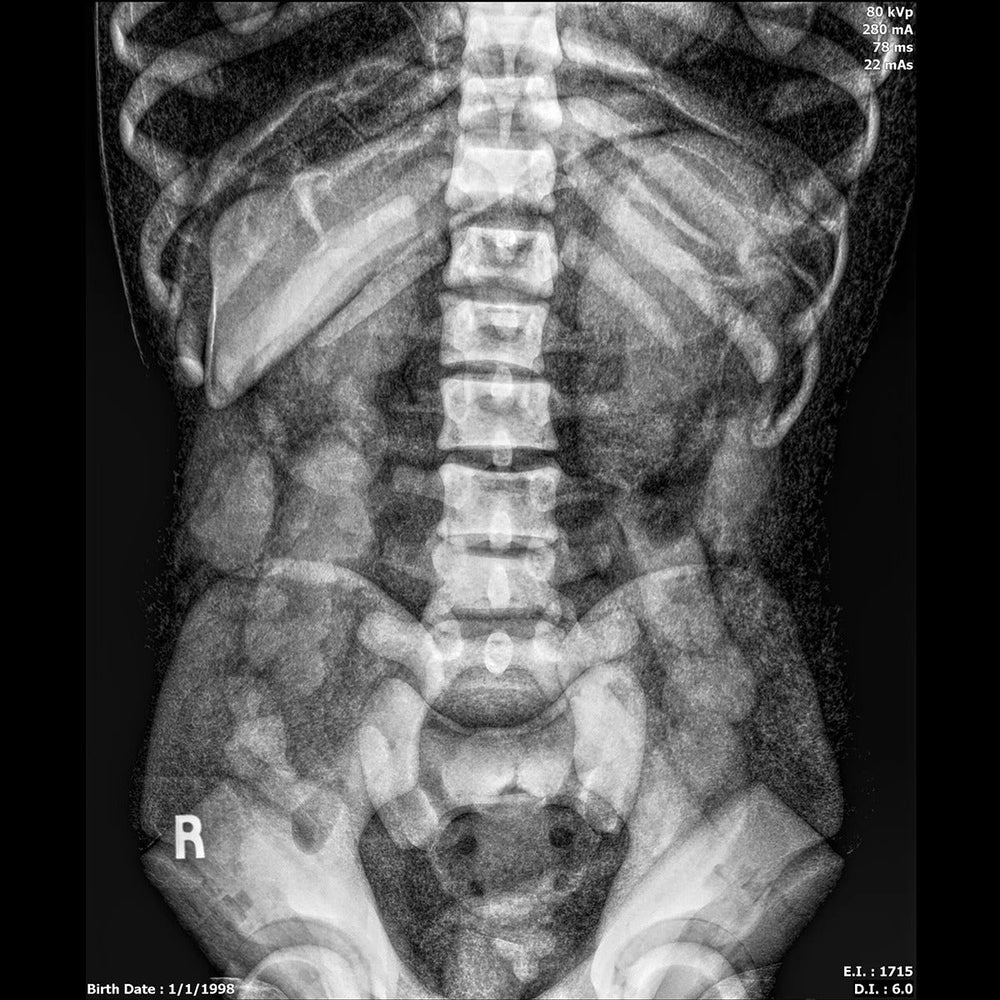

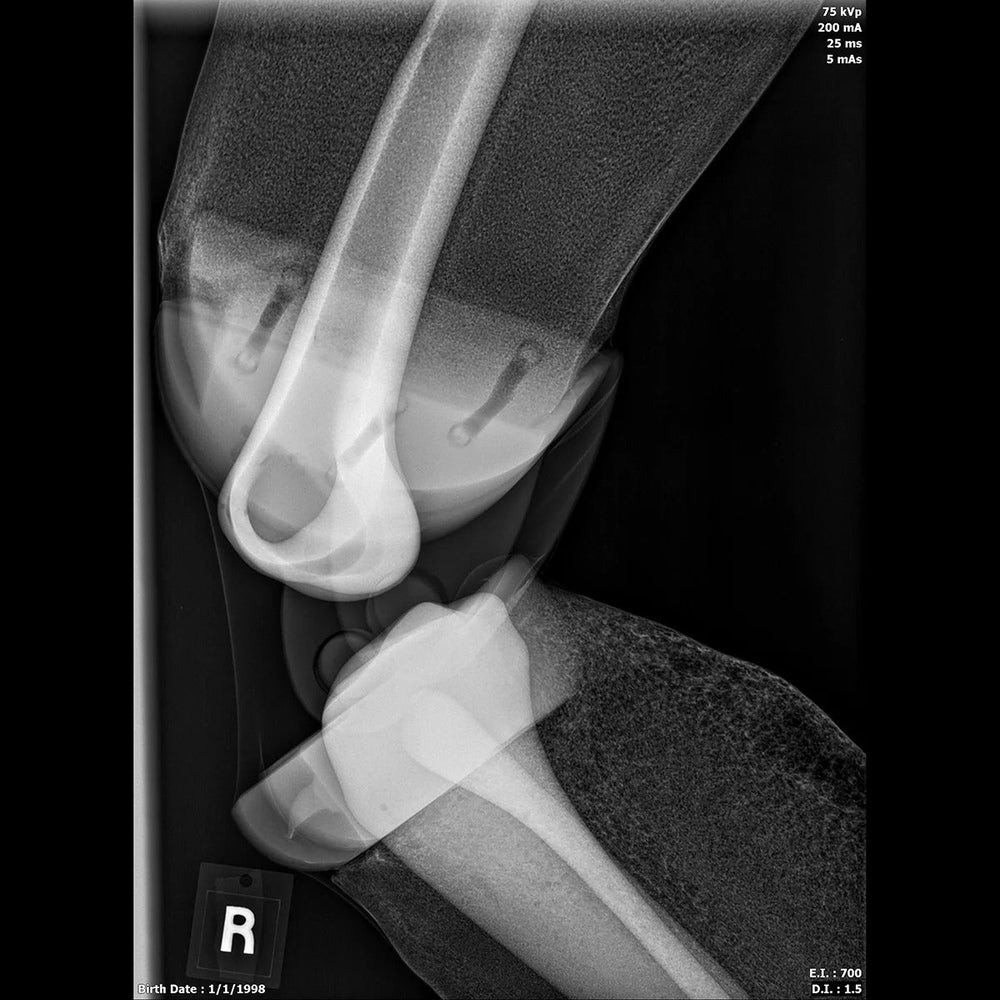

Anatomy Rib Abdomen Humerus Knee Tibia Femur Pelvis
Projection AP Supine AP AP Lateral AP Lateral AP AP
kVp 80 82 76 75 75 70 70 76 85
mA 280 280 280 200 200 200 200 280 250
ms 28 89 20 25 25 18 10 25 88
mAs 8 25 5.600 5 5 3.600 2 7.100 22

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

S.No. Tissue Type HU Value (Average)
1 Trabecular Bone 800
2 Cortical Bone 1300
3 Aorta 40
4 Vena Cava 40
5 Trachea 80 (Tissue Part), -1000 (Air Filled Part)
6 Pancreas 110
7 Spleen 110
8 Kidneys 110
9 Bladder 35
10 Rectum Wall 100
11 Sigmoid Colon Wall 100
12 Heart 40
13 Liver 110
14 Gallbladder 35
