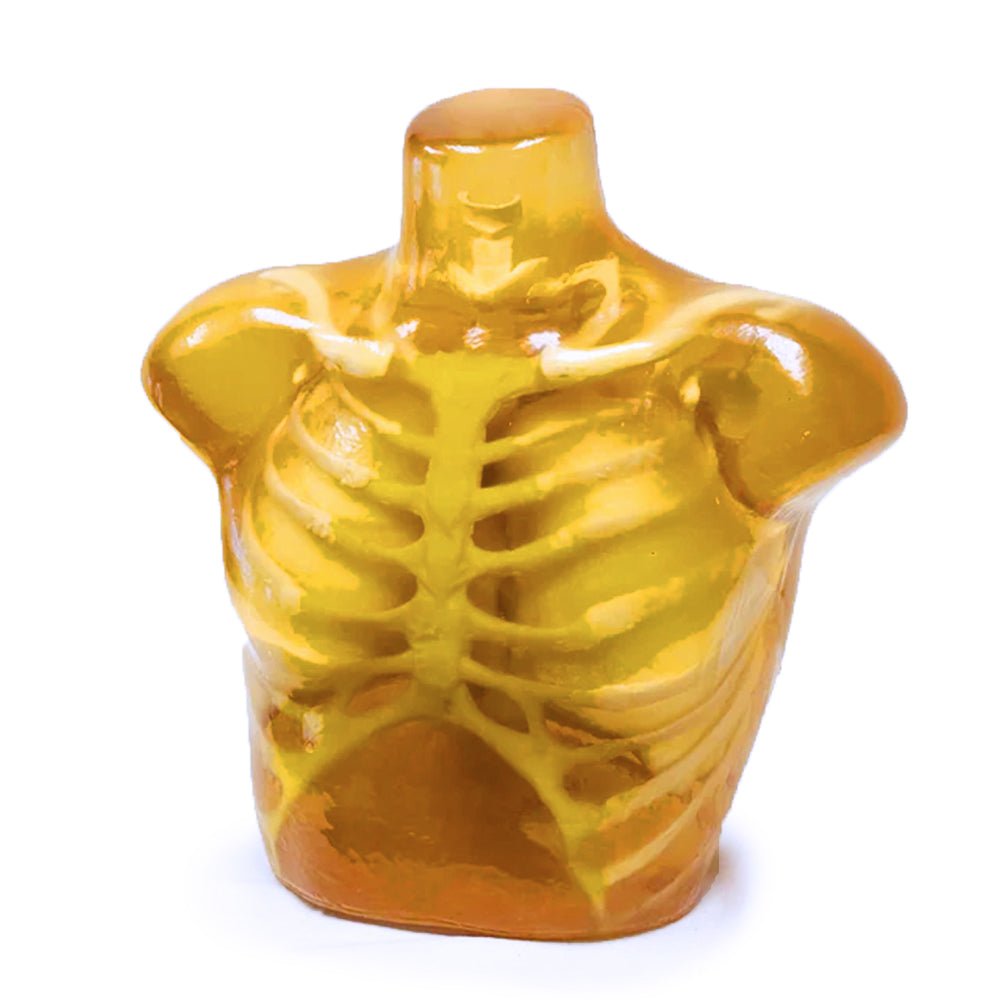

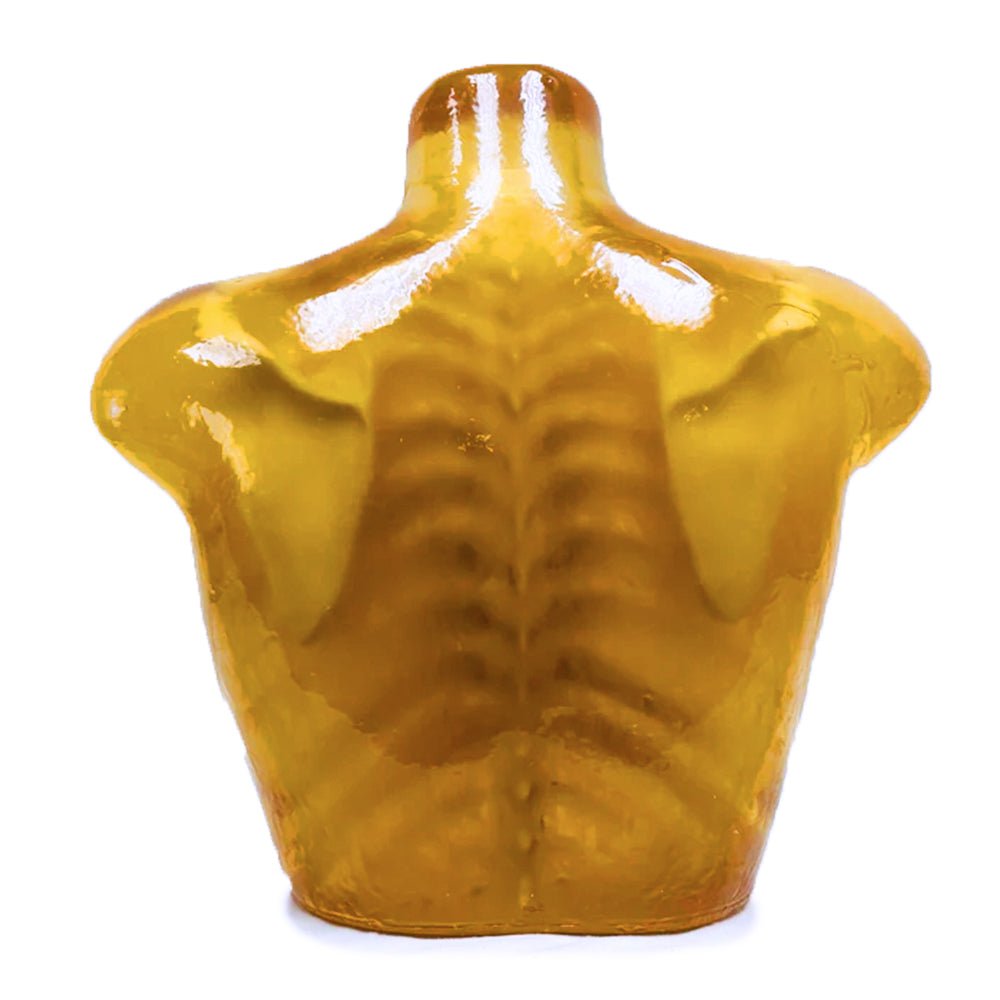

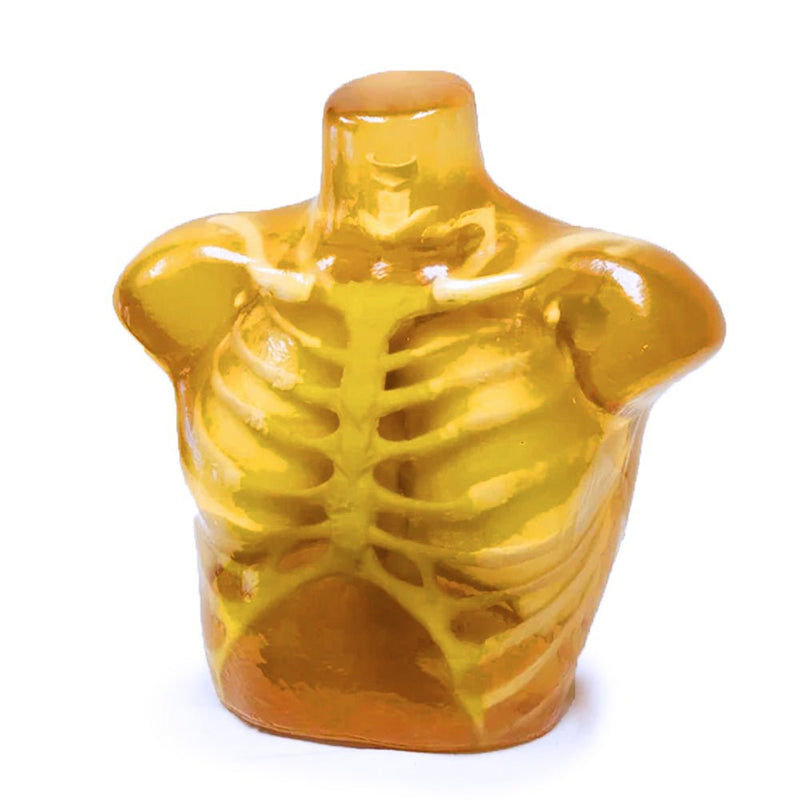

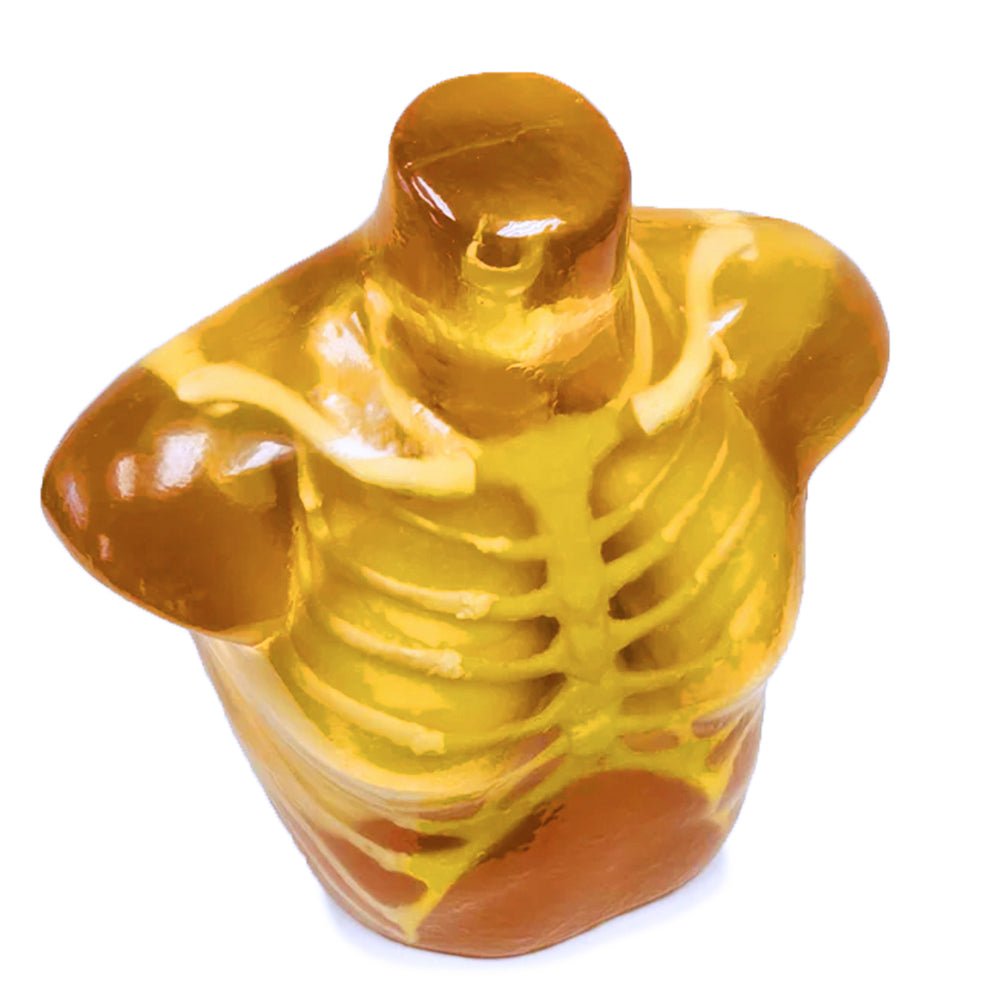

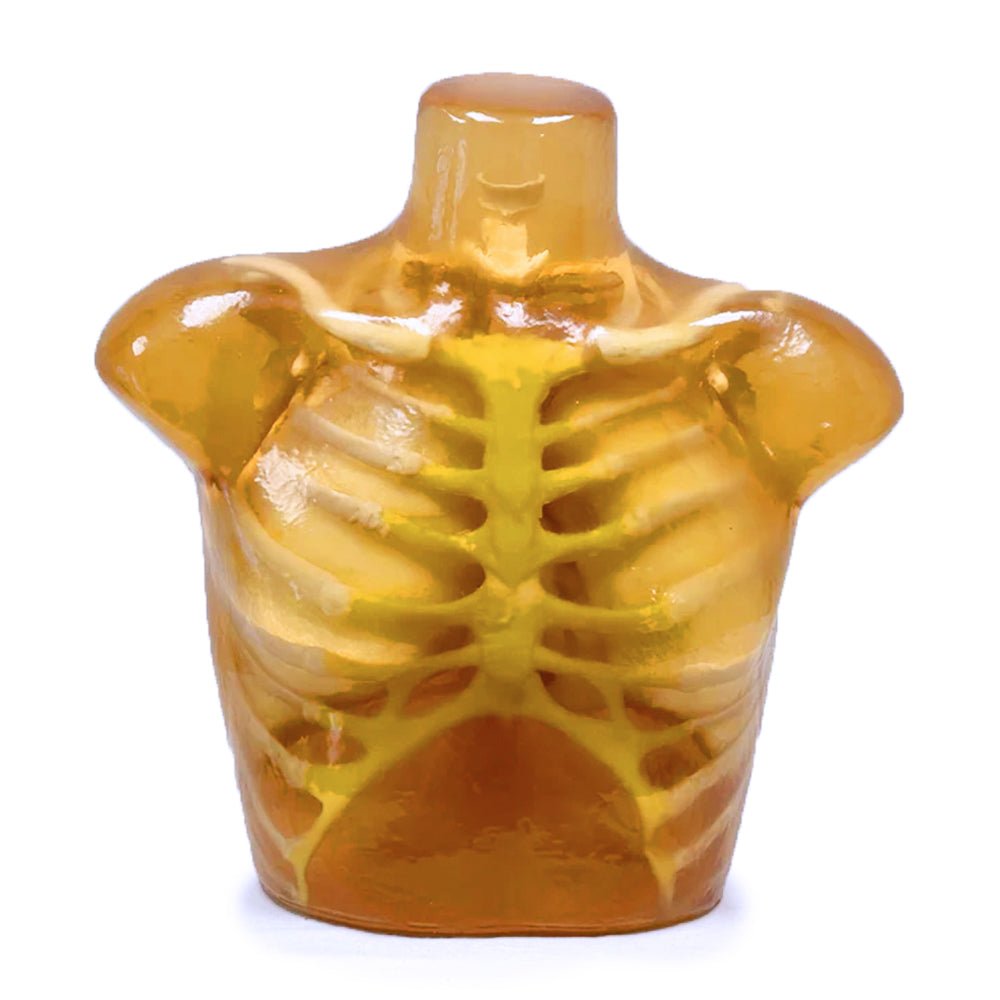

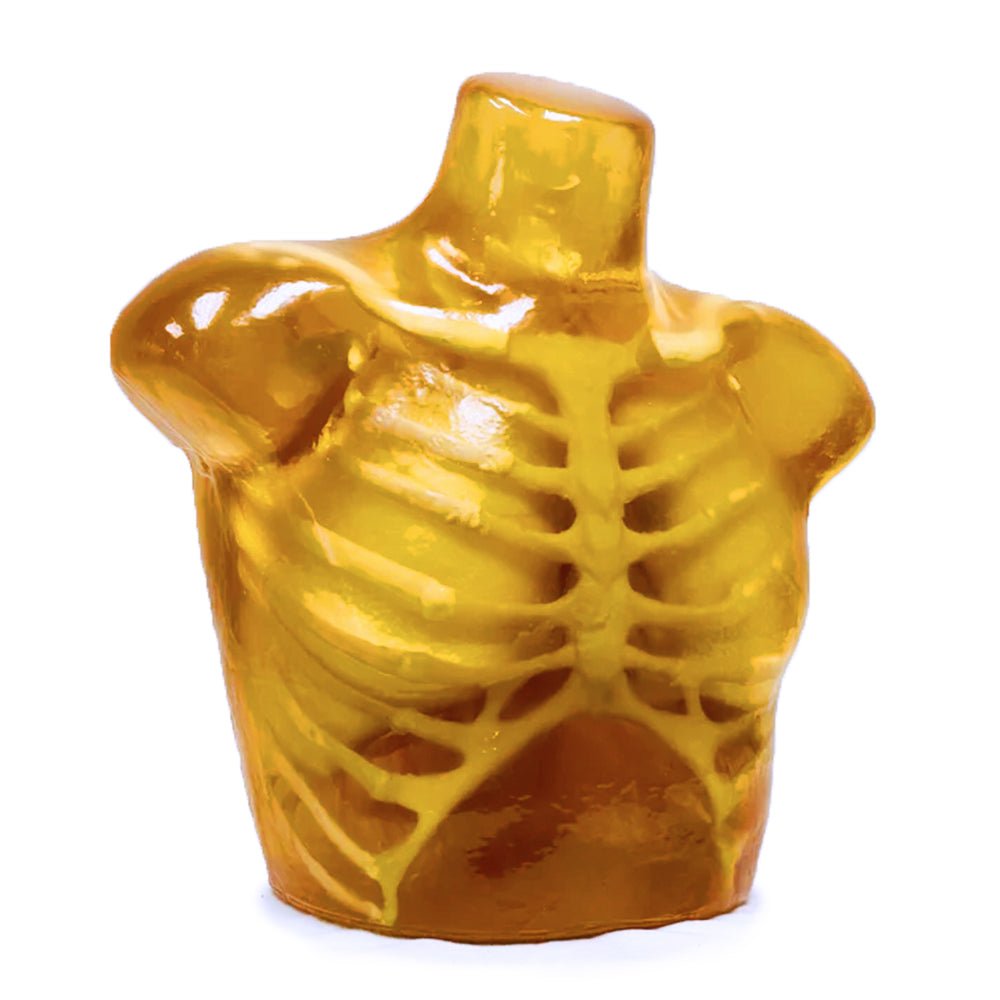

Adult Thorax for X-Ray CT & Ultrasound Training
Adult Thorax phantom features a thoracic skeleton made of realistic patented bone material for X-Ray/CT and
Ultrasound applications. It serves medical imaging research and radiology training while also offering customization
for equipment testing. The vertebrae have adjustable porosity and lungs are customizable that can help mimic
different pathologies.
This phantom is based on an average human anatomy and its skeleton is individually cast from a realistic patented
bone material that is suitable for X-Ray/CT and Ultrasound applications. It can be used for medical imaging research
and radiology training and can also be served as a customized tool for equipment testing and calibration.
The vertebrae have a realistic three-layered structure with inner porosity, which can be adjusted according to the
requirement of the particular project. The lungs installed inside this torso can be customized in several ways to
simulate any pathology, such as mucus, lesions, and typical infections.
Anatomy
- Spine with Porous Inner Structure
- Complete Ribcage
- Shoulders and Clavicles
- Trachea
- Heart
- Lungs with Prefilled Major Vessels
- Adult Human Thorax Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
![Brochure](https://cdn.shopify.com/s/files/1/0450/6330/7413/files/brochure.gif?v=1611767443)
![manual](https://cdn.shopify.com/s/files/1/0450/6330/7413/files/manual.gif?v=1607363564)
- Size: 18 x 10 x 18 in (approx.)
- Weight: 58 lbs (approx.).
- Size: Size: 32 x 23 x 13 in (approx.)
- Weight: 90 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Adult Thorax for X-Ray CT & Ultrasound Training
Dimensions and Weight:- Size: 18 x 10 x 18 in (approx.)
- Weight: 58 lbs (approx.).
- Size: Size: 32 x 23 x 13 in (approx.)
- Weight: 90 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
Technical Properties
Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
S.No. | Tissue Type | HU Value (Average) |
1 | Trabecular Bone | 800 |
2 | Cortical Bone | 1300 |
