Adult Spine for X-Ray CT, Ultrasound

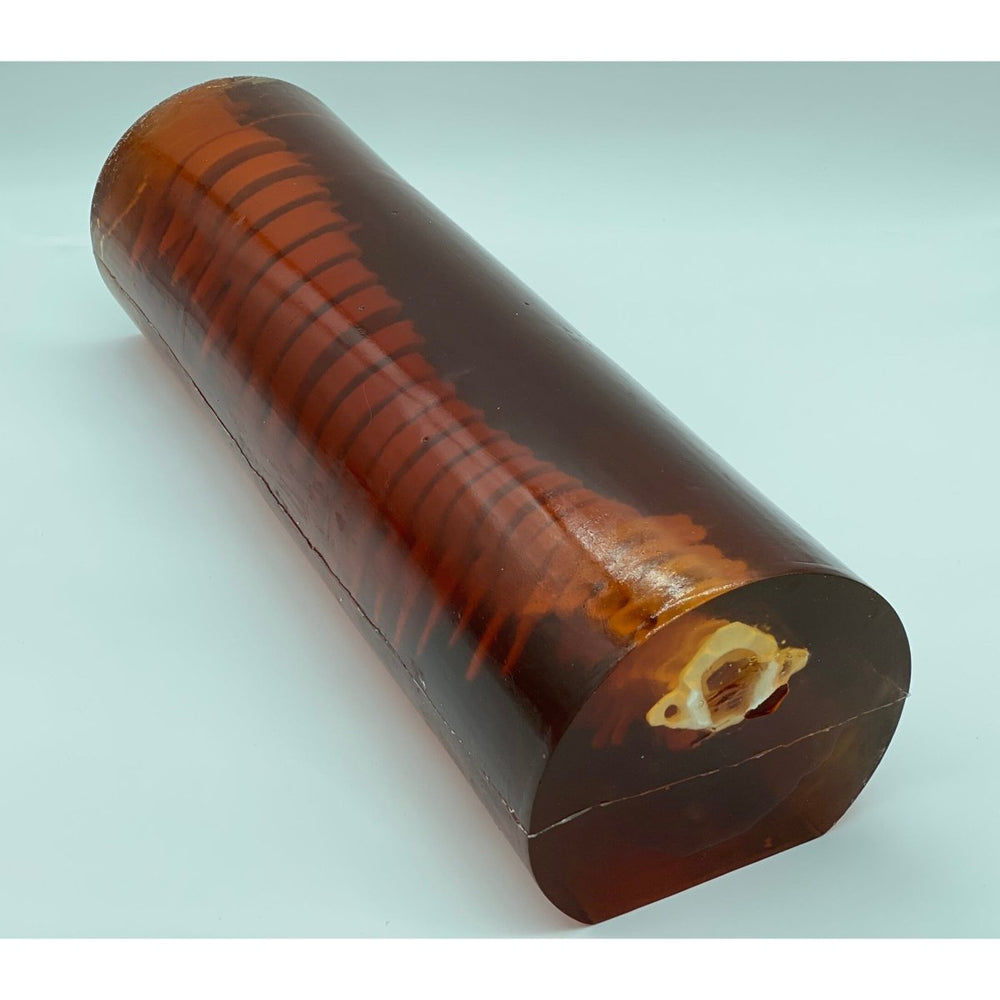

Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. The vertebrae have a realistic three-layered structure, and their inner porosity can be adjusted according to the requirement of the particular project.

The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for Ultrasound and X-Ray/CT applications. It can be used for medical imaging research and treatment planning of various medical procedures (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it).

The phantom can be further customized with water fillable spinal canal inside the vertebrae or with a prefilled spinal canal for medical imaging or research applications.

X-Ray Scans

CT Scans

NOTE: *These CT scans were obtained from our Adult Spine for X-Ray CT. These serve as an example of the imaging quality of our products, the CT scans from this phantom may slightly differ. If you have any questions related to these, please Contact Us

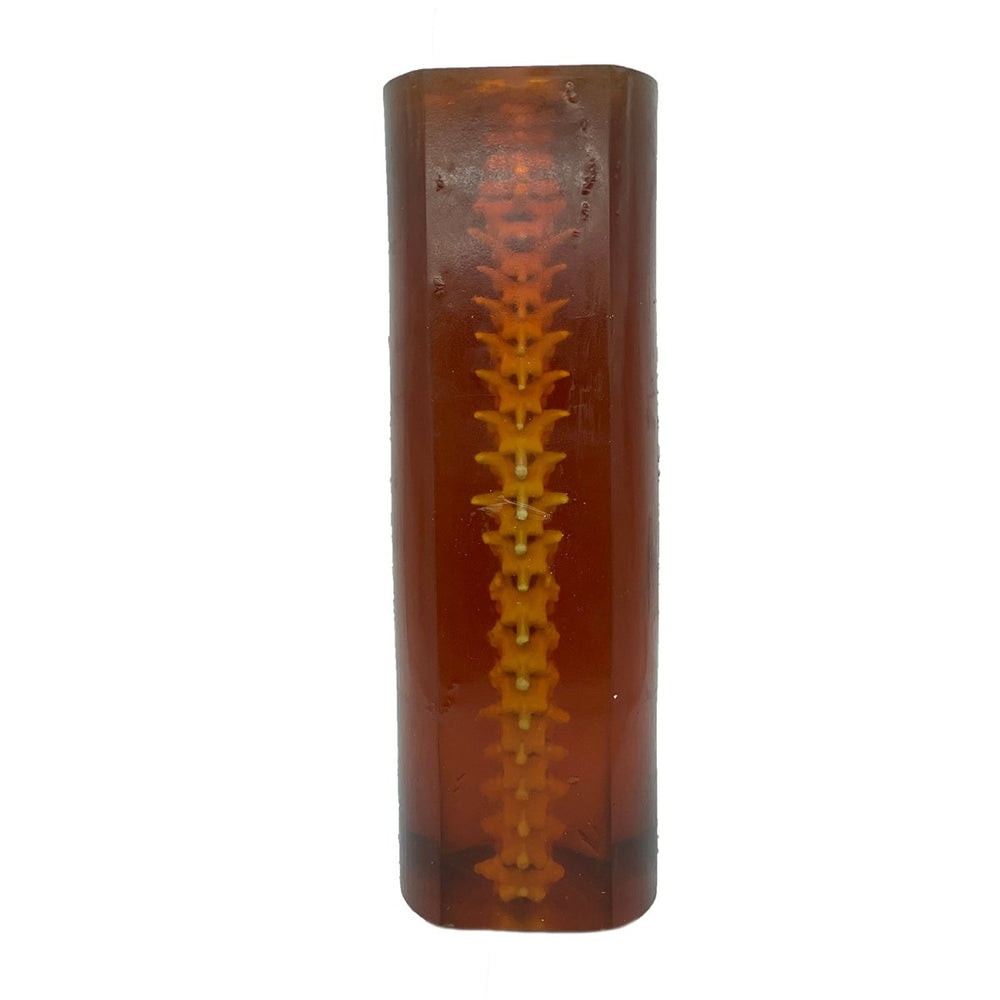

Front View

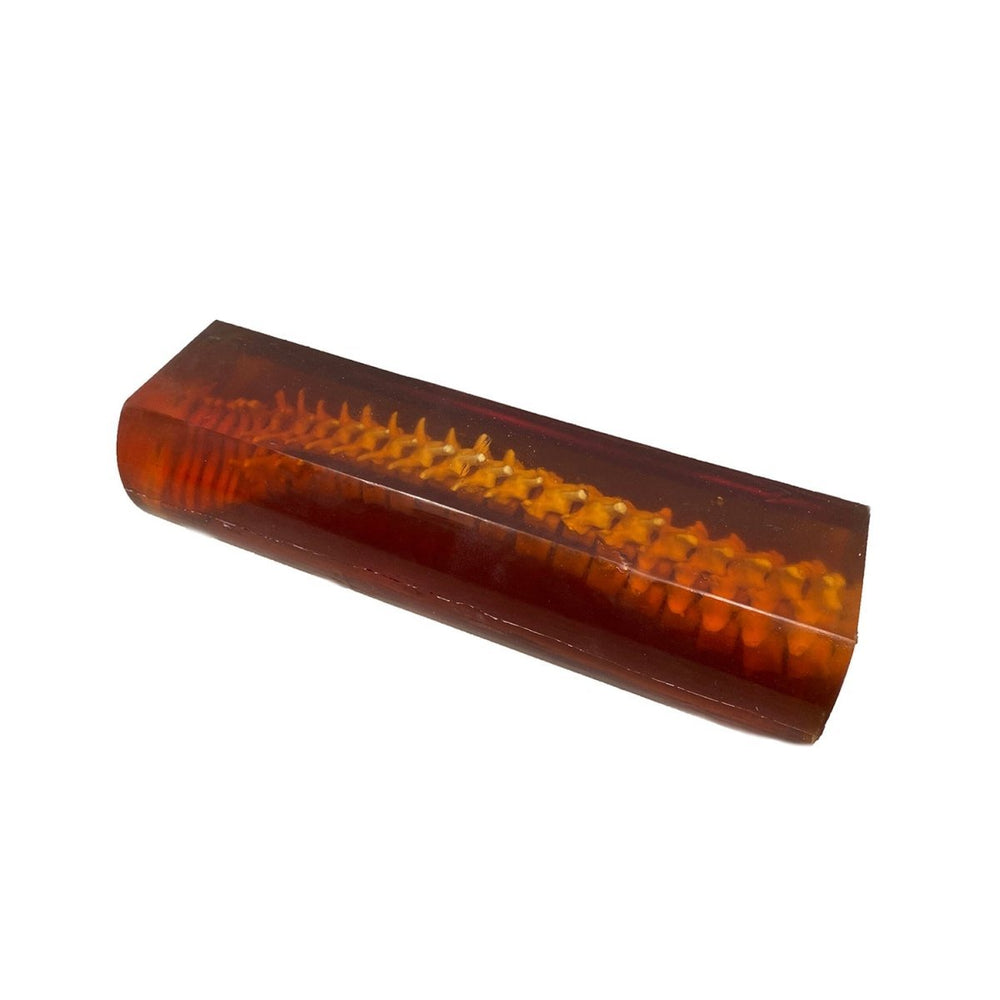

Perspective View

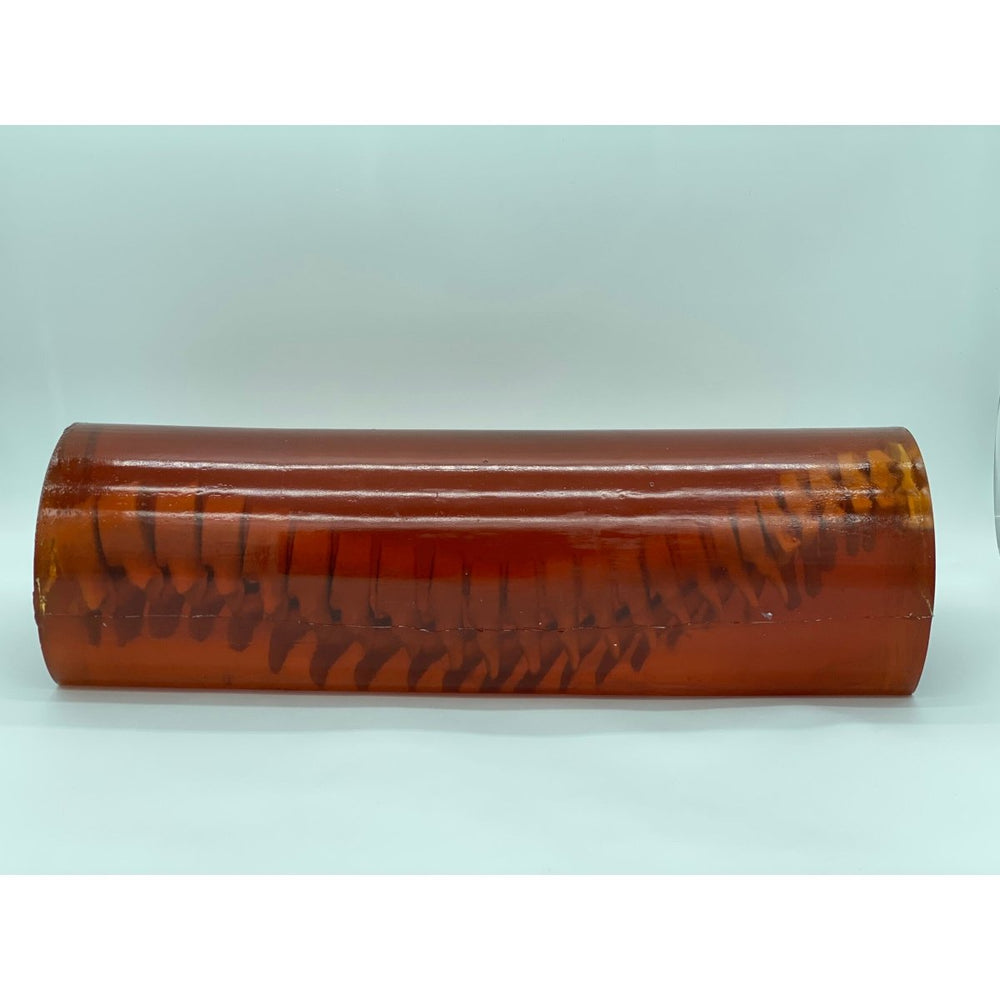

Lateral View

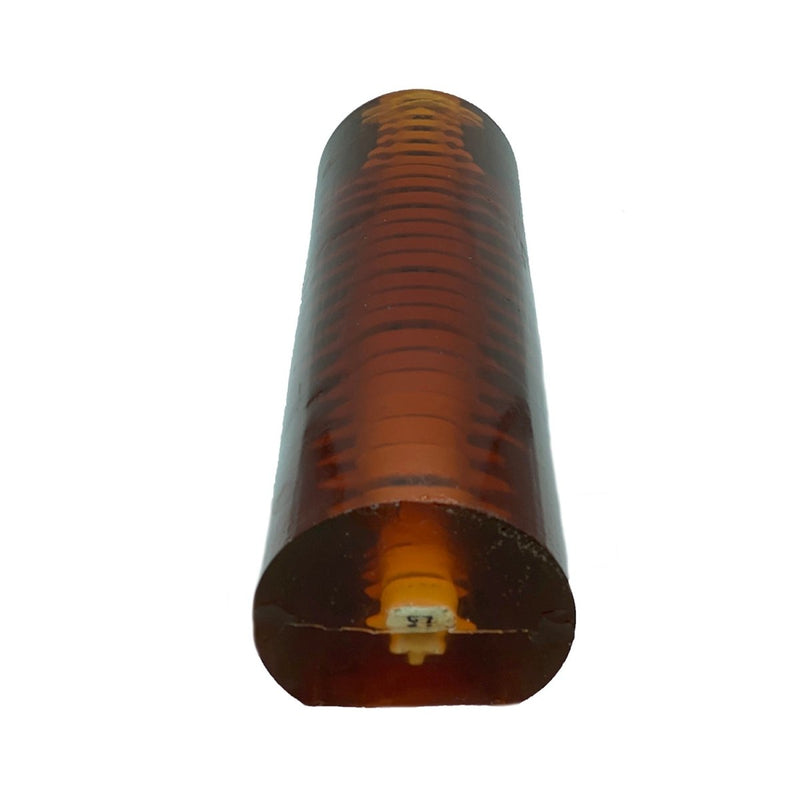

Top View
Anatomy:
  • Cervical Vertebrae (C1 – C7)
  • Thoracic Vertebrae (T1 – T12)
  • Lumbar Vertebrae (L1 – L5)
Your order will include:
  • Adult Spine Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Product Dimensions and Weight:
  • Height: 22 x 7 x 7 in (approx.)
  • Weight: 30 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 55 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz[dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Soft Tissue -25
3 Trabecular Bone 800
4 Cortical Bone 1300
11 Bladder 35
12 Rectum Wall 100
13 Sigmoid Colon Wall 100
