Native Abdomen and Pelvis Phantom for CT Scan and X-Ray Training

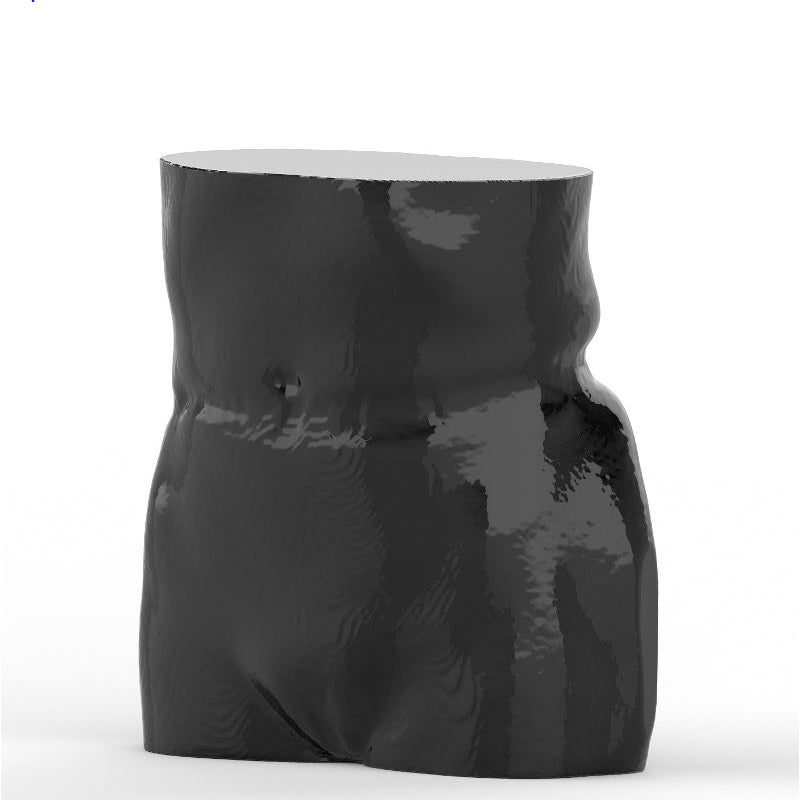

This phantom simulates an abdomen and pelvis without intravenous contrast (native). It covers the first lumbar vertebra to the perineum. It has a pancreatic mass and liver lesions.
The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provi

Frequently Bought Together
Store Ratings: 4.8/5 GT Reviews (2410 Reviews)
Cindy H.- Tennessee, US
12 Mar 2025
nice and easy
Normand S.- New Hampshire, US
10 Mar 2025
Good quality and easy shopping.
Questions?
Get Help From Our Support
1-888-437-3900 Email Live Chat
Product of the month - potm

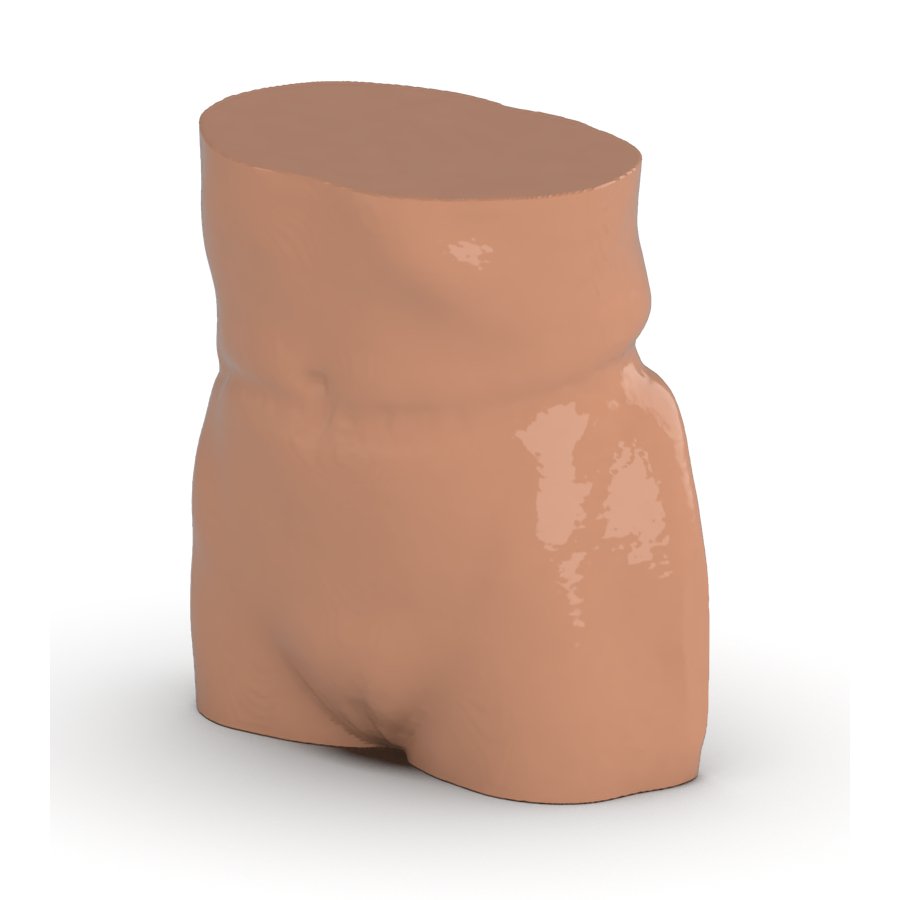

Native Abdomen and Pelvis Phantom for CT Scan and X-Ray Training

This phantom simulates an abdomen and pelvis without intravenous contrast (native). It covers the first lumbar vertebra to the perineum. It has a pancreatic mass and liver lesions.

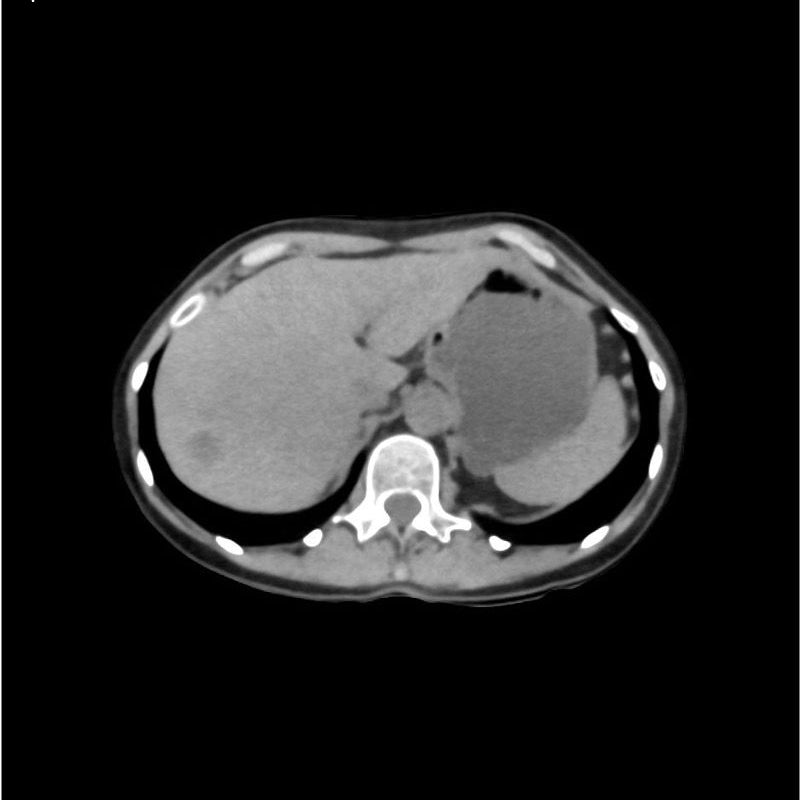

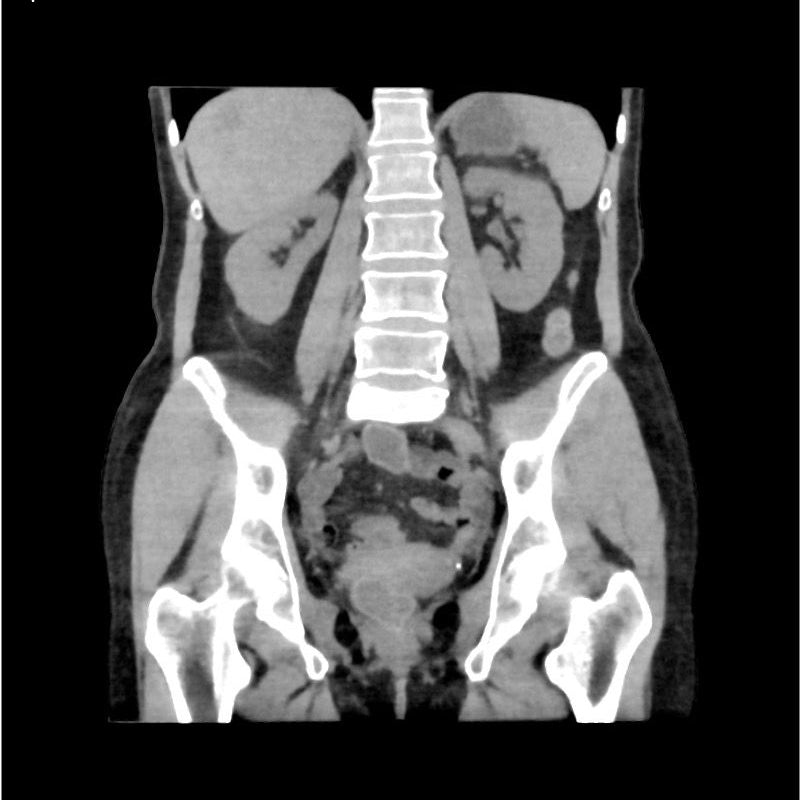

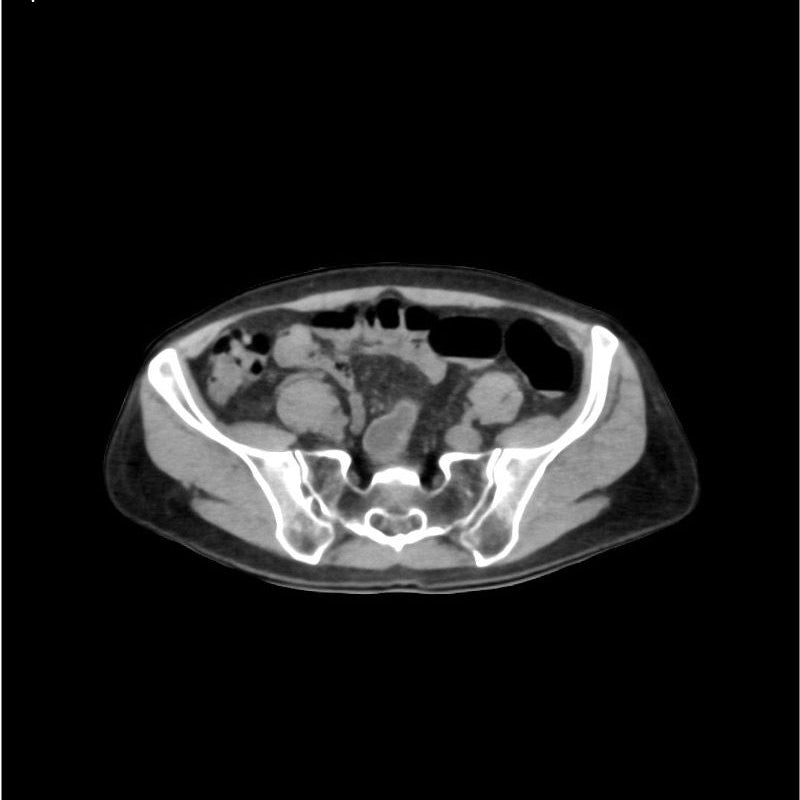

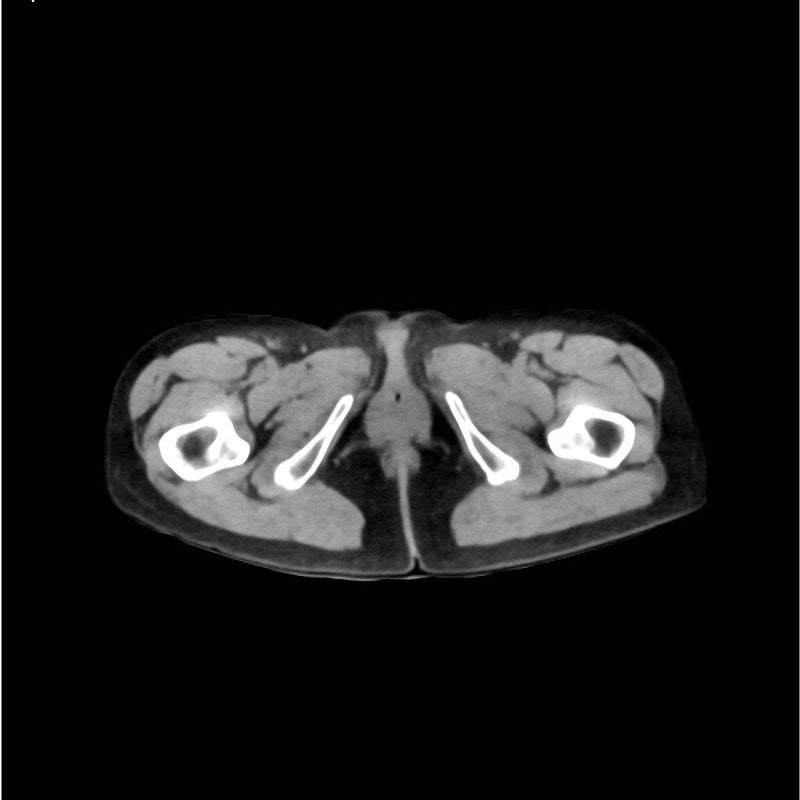

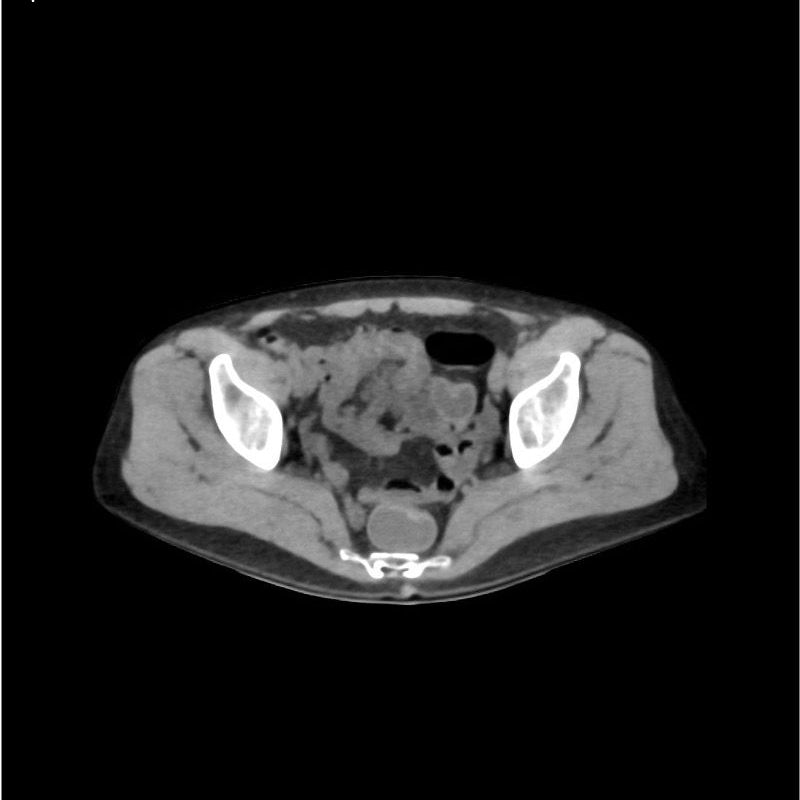

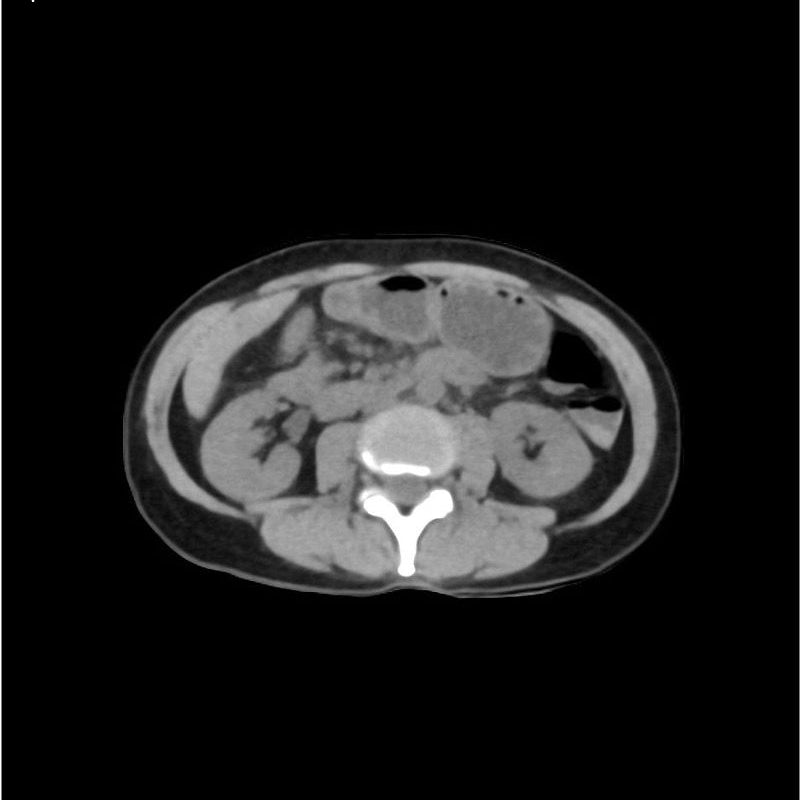

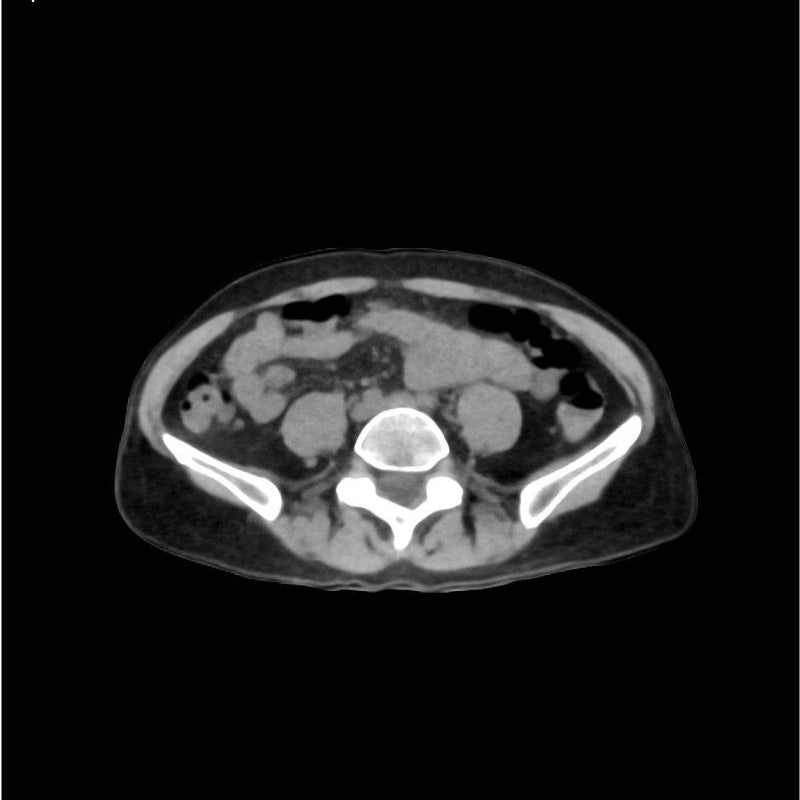

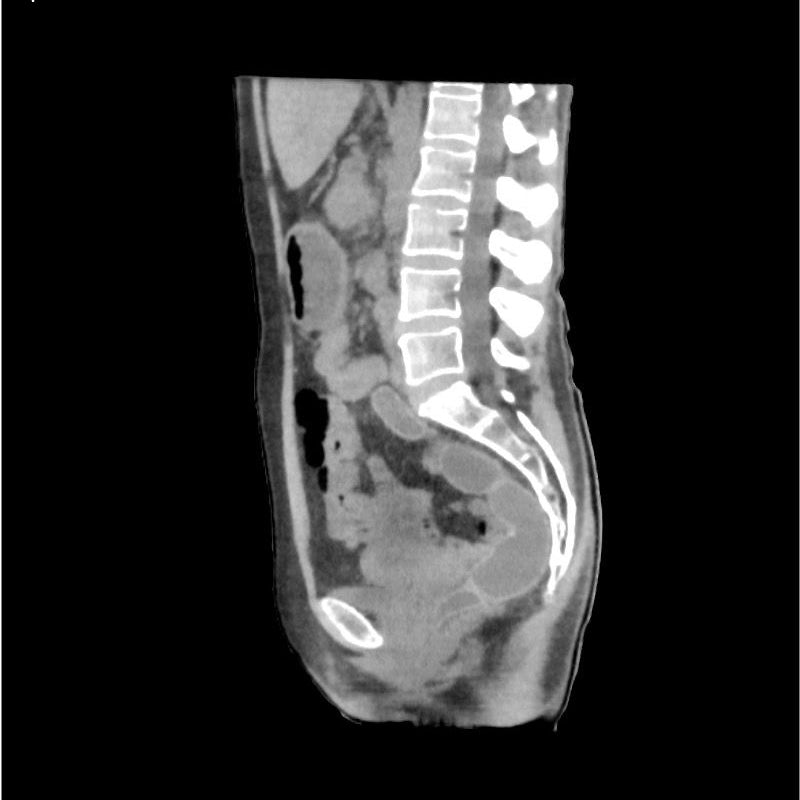

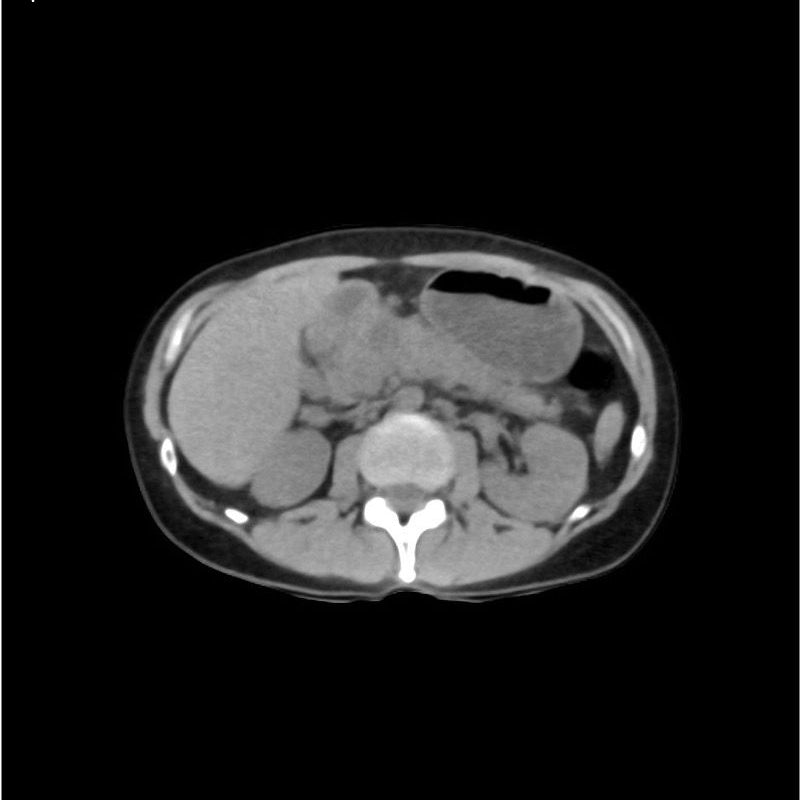

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:
  • Size: Approx. 27 x 16 x 28 cm
  • Weight: Approx. 6.8 kg
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – (adaptable upon request)
DIAGNOSTIC FEATURES:
  • Realistic simulation of bone and soft tissues, including:
  • liver
  • gallbladder
  • pancreas
  • spleen
  • adrenals
  • kidneys
  • stomach
  • small intestine
  • colon and bladder
  • Panreatic mass
  • Liver lesions
General indications:
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • The phantom is not certified as medical device.
  • Air voids are filled with cellulose-polymer composite of approx. -160 HU.

Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Download a PDF with product details
Product Dimensions and Weight:
  • Size:Approx. 27 x 16 x 28 cm
  • Weight:Approx. 6.8 kg


    General indications:
  • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
  • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C.
  • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
