Adult Knee X-Ray, CT Scan and Ultrasound

The Adult Knee phantom is designed around the structure of an average adult human knee. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT and US imaging, it serves medical imaging research, and Orthopedic related studies.

The Adult Knee phantom has a complex internal structure and anatomy, which are based on an average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray CT and US imaging applications. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials.

The phantom can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related work. This product can be further customized to match a wide variety of project requirements.

Anatomy

    Partial Upper Leg
  • Partial Lower Leg
  • Patella
  • Meniscus:
    • Lateral Meniscus
    • Medial Meniscus
  • Condyle:
    • Lateral Condyle Femoral
    • Medial Condyle Femoral
  • Ligaments and Tendons:
    • Quadriceps Femoris Tendon
    • Patellar Ligament
    • Lateral Patellar Retinaculum
    • Medial Patellar Retinaculum
    • Anterior Cruciate Ligament
    • Posterior Cruciate Ligament
    • Arcuate Popliteal Ligament
    • Oblique popliteal Ligament
  • Bursa:
    • Subtendinous Bursa (3)
    • Semimembranosus Bursa
    • Pes anserine Bursa
    • Infrapatellar Bursa
    • Prepatellar Bursa
    • Iliotibial Band Bursa
Your order will include:
  • Adult Knee Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Phantom:
  • Height: 6 x 7 x 15 in (approx.)
  • Weight: 18 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 26 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

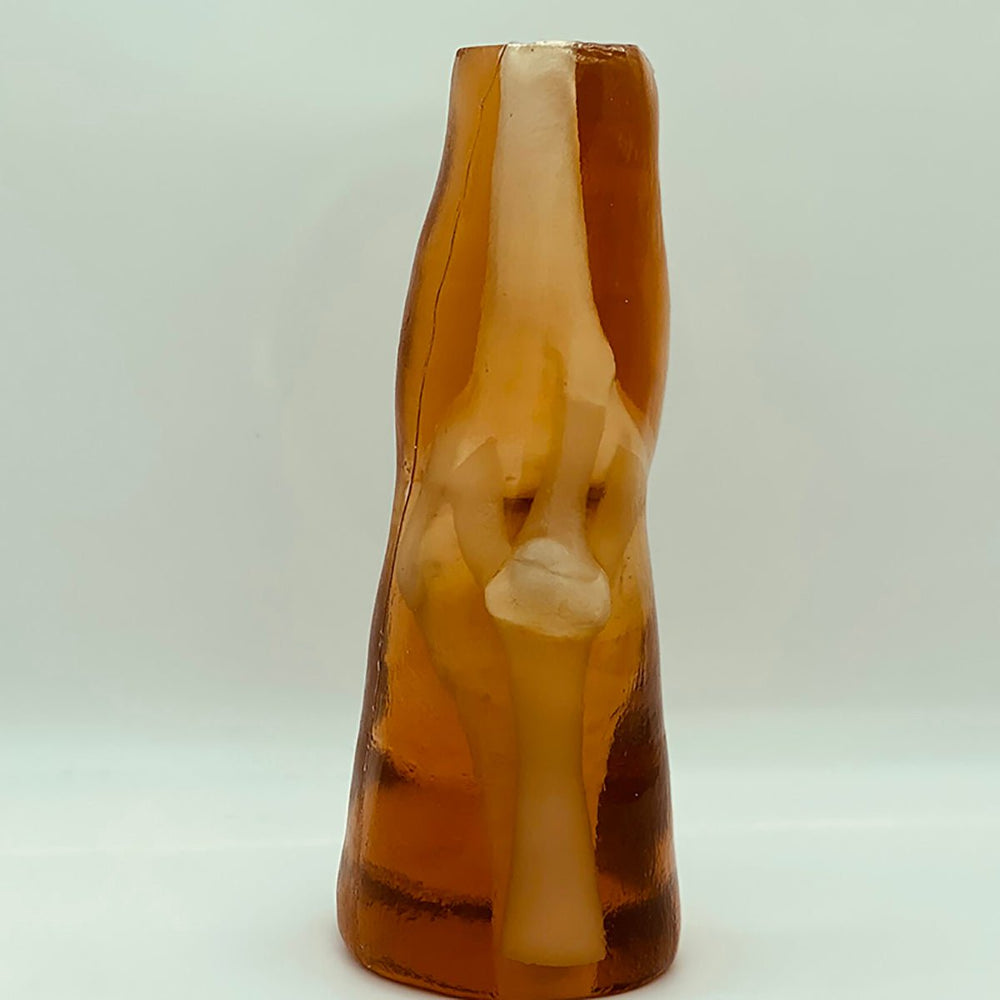

Front View

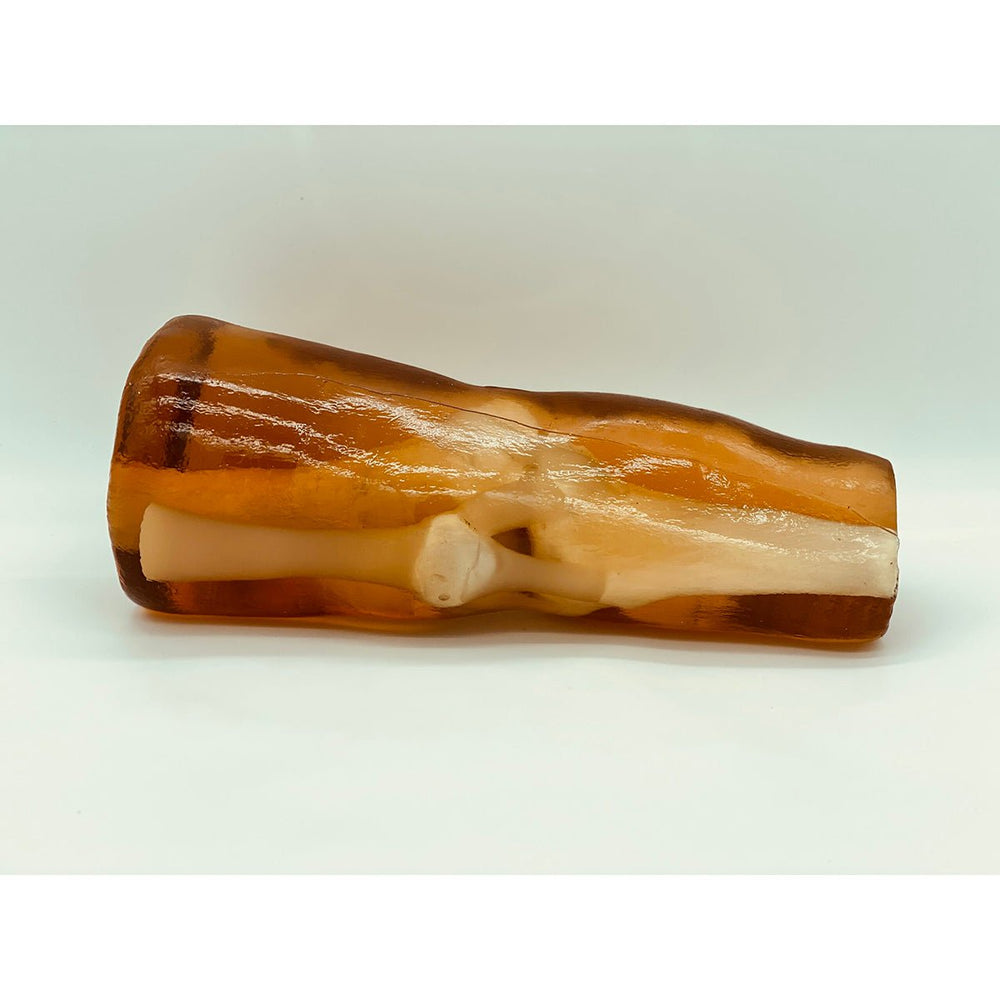

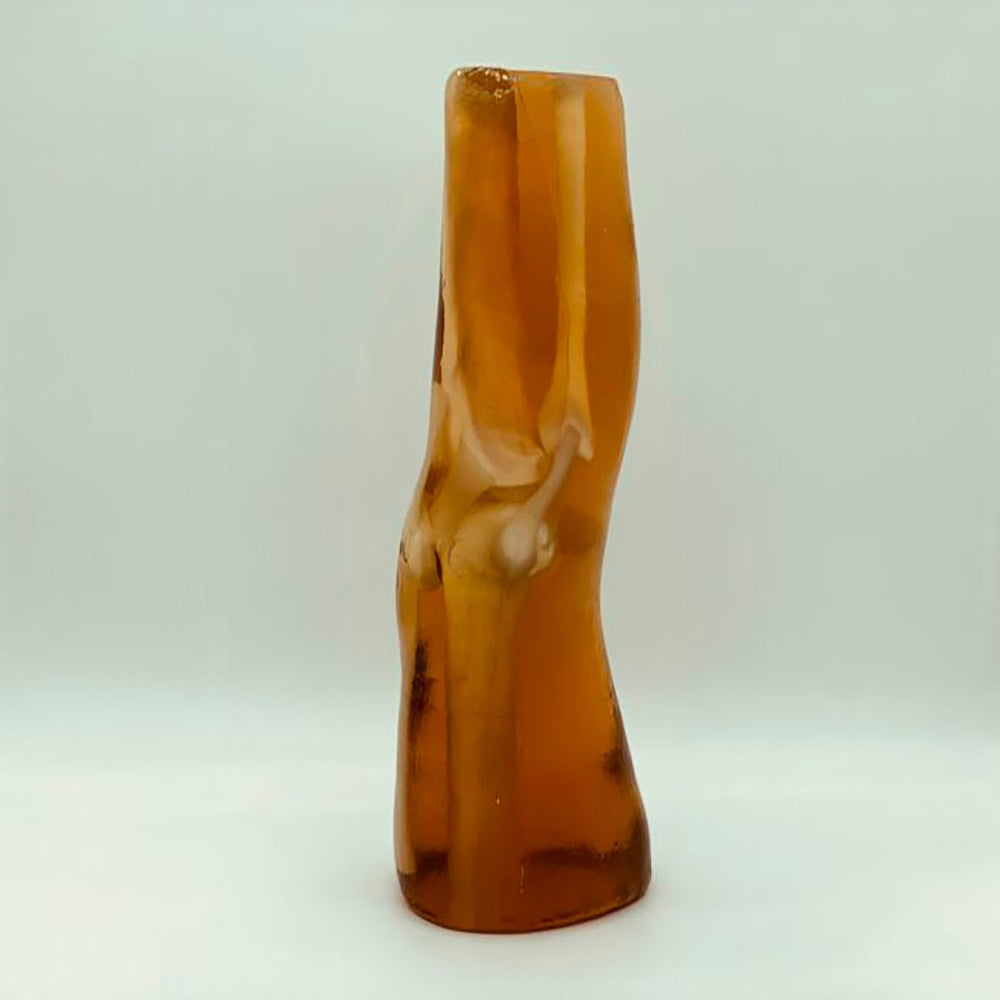

Lateral View

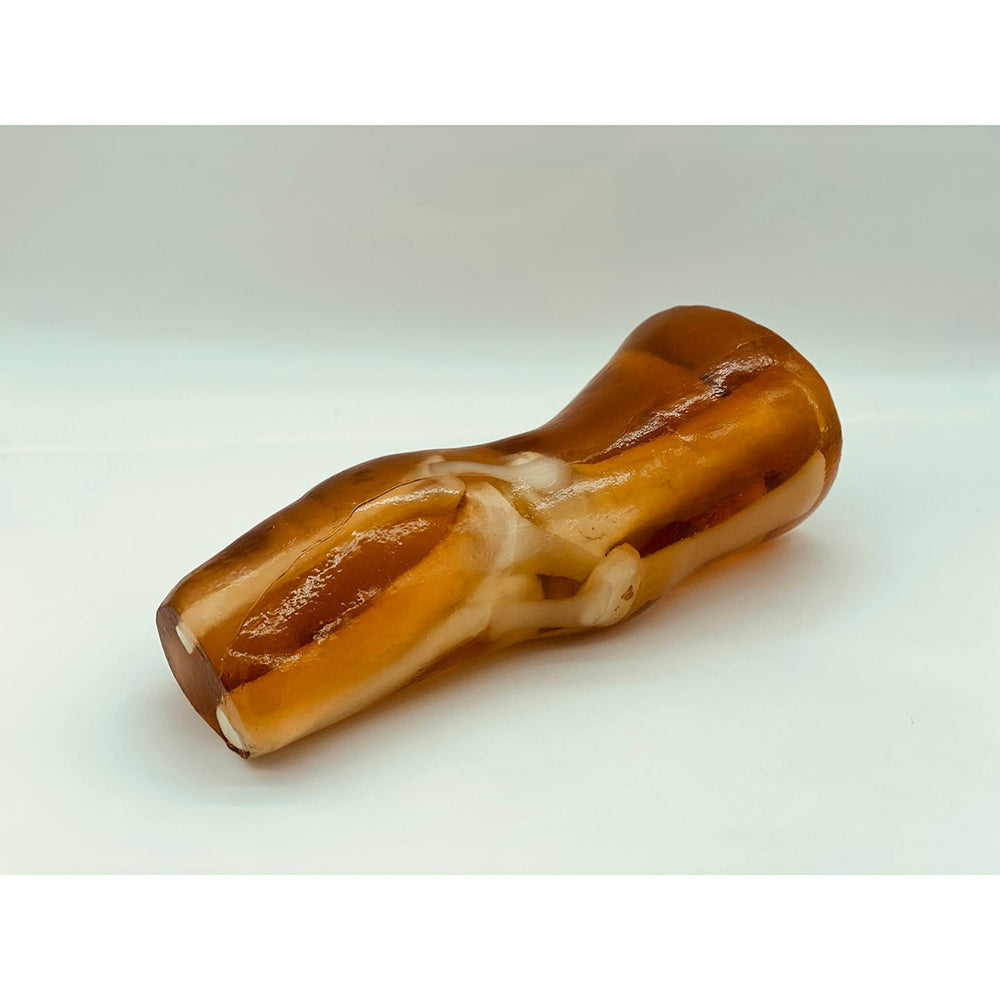

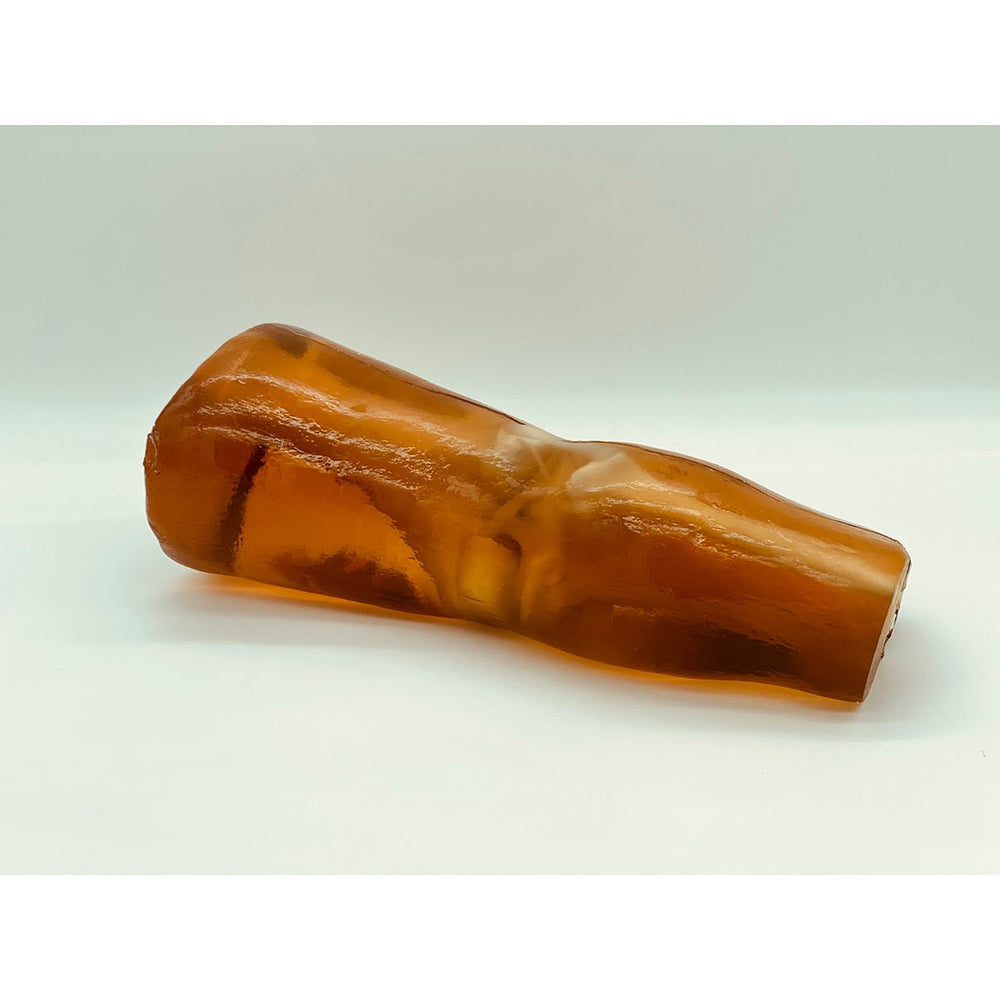

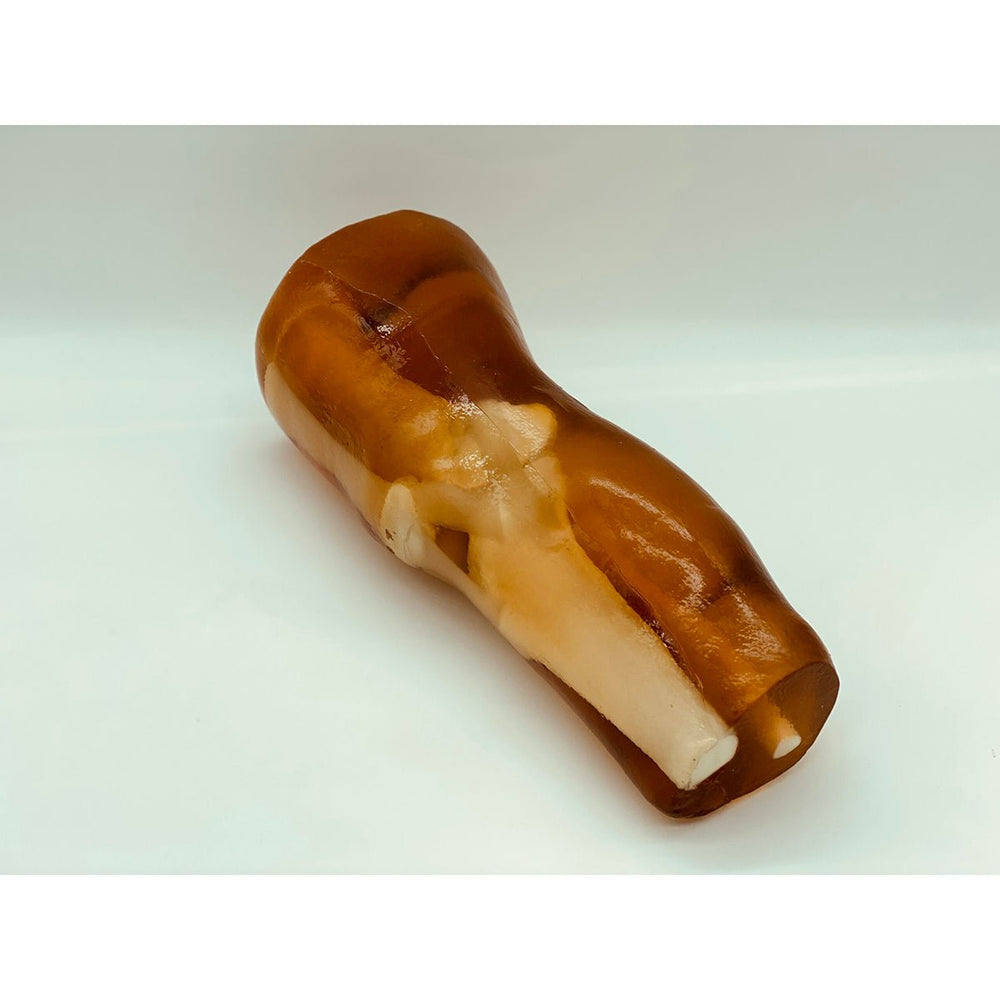

Perspective View
Top View

X-Ray Scan

Type of Tissue Sound Velocity
[m/s]		 Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300
Download a PDF with product details

Adult Knee X-Ray, CT Scan and Ultrasound

Phantom:
  • Height: 6 x 7 x 15 in (approx.)
  • Weight: 18 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 26 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
