Adult Sectional Abdomen (Portable FAST Simulator) X-Ray, CT Scan and Ultrasound

The Adult Sectional Abdomen is a versatile phantom for X-Ray/CT and Ultrasound training (FAST protocols). It includes abdominal anatomy with 9 lesions of size 1-2 cm at different depth and location near liver and kidney. The product can be further customized with various pathologies for specific training purposes. It is amber translucent in appearance by default, but a skin-colored version is also available. Ideal for ultrasound technicians and medical students.

Adult Sectional Abdomen for X-Ray CT, US is designed based on an average anatomy of an adult healthy human male. It is compatible with X-Ray/CT and Ultrasound. The bones are made from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity.

The phantom can be customized with any pathologies for learning the techniques of FAST (focused assessment with sonography for trauma), FAMUS (Focused Acute Medicine Ultrasound), and any other procedural training (Pericardial effusion, etc.)

This product is a translucent amber version (opaque, skin-colored version available upon request). An ideal phantom for training ultrasound technicians and other medical students.

Anatomy:
  • Diaphragm
  • Liver (with vessels)
  • Stomach
  • Kidneys (with vessels)
  • Pancreas
  • 9 Lesions
    • 1-2 cm in diameter
    • Spherical and non-spherical
    • Located in kidney and liver
  • Soft Body Tissue
Your order will include:
  • Adult Sectional Abdomen Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Phantom:
  • Height: 11 x 9 x 8 in (approx.)
  • Weight: 22 lbs (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 30 lbs (approx.)
Download:
manual

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

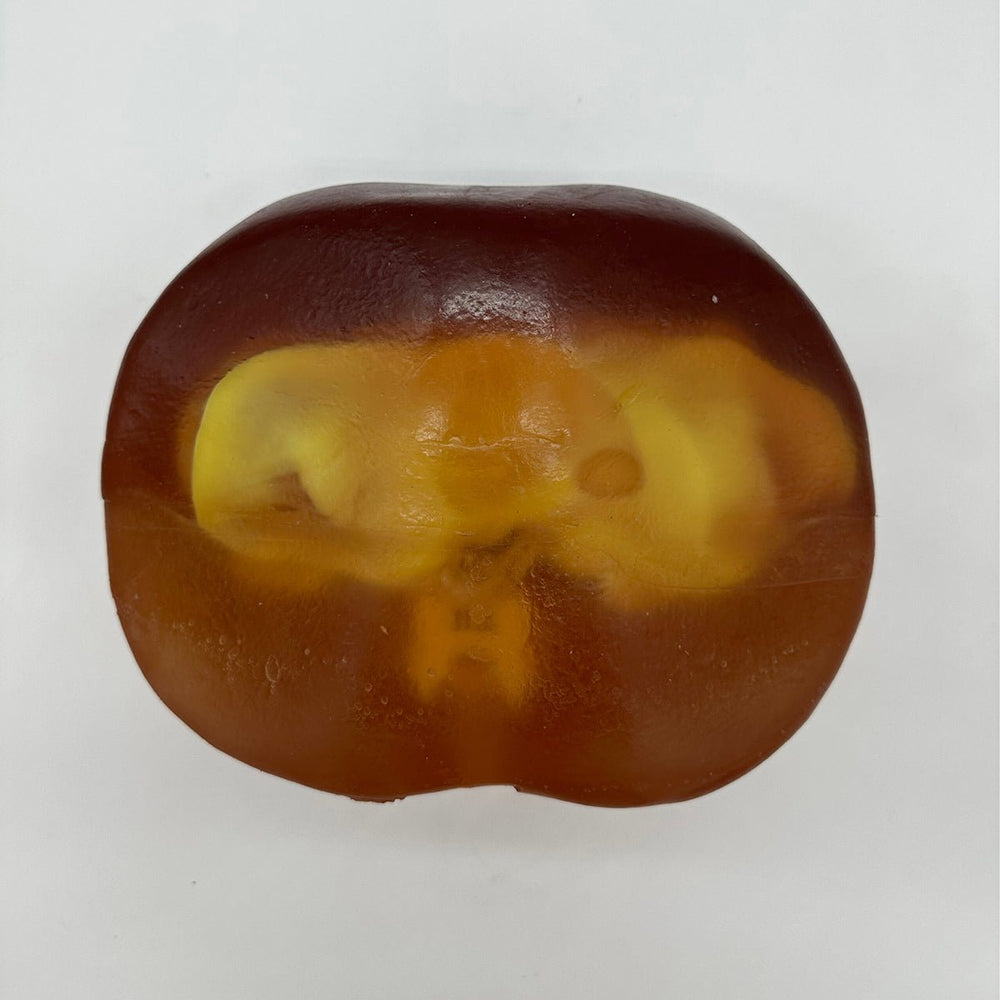

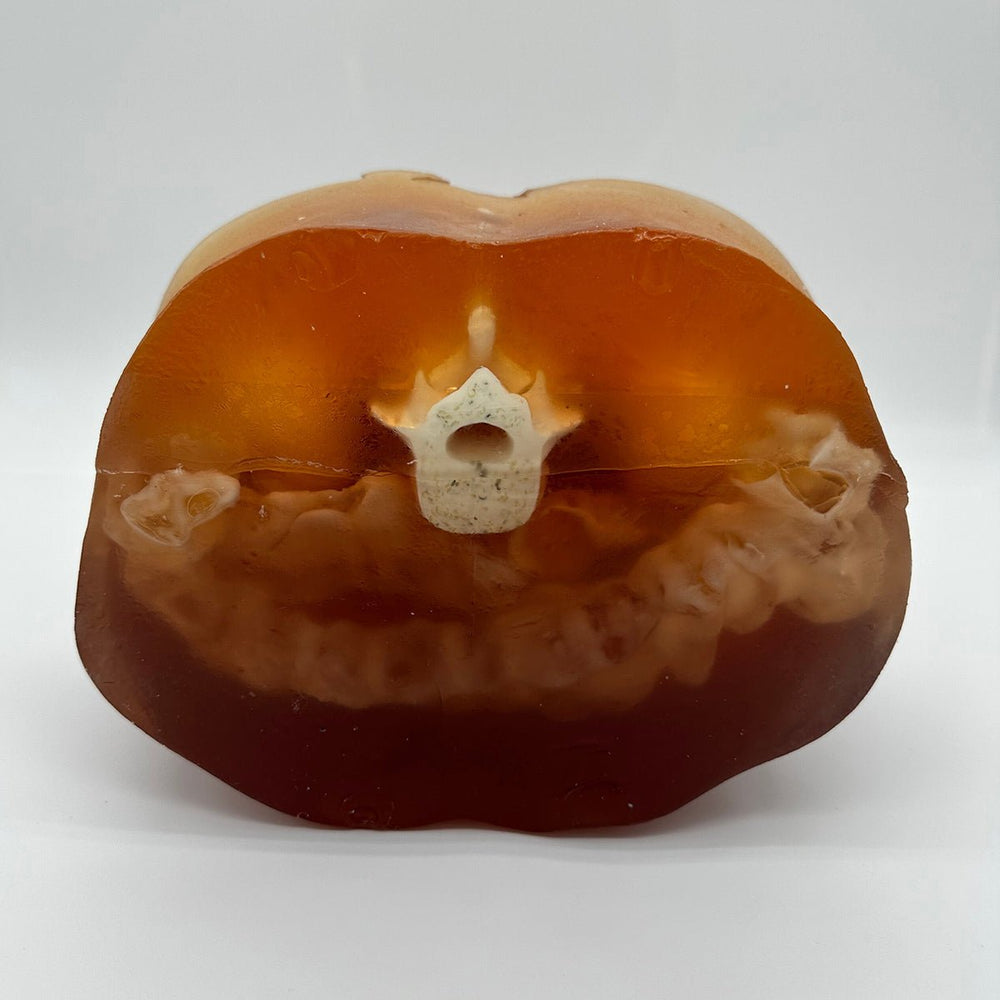

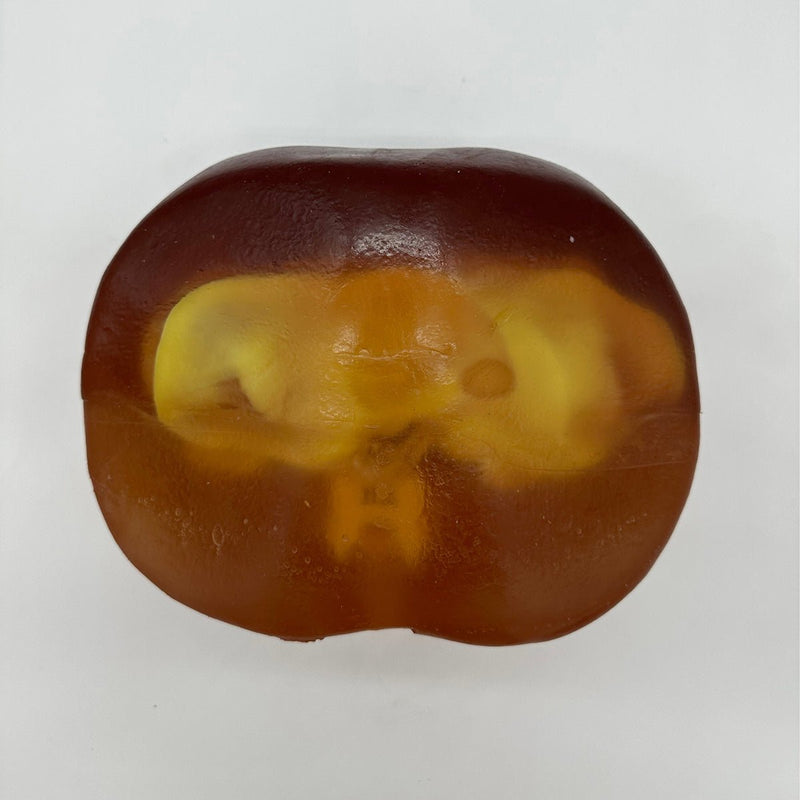

Front View

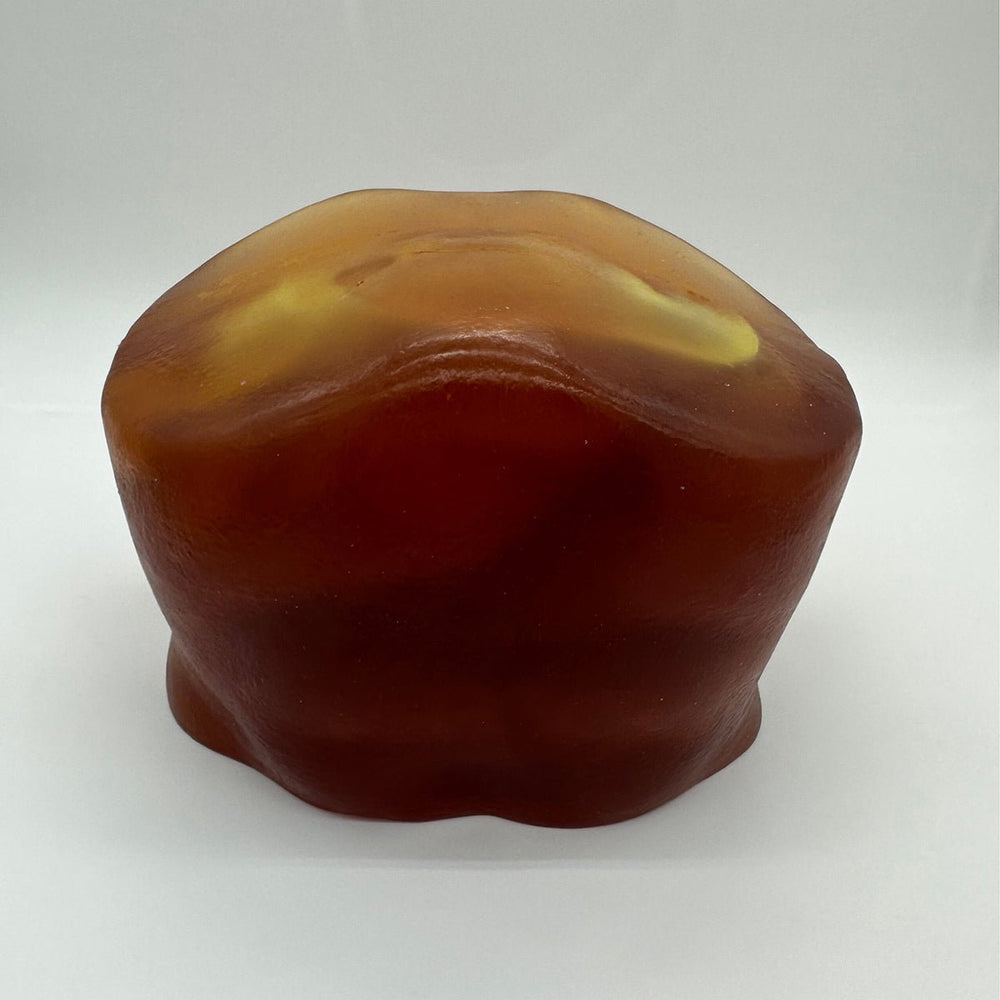

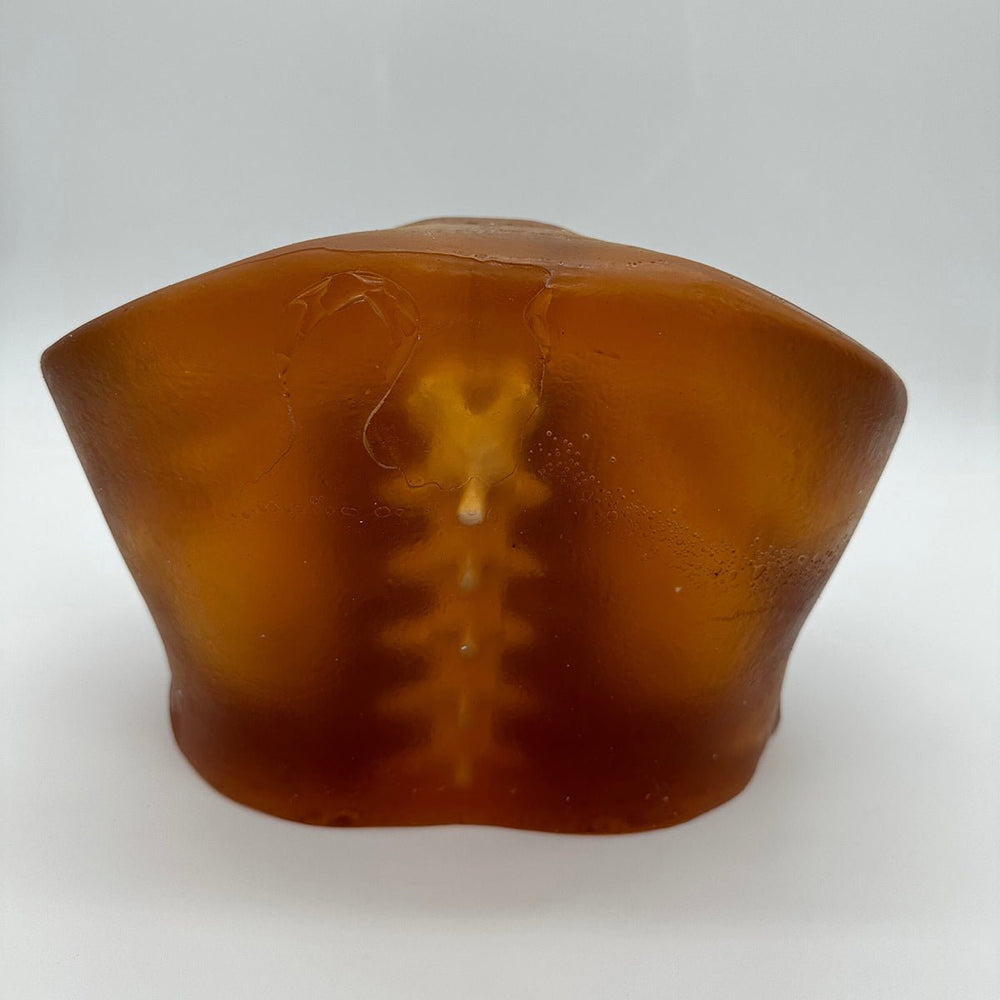

Lateral View
Perspective View
Top View

CT Scans

Type of Tissue Sound Velocity
[m/s]		 Density
[g/cm3]		 Attenuation Measured at 2.25 MHz [dB/cm] Hardness
[Shore OO]		 T2
[ms]		 Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.2 ± 0.2 30 65 NO/LOW
Lesion Feature 1400 ± 10 1.01 1.2 ± 0.2 30 65 YES
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (Average)
1 Body Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Pancreas 110
5 Spleen 110
6 Kidneys 110
7 Bladder 35
8 Liver 110
Download a PDF with product details

Adult Sectional Abdomen (Portable FAST Simulator) X-Ray, CT Scan and Ultrasound

Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Phantom:
  • Height: 11 x 9 x 8 in (approx.)
  • Weight: 22 lbs (approx.)
Shipment:
  • Height: 29 x 24 x 17 in (approx.)
  • Weight: 25 lbs (approx.)
