Female Dog Phantom for X-Ray and Ultrasound Imaging

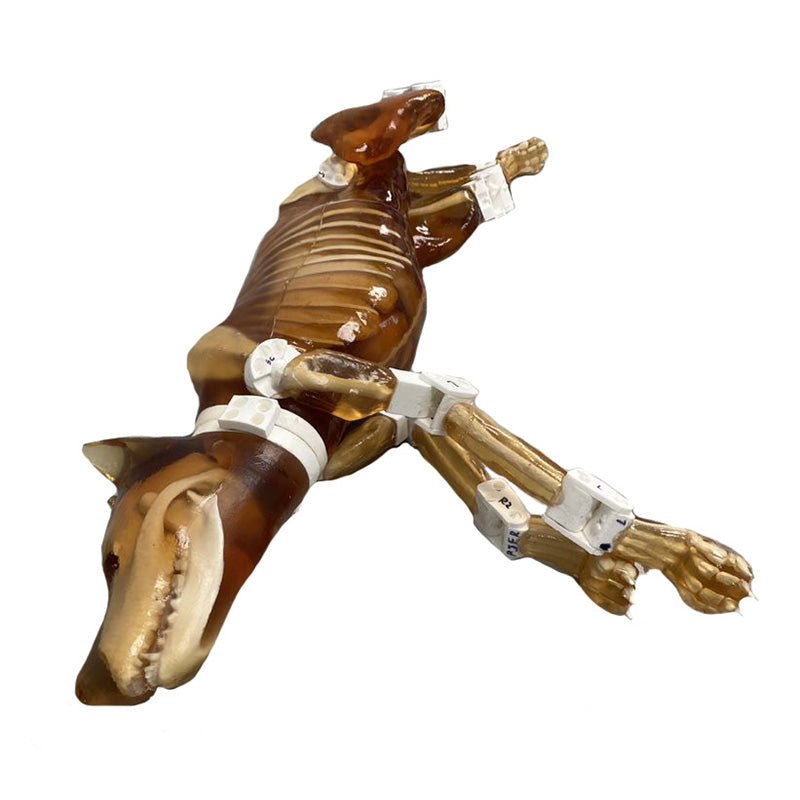

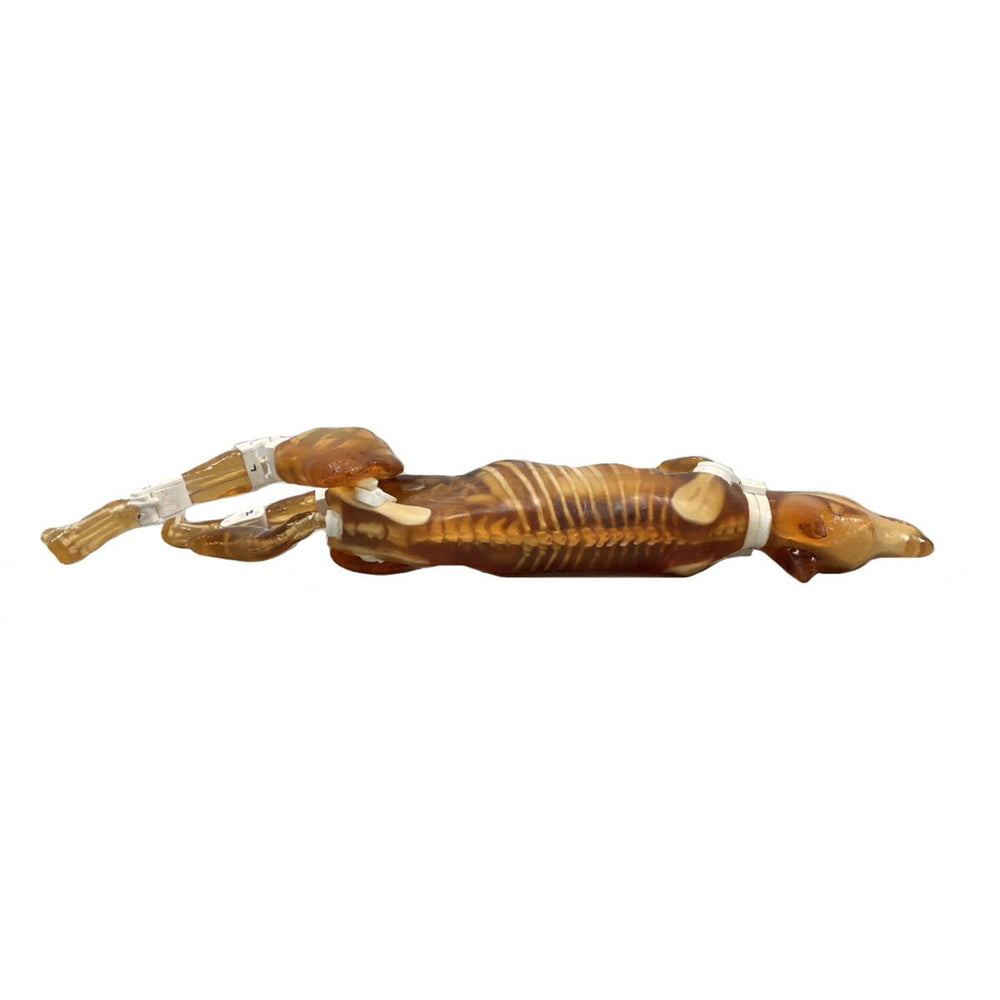

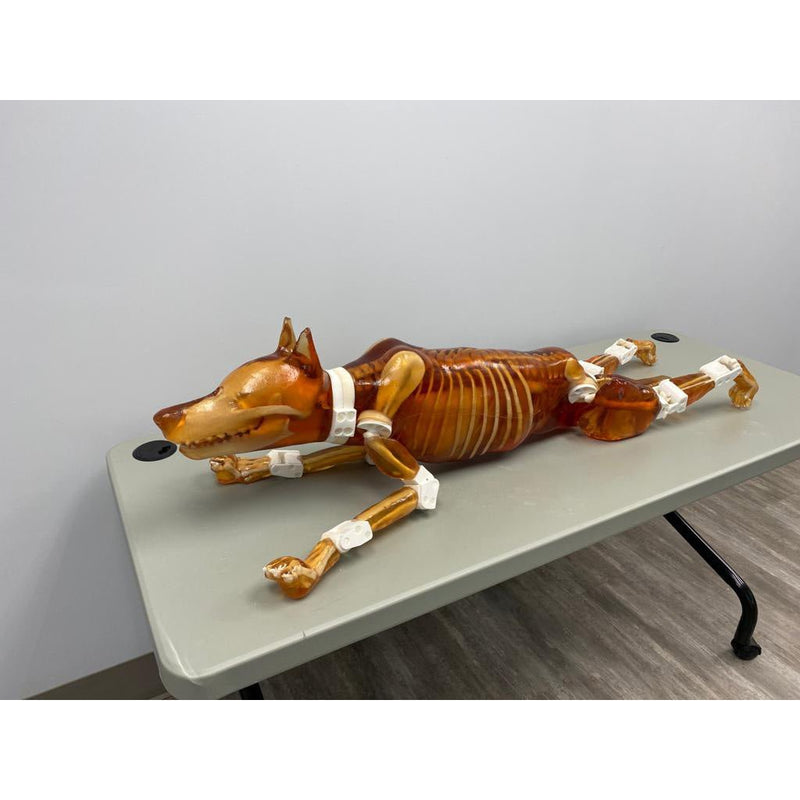

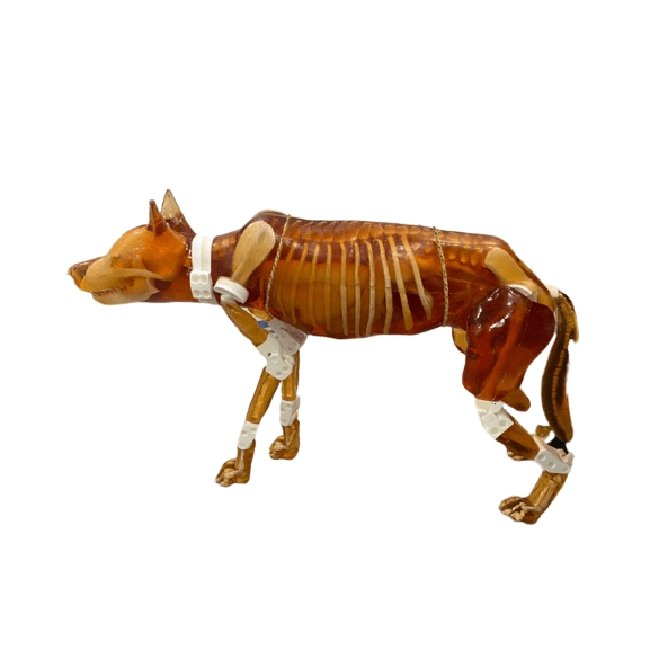

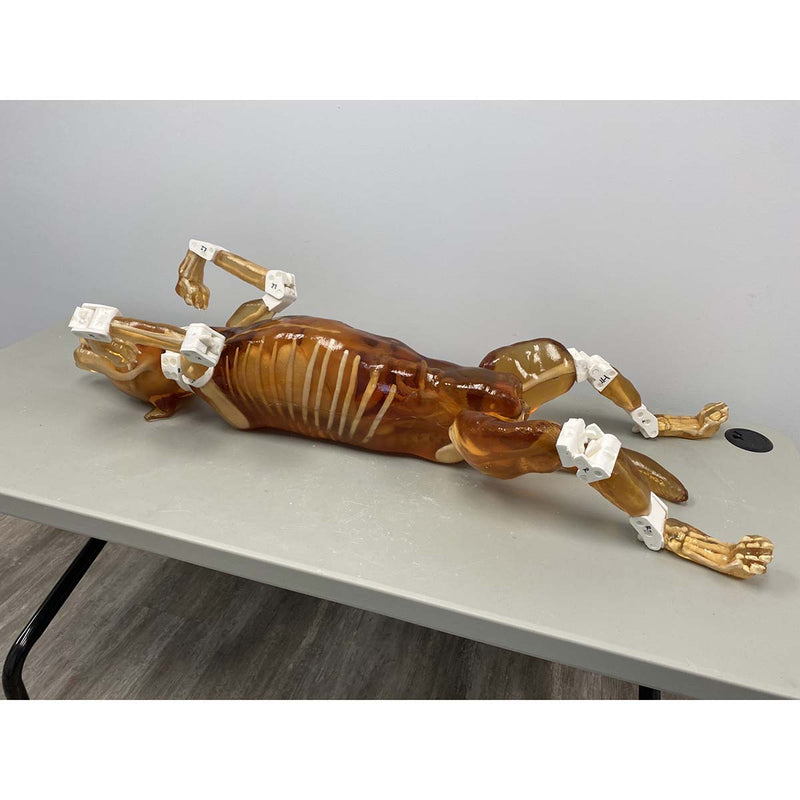

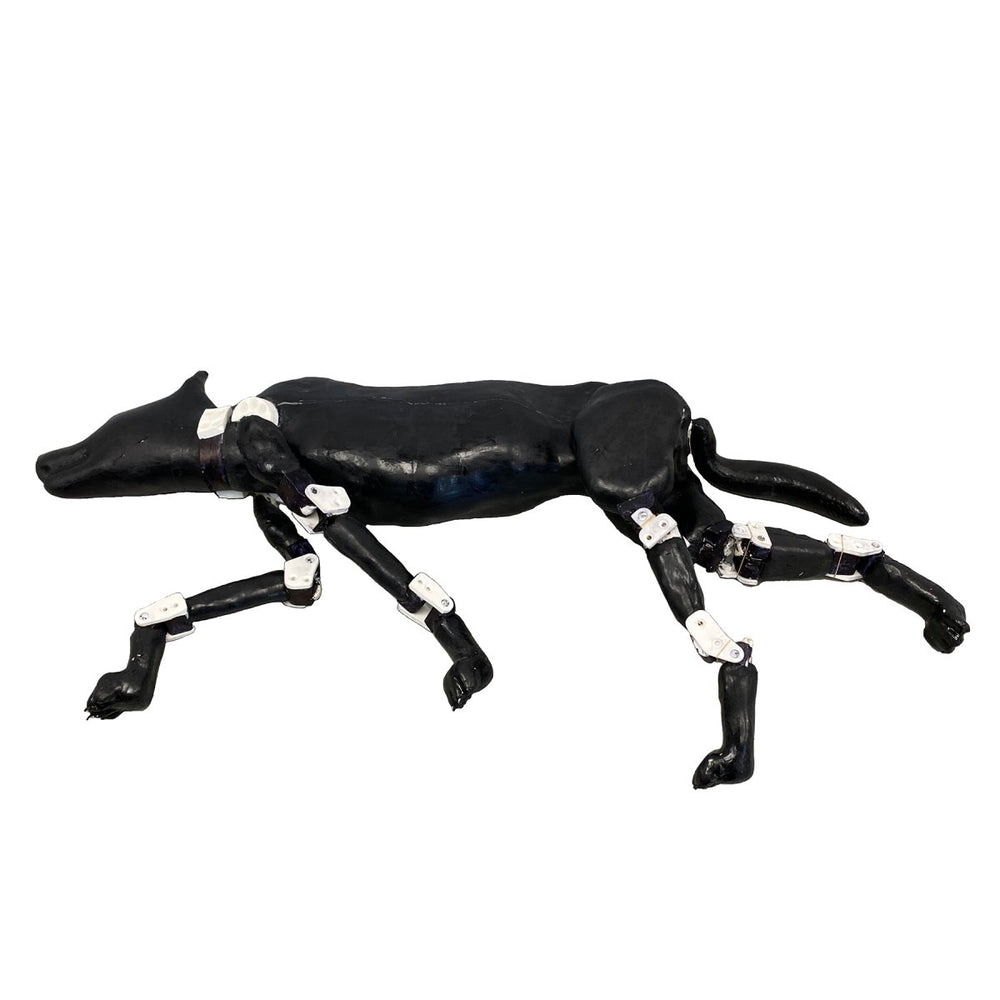

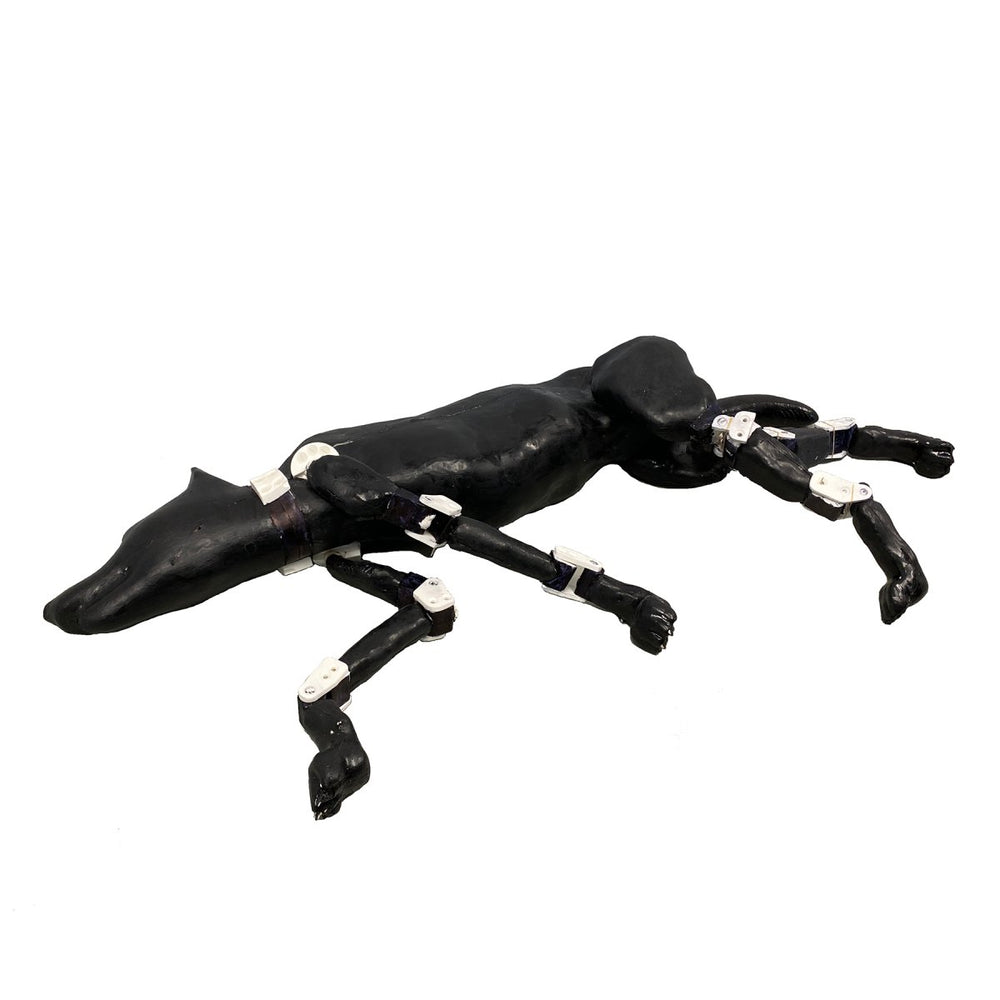

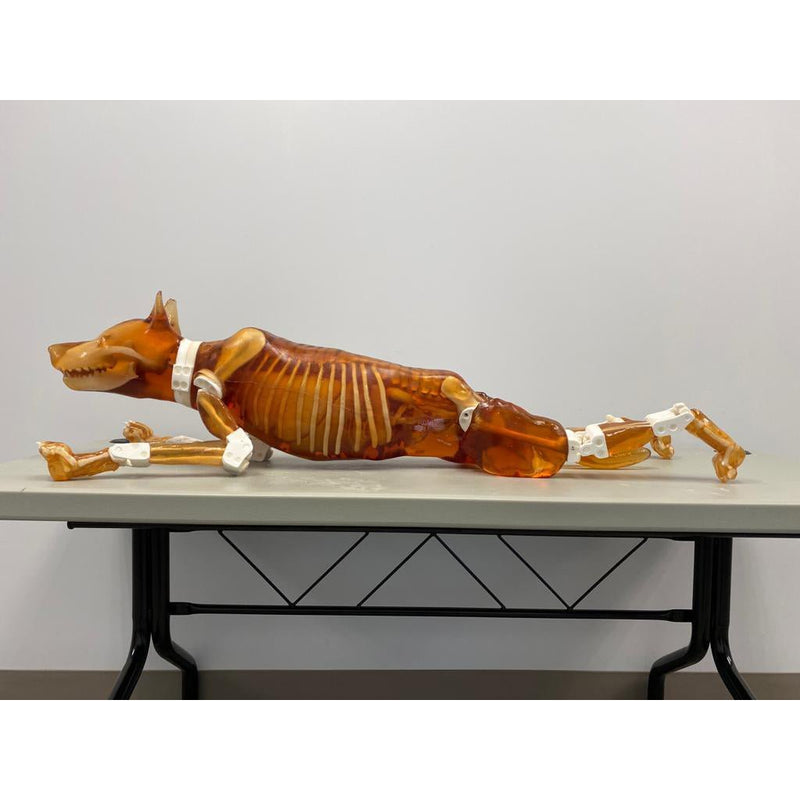

The newly designed detachable dog phantom serves as an independent training simulator compatible with ultrasound and X-Ray/CT imaging. It is an ideal teaching tool for veterinary professionals, featuring improved anatomical structures and removable body parts. This allows for practicing various positioning techniques under both imaging modalities.

The newly designed detachable dog phantom is a training simulator independent of external hardware/software. The phantom is compatible with Ultrasound and X-RAY/CT imaging. It has all the right features to be an ideal teaching tool for sonographers, radiographers, veterinary residents, and other vet professionals. This phantom can be used with Iodine-based and Microbubble contrast mediums.

Unlike its predecessor, the new detachable dog phantom has improved anatomical structures and removable body parts (head, limbs, torso, and tail). This improvement is an added advantage as it helps perform various positioning techniques under the US and X-RAY/CT imaging modalities.

ANATOMY

Adult Dog Head

  • Dog Skull
  • Jaw Bone
  • Realistic Dog Brain

Adult Dog Front Arms

  • Arm (Humerus)
  • Elbow Joints
  • Forearm (Radius, Ulna)
  • Paw (Wrist with Fingers)
  • Skin-Mimicking Material

Adult Dog Rear Legs

  • Thigh (Femur)
  • Knee Joints
  • Leg (Tibia, Fibula)
  • Paw (Finger Bones)
  • Skin-Mimicking Material

Adult Dog Torso

  • Complete Spine
  • Complete Ribcage
  • Shoulder (Scapula Bones)
  • Pelvis
  • Heart
  • Blood Vessels Connected to Heart
  • Lungs
  • Diaphragm
  • Stomach
  • Liver and Gallbladder
  • Kidneys
  • Spleen
  • Pancreas
  • Arteries for Kidneys
  • Bladder
  • Ureters and Uterine
  • Large and Small Intestine

Adult Dog Tail

  • Tail Bone
  • Skin-Mimicking Material

Assembly

Before Assembly (in multiple parts)

After Assembly (in single part)

Your order will include:
  • Dog Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Assembly Instructions
Phantom:
  • Height: 33 x 18 x 6 in (approx.)
  • Weight: 40 lbs (approx.)
Shipment with Hard Carry Case:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 99 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

3D Design:

Top View

Lateral View 1

Lateral View 2

Perspective View


CT Scans

The above X-RAY images were obtained from a standard phantom of our DG-A01 model. An IMAGE VUE CR 20 X-RAY Scanner was used to scan the phantom. This phantom was scanned and validated by Elyse Morassutti, a registered Veterinary technician from the Windsor-Essex County Humane Society

Ultrasound Scans

The above results were obtained from a transparent model of DG-A01. All ultrasounds were performed with the GE Logiq e R8 using the standard 8C micro convex and the L12 Linear probes. This allowed us to interrogate and obtain the best-quality images. By having two different ultrasound probes with varying frequencies, we were able to switch our probes throughout the exam while assessing different organs/body parts resulting in obtaining high-quality images. The phantom was scanned and validated by a VET ultrasound specialist from Precious Paws Ultrasound.

Download a PDF with product details

Female Dog Phantom for X-Ray and Ultrasound Imaging

Phantom:
  • Height: 33 x 18 x 6 in (approx.)
  • Weight: 40 lbs (approx.)
Shipment with Hard Carry Case:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 99 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.2 ± 0.2 30 65 NO/LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Brain Matter 1400 ± 10 0.99 1.0 ± 0.2 20 70 YES
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius
S.No. Tissue Type HU Value (Average)
1 Body Tissue -25
2 Brain Tissue -25
3 Trabecular Bone 800
4 Cortical Bone 1300
5 Aorta 40
6 Vena Cava 40
7 Trachea 80 (Tissue Part),-1000 (Air Filled Part)
8 Pancreas 110
9 Spleen 110
10 Kidneys 110
11 Bladder 35
12 Rectum Wall 100
13 Sigmoid Colon Wall 100
14 Heart 40
15 Liver 110
16 Gallbladder 35
