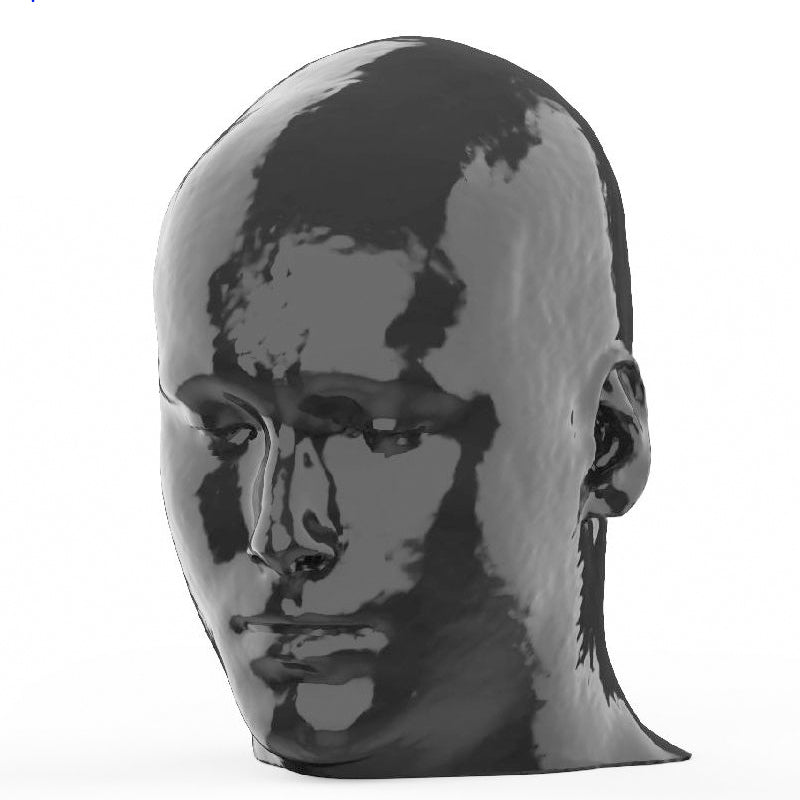

Head and Neck Phantom - CTA AVM / lesion

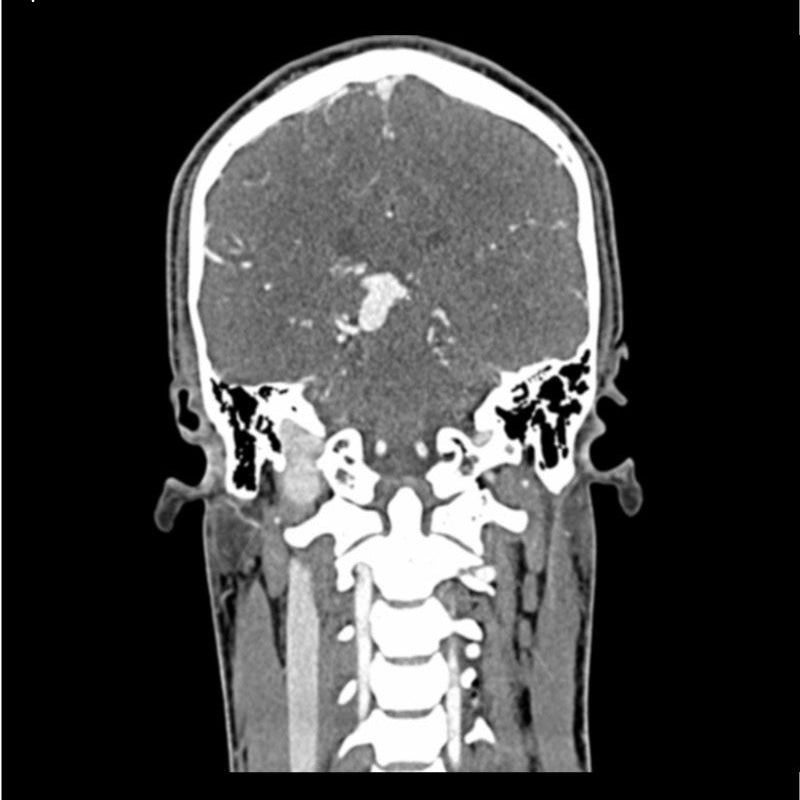

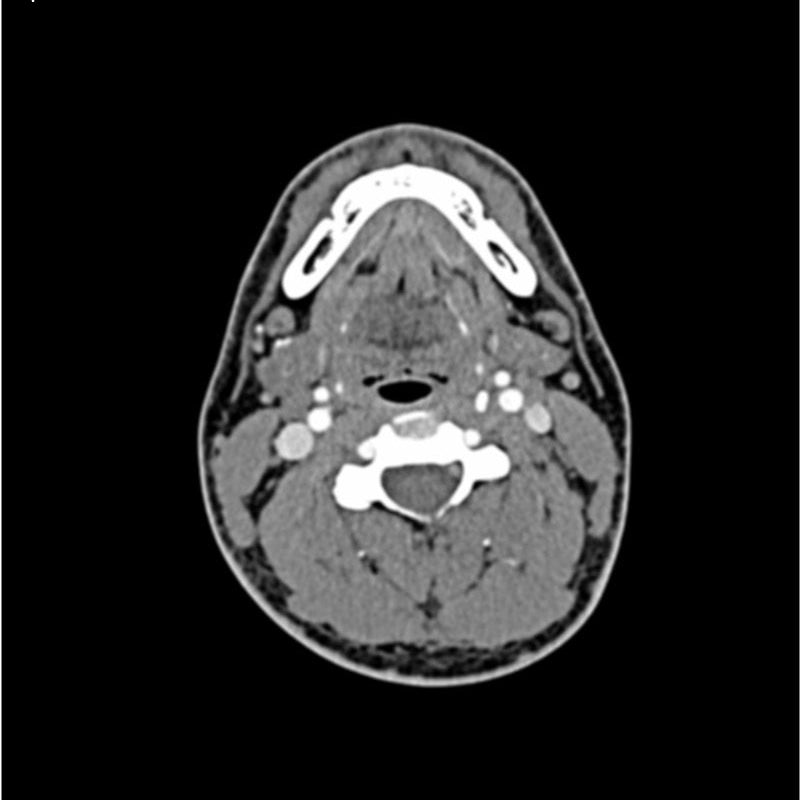

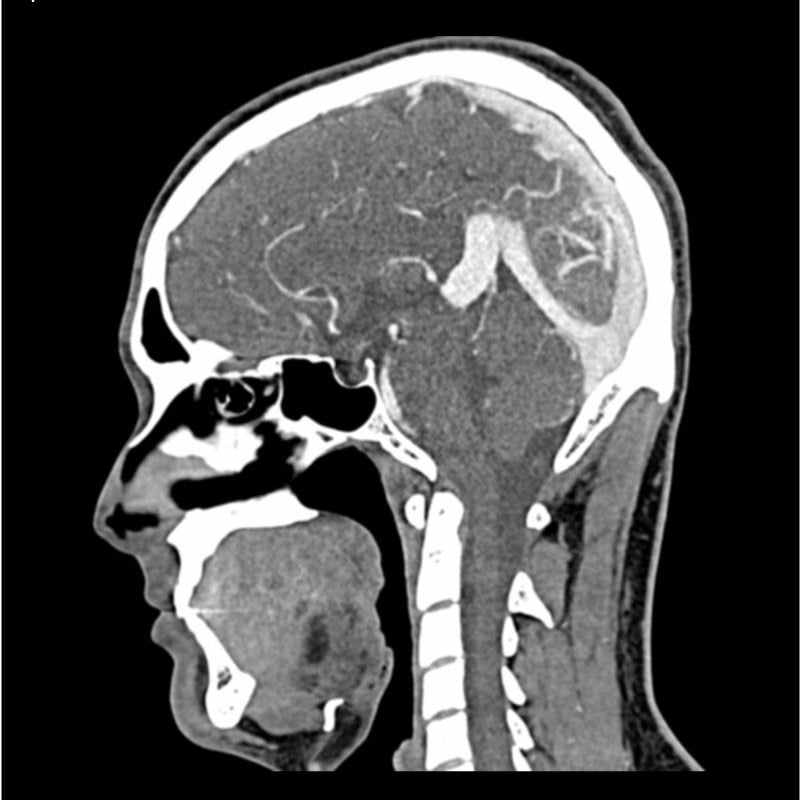

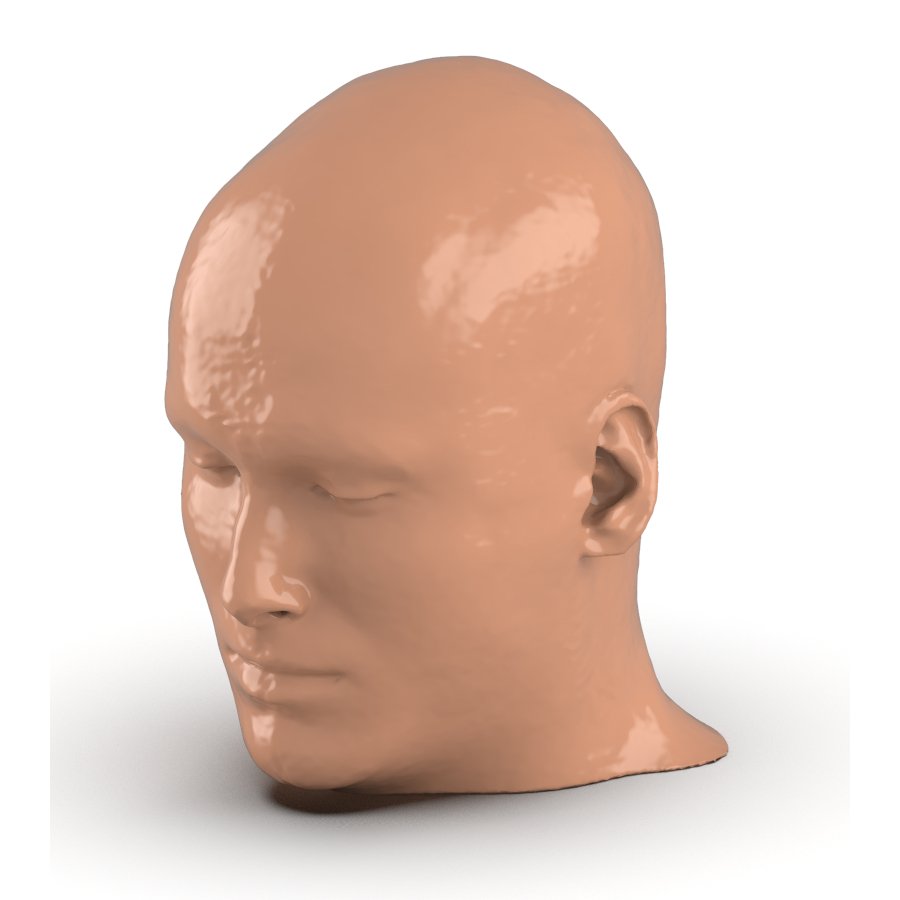

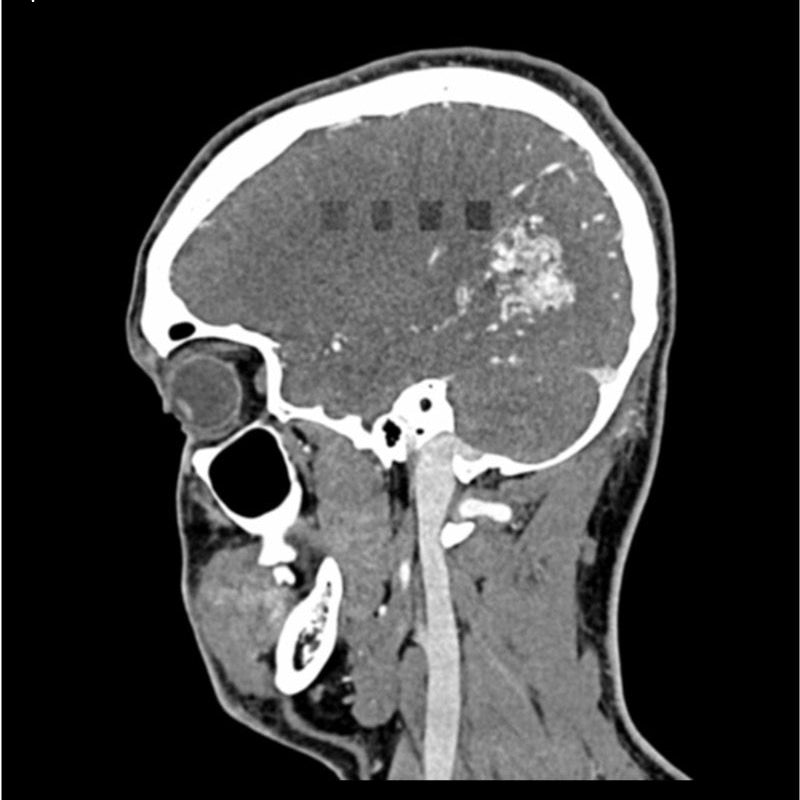

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to the fifth cervical vertebra. The phantom has 10 low-contrast lesions in the centrum semiovale and the right hemisphere has an arteriovenous malformation.

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

    SPECIFICATIONS:
  • Size: Approx. 19 x 22 x 27 cm
  • Weight: Approx. 5.12 kg
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – (adaptable upon request)
DIAGNOSTIC FEATURES:
  • Realistic simulation of head vessels, bone and soft tissues.
  • Arteriovenous malformation of the right hemisphere.

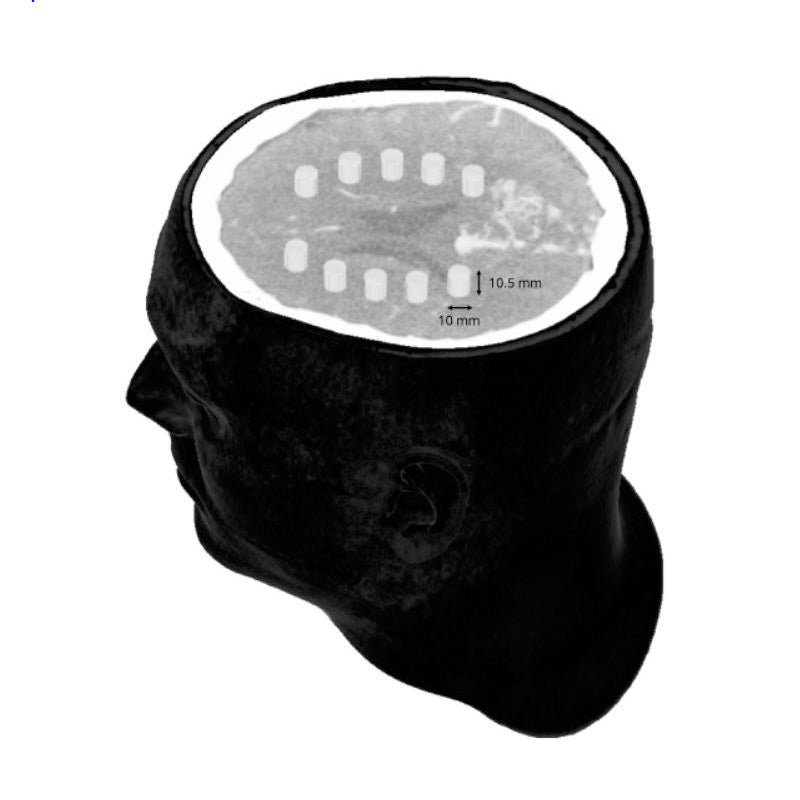

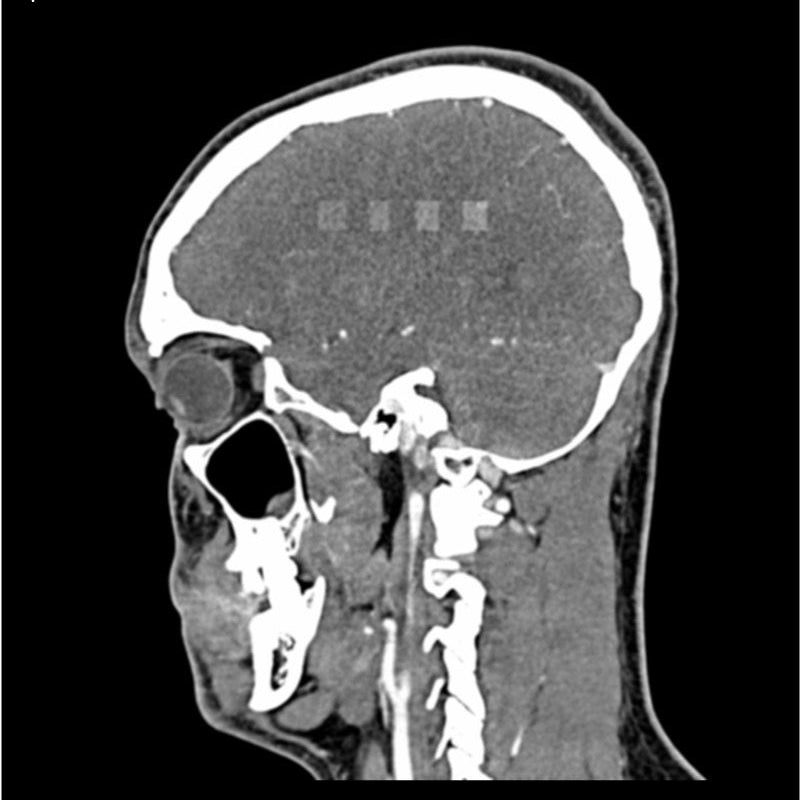

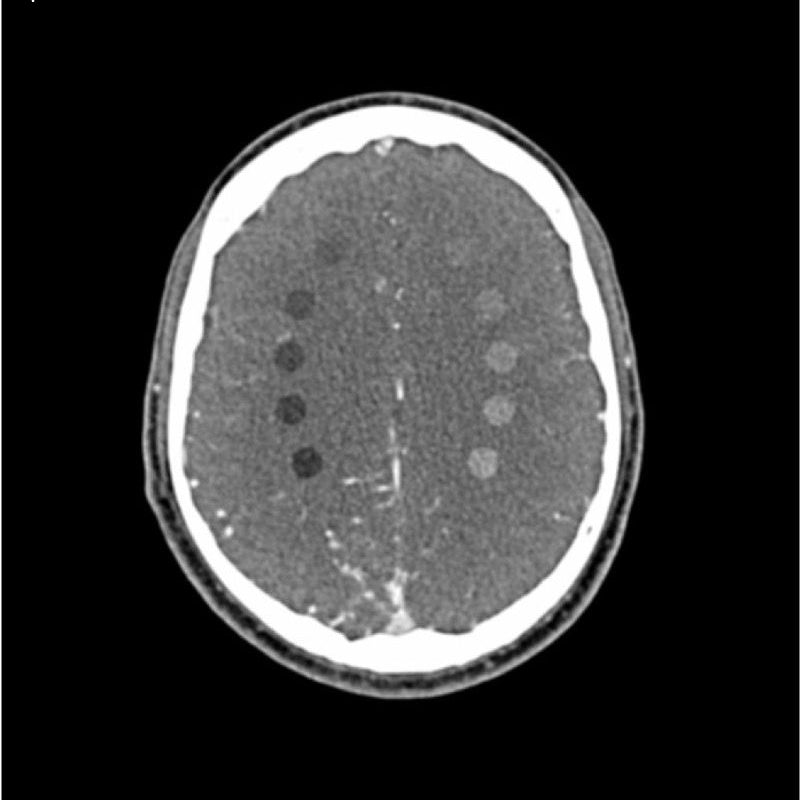

  • 5 rod-shaped lesions on each side in the centrum semiovale at the periventricular and supraventricular level.

    • Lesion diameter: 10 mm
    Lesion height: 10.5 mm

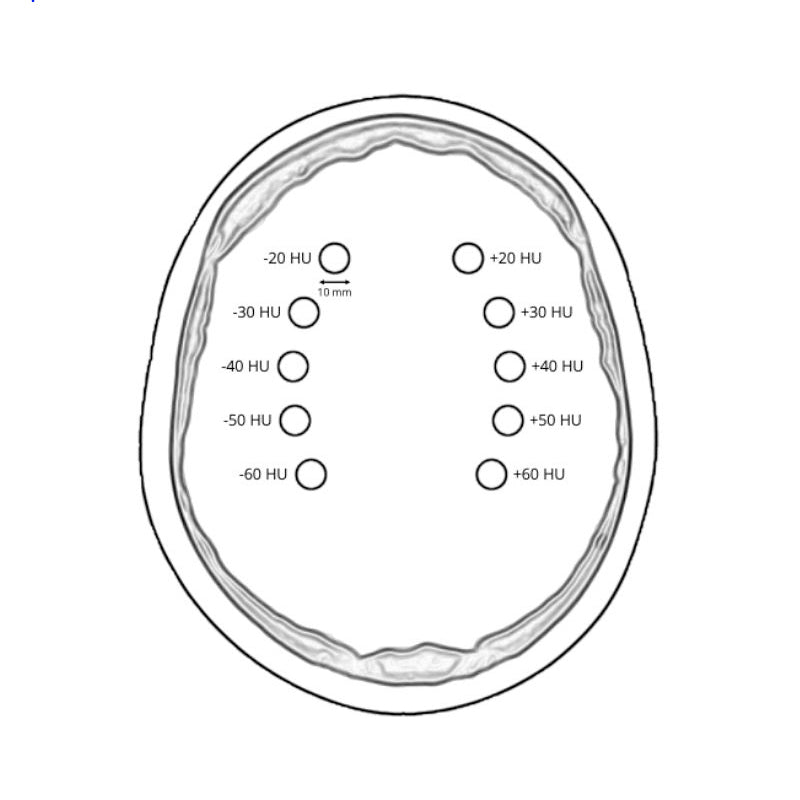

    Lesion contrast: Approx. -60 to -20 and 20 to 60 HU at 120 kVp

      General indications:
    • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
    • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
    • Protect from direct sunlight.
    • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
    • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
    • The phantom is not certified as medical device.
    • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
    Download:
    Brochure

    Made by PhantomX and sold by GTSimulators.

    GTSimulators by Global Technologies
    PhantomX Authorized Dealer

    Download a PDF with product details
    Product Dimensions and Weight:
    • Size:Approx. 19 x 22 x 27 cm
    • Weight:Approx. 5.12 kg


      General indications:
    • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
    • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
    • Protect from direct sunlight.
    • Maintain a storage temperature of 10 °C to 30 °C.
    • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
    • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
    • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
