Pediatric Full Human Body Phantom for X-Ray CT & MRI Training

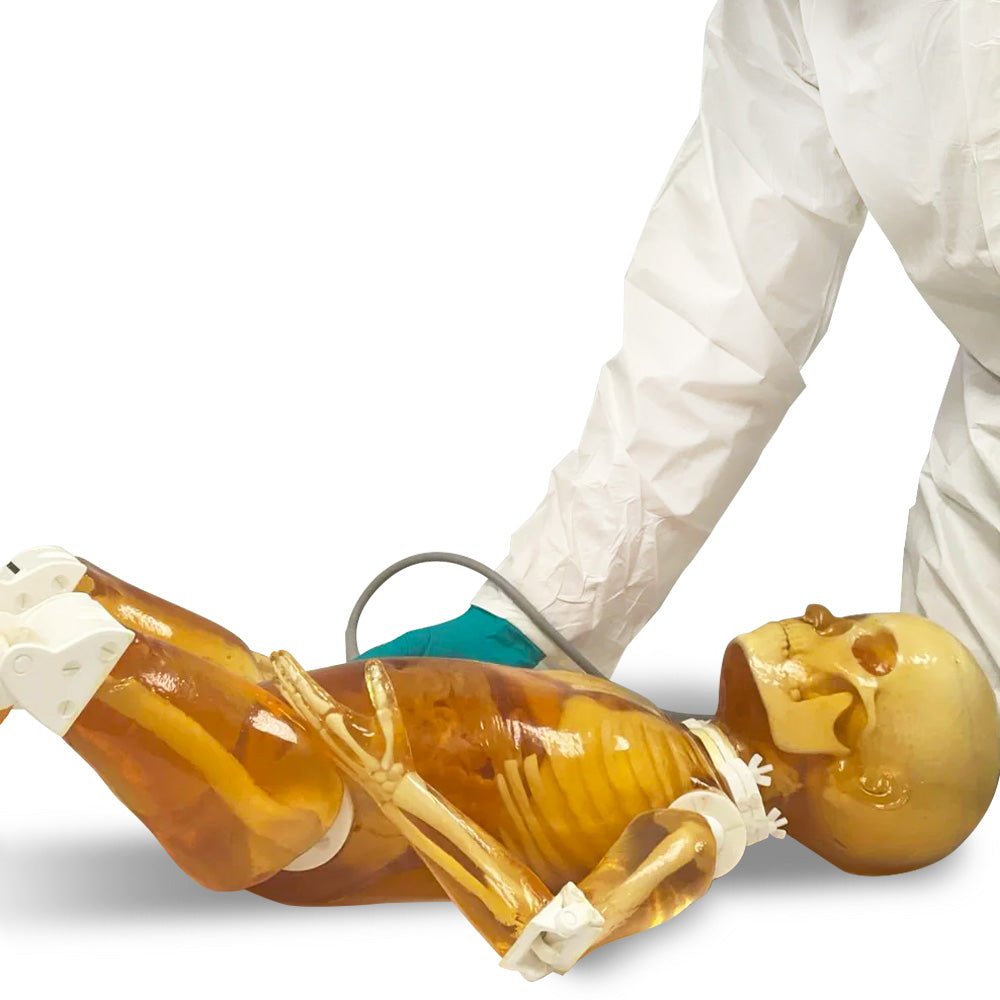

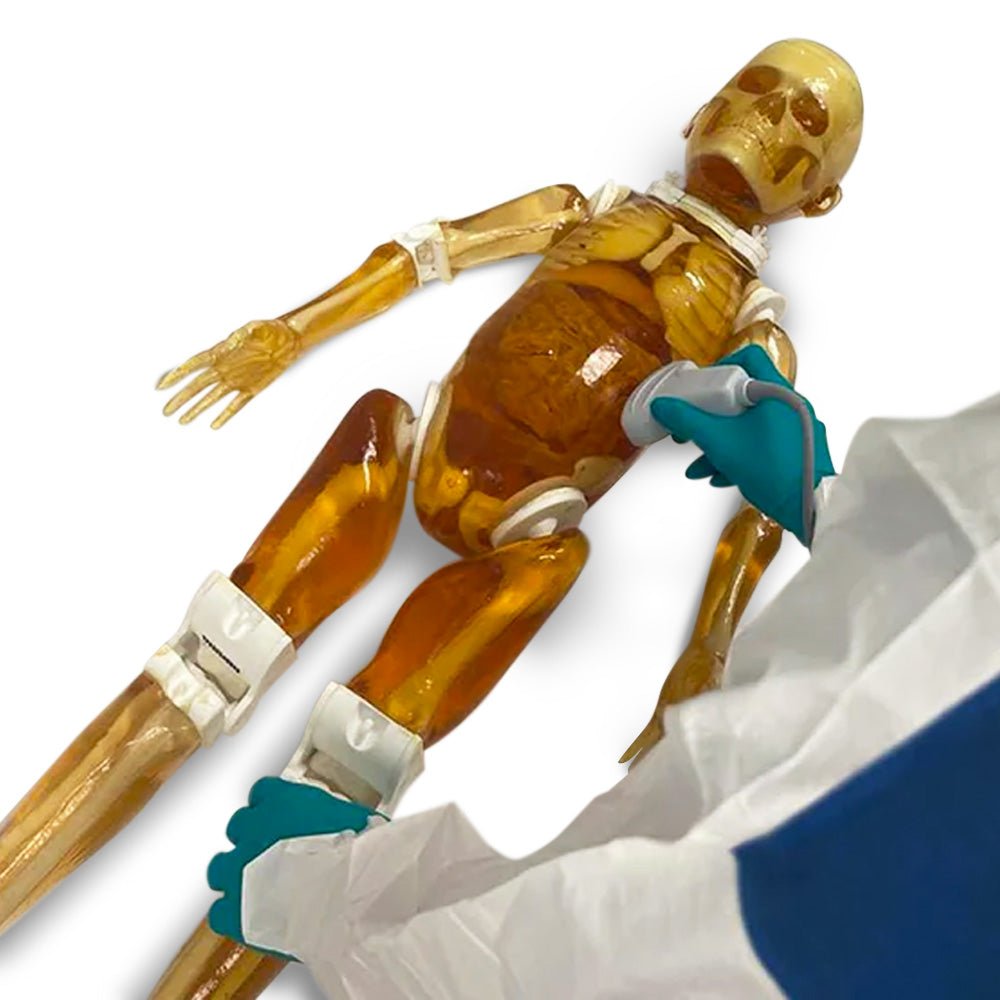

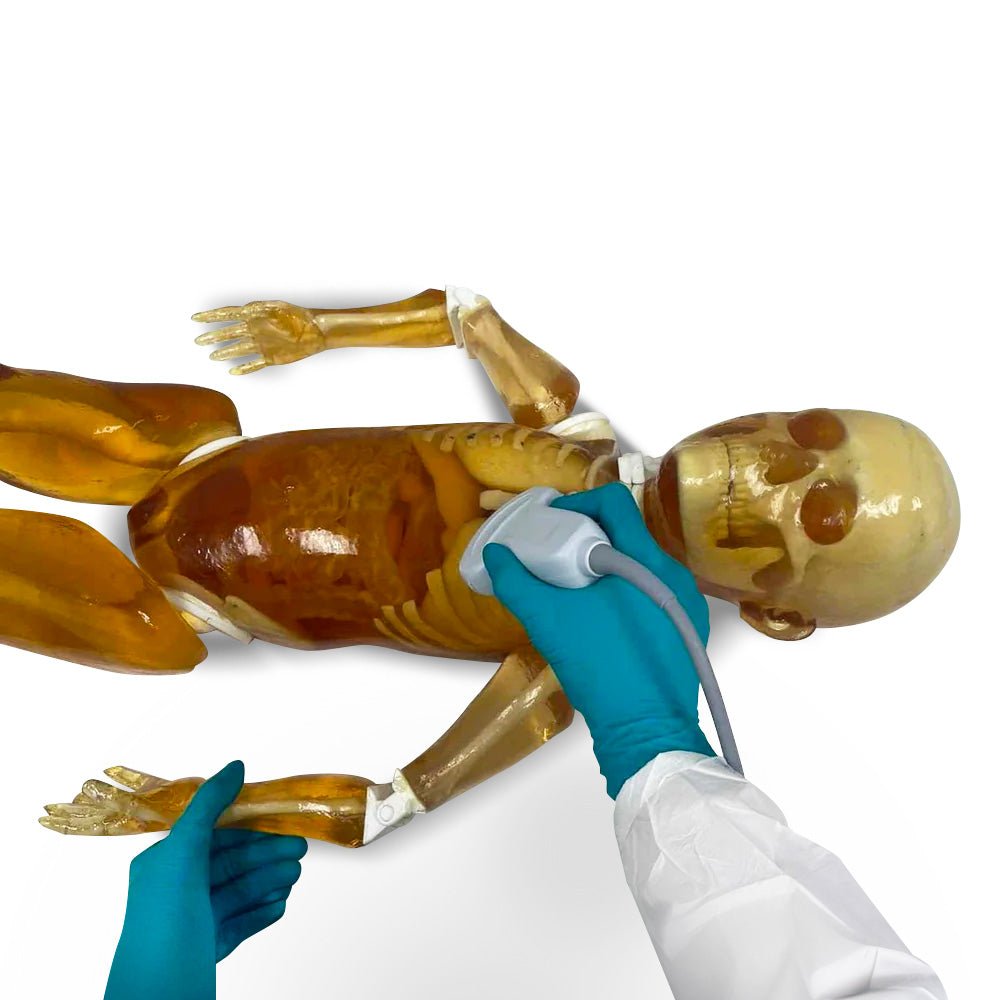

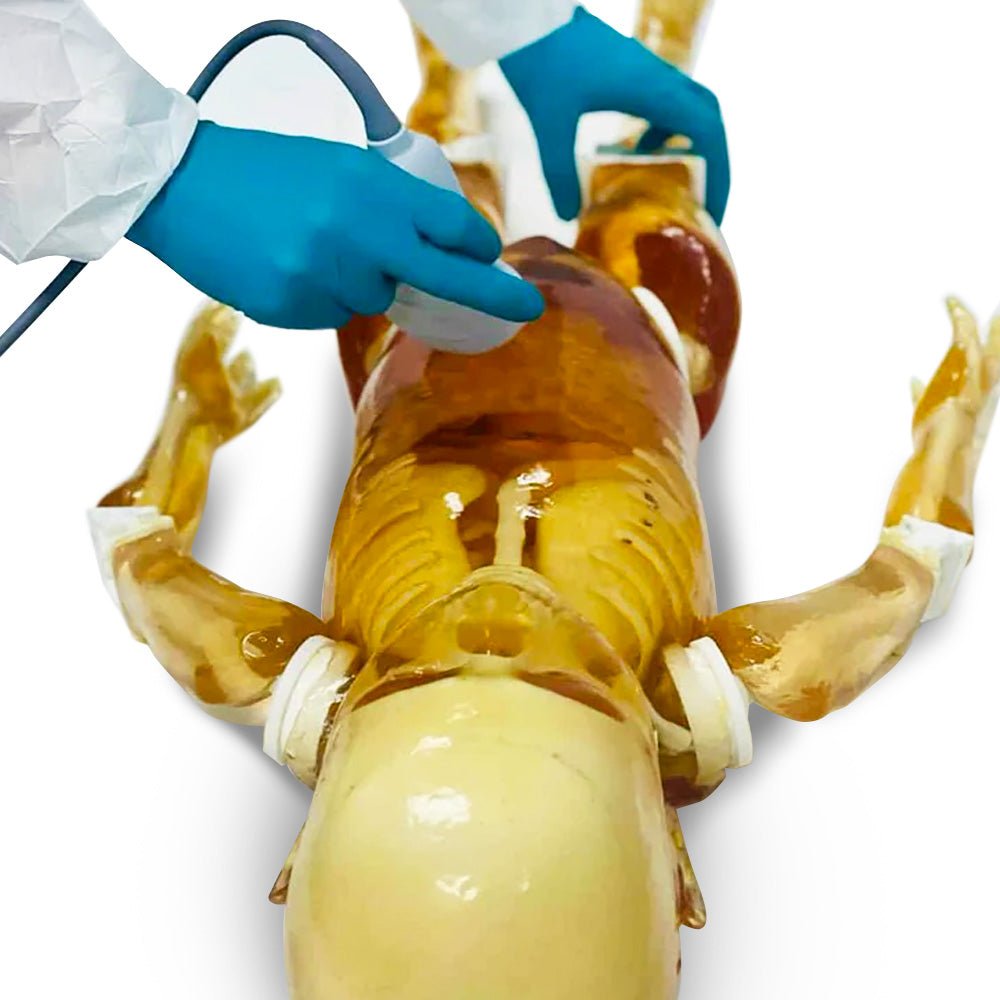

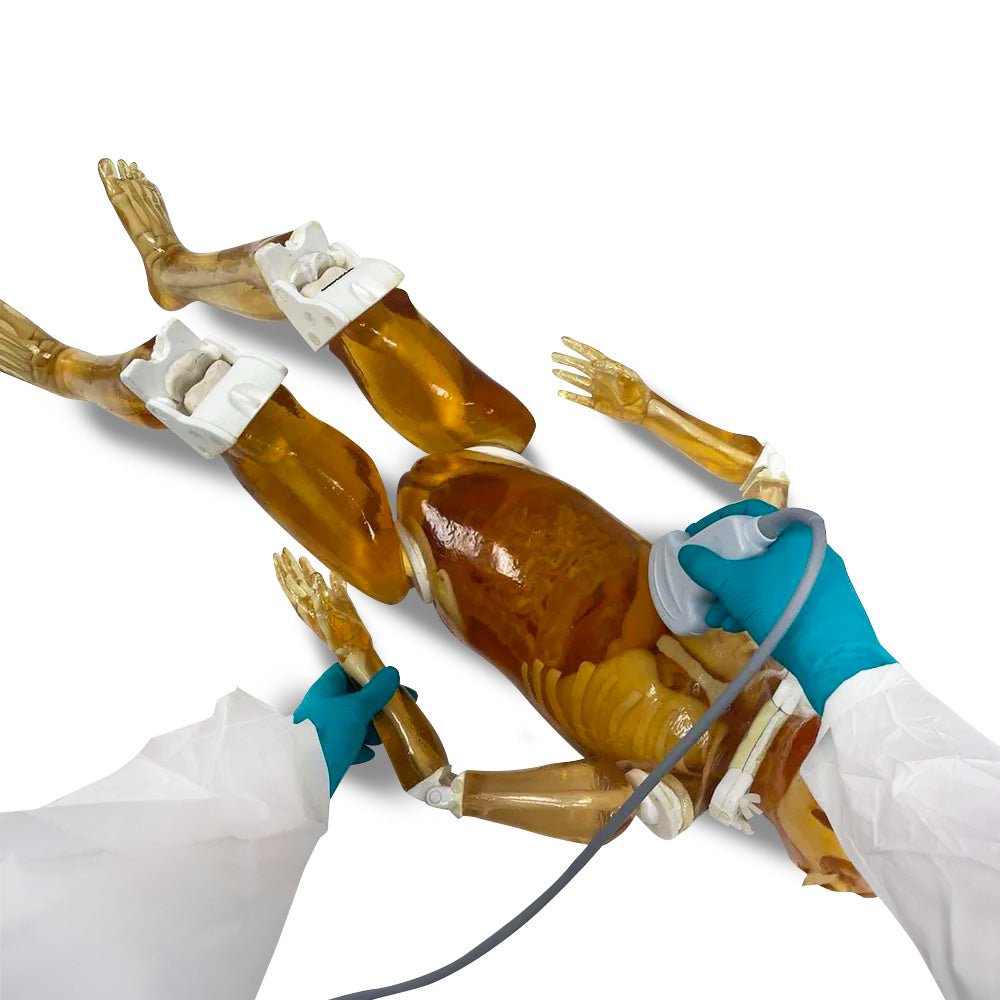

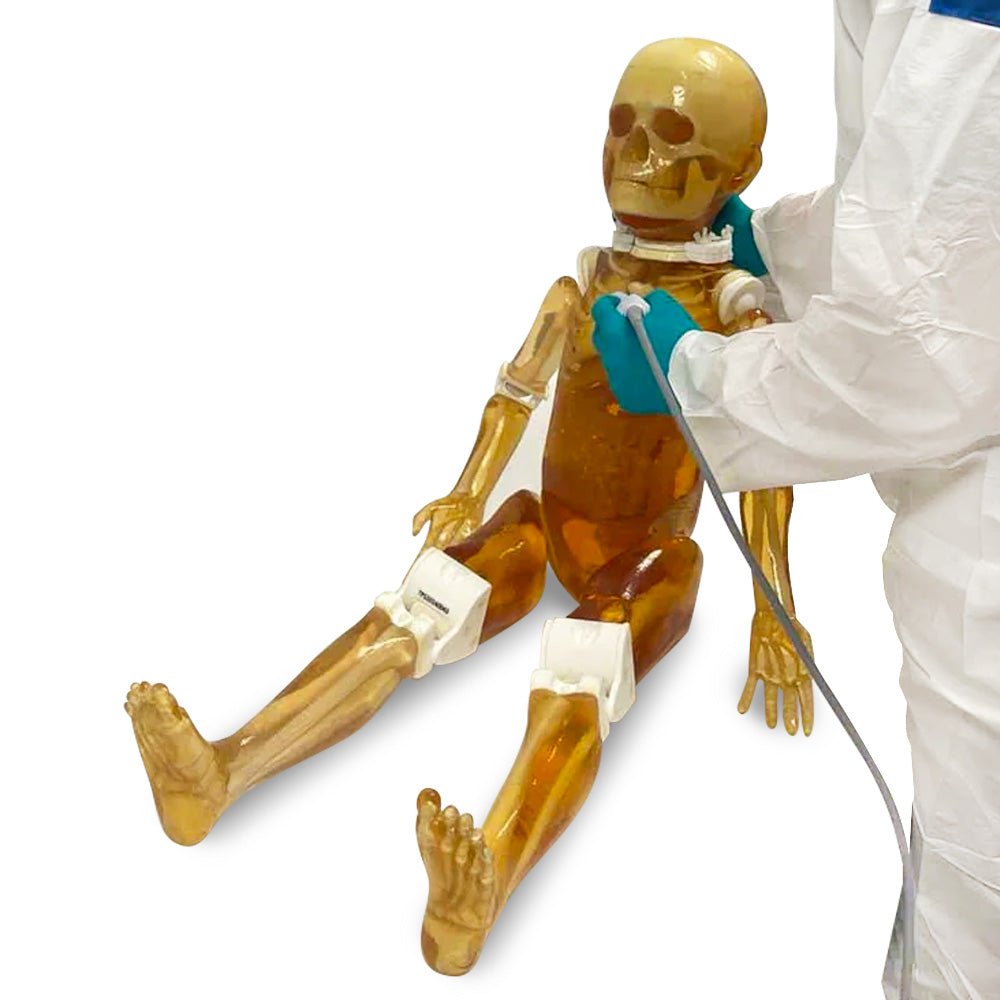

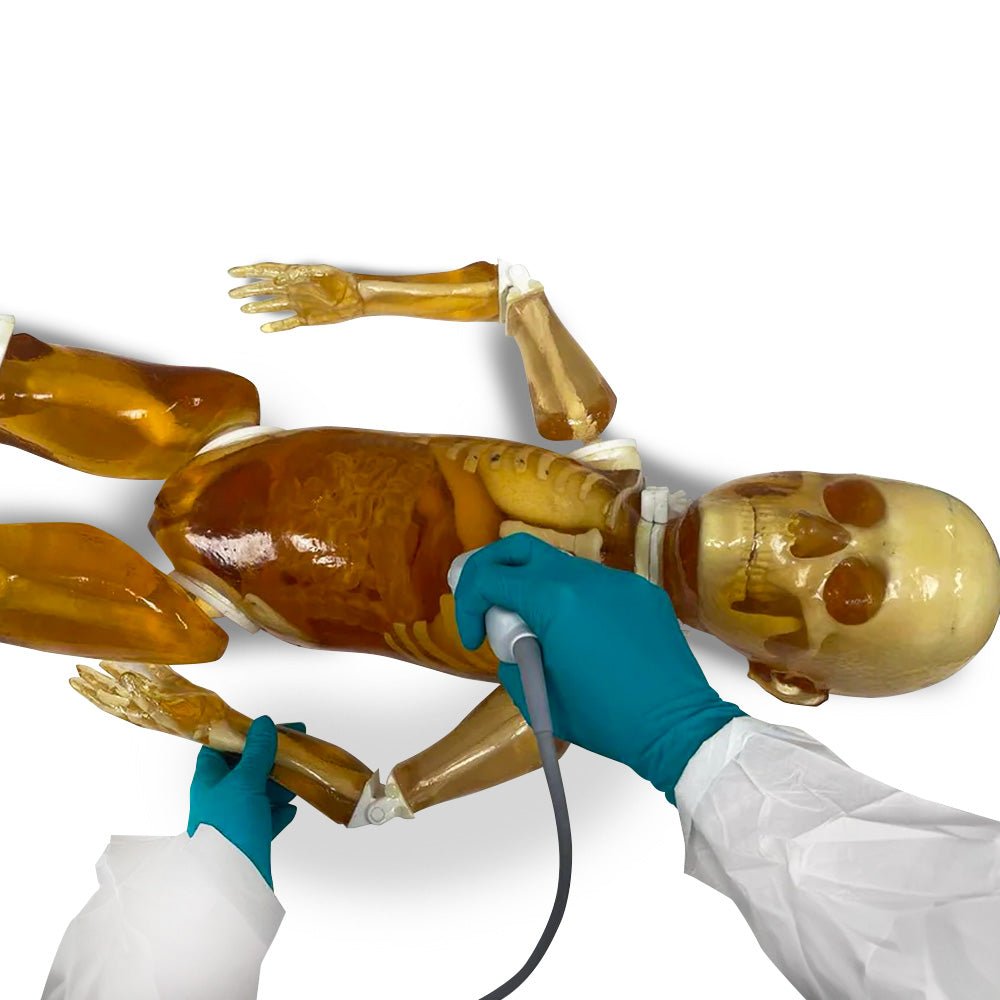

The Pediatric Full Body Phantom is an X-Ray/CT and MRI-compatible training tool for medical professionals. It is designed based on a 4-year-old child model, featuring life-size anatomy with accurate organs and bones divided into 10 body parts. It is used for training patient positioning techniques and visual evaluation for optimal scanning conditions.

4-Year-old Pediatric Full Body Phantom is an X-Ray/CT and MRI-compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools and teaching hospitals to train their radiology students and other medical professionals.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.

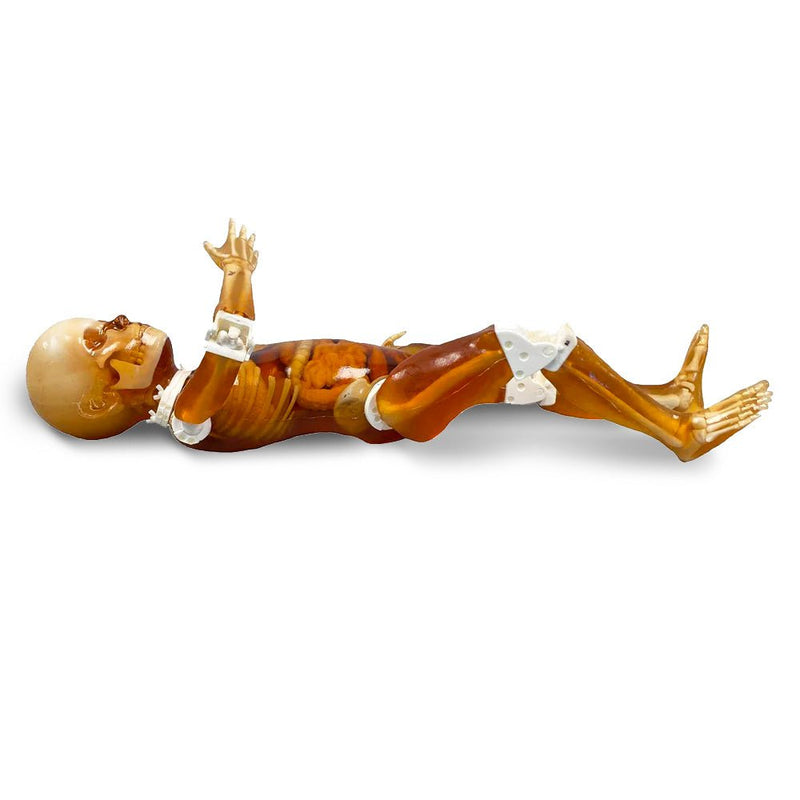

The design of this phantom is based on the model of a 4-year-old child 40″ (102 cm) in height. This phantom is a life-size, full-body anthropomorphic phantom with anatomically correct organs and realistic bones constituted in 10 body parts. The phantom weighs about 20 kg and can be used for visual evaluation in finding out optimal scanning conditions. The skeleton is built from individually cast bones made from a patented epoxy-based composite material.

Anatomy

  • Pediatric Full Body
  • Realistic Body Tissue
  • Shoulders Rotatable 360 Degrees Around and 180 Degrees Sideways
  • Moveable Hip Joints, Knees, and Elbows
  • Detachable Head, Torso, and Limbs
  • Customizable with Different Pathologies (Lesion, Tumor, Infection, etc.)
  • Transparent or Skin-Colored Appearance

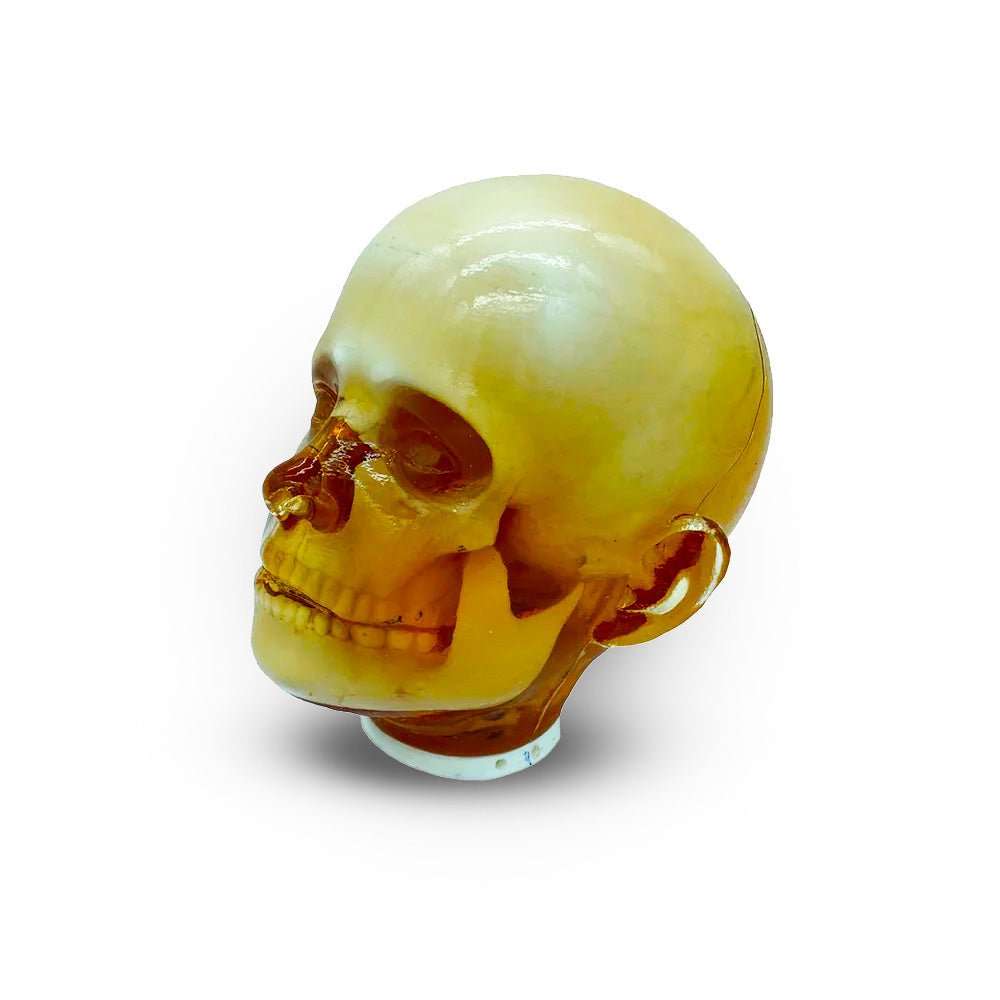

  • Pediatric Human Head
    • Skull
    • Brain
    • Gray Matter

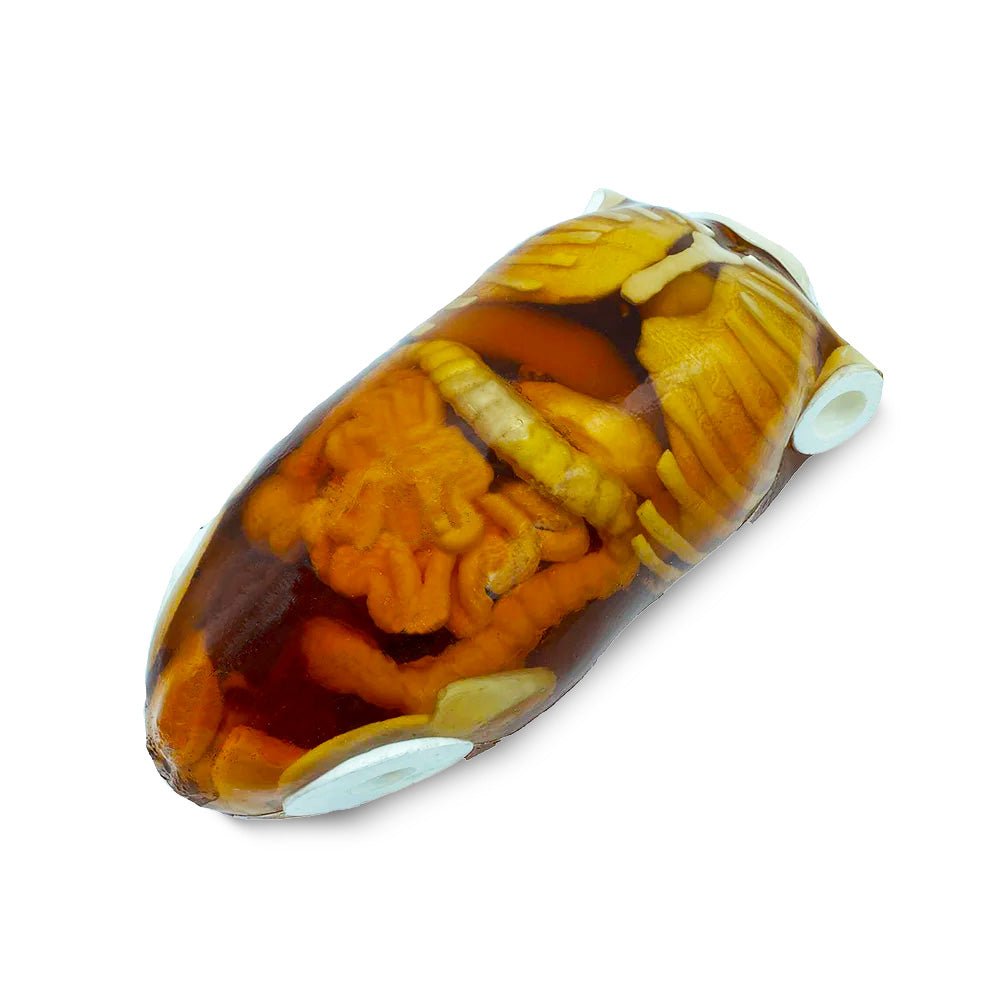

  • Pediatric Human Torso
    • Spine
    • Ribcage
    • Shoulders
    • Clavicles
    • Pelvis
  • Torso Organs
    • Trachea
    • Heart
    • Lungs
    • Diaphragm
    • Liver
    • Gallbladder
    • Stomach
    • Kidneys
    • Spleen
    • Pancreas
    • Large and Small Intestines
    • Bladder
    • Prostate
  • Pediatric Human Arms
    • Humerus
    • Elbow Joints
    • Radius
    • Ulna
    • Wrist
    • Fingers
  • Pediatric Human Legs
    • Femur
    • Knee Joints
    • Tibia
    • Fibula
    • Foot
    • Toes

Design of the Phantom:

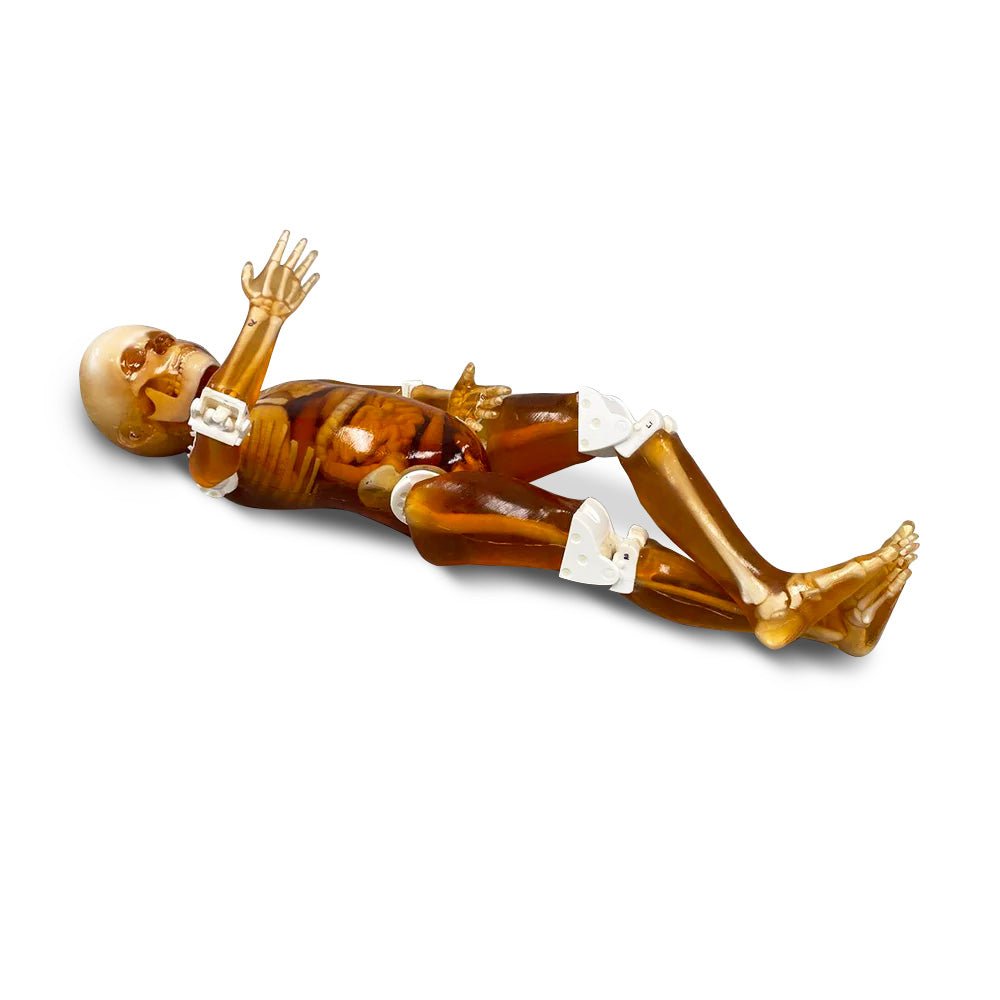

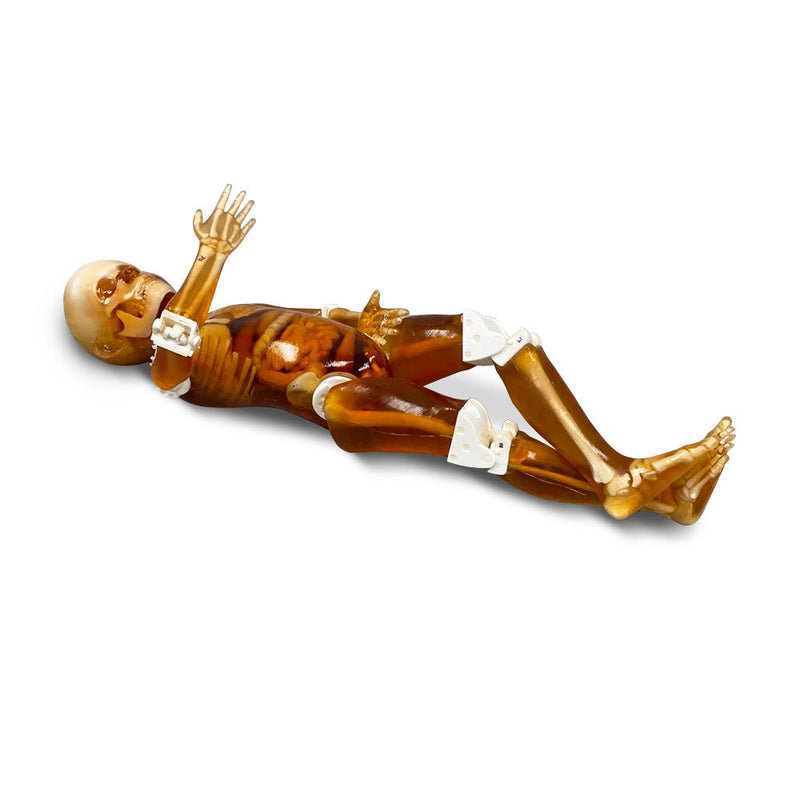

Perspective View

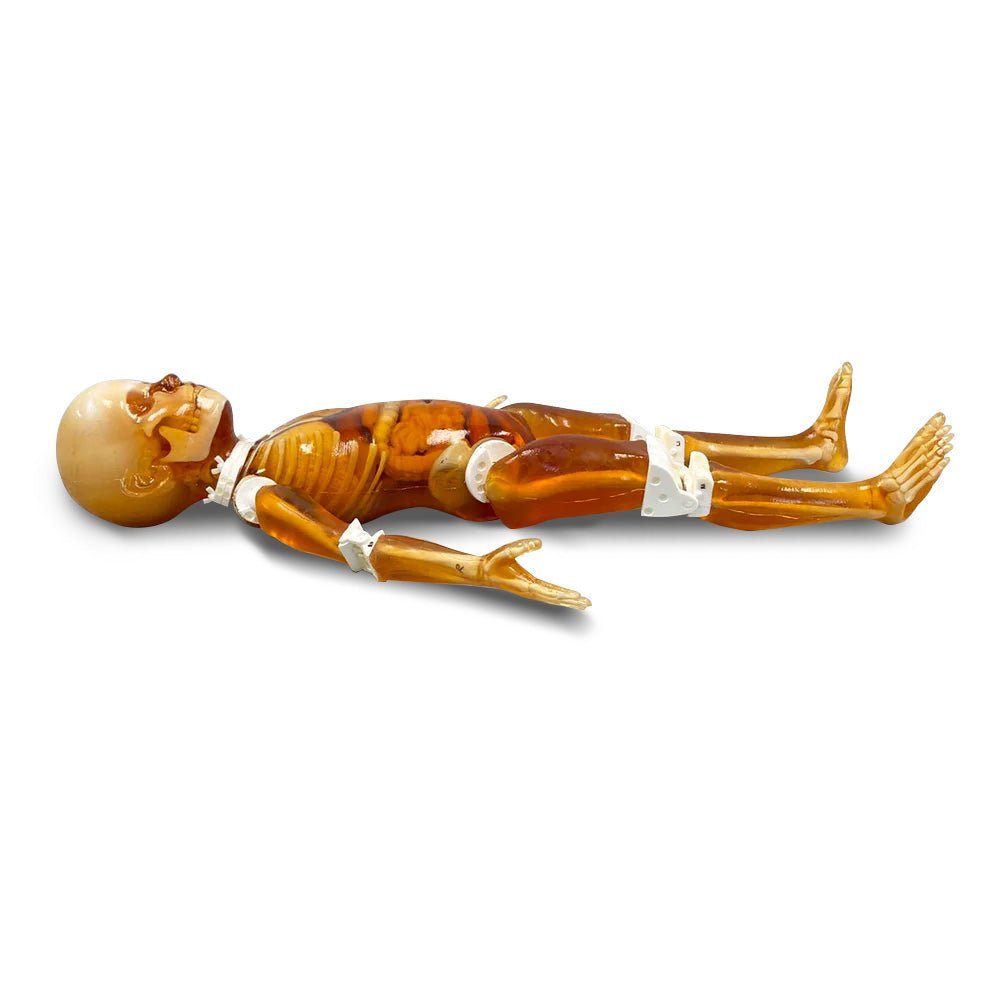

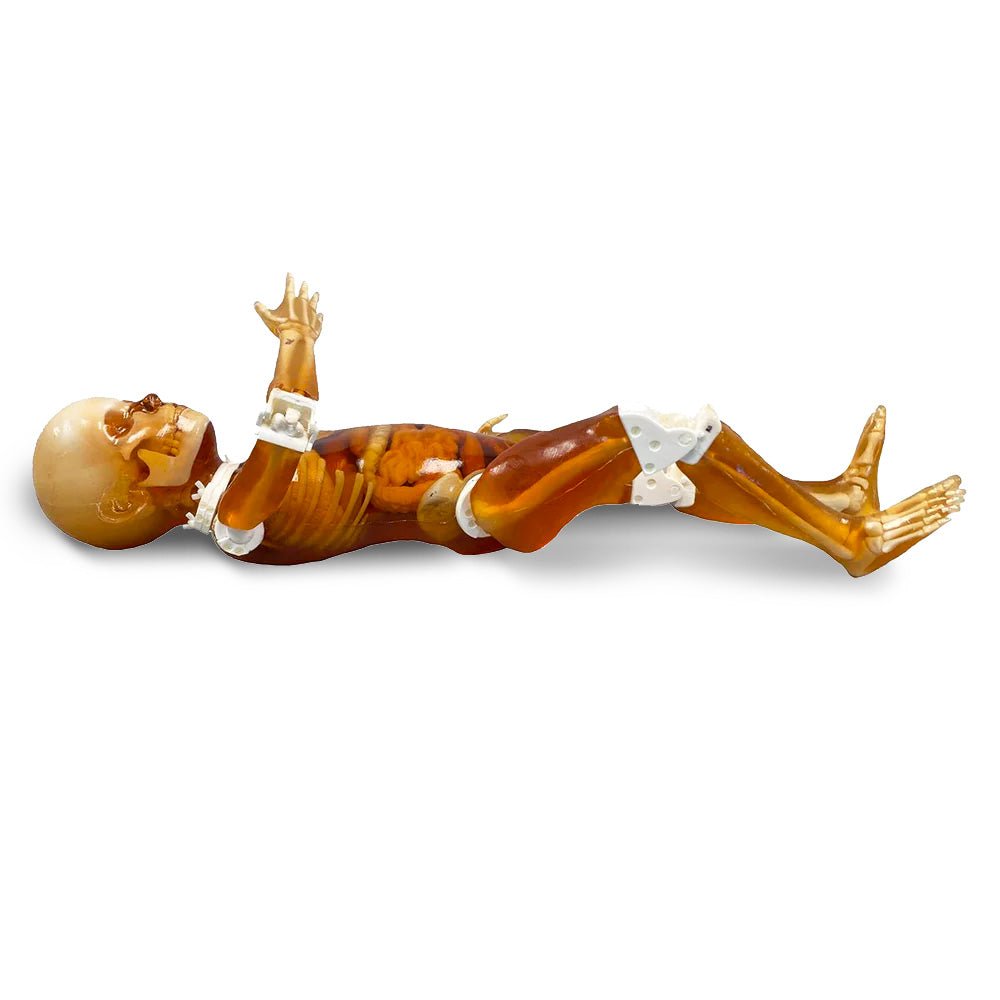

Lateral View
Front View

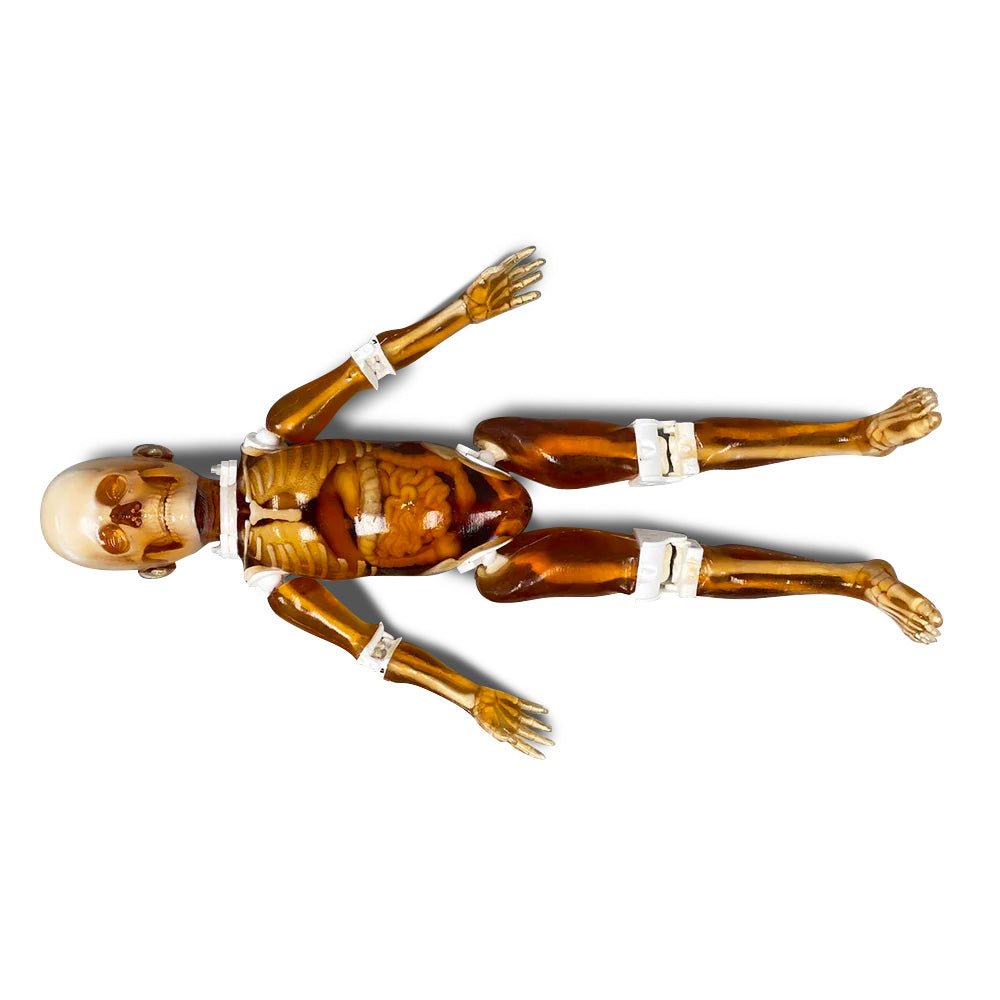

Top View
Your order will include:
  • Pediatric Full Body Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Assembly Instructions
Product Dimensions and Weight:
  • Size: 40 x 8 x 27 In (approx.)
  • Weight: 40 Lbs (approx.)
Product Dimensions and Weight with Hard Carry Case::
  • Size: 47 x 26 x 18 In (approx.)
  • Weight: 122.2 Lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

X-Ray Scans:

Note: These X-Ray images were taken from our Pediatric Full Human Body Phantom for X-Ray, CT Scan and Ultrasound [TPs-FB-P02].They were taken using a Control-X machine and a VXvue (DR plate).

Download a PDF with product details

Pediatric Full Human Body Phantom for X-Ray CT & MRI Training

Product Dimensions and Weight:
  • Size: 40 x 8 x 27 In (approx.)
  • Weight: 40 Lbs (approx.)
Product Dimensions and Weight with Hard Carry Case::
  • Size: 47 x 26 x 18 In (approx.)
  • Weight: 122.2 Lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Anatomy Projection kVp mAs
Ribs/ Chest AP/PA 80 8
Full view/ Abdomen AP 78 18
Cervical Spine Lateral 80 8
AP/ Oblique 78 6.3
Thoracic Spine AP 74 12.5
Lateral 80 20
Lumbar Spine AP 78 8
Lateral 80 10
Femur Proximal AP/ Lateral 76 6.3
Tib/Fib AP/Lateral 68 2
Foot AP/ Oblique 58 1.6
Lateral 60 1.6
Humerus AP 80 6.3
Hand/ Wrist PA/ Oblique 60 1.8
Skull AP 88 16
Lateral 78 12.5
Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.5 ± 0.2 40 55 NO/LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Brain Matter  1400 ± 10 0.99 1.0 ± 0.2 20 70 YES
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (Average)
1 Body Tissue -25
2 Brain Tissue -25
3 Trabecular Bone 800
4 Cortical Bone 1300
5 Aorta 40
6 Vena Cava 40
7 Trachea 80 (Tissue Part), -1000 (Air Filled Part)
8 Pancreas 110
9 Spleen 110
10 Kidneys 110
11 Bladder 35
12 Rectum Wall 100
13 Sigmoid Colon Wall 100
14 Heart 40
15 Liver 110
16 Gallbladder 35
